Product no. M-2879

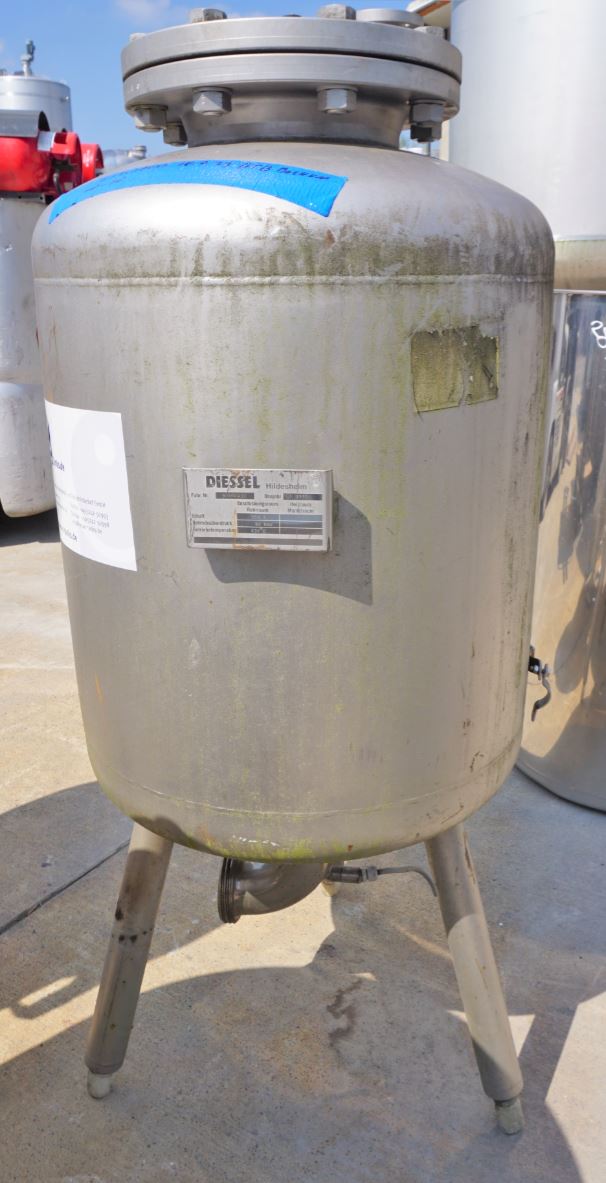

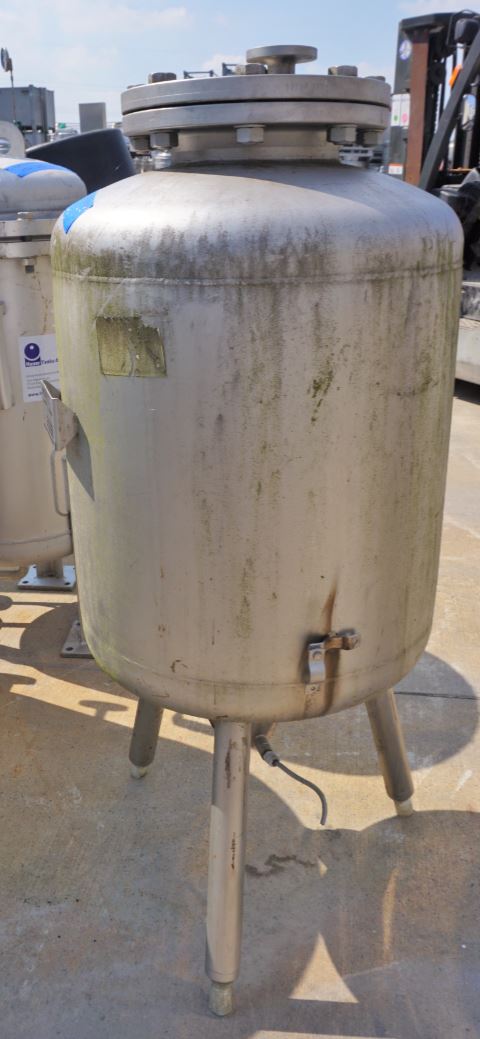

Pressure tank 162 liters made of V2A single-walled, used, standing

EUR 1.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 162.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 162 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 162.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 162,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1993

  • Manufacturer

  • Diessel

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 530 mm

  • Cyl. height

  • 500 mm

  • Total height

  • 1.300 mm

Design

  • Weight approx.

  • 100,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 10,00 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Nozzles/connectors in shell

  • 1xDN80 (piece)

  • Nozzles/connectors in head

  • 1xDN200 (piece)

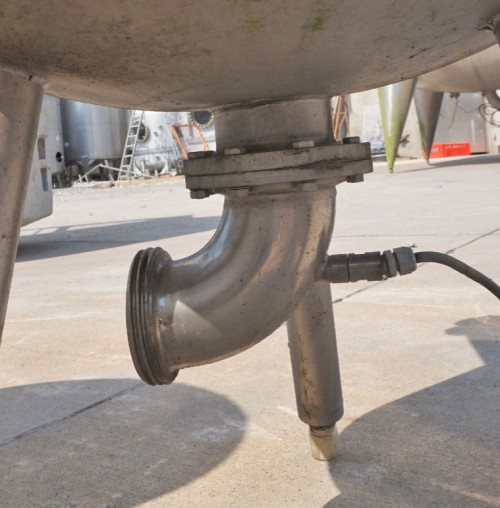

  • Outlet nozzle

  • DN 80

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

This product is suitable for use as:

Foodstuffs: Water tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
