Product no. M-2271

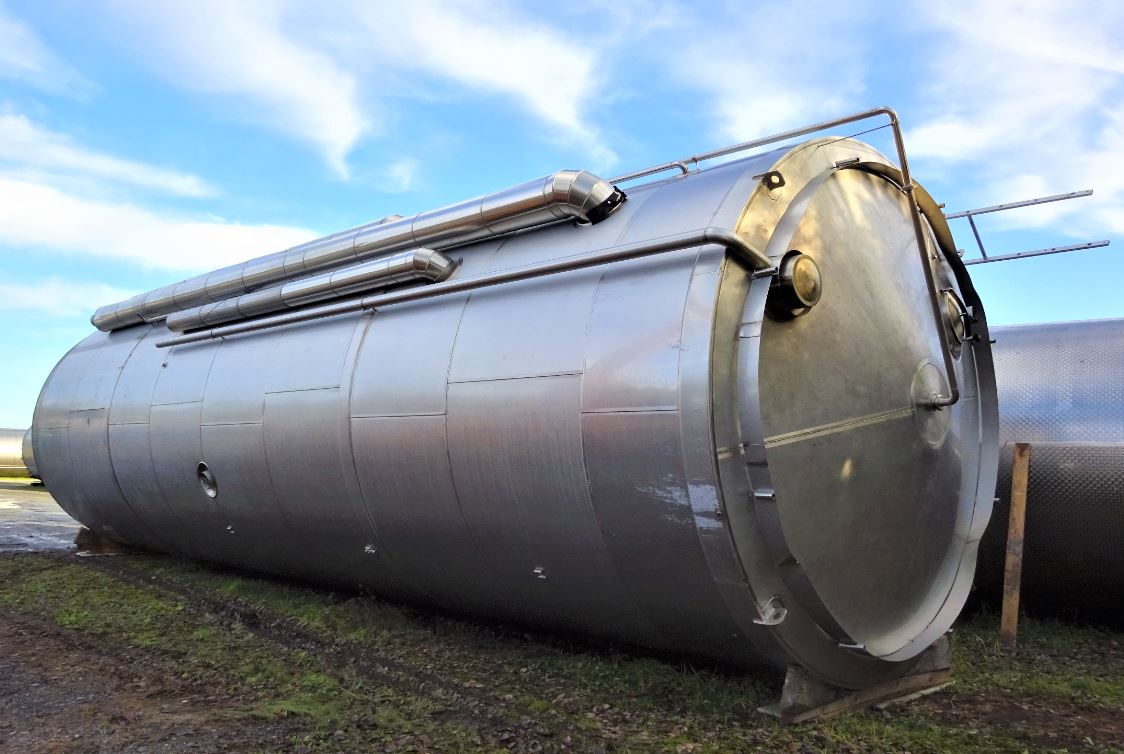

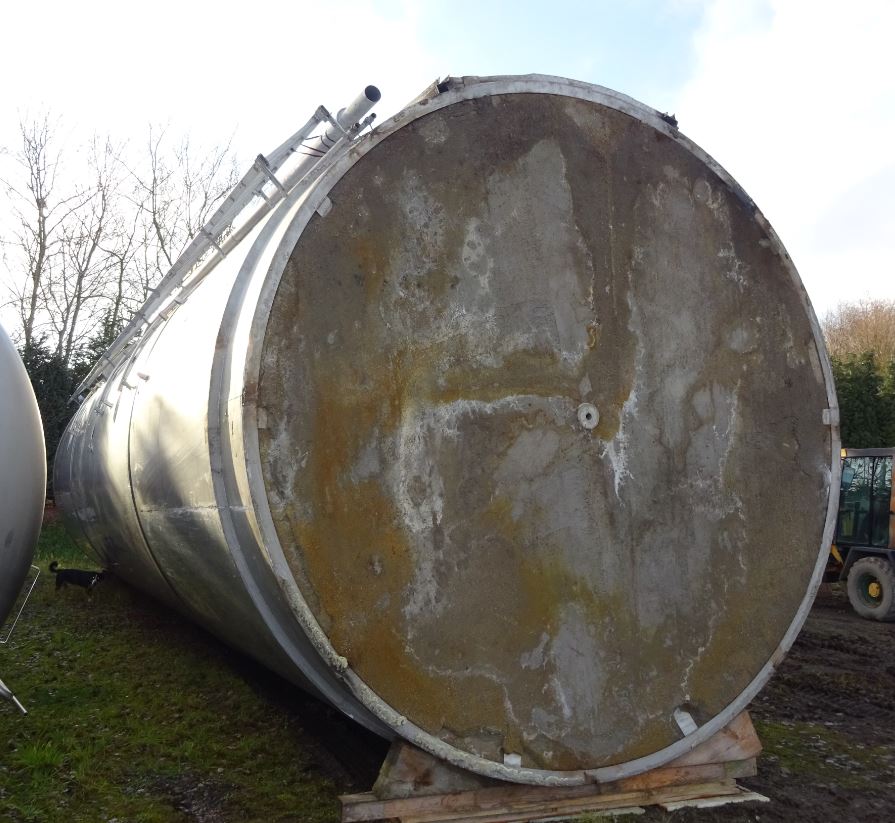

5-Kammer Container 95.000 liters aus V2a, isolated, used, standing
EUR 31.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 95,000.00 litres
Product description
5-Kammer Container 95.000 liters aus V2a, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 95,000.00 litres. The diameter inside includes 3,900 mm. 5-Kammer Container 95.000 liters aus V2a, isolated, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Cleaning/CIP,General
- Volume approx.
- 95.000,00 litres
- Chamber volume 1
- 10000 litres
- Chamber volume 2
- 33000 litres
- Chamber volume 3
- 3 x 25000 litres
- divided into chambers
- 5 litres
- Structure
- Standing
- Year of manufacture
- 1996
- Manufacturer
- ABAB
- Condition
- Used
Dimensions approx.
- Internal diameter
- 3.900 mm
- External diameter
- 4.000 mm
- Cyl. height
- 12.930 mm
- Total height
- 14.740 mm
- Wall thickness of product chamber head
- 4 mm
- Wall thickness of product chamber shell
- 4 mm
- Wall thickness of product chamber floor
- 5 mm
Design
- Weight approx.
- 26.000,00 kg
- Weight per unit volume approx.
- 1.000,00 kg/m³
- Insulation
- yes
- Insulated area
- Complete
- Insulation cladding
- Fully welded stainless steel
- Interior surface
- Smoothed
- Exterior surface
- Smoothed
- Floor type
- Flat bottom with slope towards outlet
- Head design
- Conical bottom
Supports
- Supports
- Concrete support skirt
- Number of feet
- 1 (piece)
Fixtures and fittings
- Manway 1 size
- 350x450 DN mm
- Manway 2 size
- 350x450 DN mm
- Manway 3 size
- 350x450 DN mm
- Manway position
- In shell
- Outlet nozzle
- 200
- Fixtures and fittings
- Lifting lugs
- Additional fixtures and fittings
- Air vent
- Nameplate
Technical documentation
- Technical documentation
- Designation
Other
- Note
- Anhaftungen im Produktraum
- Last usage
- CIP/cleaning system
This product is suitable for use as:
Foodstuffs:
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, CIP tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, CIP tank,
