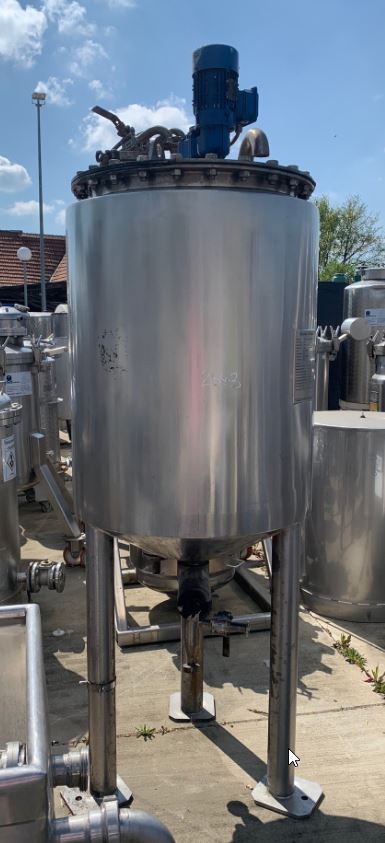

Product no. M-2343

Container 350 liters made of V4A isolated, temperature-controllable, standing

EUR 3.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 350.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 350 liters made of V4A isolated, temperature-controllable consists of the material 1.4571(AISI316) V4A. The volume is approx. 350.00 litres.  Container 350 liters made of V4A isolated, temperature-controllable was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering,

General

  • Volume approx.

  • 350,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2018

  • Manufacturer

  • Bibbys of Halifax

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 860 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 930 mm

  • Total height

  • 2.430 mm

Design

  • Weight approx.

  • 450,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Removable

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating over-pressure

  • 0,00 bar

  • Product chamber operating under-pressure

  • 0 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • -10 / 100 °C

  • Temperature control system operating pressure/pipe chamber

  • 4,5 bar

  • Temperature control system operating temperature/pipe chamber

  • -10 / 100 °C

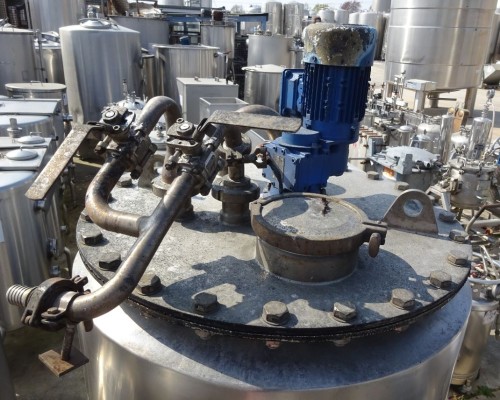

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

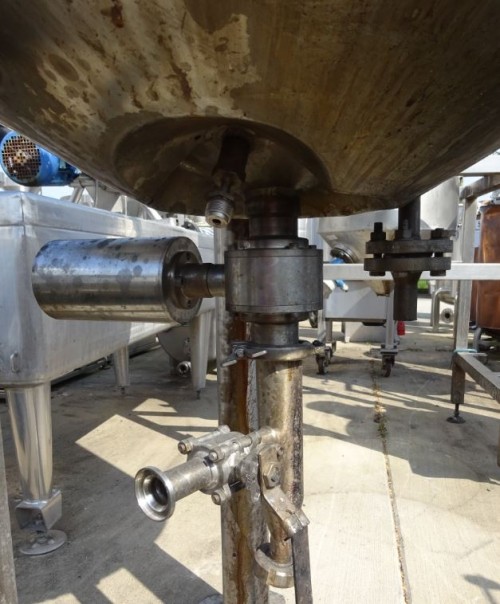

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

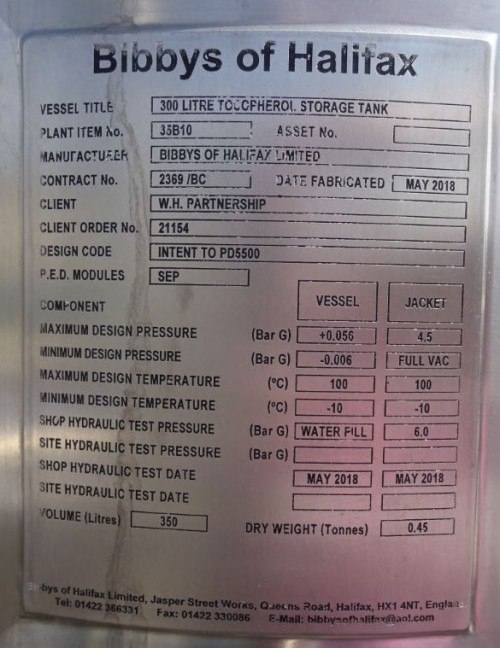

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Process tank, Boiling tank,

Agriculture: Storage tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Process tank, Cooling tank,
