Product no. M-2274

Pressure tank 27.600 liters made of V4A, isolated, standing

EUR 26.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 27,600.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

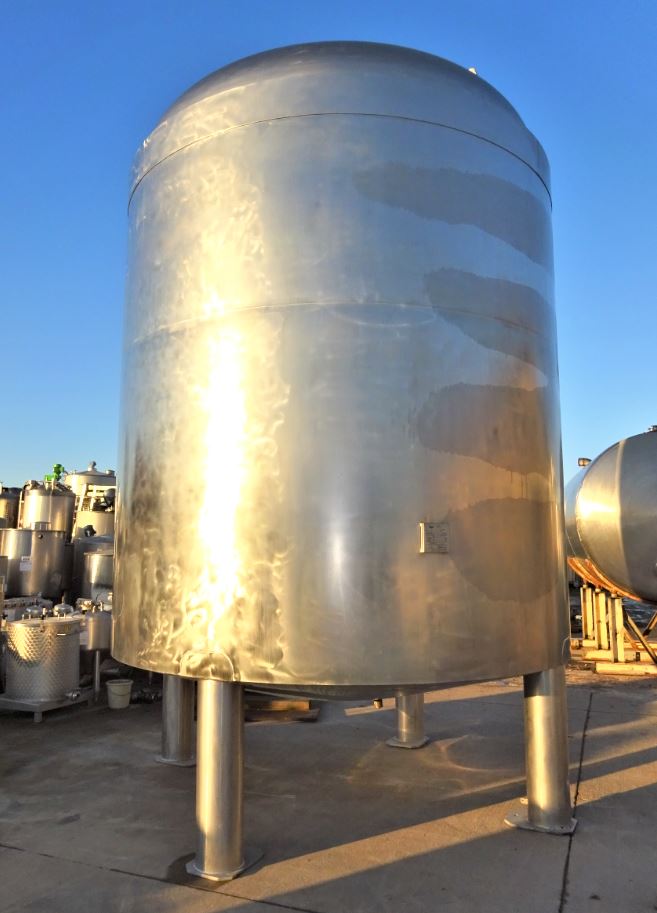

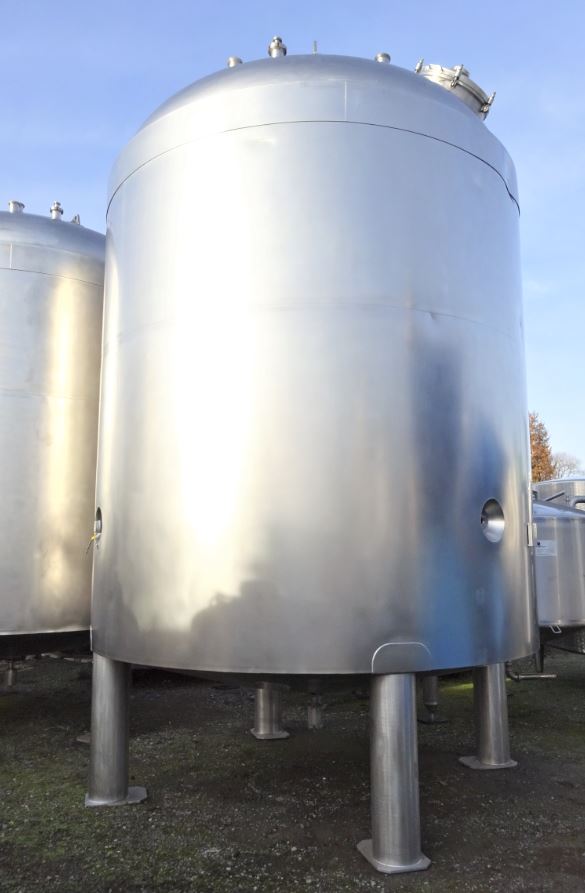

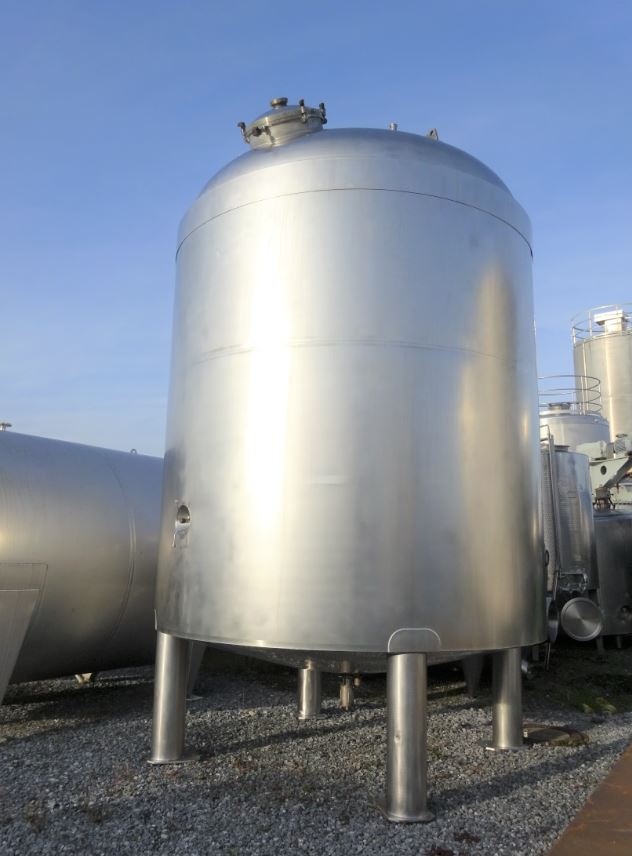

Pressure tank 27.600 liters made of V4A, isolated consists of the material 1.4571(AISI316) V4A. The volume is approx. 27,600.00 litres. The diameter inside includes 3,040 mm.  Pressure tank 27.600 liters made of V4A, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 27.600,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2017

  • Manufacturer

  • Gpi, NL-Lopik

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.040 mm

  • External diameter

  • 3.250 mm

  • Cyl. height

  • 3.350 mm

  • Total height

  • 5.200 mm

Design

  • Weight approx.

  • 3.900,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

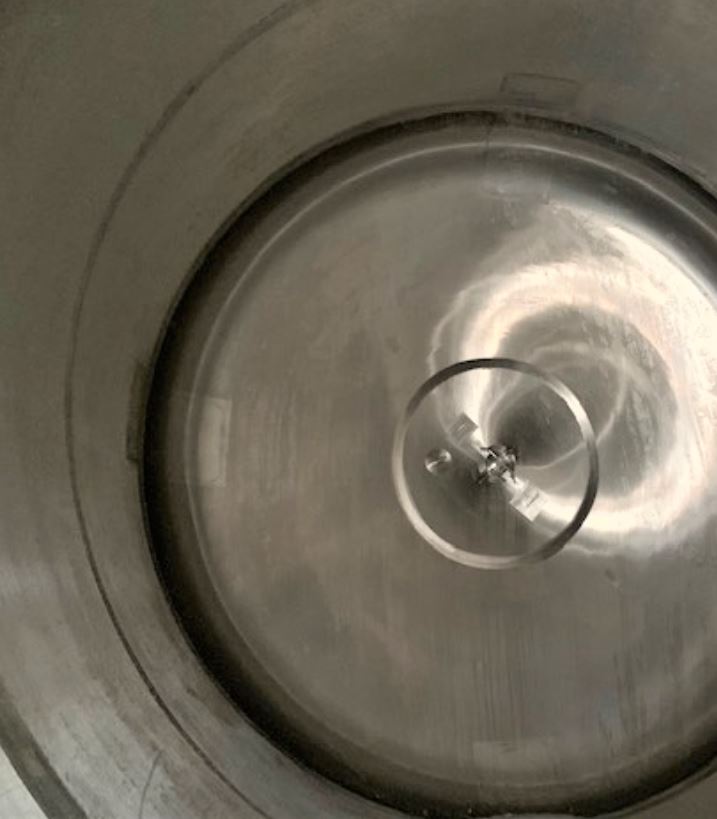

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

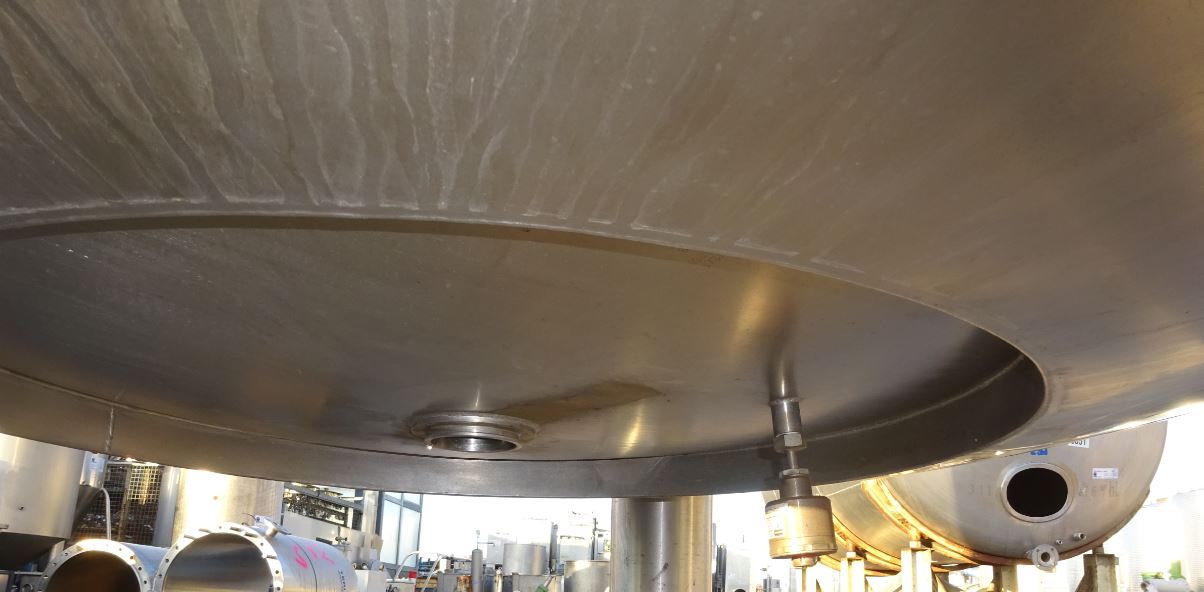

  • Floor type

  • Torispherical bottom

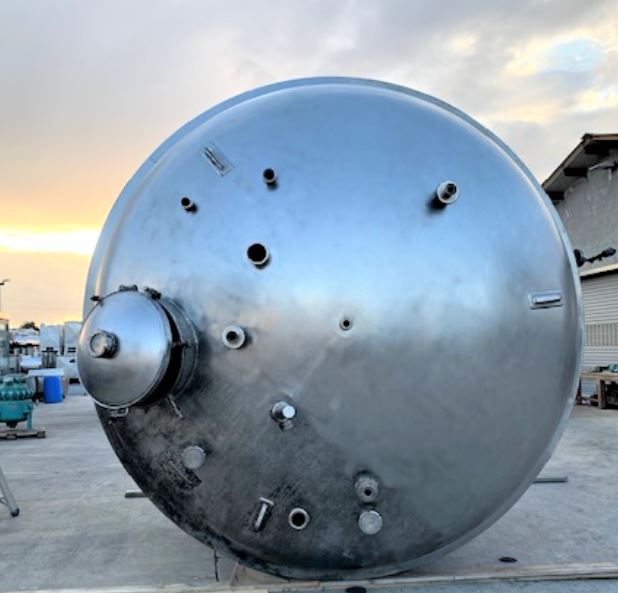

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 2 bar

  • Product chamber operating under-pressure

  • -1 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Sample taking

  • Additional fixtures and fittings

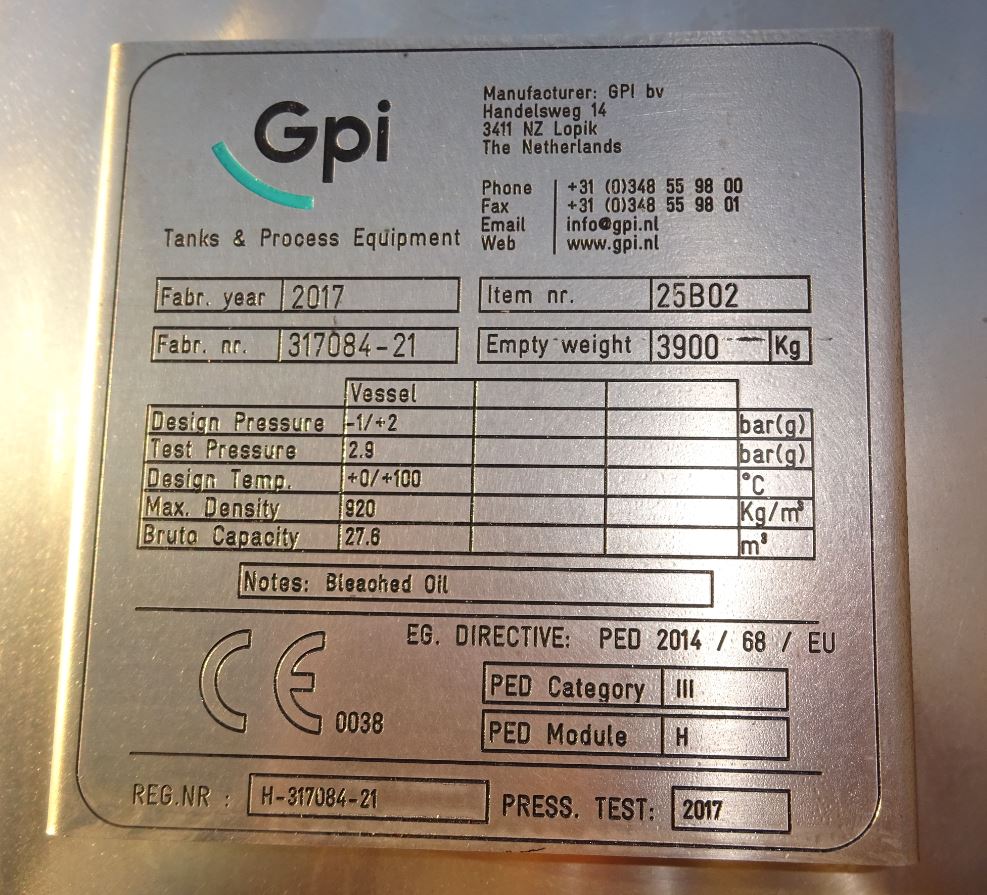

  • Nameplate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank, Hot water tank, Thermal buffer,
