Product no. M-1477

Container 1.100 liters made of V4A, used, temperature-controllable, isolated, standing

EUR 7.600,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,100.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 1.100 liters made of V4A, used, temperature-controllable, isolated consists of the material 1.4571(AISI316) V4A. The volume is approx. 1,100.00 litres. The diameter inside includes 1,200 mm.  Container 1.100 liters made of V4A, used, temperature-controllable, isolated was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Tempering, Mixing, Processes, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 1.100,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1994

  • Manufacturer

  • Rudolf Rauhaus Bielefeld

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.200 mm

  • External diameter

  • 1.396 mm

  • Cyl. height

  • 1.200 mm

  • Foot height

  • 550 mm

  • Outlet height

  • 555 mm

  • Total height

  • 2.600 mm

  • Wall thickness of product chamber head

  • 2 mm

  • Wall thickness of product chamber shell

  • 6 mm

  • Wall thickness of product chamber floor

  • 6 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Split hinged lid

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 225 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating pressure

  • 2 bar

  • Operating temperature

  • 225 °C

  • Heating medium

  • Heat exchanger oil

  • Temperature control system/pipe chamber capacity

  • 305 litres

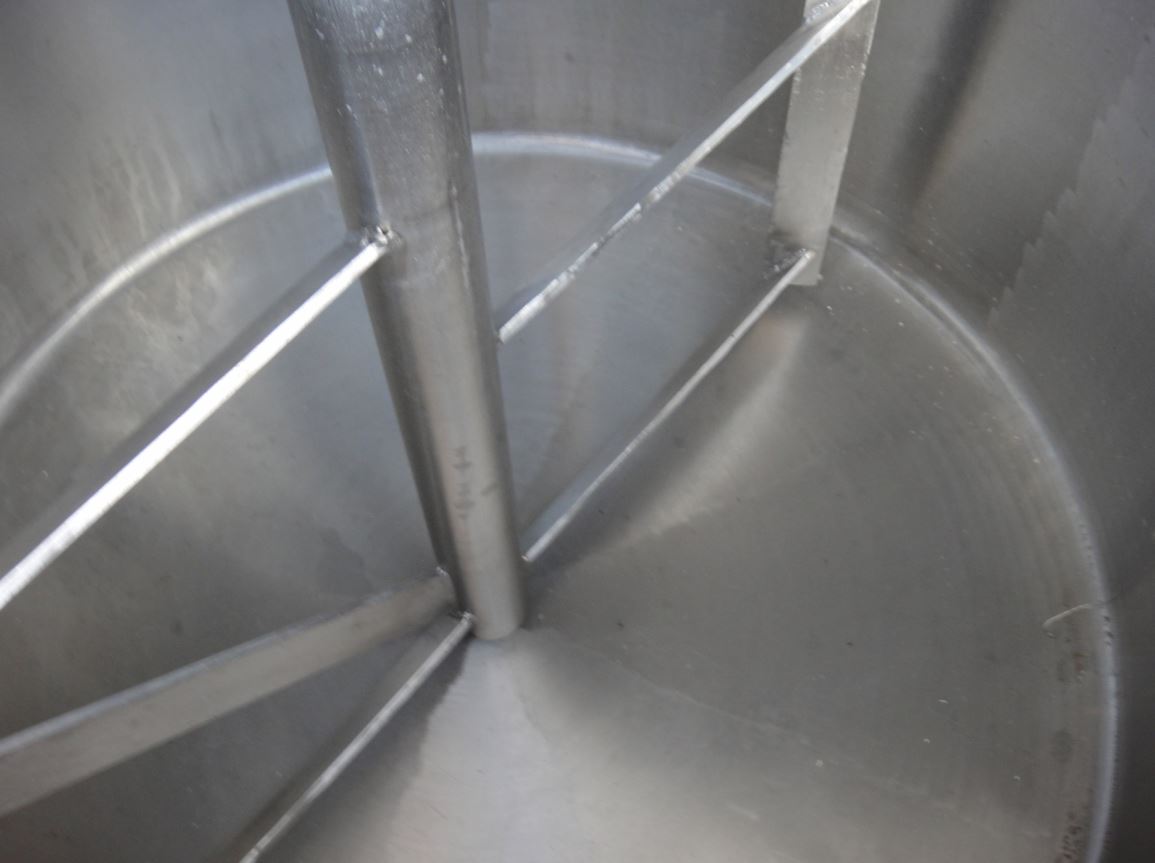

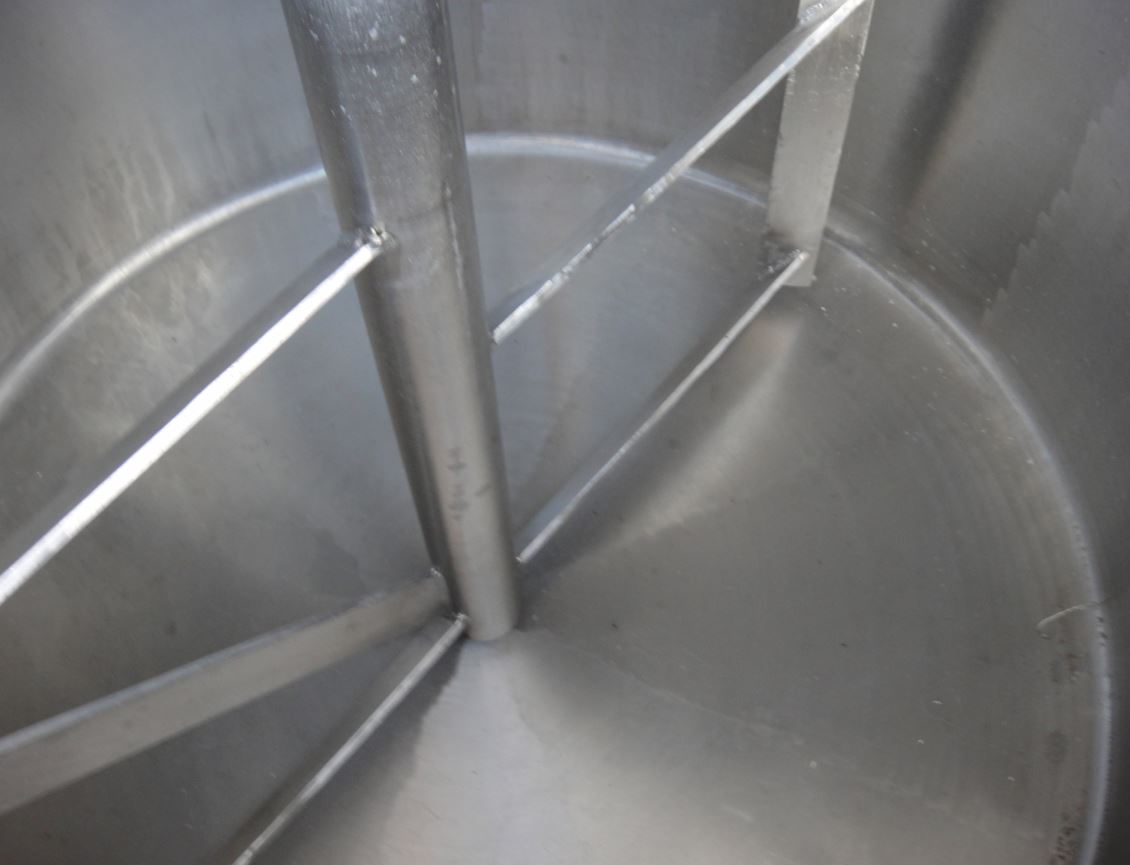

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

    • Agitator position

    • Head central

    Supports

    • Supports

    • Stainless steel feet

    • Number of feet

    • 3 (piece)

    Fixtures and fittings

    • Outlet nozzle

    • 50

    • Additional fixtures and fittings

    • Nameplate

    Technical documentation

    • Technical documentation

    • Designation

    • Pressure test certificate

    Other

    • Last usage

    • Cosmetics

    This product is suitable for use as:

    Foodstuffs:

    Agriculture: Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Hot water tank, Cooling tank,

    Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Reactor/reaction tank, Cooling tank,
