Product no. M-1899

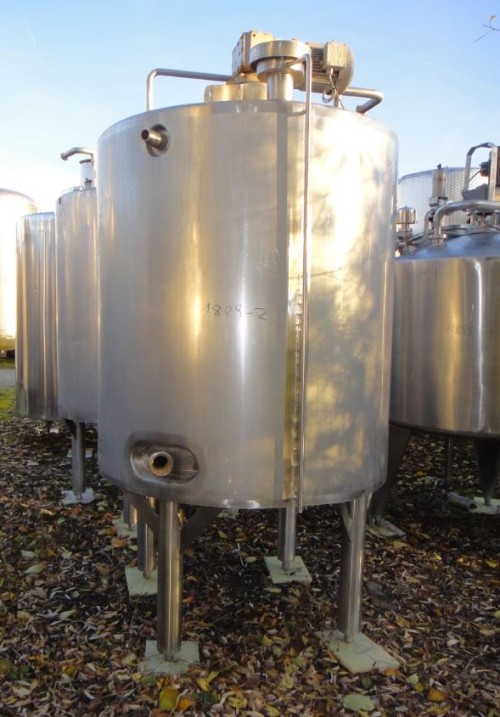

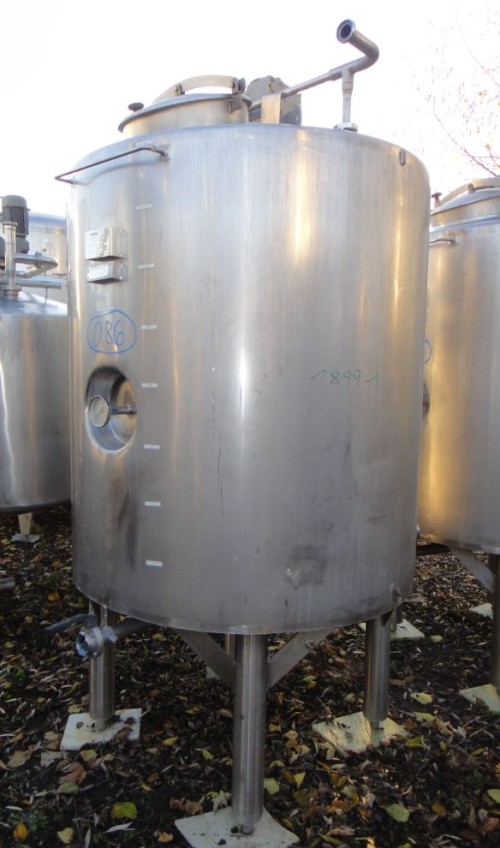

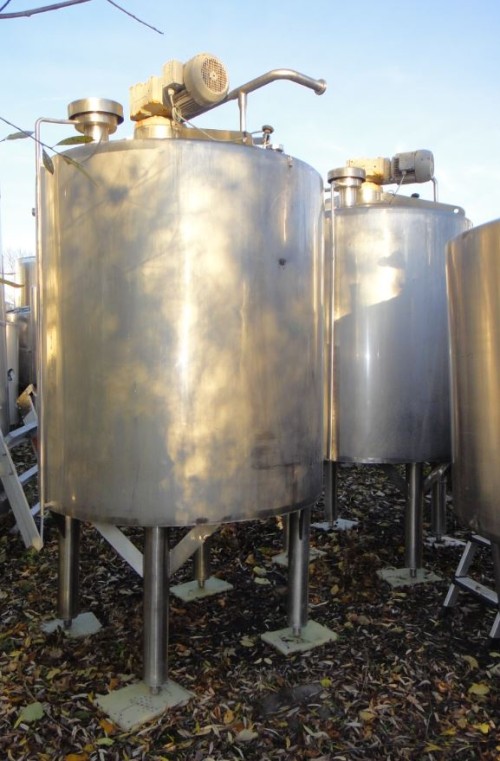

Container 1.500 liters made of V2A, used, temperature-controllable, isolated, standing

EUR 6.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 1.500 liters made of V2A, used, temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,500.00 litres. The diameter inside includes 1,200 mm.  Container 1.500 liters made of V2A, used, temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing, Processes,

General

  • Volume approx.

  • 1.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1988

  • Manufacturer

  • Holag

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.200 mm

  • External diameter

  • 1.354 mm

  • Cyl. height

  • 1.300 mm

  • Foot height

  • 700 mm

  • Outlet height

  • 700 mm

  • Total height

  • 2.670 mm

  • Wall thickness of product chamber head

  • 2,5 mm

  • Wall thickness of product chamber shell

  • 2,5 mm

  • Wall thickness of product chamber floor

  • 3 mm

Design

  • Weight approx.

  • 750,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 100,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating temperature

  • 100 °C

  • Temperature control system operating temperature/pipe chamber

  • 100 °C

  • Temperature control system/pipe chamber capacity

  • 185 litres

Agitator

  • Agitator quantity

  • 1 (piece)

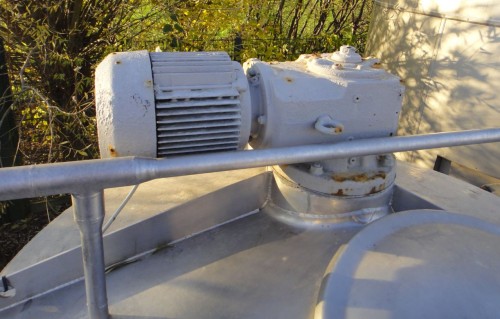

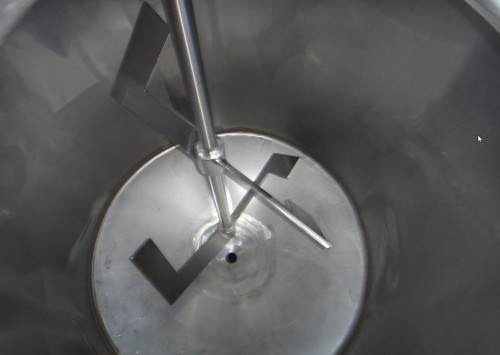

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

  • Agitator 1 - Output

  • 0,44 / 0,88 kW

  • Agitator 1 - RPM

  • 20 / 40 UpM

Supports

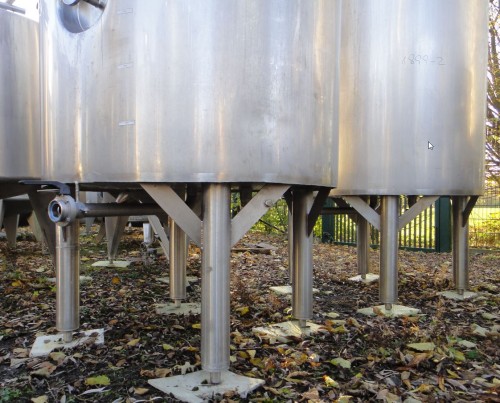

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

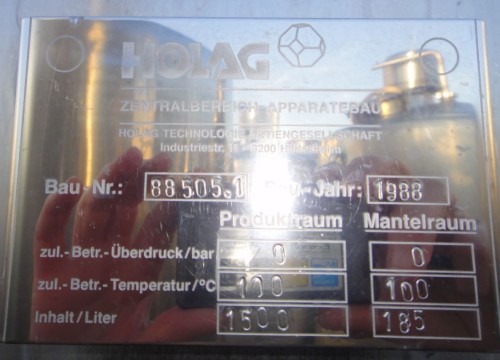

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Thermal buffer, Boiling tank,

Agriculture: Substrate tank, Slurry tank, Silo, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank, Tempering tank, Cold water tank,
