Product no. M-1903

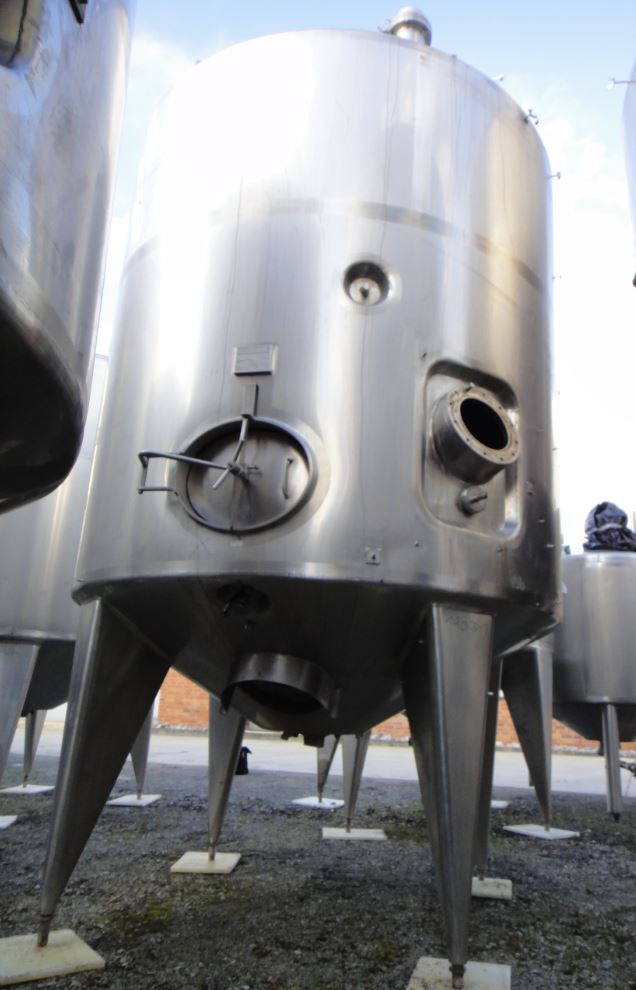

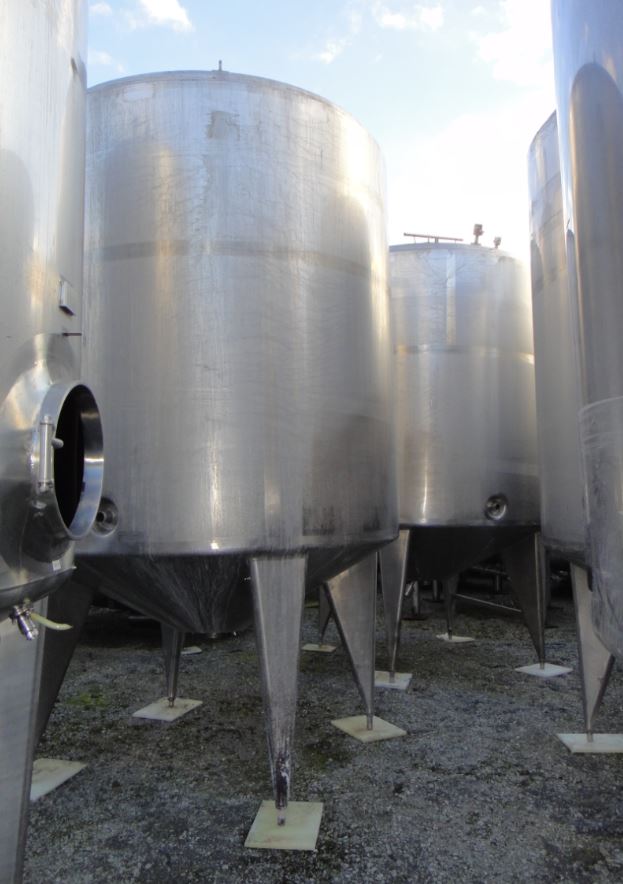

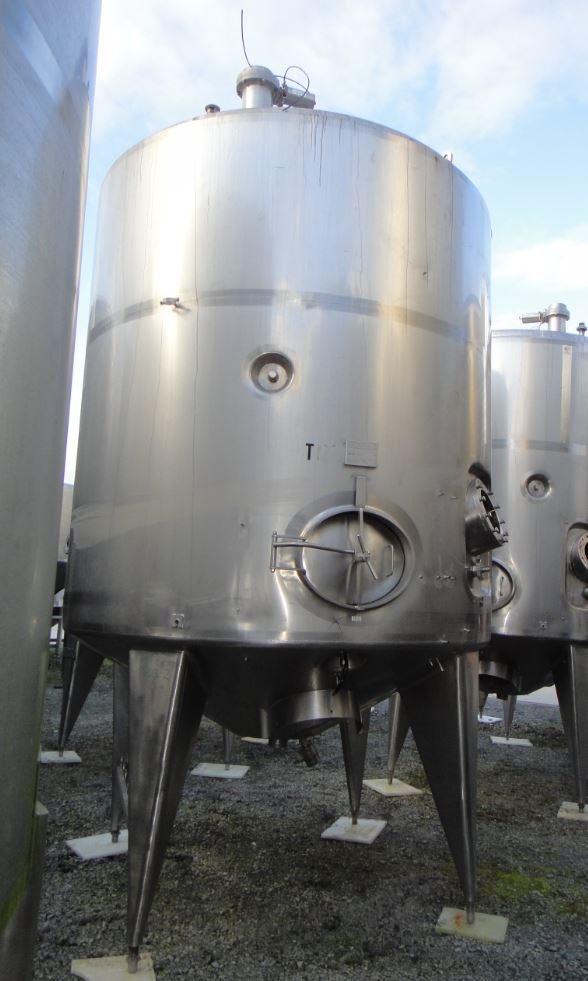

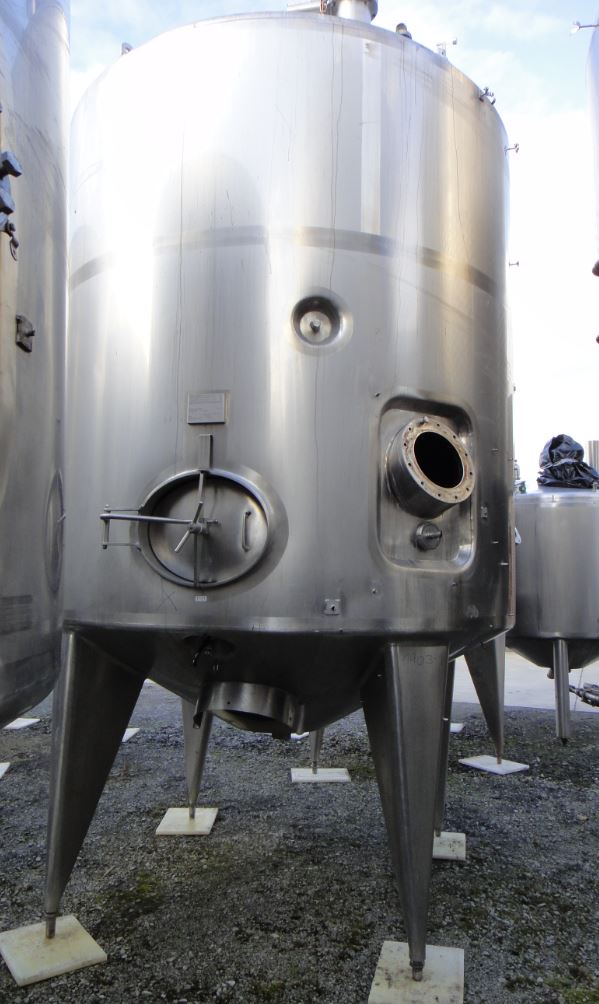

Container 10.000 liters made of V2A, used, isolated, standing

EUR 9.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,250 mm.  Container 10.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1989

  • Manufacturer

  • Harrislee

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.250 mm

  • External diameter

  • 2.363 mm

  • Cyl. height

  • 2.400 mm

  • Outlet height

  • 600 mm

  • Total height

  • 4.140 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

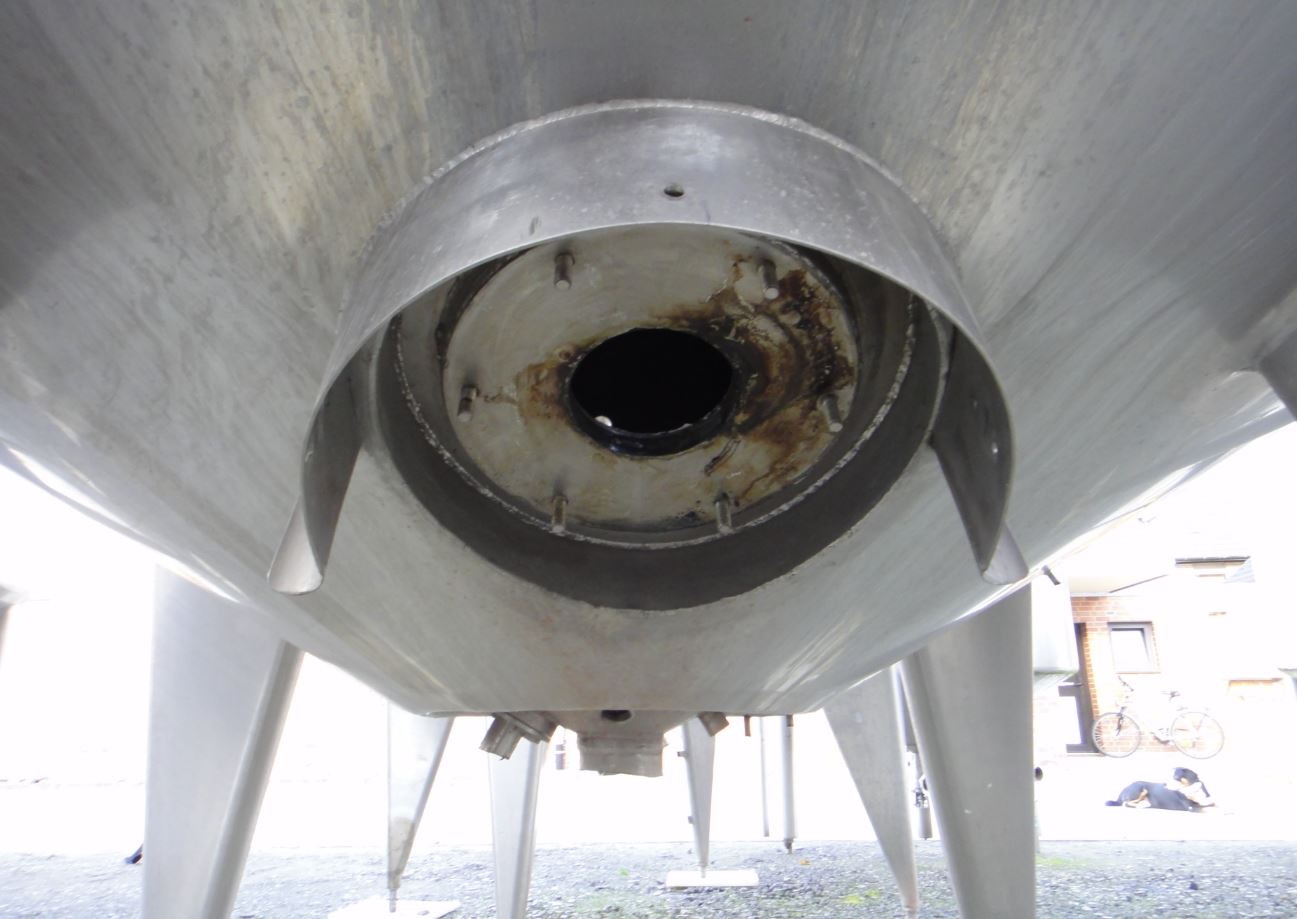

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating over-pressure

  • 0,5 bar

  • Product chamber operating temperature

  • 100 °C

Agitator

  • Agitator quantity

  • 2 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 410x510 DN mm

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 1xDN150 1xDN65 1xDN50 (piece)

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in floor

  • Fixtures and fittings

  • Sample taking

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Thermal buffer, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Thermal buffer, Cold water tank,
