Product no. M-2065

Container 15.310 liters made of V2A, used, temperature-controllable, single-walled, standing

EUR 6.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 15,310.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

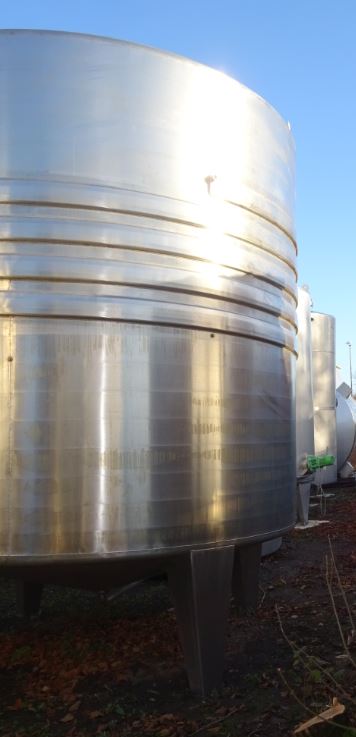

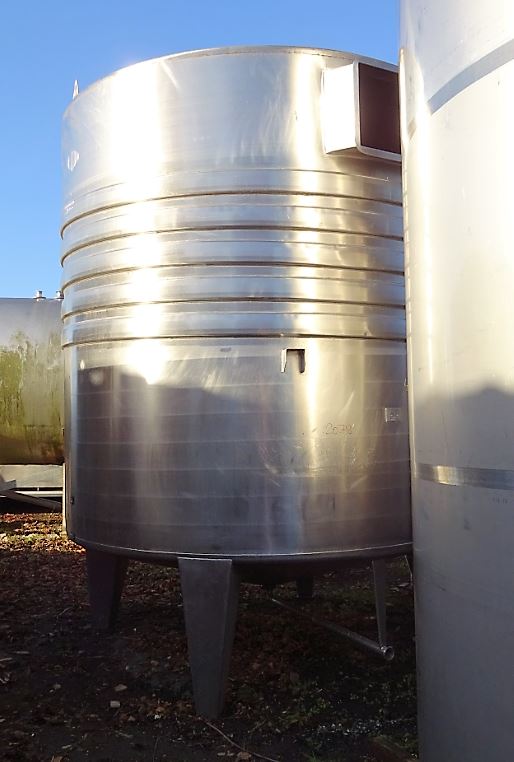

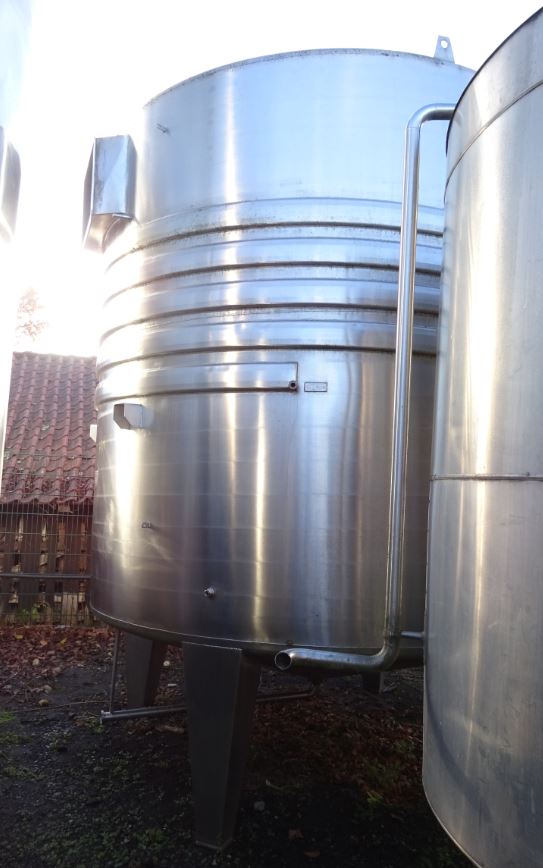

Container 15.310 liters made of V2A, used, temperature-controllable, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 15,310.00 litres. The diameter inside includes 2,850 mm.  Container 15.310 liters made of V2A, used, temperature-controllable, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Processes, Fermentation, Anaerobic digestion,

General

  • Volume approx.

  • 15.310,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.850 mm

  • Cyl. height

  • 2.750 mm

  • Total height

  • 4.250 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 20 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

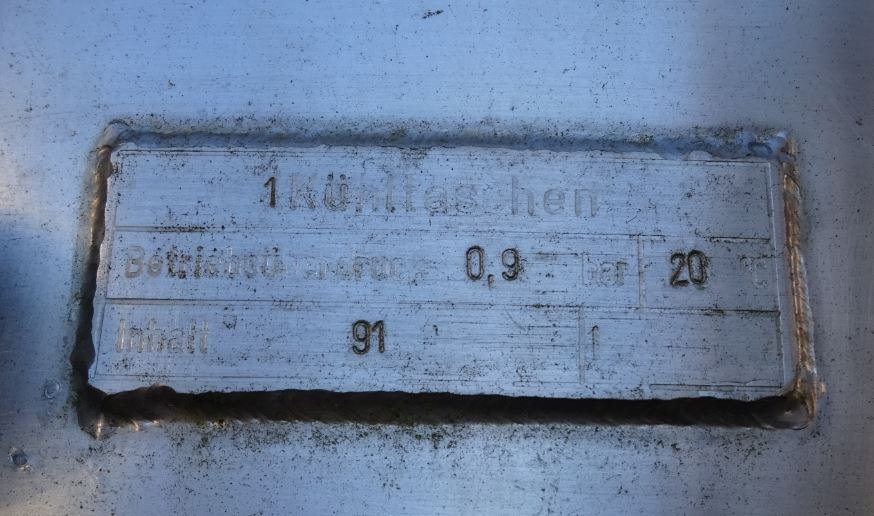

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 0,9 bar

  • Heating medium

  • Water

  • Temperature control system/pipe chamber capacity

  • 91 litres

Supports

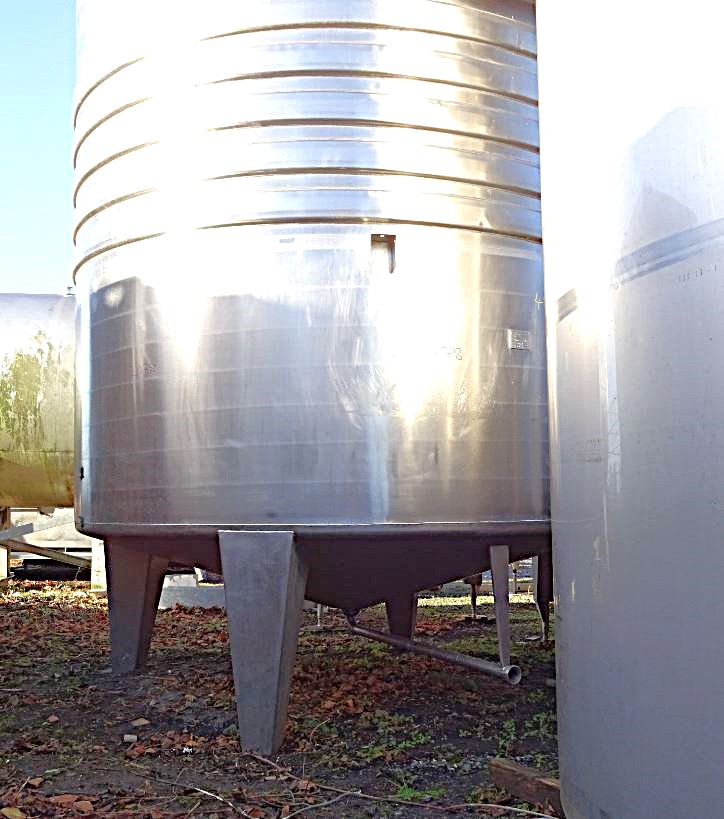

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

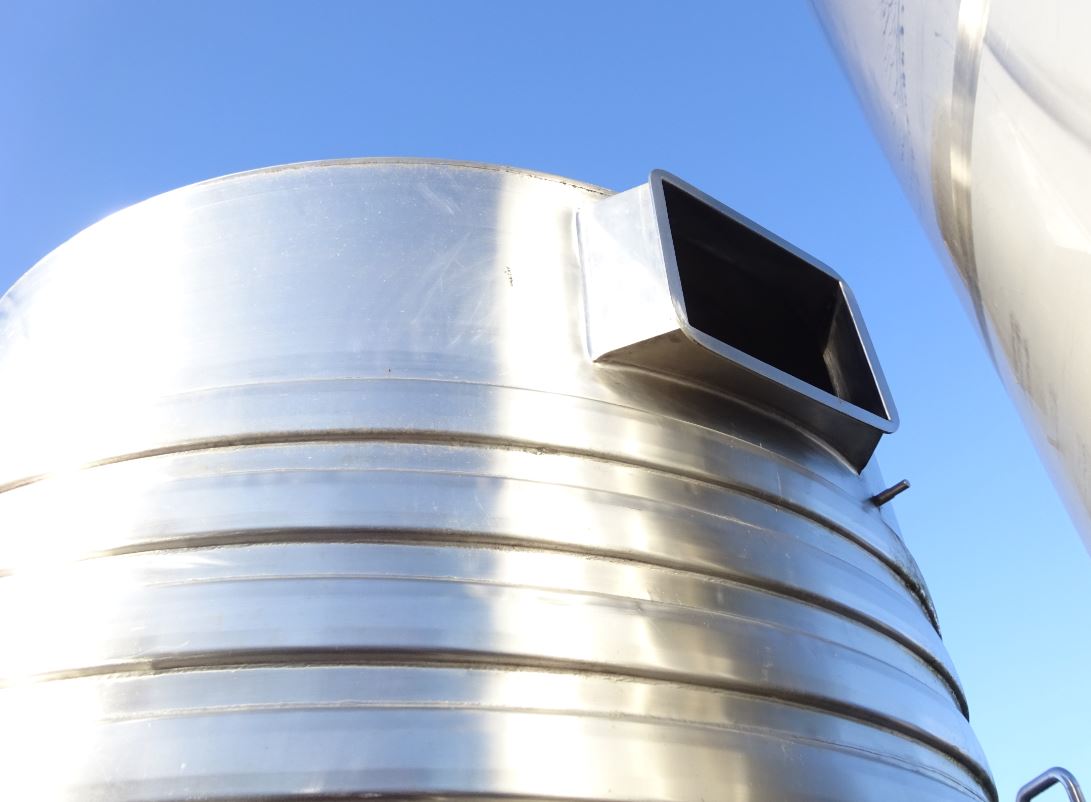

  • Manway 1 size

  • Hefeschnabel 600x450 DN mm

  • Manway position

  • In shell

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

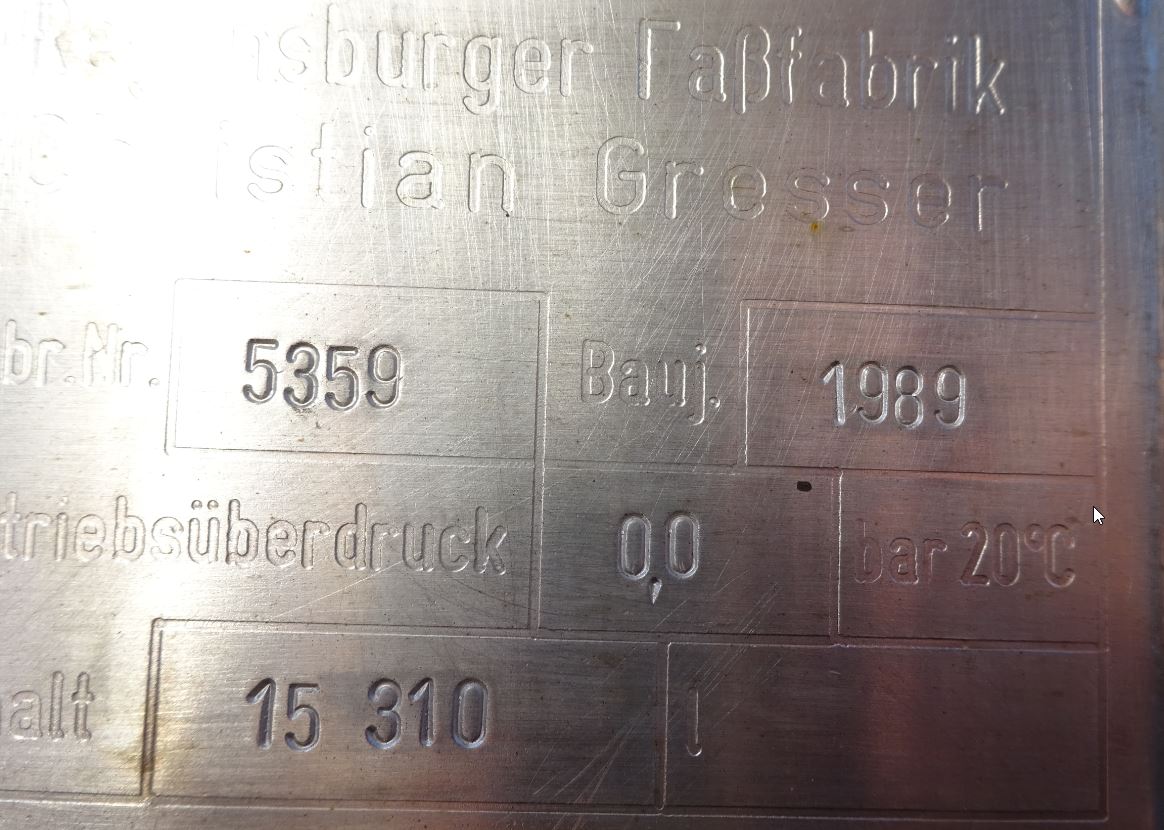

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Fermentation tank, Anaerobic digestion tank,

Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Fermentation tank, Anaerobic digestion tank,
