Product no. M-1713

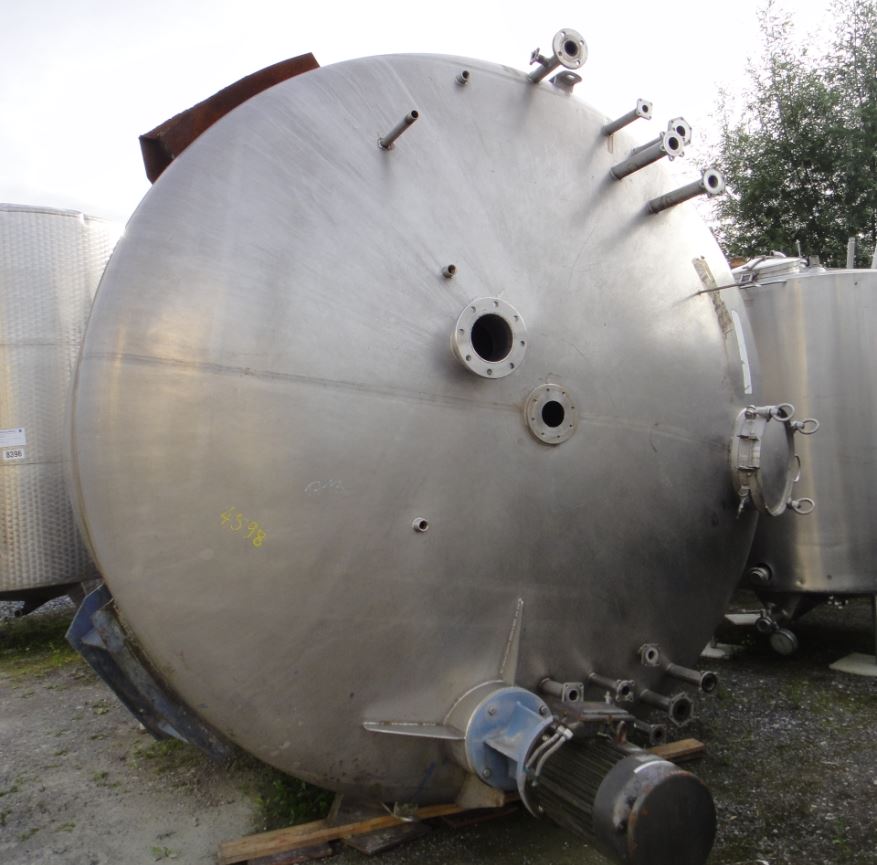

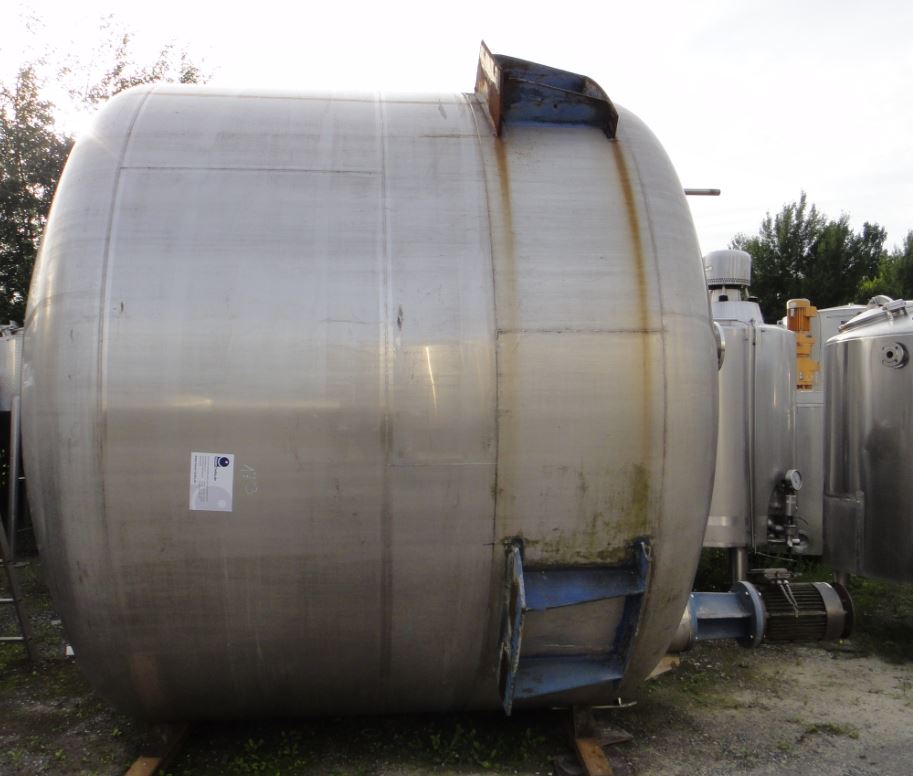

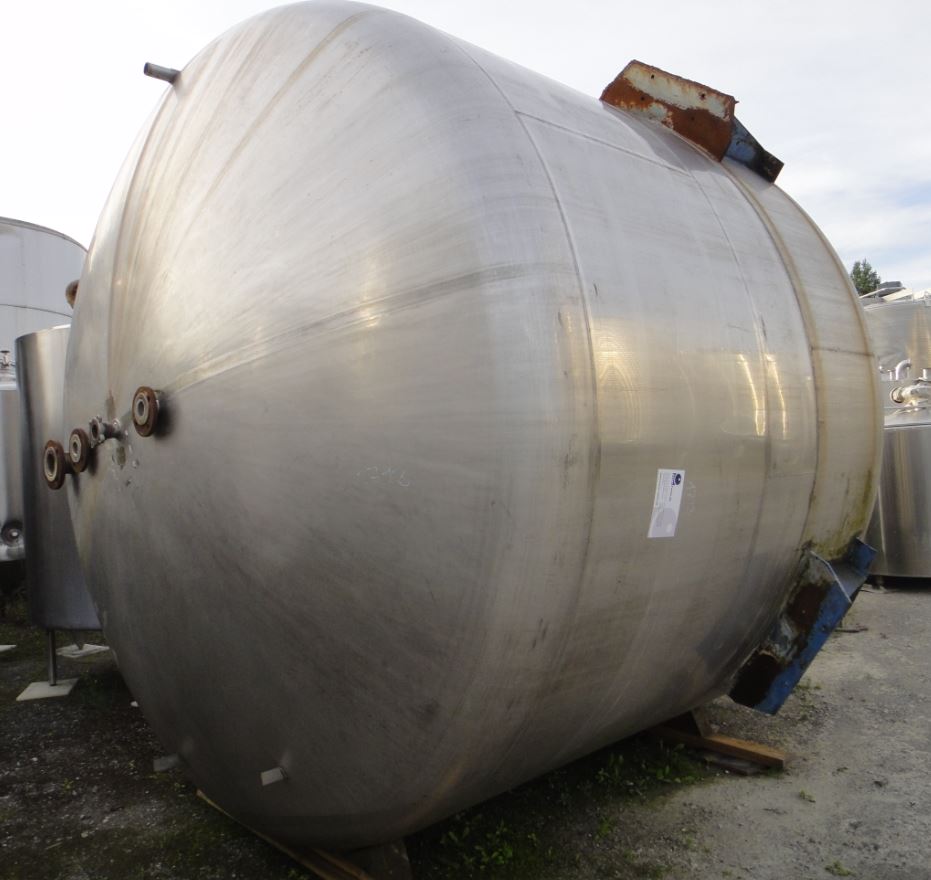

Container 21.500 liters made of V4A, used, single-walled, temperature-controllable, hanging

EUR 10.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 21,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 21.500 liters made of V4A, used, single-walled, temperature-controllable consists of the material 1.4404(AISI316) V4A. The volume is approx. 21,500.00 litres. The diameter inside includes 3,200 mm.  Container 21.500 liters made of V4A, used, single-walled, temperature-controllable was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP,

General

  • Volume approx.

  • 21.500,00 litres

  • Structure

  • Hanging

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.200 mm

  • Cyl. height

  • 2.000 mm

  • Total height

  • 4.250 mm

  • Wall thickness of product chamber head

  • 4 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 4 mm

Design

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

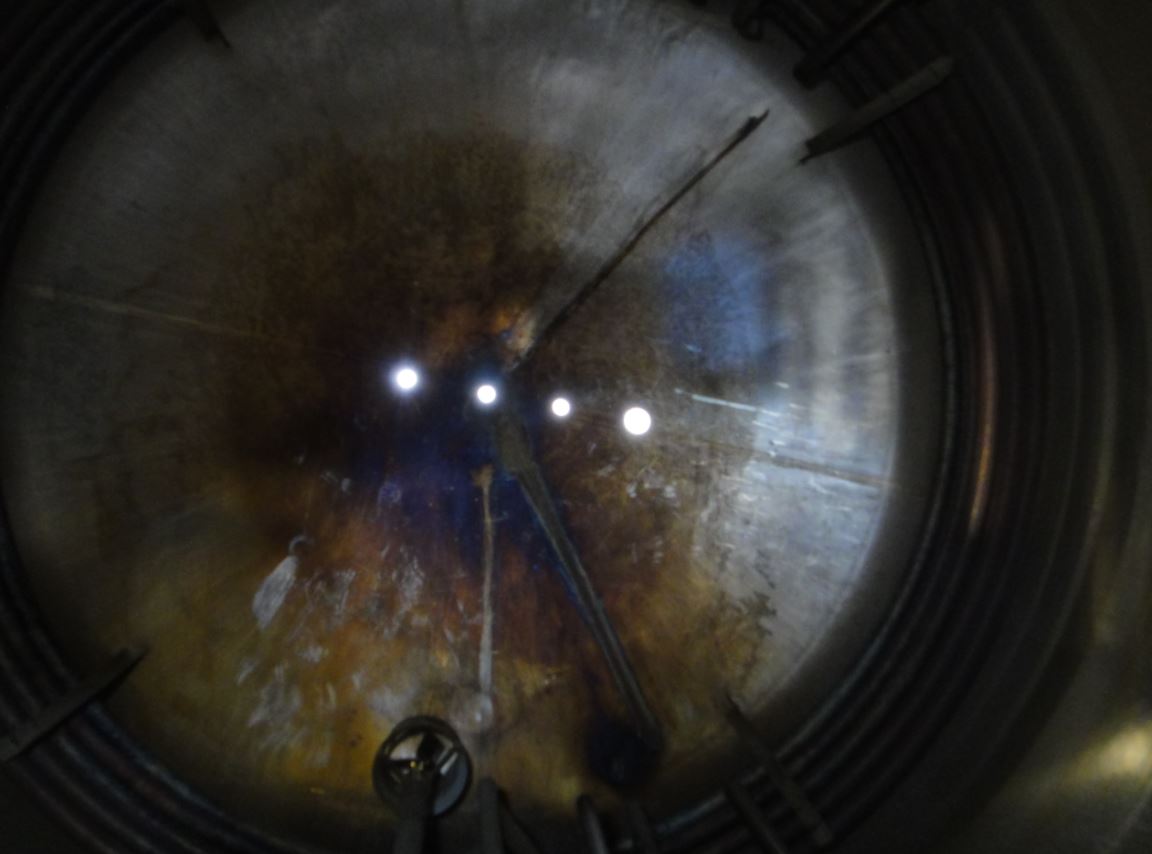

  • Temperature control system

  • Interior pipe coils

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

    • Agitator position

    • Head off-centre

    • Agitator 1 - Output

    • 4 kW

    • Agitator 1 - RPM

    • 725 UpM

    • Agitator 1 - Voltage

    • 380 V

    • Agitator 2 - Output

    • 7,5 kW

    • Agitator 2 - RPM

    • 1400 UpM

    Supports

    • Supports

    • Bracket supports

    • Number of feet

    • 4 (piece)

    Fixtures and fittings

    • Manway position

    • In head

    • Nozzle connector

    • Flange

    • Outlet nozzle

    • 80

    Technical documentation

    • Technical documentation

    • Designation

    Other

    • Note

    • Anhaftungen im Produktraum

    • Last usage

    • Chemistry

    This product is suitable for use as:

    Foodstuffs:

    Agriculture: Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank,

    Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Anaerobic digestion tank, CIP tank,
