Product no. M-2079

Container 25.000 liters made of V2A, used, temperature-controllable, standing

EUR 14.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 25,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

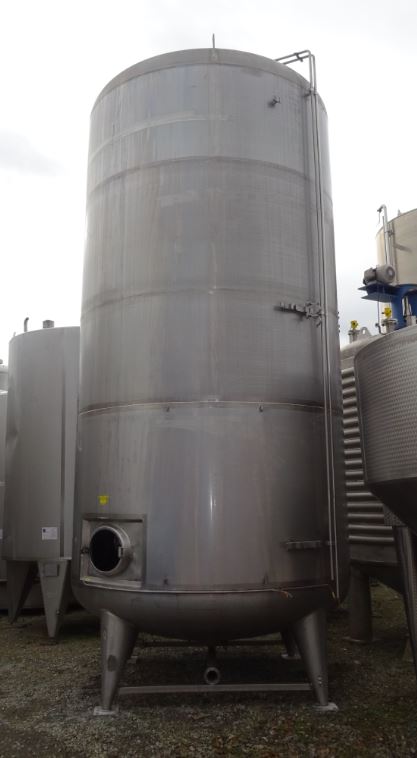

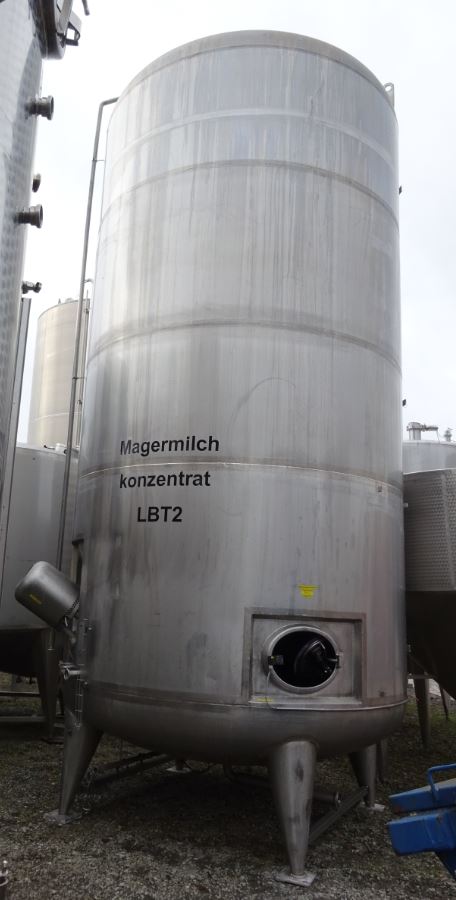

Container 25.000 liters made of V2A, used, temperature-controllable consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. The diameter inside includes 2,600 mm.  Container 25.000 liters made of V2A, used, temperature-controllable was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Processes, Cleaning/CIP,

General

  • Volume approx.

  • 25.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.600 mm

  • External diameter

  • 2.800 mm

  • Cyl. height

  • 4.770 mm

  • Foot height

  • 1.000 mm

  • Total height

  • 6.850 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Heating medium

  • Water

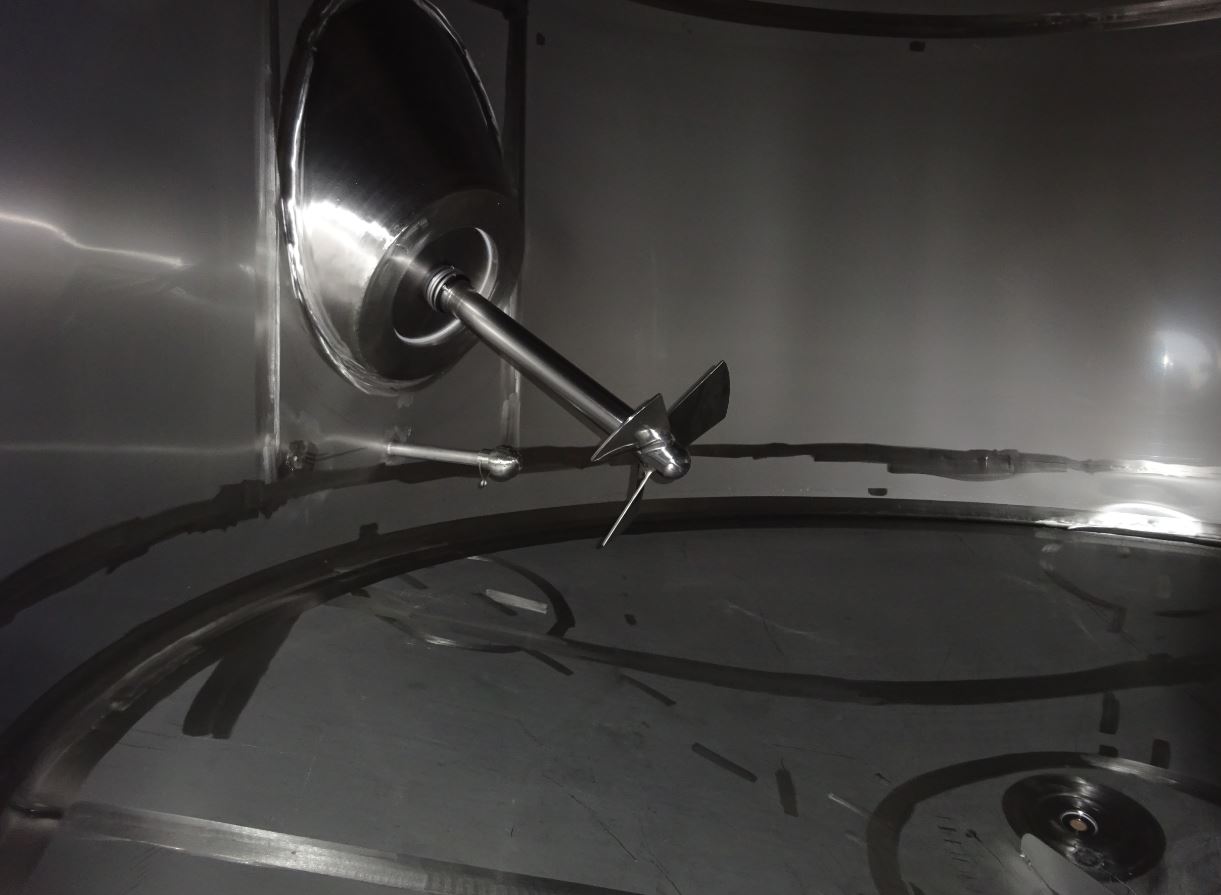

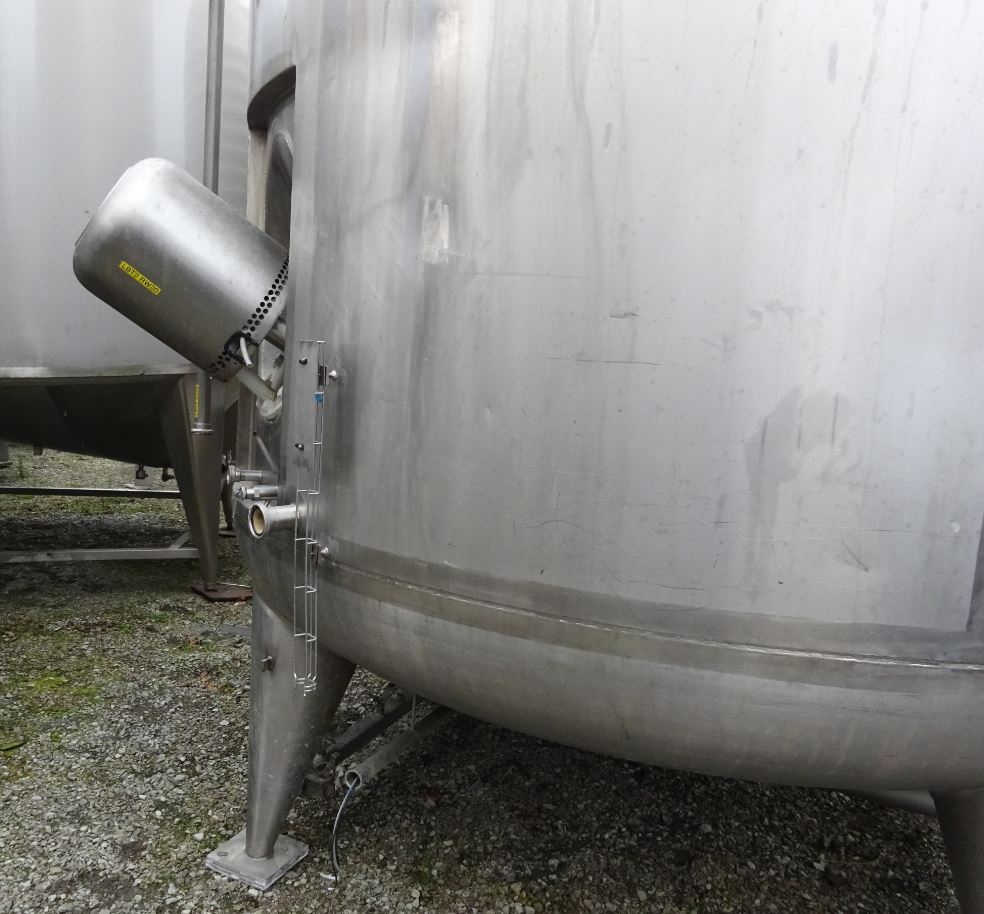

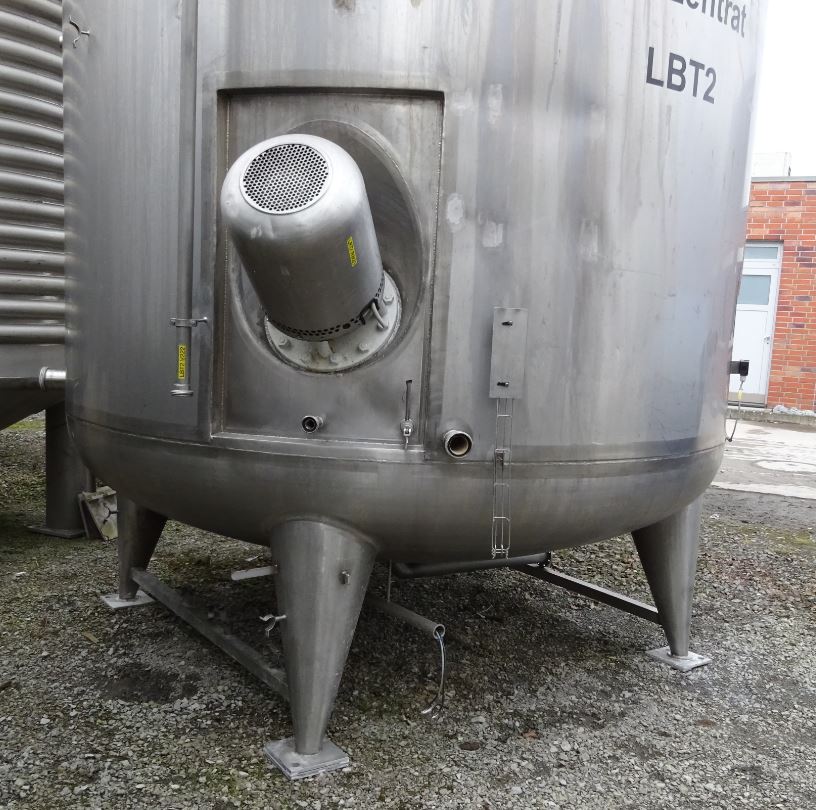

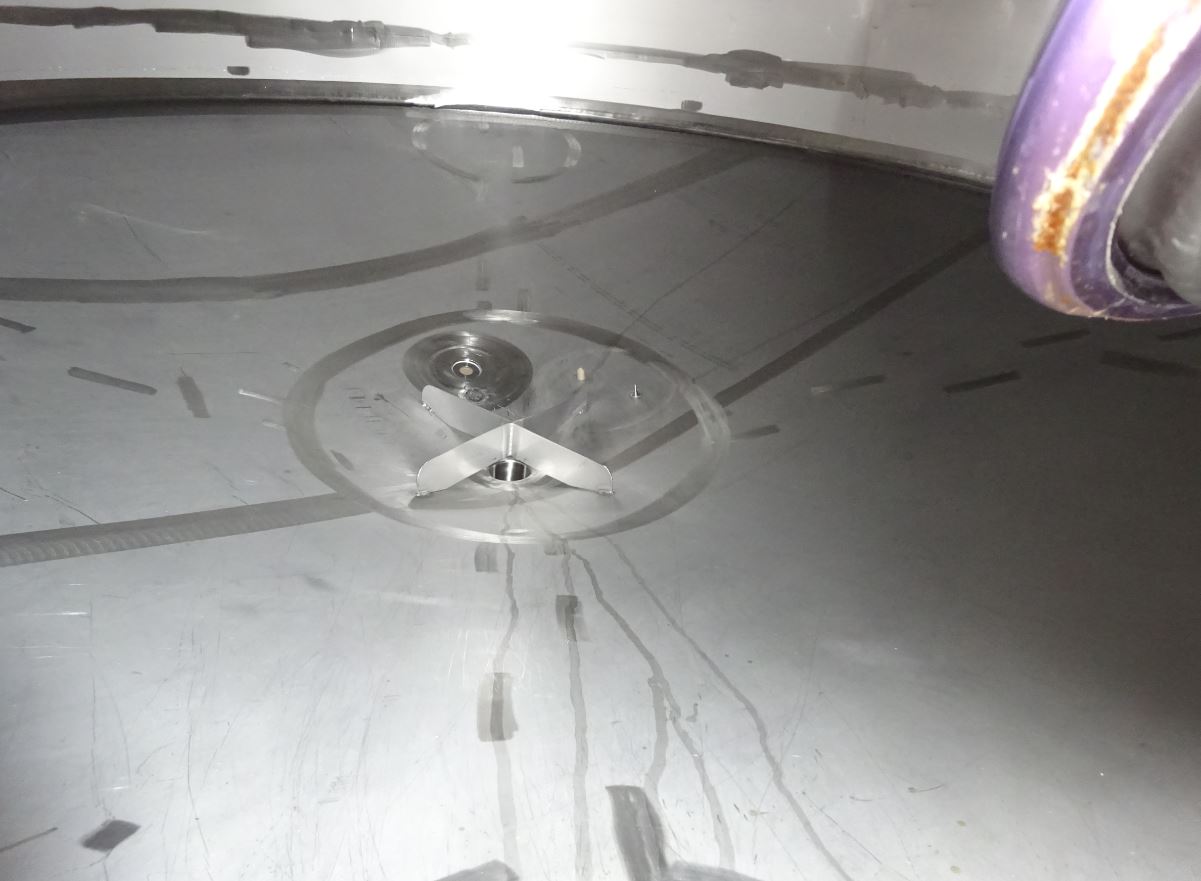

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

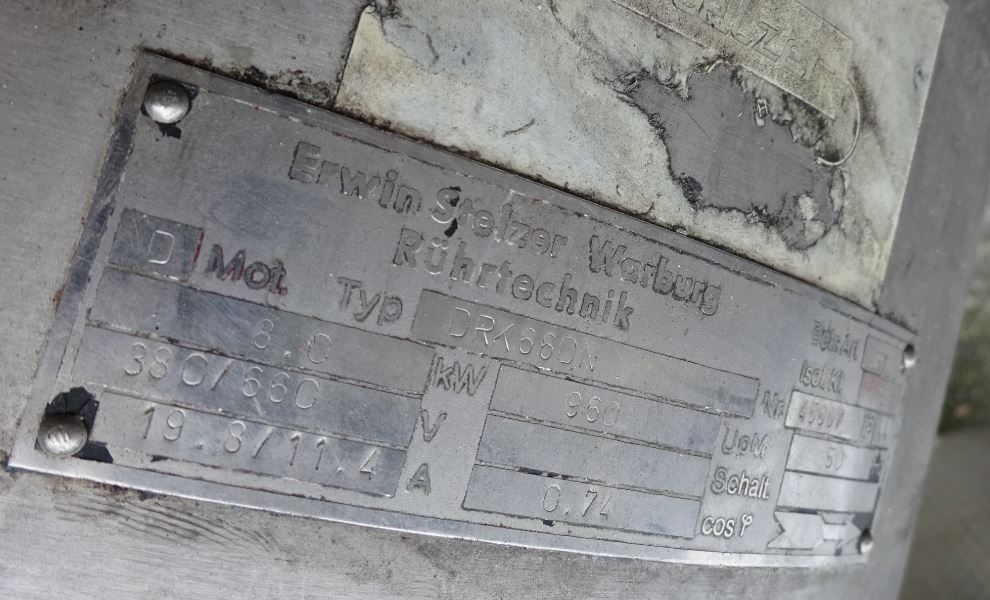

  • Agitator manufacturer

  • Stelzer

  • Agitator 1 - Output

  • 8 kW

  • Agitator 1 - RPM

  • 960 UpM

  • Agitator 1 - Voltage

  • 380/660 V

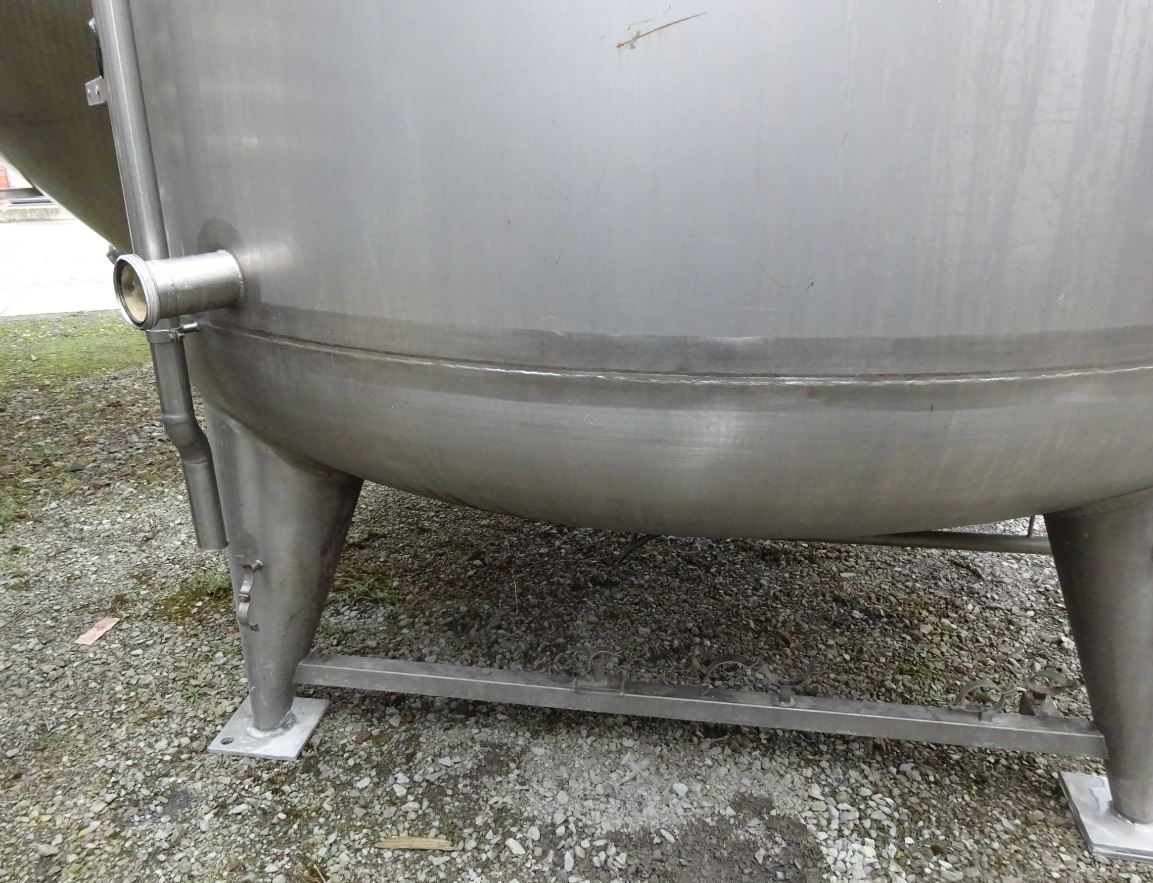

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in floor

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Other

  • Note

  • Innenmantel im unteren Bereich leicht nach innen verbeult.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Oil tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Reactor tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Mixing tank, Process tank, CIP tank,
