Product no. M-1197

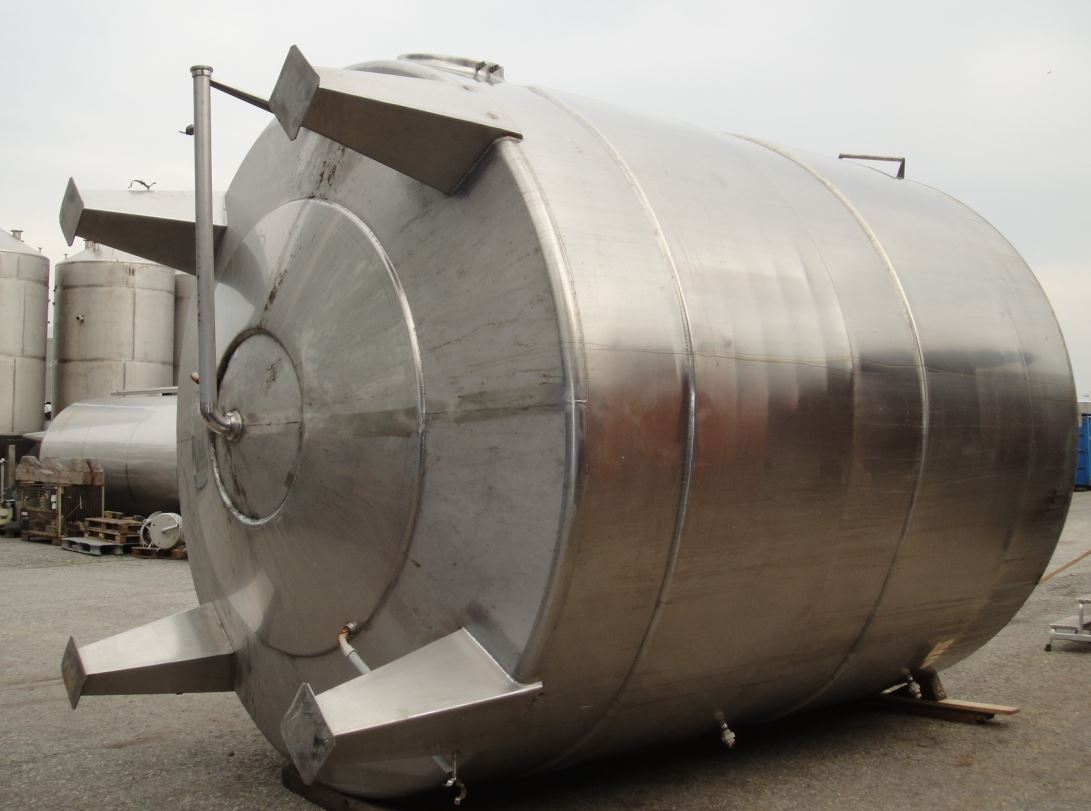

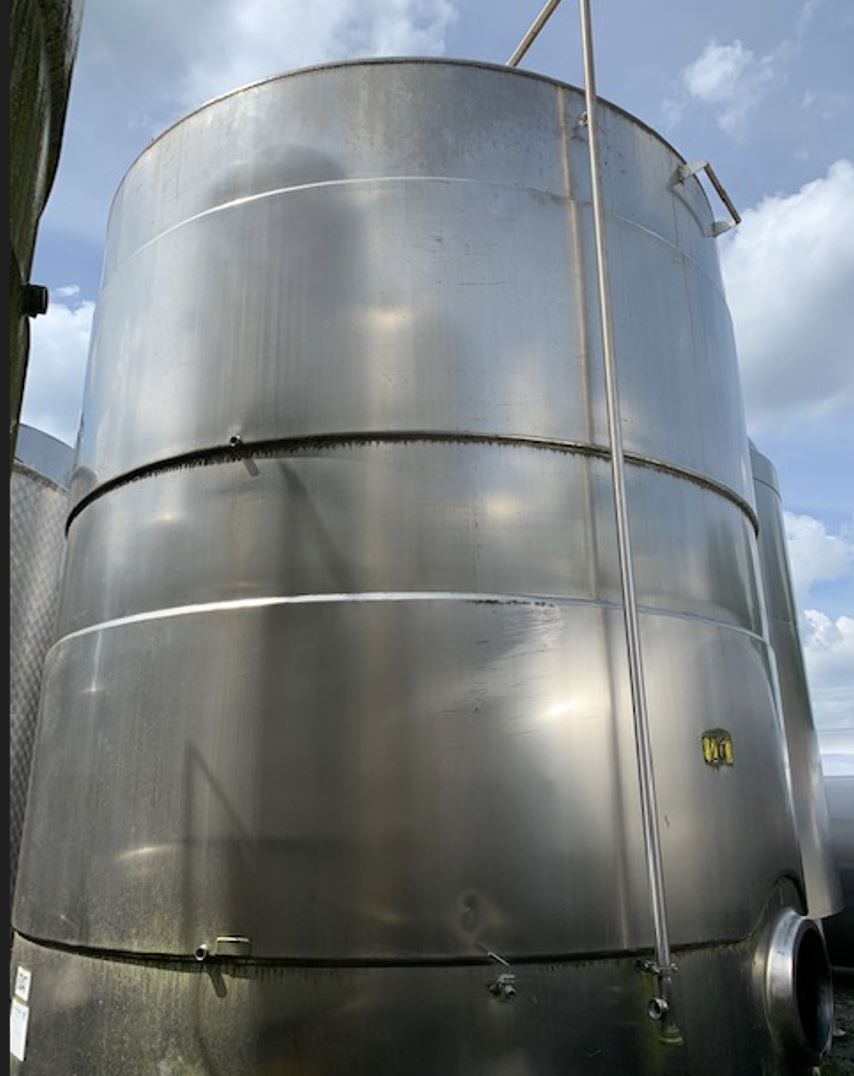

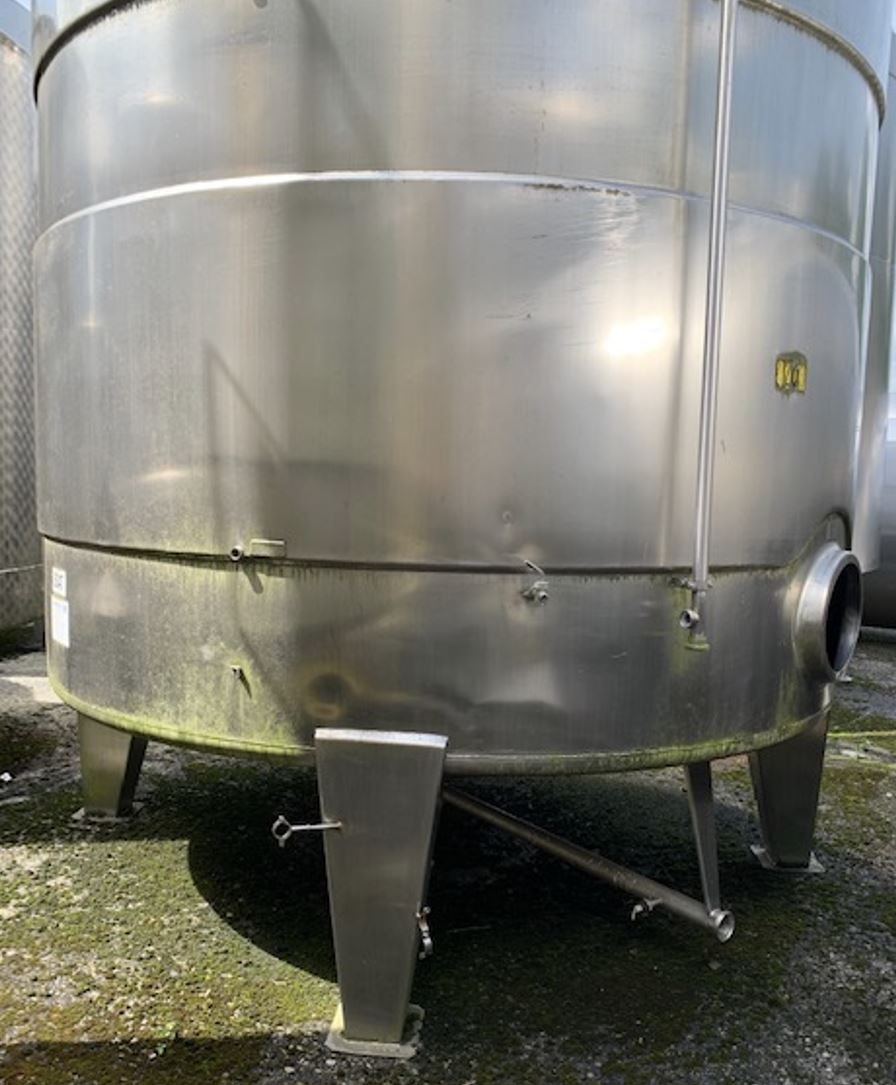

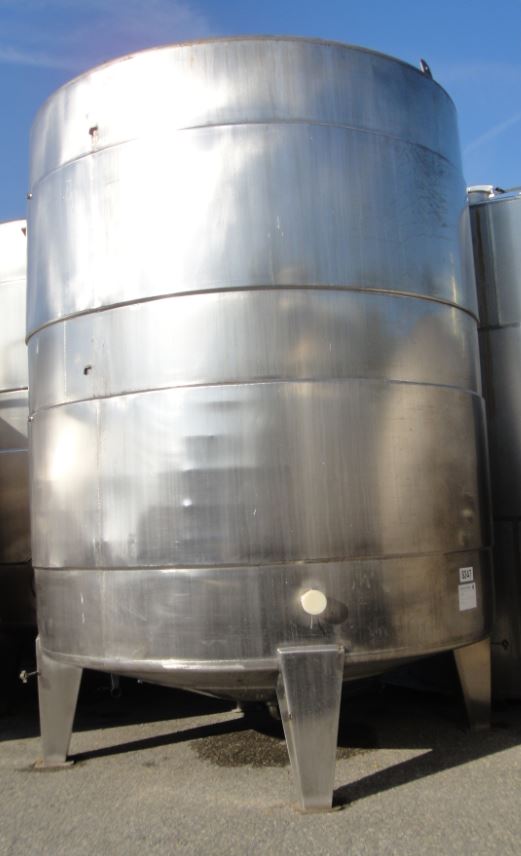

Container 29.000 liters made of V2A, used, temperature-controllable, standing
EUR 12.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 29,000.00 litres
Product description
Container 29.000 liters made of V2A, used, temperature-controllable consists of the material 1.4301(AISI304) V2A. The volume is approx. 29,000.00 litres. The diameter inside includes 3,100 mm. Container 29.000 liters made of V2A, used, temperature-controllable was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Cooling, Anaerobic digestion, Cleaning/CIP,General
Volume approx.
29.000,00 litres
Structure
Standing
Year of manufacture
1983
Manufacturer
Gresser
Condition
Used
Dimensions approx.
Internal diameter
3.100 mm
External diameter
3.140 mm
Cyl. height
3.500 mm
Foot height
800 mm
Total height
4.650 mm
Design
Insulation
no

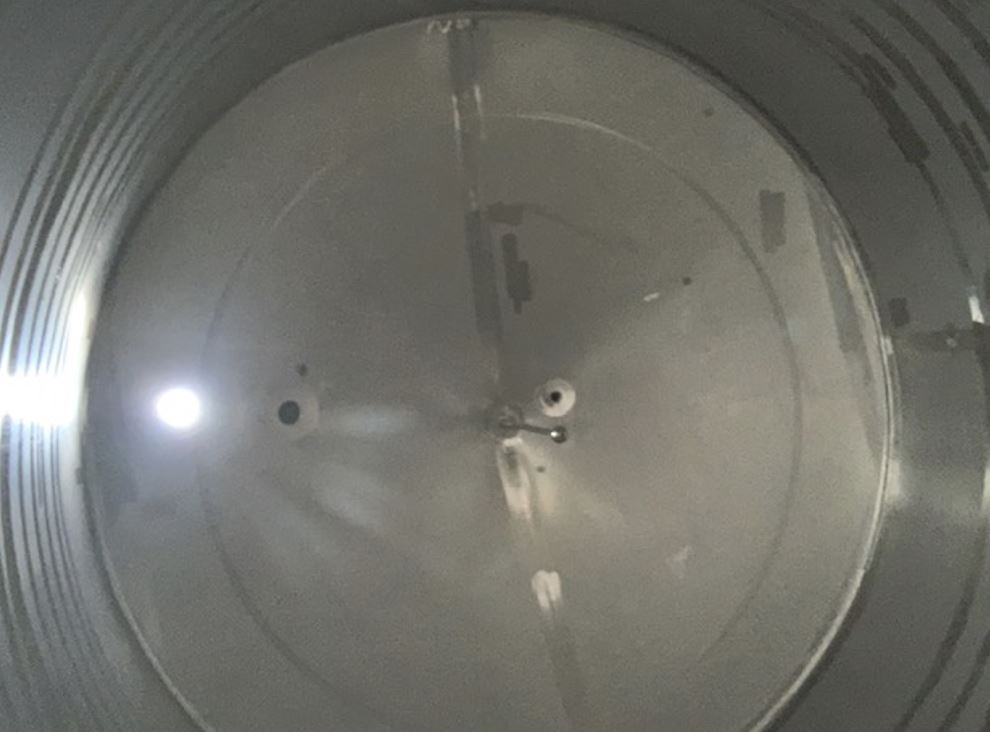

Interior surface
Smoothed
Exterior surface
Smoothed
Floor type

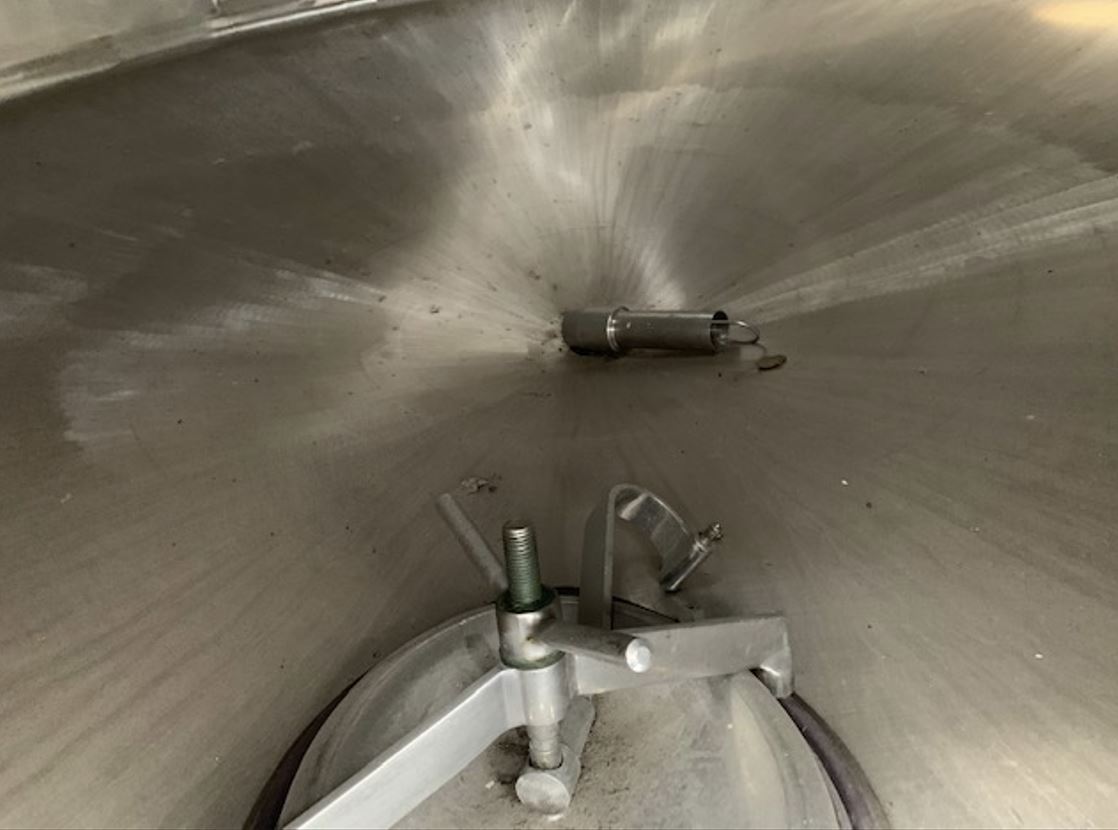

Conical bottom
Head design
Conical bottom
Equipment
Temperature-controllable
Yes
Temperature control area
Shell and floor area
Temperature control system
Cooling pockets
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Fixtures and fittings

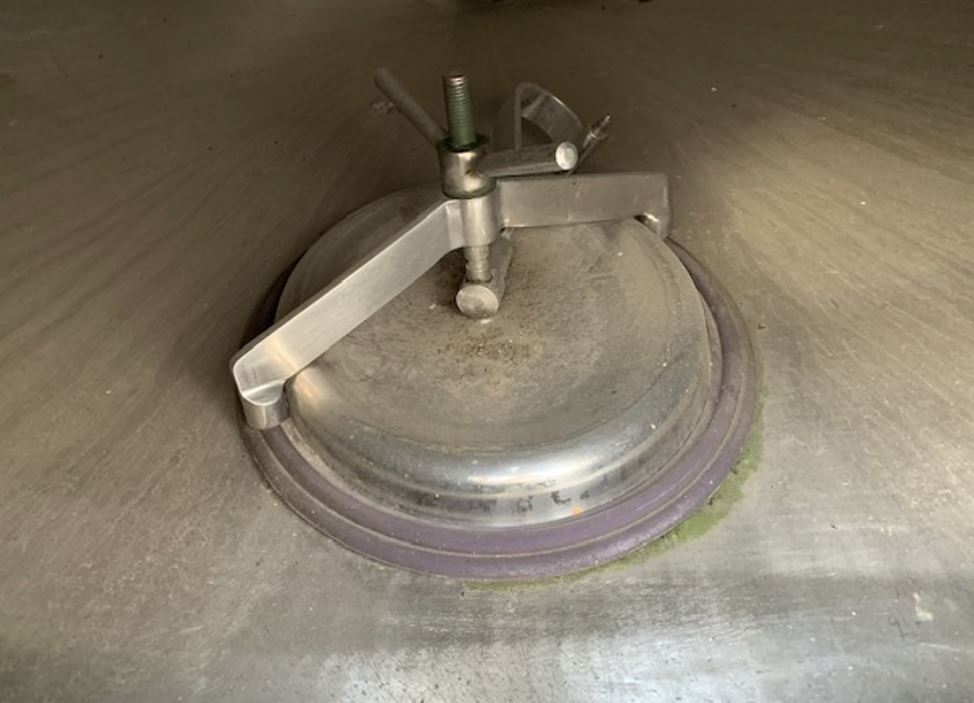

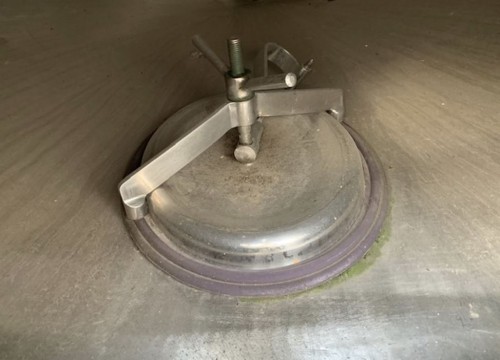

Manway position
In shell
Nozzle connector
Screw thread
Nozzles/connectors in shell
1 (piece)
Nozzles/connectors in head
2 (piece)

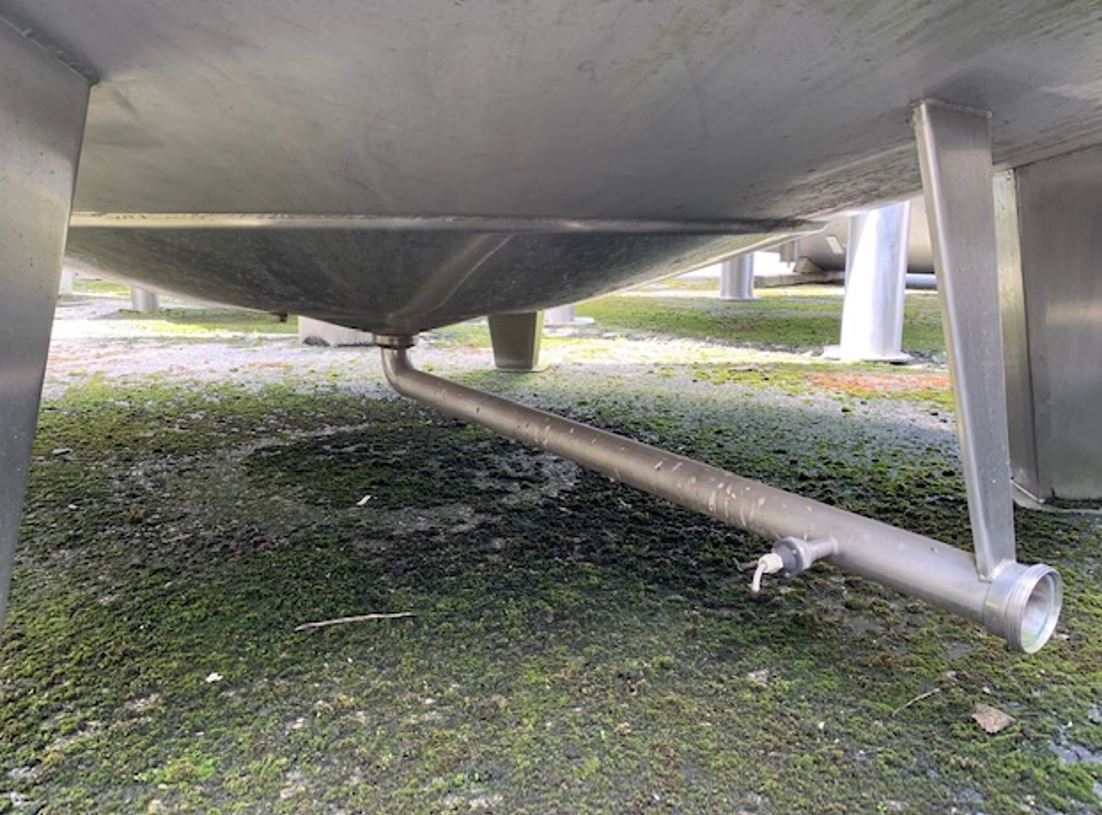

Outlet nozzle
80
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings
Ladder stay

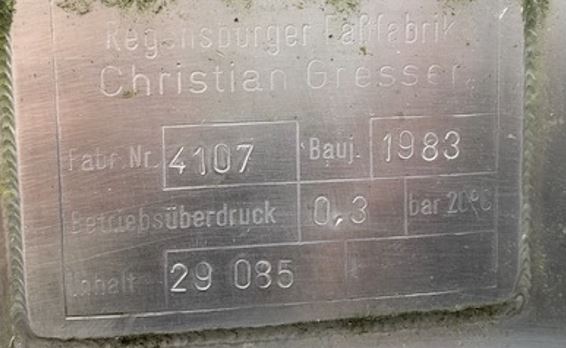

Nameplate
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Anaerobic digestion tank, CIP tank, Cold water tank,
Agriculture: Substrate tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Anaerobic digestion tank, CIP tank, Cold water tank,
