Product no. M-1292

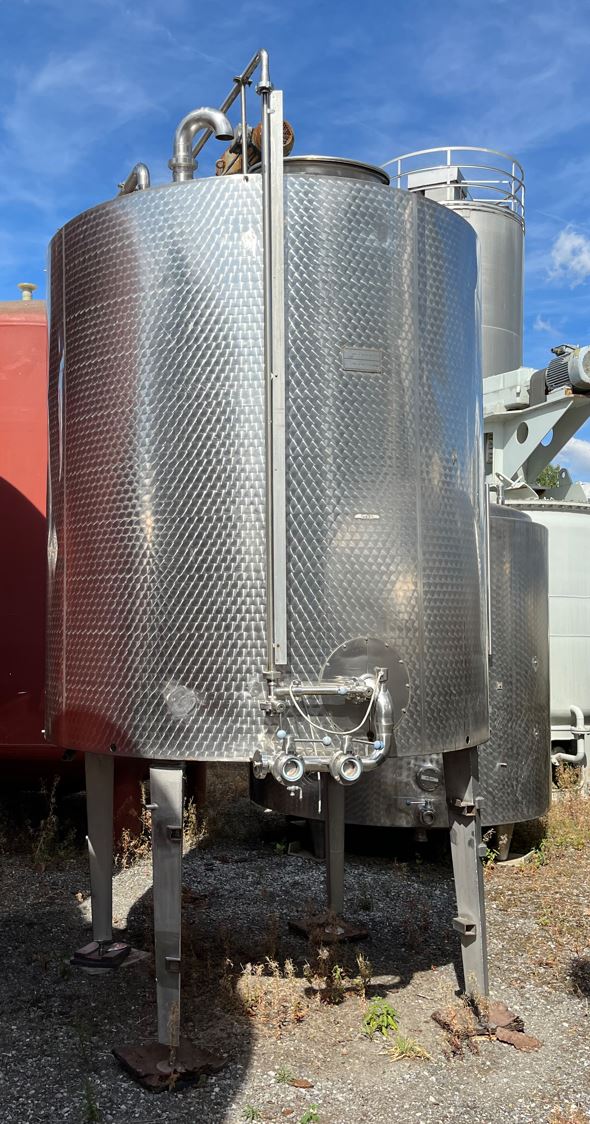

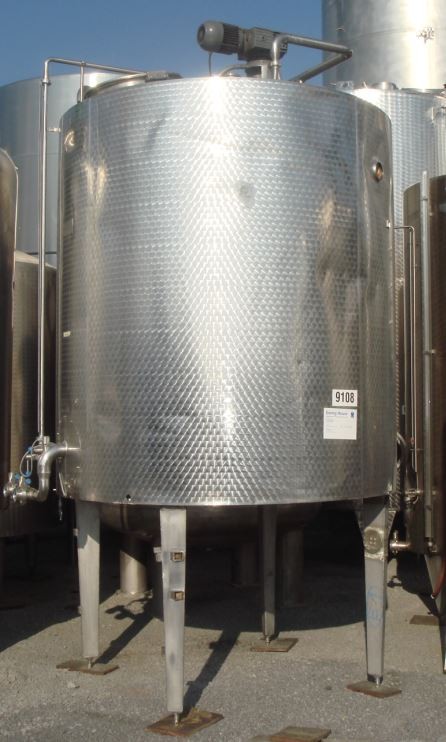

Container 3.500 liters made of V2A, used, isolated, standing

EUR 4.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 3,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 3.500 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 3,500.00 litres. The diameter inside includes 1,800 mm.  Container 3.500 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 3.500,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.800 mm

  • External diameter

  • 1.900 mm

  • Cyl. height

  • 2.000 mm

  • Foot height

  • 1.100 mm

  • Total height

  • 3.800 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

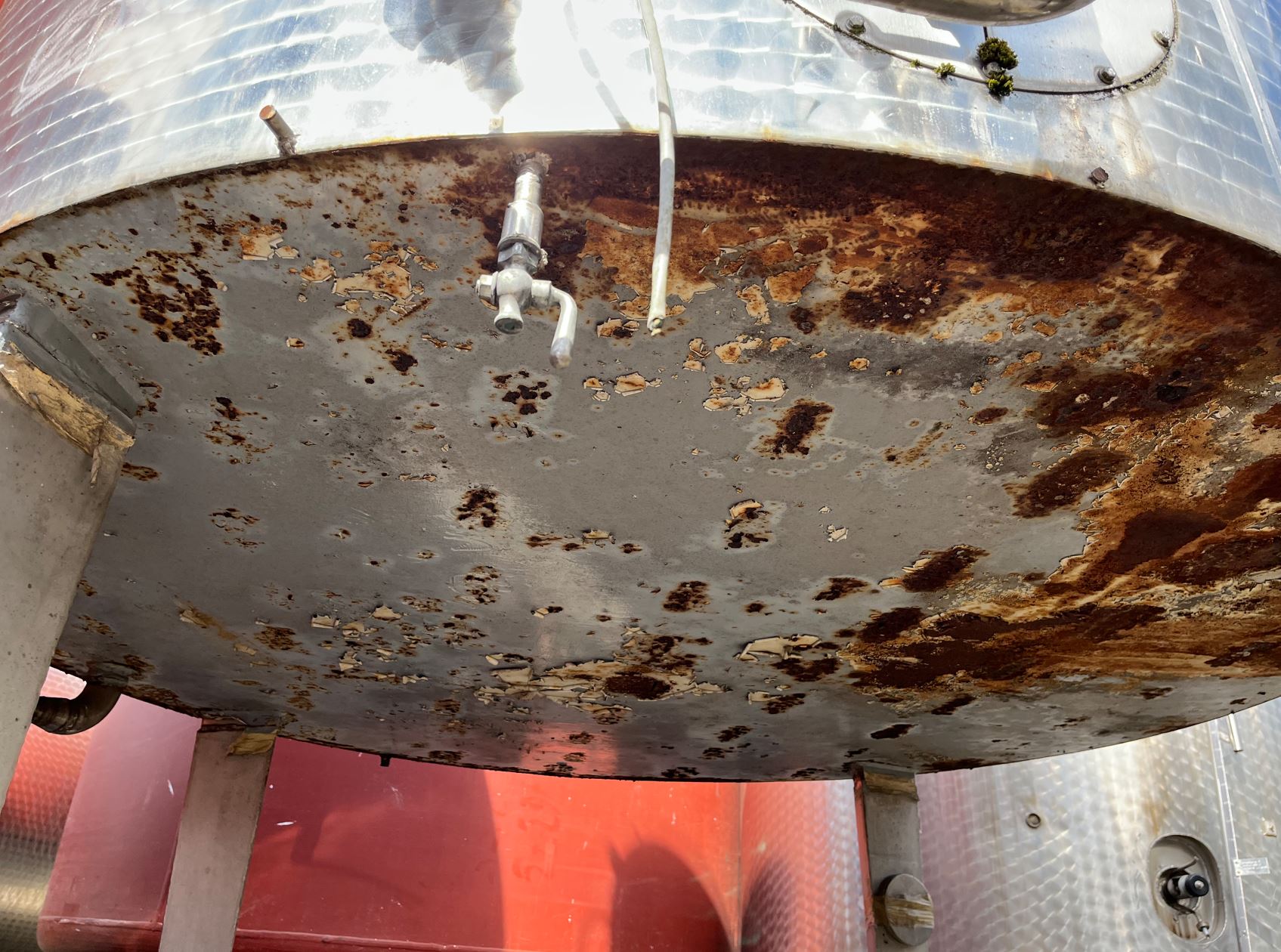

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

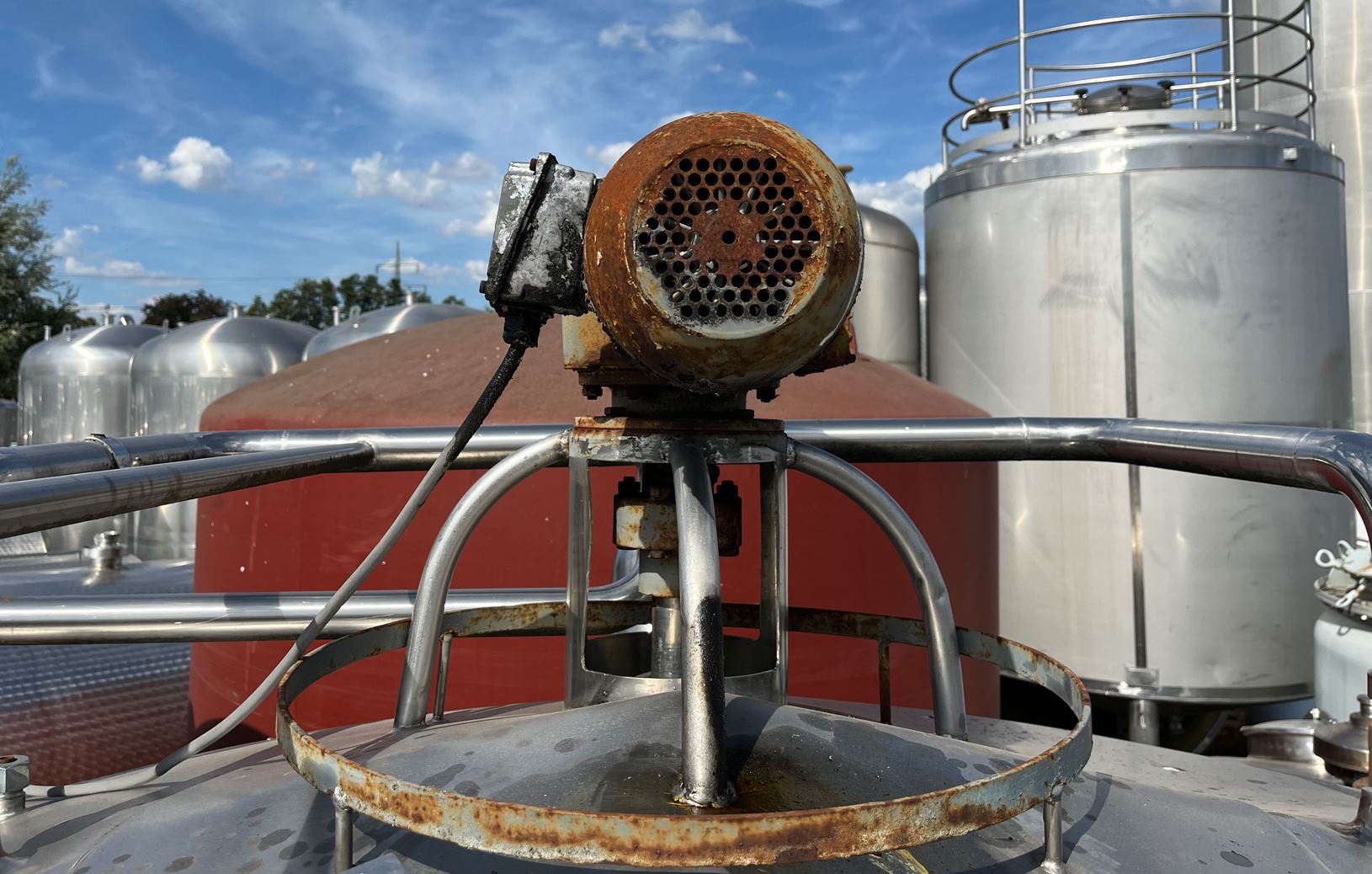

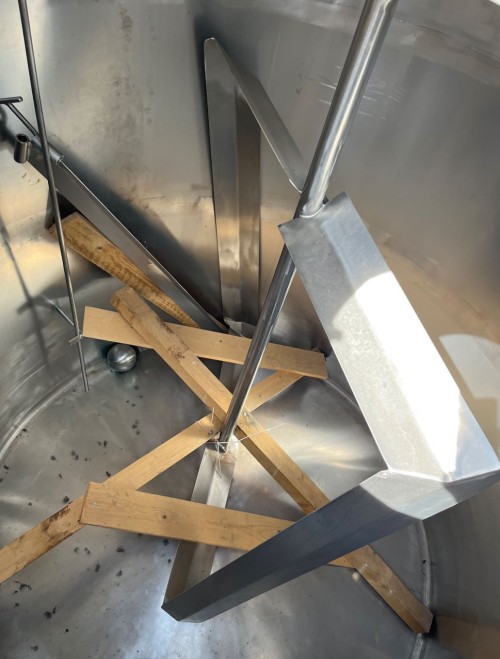

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

    • Agitator position

    • Head central

    Supports

    • Supports

    • Stainless steel feet

    • Number of feet

    • 4 (piece)

    Fixtures and fittings

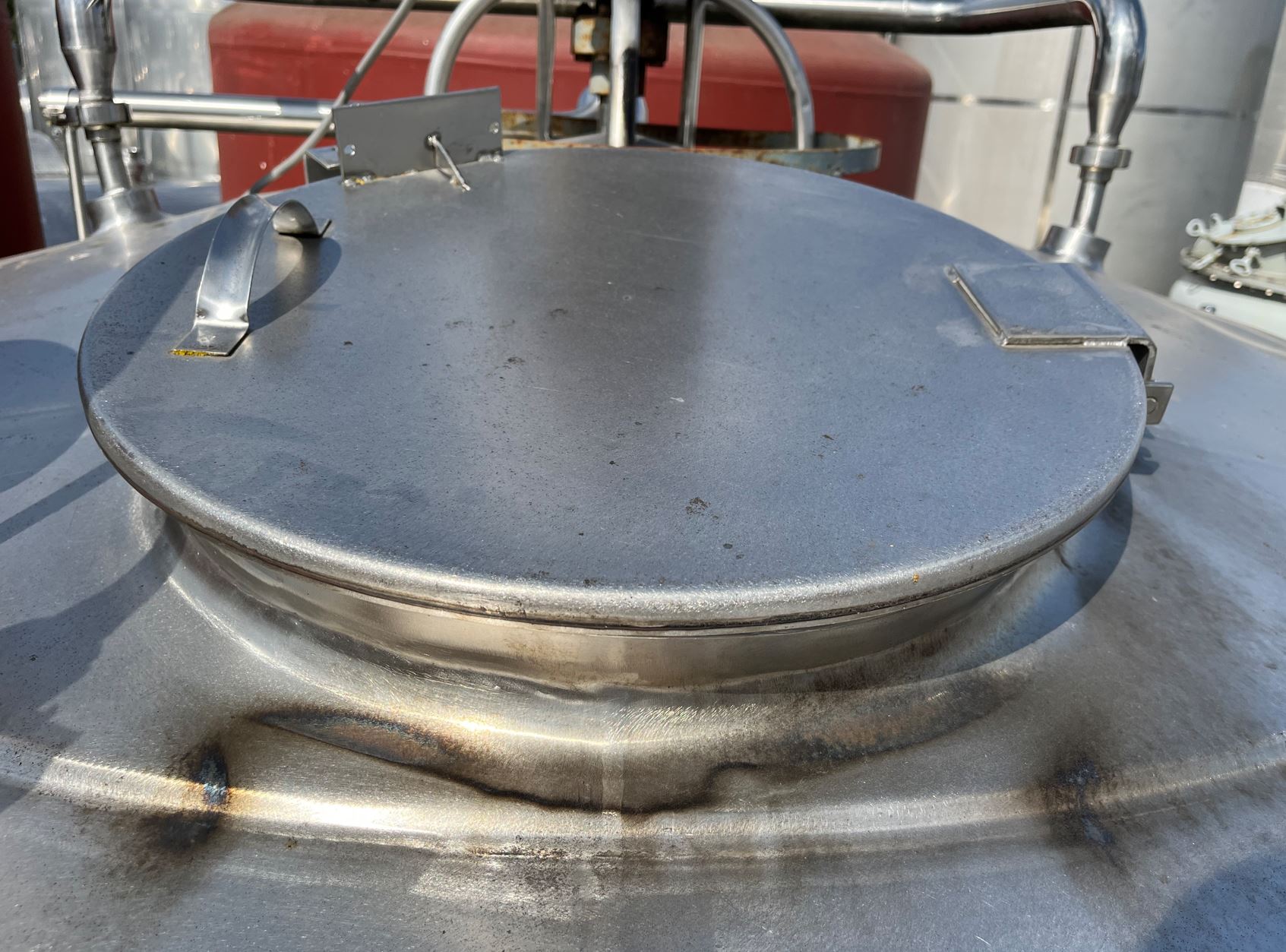

    • Manway position

    • In head

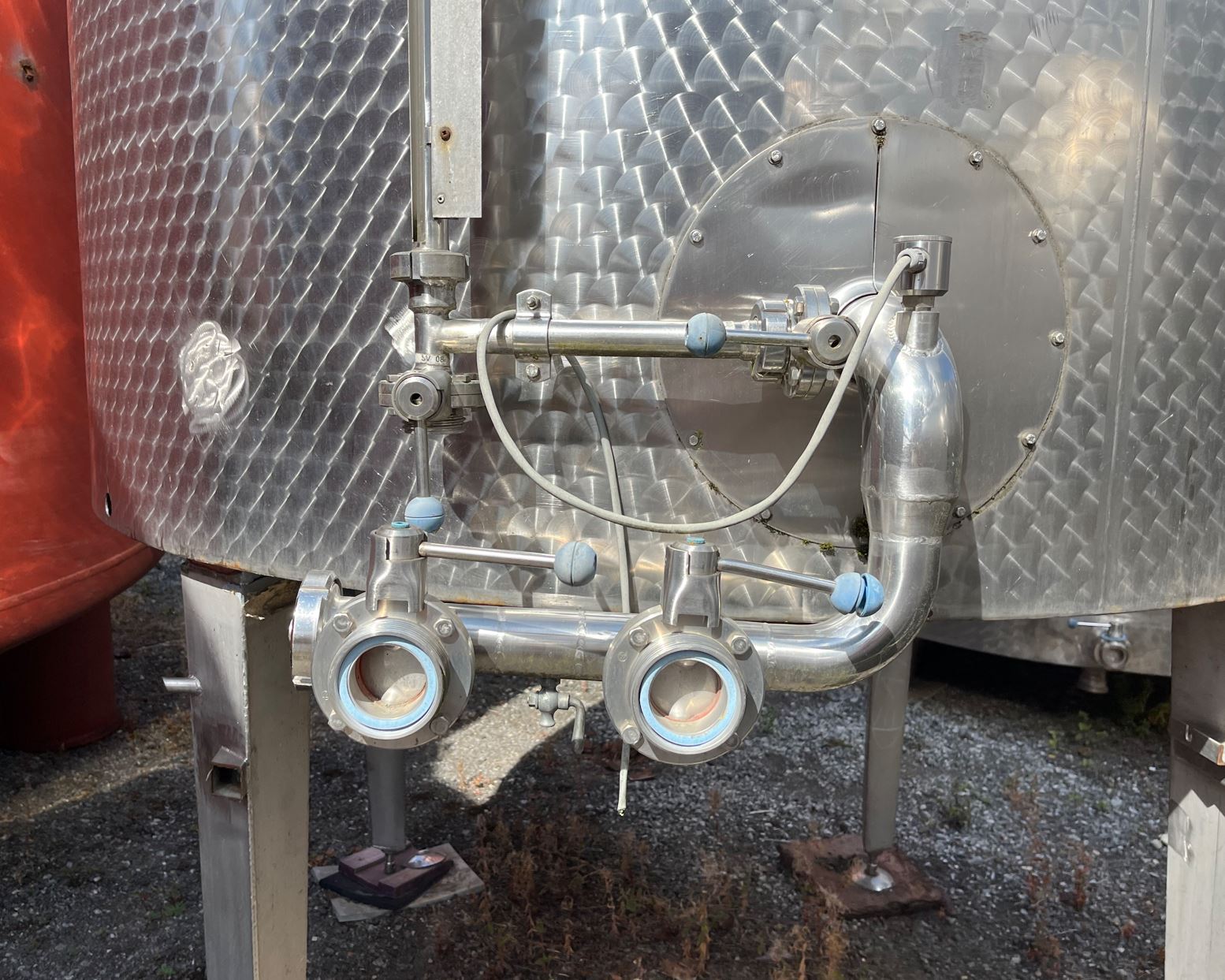

    • Outlet nozzle

    • 50

    • Cleaning/CIP nozzle

    • in head

    • Additional fixtures and fittings

    • Air vent

    Other

    • Note

    • leichte Druckstellen in der Isolierverkleidung

    • Last usage

    • Foodstuffs

    This product is suitable for use as:

    Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Cold water tank,

    Agriculture: Substrate tank, Rainwater tank, Slurry tank, Silo, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, CIP tank, Hot water tank, Cooling tank, Filter tank, Filtrate tank,

    Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
