Product no. M-1679

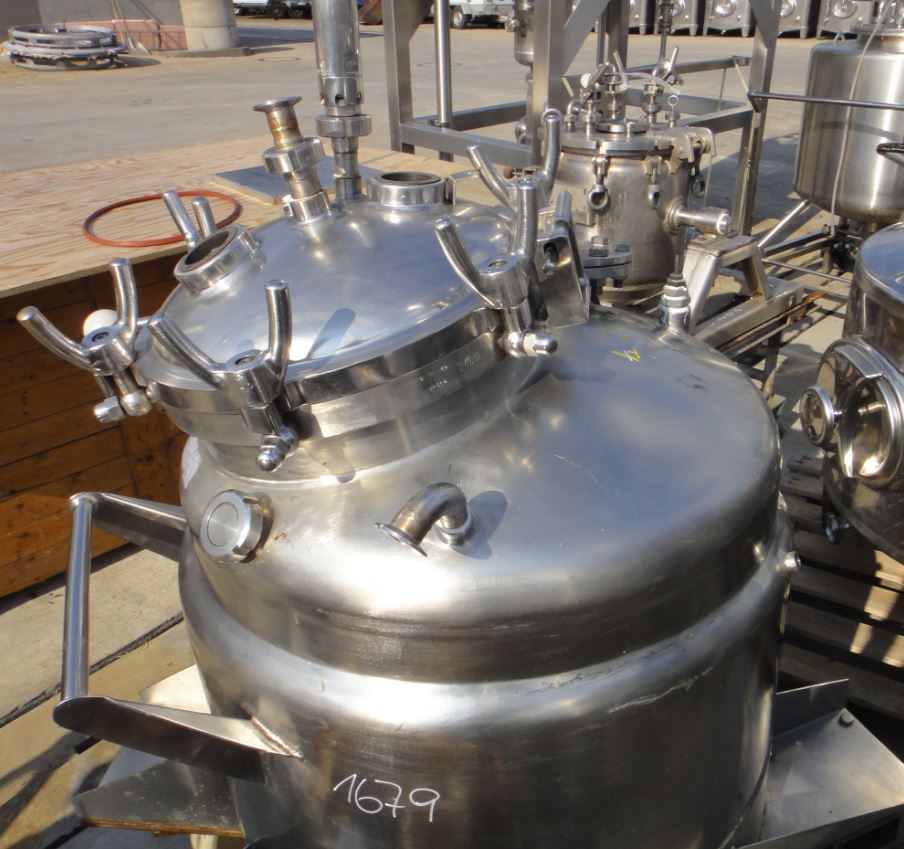

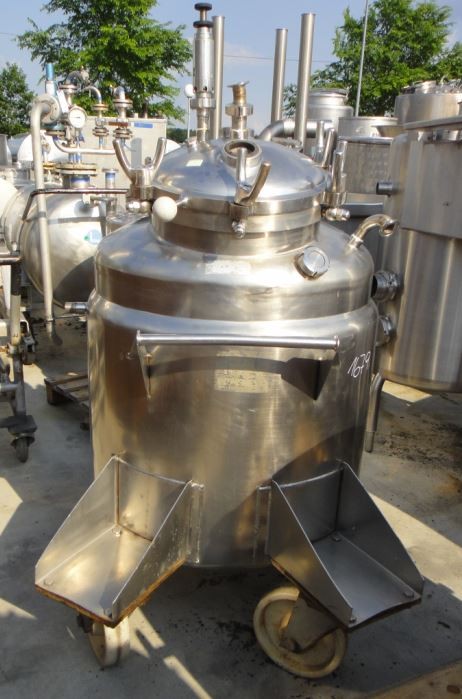

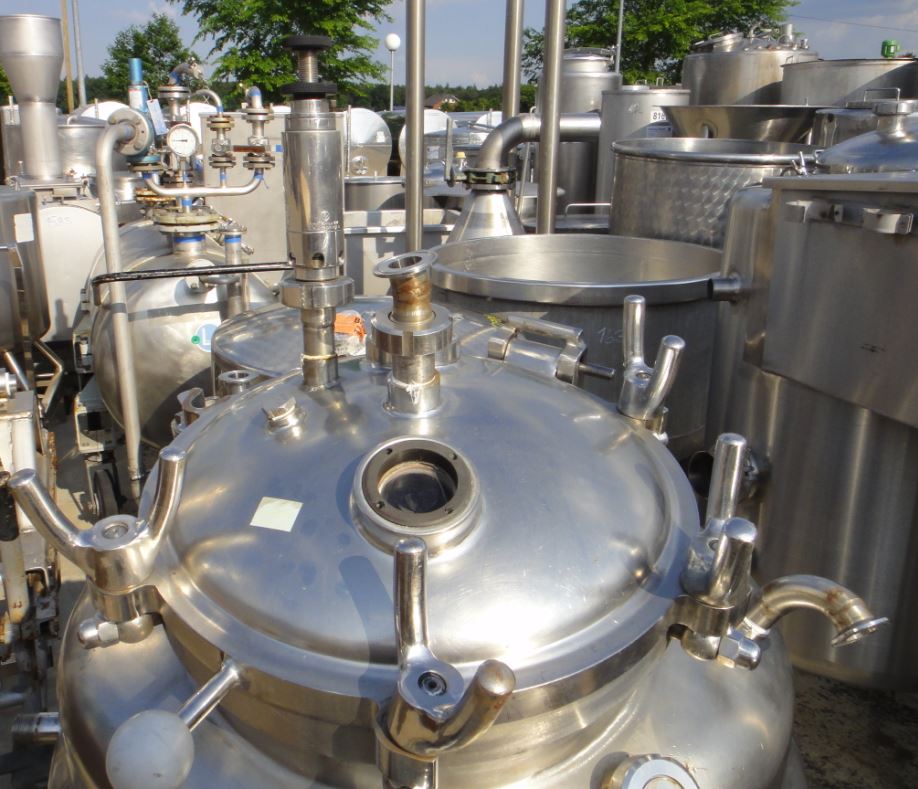

Container 385 liters made of V4A, used, temperature-controllable, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 385.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 385 liters made of V4A, used, temperature-controllable consists of the material 1.4435. The volume is approx. 385.00 litres. The diameter inside includes 740 mm.  Container 385 liters made of V4A, used, temperature-controllable was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Tempering, Filtering, Under/over-pressure, Processes, Reactor,

General

  • Volume approx.

  • 385,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 740 mm

  • External diameter

  • 800 mm

  • Cyl. height

  • 650 mm

  • Total height

  • 1.650 mm

Design

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 1 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 120 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

  • Operating pressure

  • 1 bar

  • Operating temperature

  • 120 °C

Supports

  • Supports

  • Feet with castors (mobile)

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

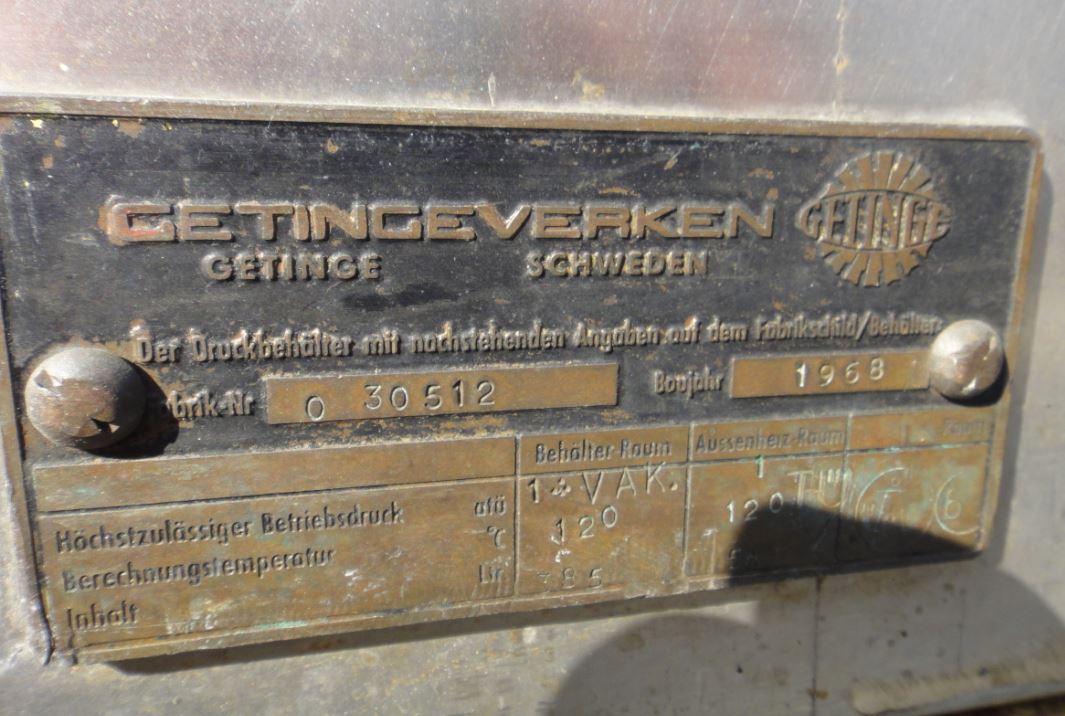

  • Nameplate

Other

  • Last usage

  • Pharmaceuticals

This product is suitable for use as:

Foodstuffs:

Agriculture: Silo, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Reactor tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Process tank, Reactor/reaction tank, Cooling tank,
