Product no. M-2492

Container 4.100 liters made of V4A temperature-controllable, used, standing

EUR 7.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 4,100.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

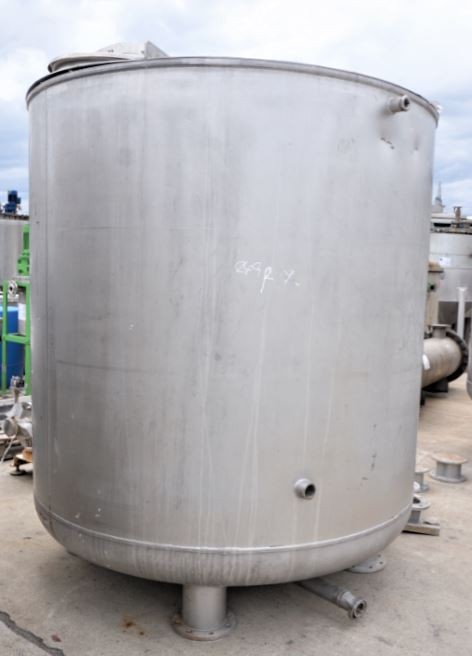

Container 4.100 liters made of V4A temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 4,100.00 litres. The diameter inside includes 1,730 mm.  Container 4.100 liters made of V4A temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Tempering, Processes,

General

  • Volume approx.

  • 4.100,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1999

  • Manufacturer

  • Rudolf Rahaus

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.730 mm

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 1.600 mm

  • Foot height

  • 400 mm

  • Total height

  • 2.200 mm

Design

  • Weight approx.

  • 1.200,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

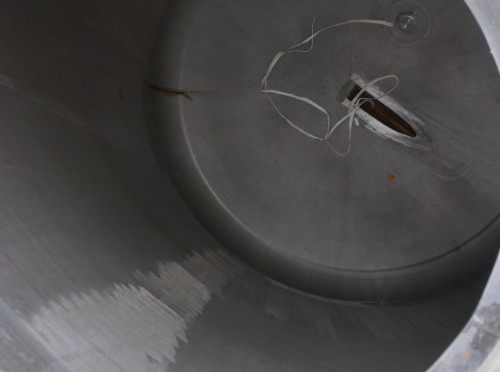

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Flat bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 95,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • 95 °C

  • Temperature control system operating pressure/pipe chamber

  • 2,5 bar

  • Temperature control system operating temperature/pipe chamber

  • 95 °C

  • Temperature control system/pipe chamber capacity

  • 390 litres

Supports

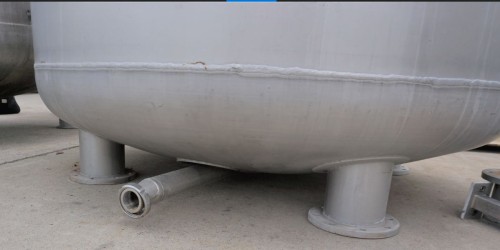

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • mit Fußverlängerung

Fixtures and fittings

  • Outlet nozzle

  • 65/50

  • Additional fixtures and fittings

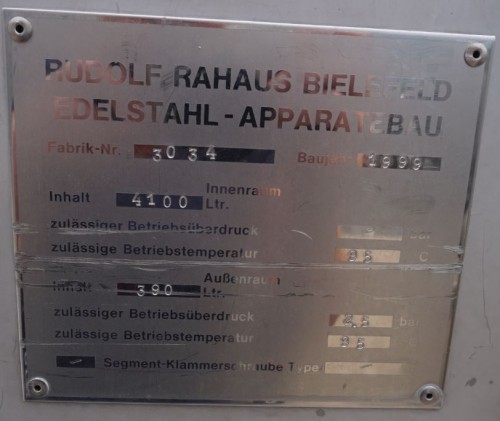

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Buffer tank, Pre-buffer tank, Process tank, Anaerobic digestion tank, Boiling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Anaerobic digestion tank,
