Product no. M-2196

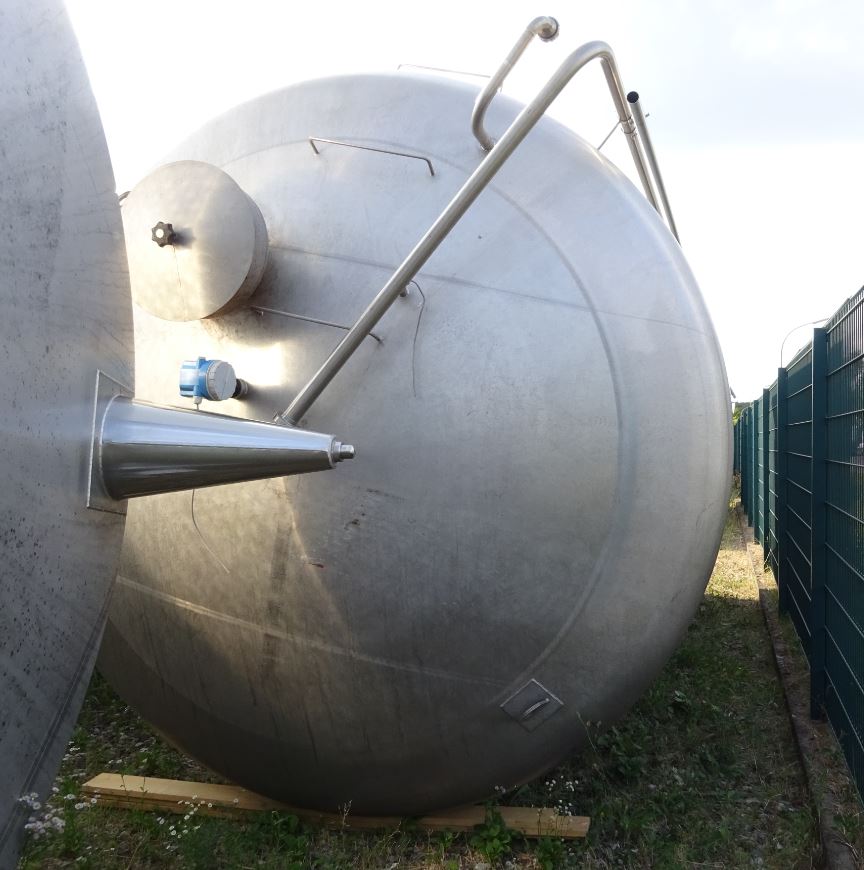

Container 40.000 liters made of V2A, used, single-walled, standing

EUR 19.000,00

add. 19 % VAT excl. shipping costs


Volume approx. 40,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

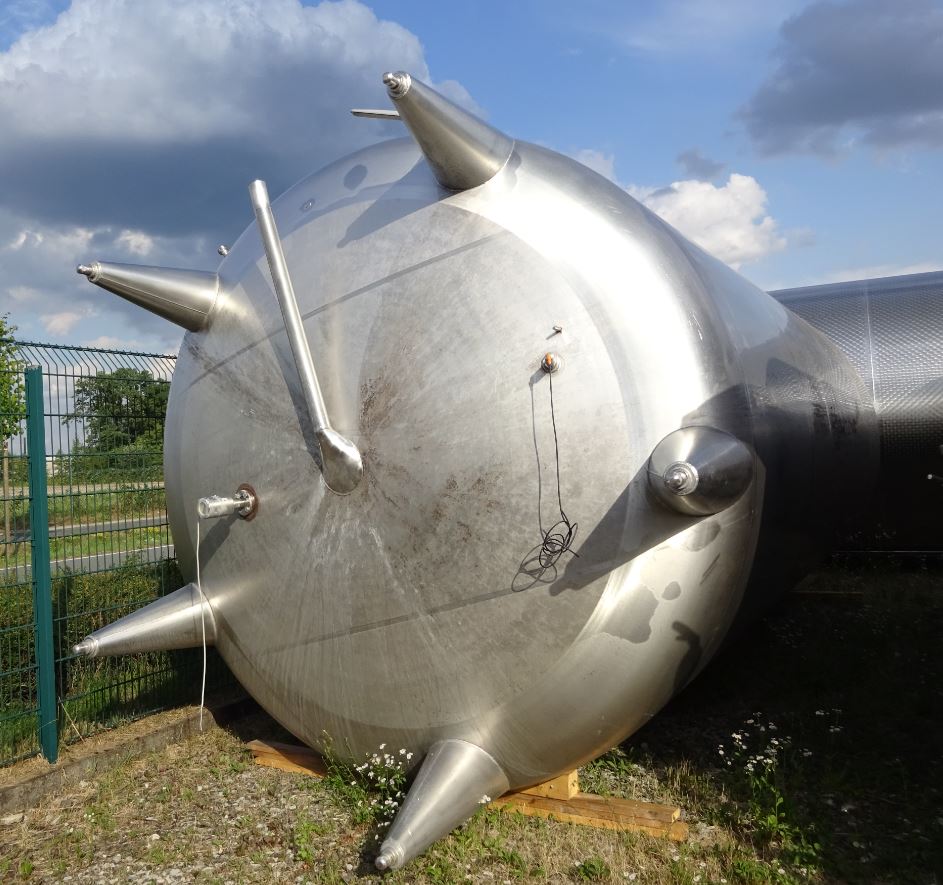

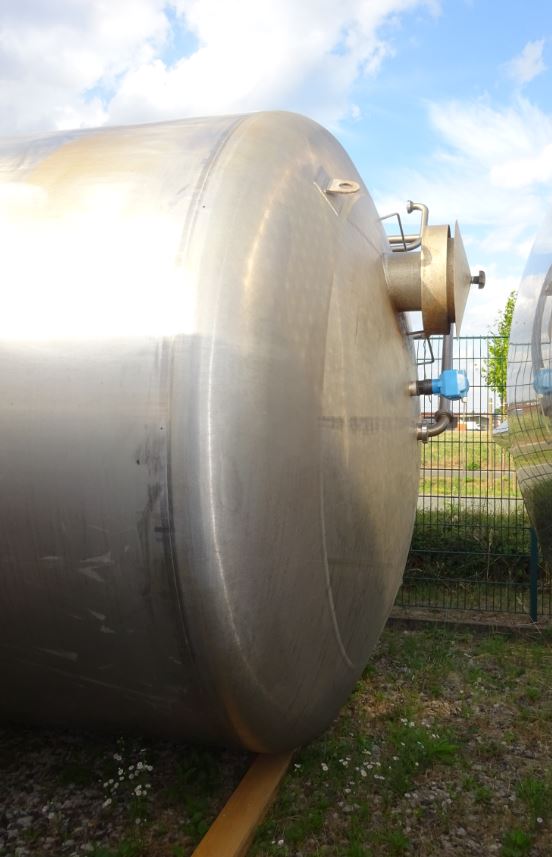

Container 40.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 40,000.00 litres.  Container 40.000 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 40.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1999

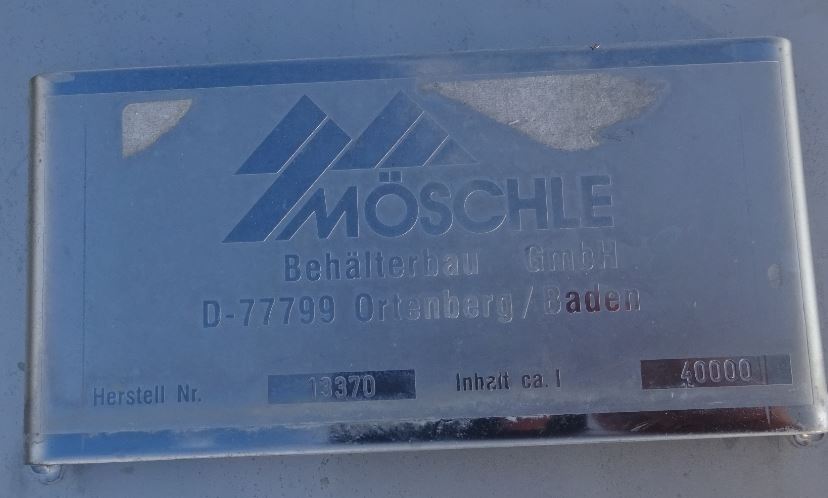

  • Manufacturer

  • Möschle

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.800 mm

  • Cyl. height

  • 5.750 mm

  • Foot height

  • 830 mm

  • Total height

  • 7.490 mm

  • Wall thickness of product chamber head

  • 3,5 mm

  • Wall thickness of product chamber shell

  • 3,0-2,5 mm

  • Wall thickness of product chamber floor

  • 5 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.350,00 kg/m³

  • Insulation

  • no

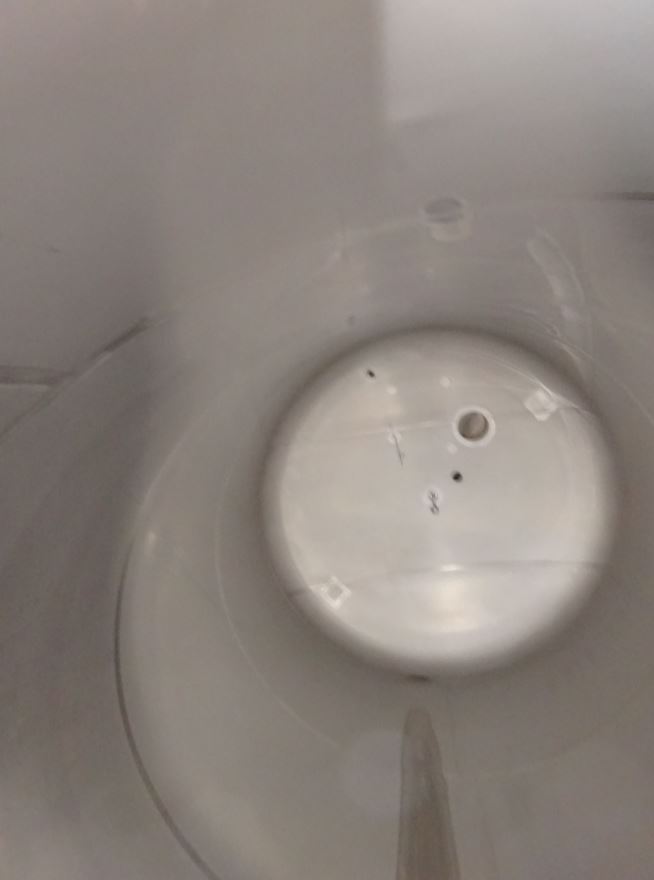

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

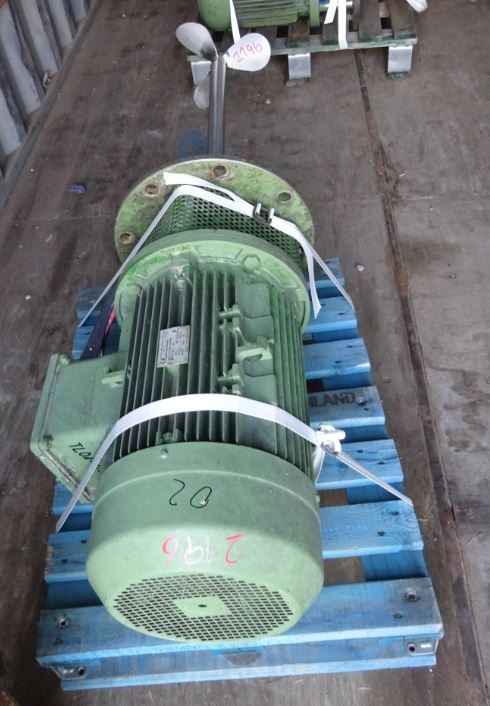

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Central at the side in shell

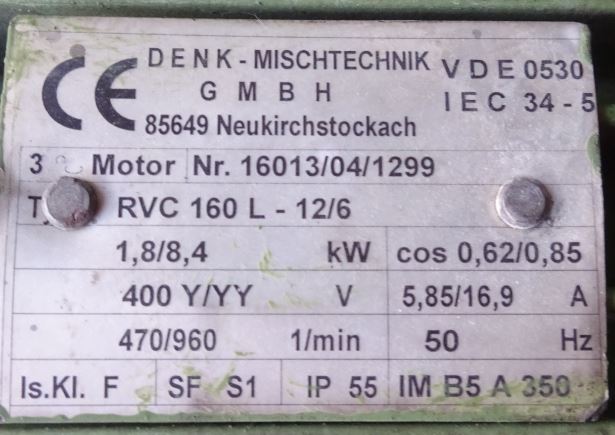

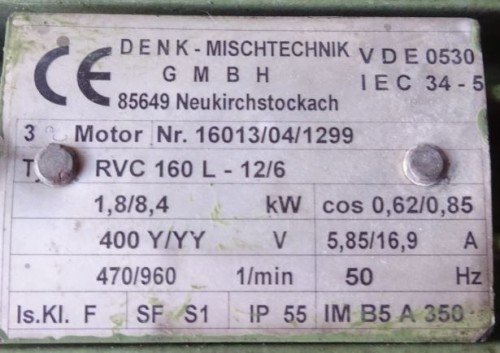

  • Agitator 1 - Output

  • 1,8 und 8,4 kW

  • Agitator 1 - RPM

  • 470 und 960 UpM

  • Agitator 1 - Voltage

  • 400 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 5 (piece)

Fixtures and fittings

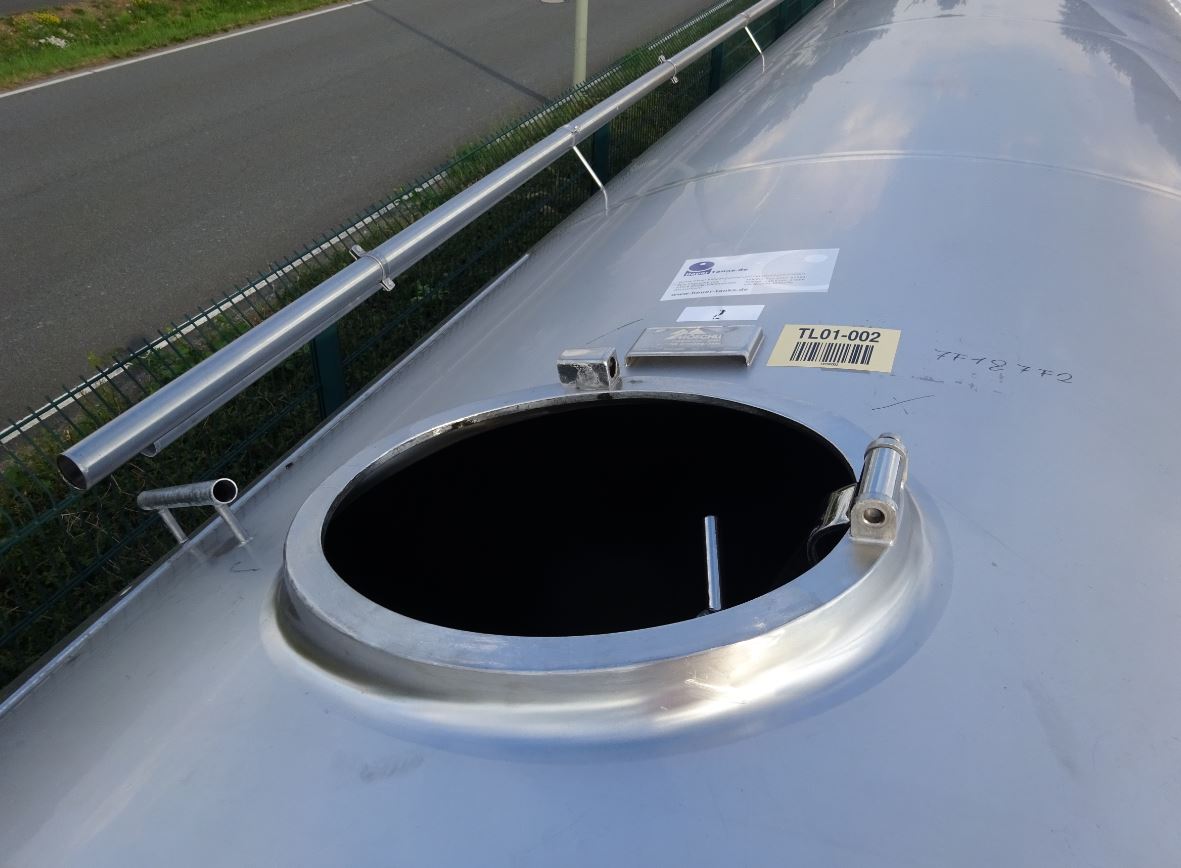

  • Manway 1 size

  • 340x440 DN mm

  • Manway position

  • In shell

  • Nozzle connector

  • Screw thread

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Sample taking

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Cooling tank, Cold water tank,
