Product no. M-2202

Container 43.000 liters aus V2a, single-walled, standing

EUR 17.000,00

add. 19 % VAT excl. shipping costs

Volume approx. 43,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 43.000 liters aus V2a, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 43,000.00 litres.  Container 43.000 liters aus V2a, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 43.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.000 mm

  • Cyl. height

  • 6.000 mm

  • Foot height

  • 900 mm

  • Total height

  • 8.000 mm

Design

  • Weight approx.

  • 3.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

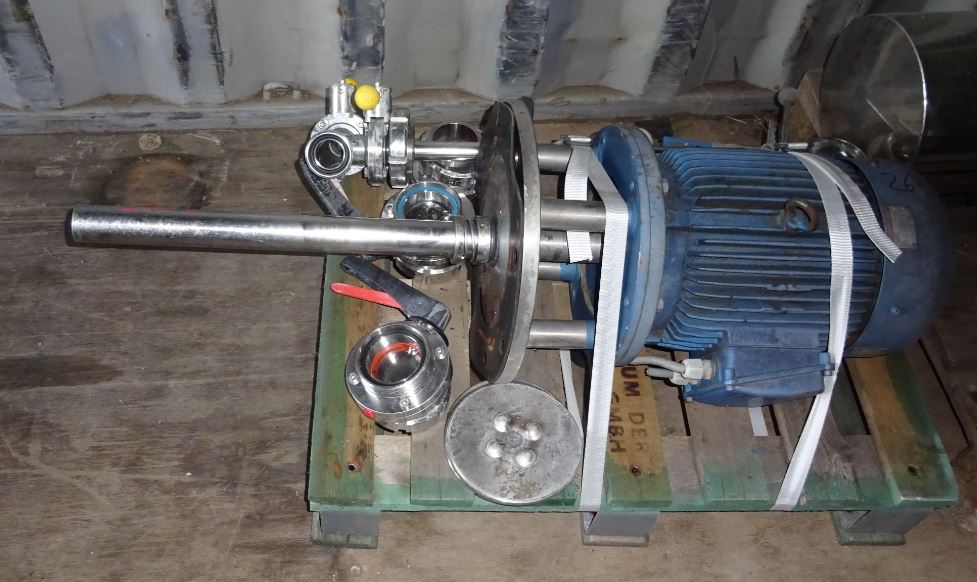

Agitator

  • Agitator quantity

  • 2 (piece)

  • Agitator position

  • Front face

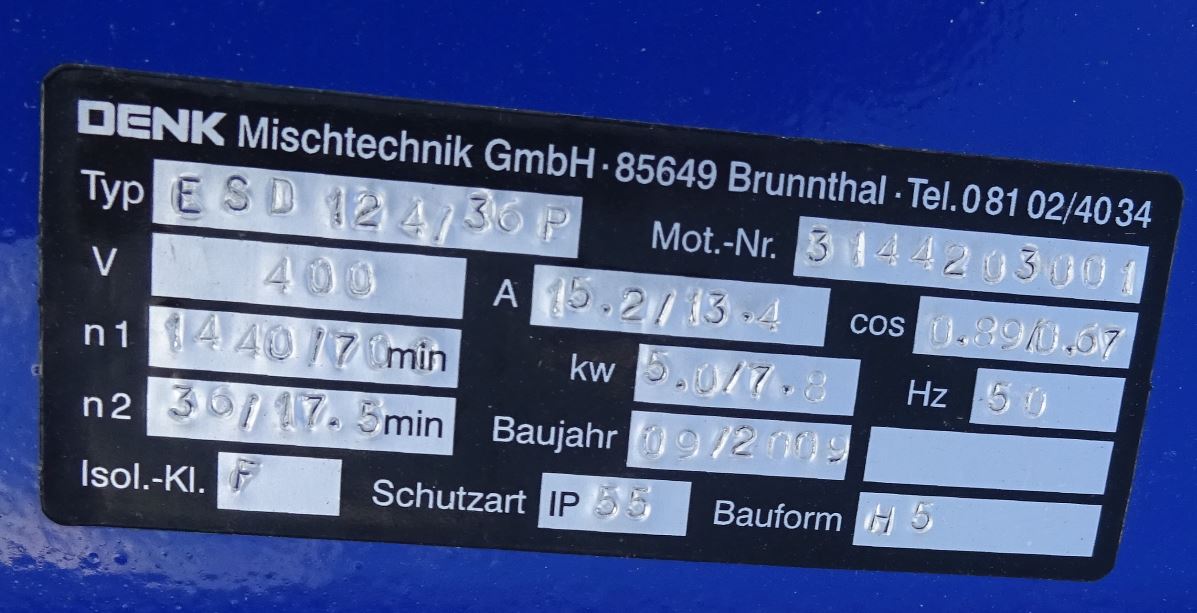

  • Agitator manufacturer

  • Denk

  • Agitator 1 - Output

  • 5 kW

  • Agitator 1 - RPM

  • 36 UpM

  • Agitator 1 - Voltage

  • 400 V

  • Agitator 2 - Output

  • 7,5 kW

  • Agitator 2 - RPM

  • 17,5 UpM

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

Fixtures and fittings

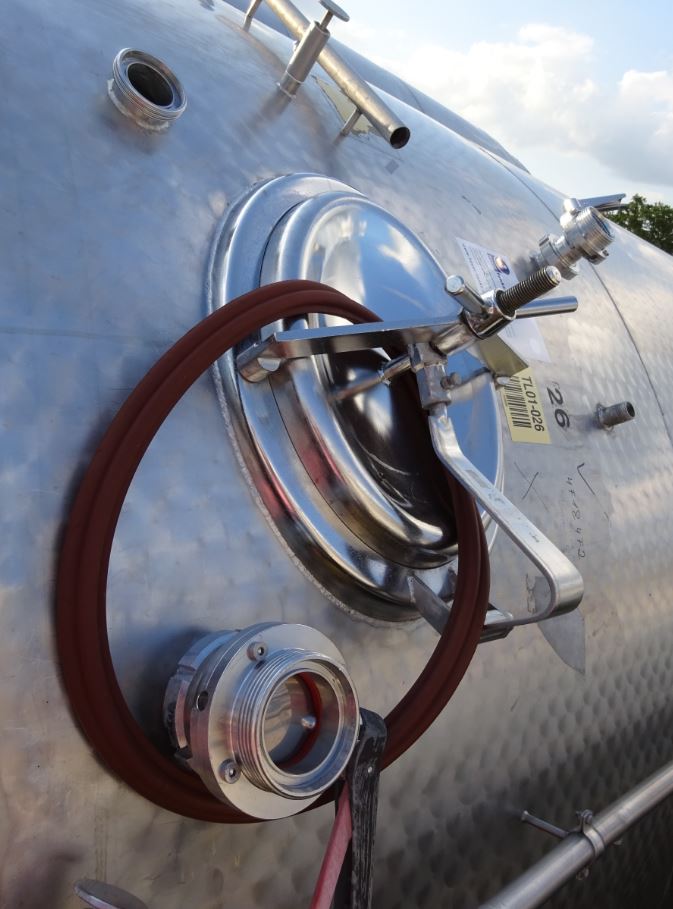

  • Manway position

  • In shell

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

  • Nozzles/connectors in head

  • 1xDN100 (piece)

  • Outlet nozzle

  • 80/65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Sample taking

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Grain tank, Oil tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Hot water tank, Thermal buffer, Boiling tank, Cooling tank, Cold water tank, Filter tank, Nutsche filter, Filtrate tank, Concentrate tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Silo, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, CIP tank, Hot water tank, Cooling tank, Filter tank, Filtrate tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, Pressure tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Hot water tank, Thermal buffer, Cooling tank, Tempering tank, Cold water tank, Filter tank, Filtrate tank, Concentrate tank,
