Product no. M-1099

Container 5.000 liters aus V2a, isolated, used,

EUR 5.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

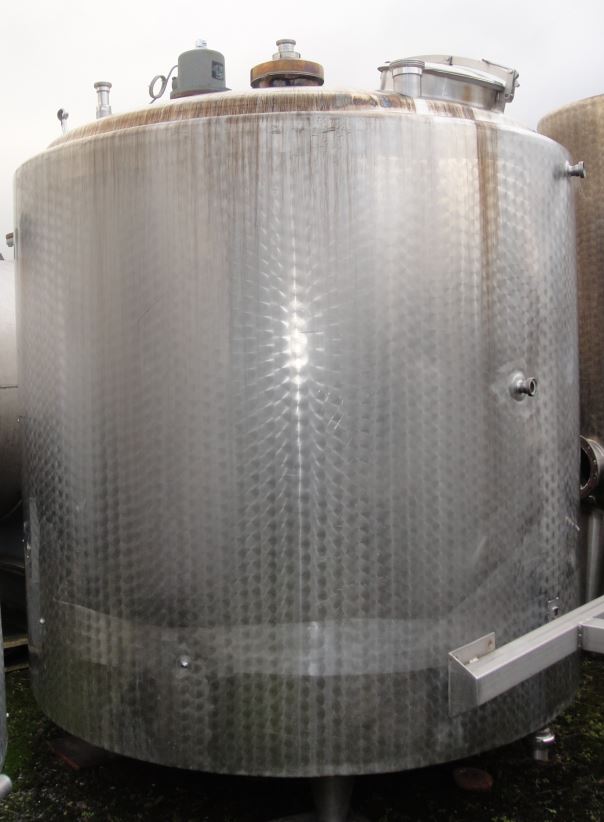

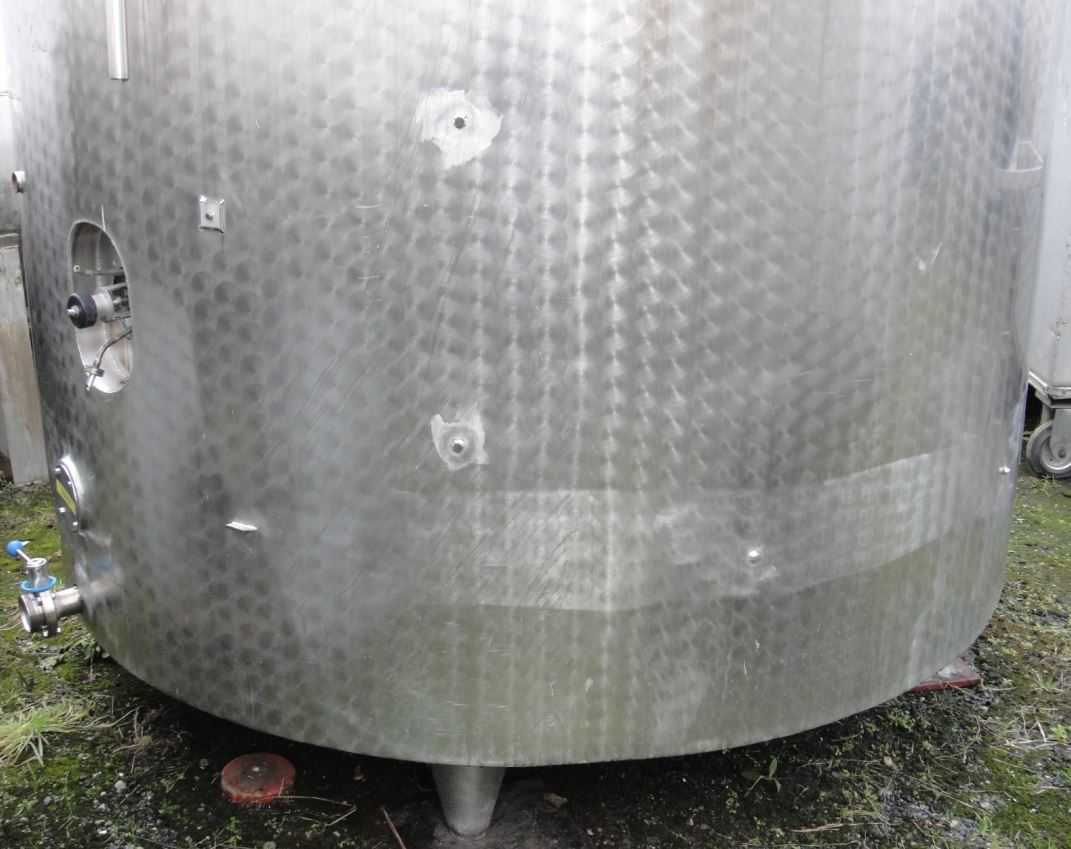

Container 5.000 liters aus V2a, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. The diameter inside includes 1,950 mm.  Container 5.000 liters aus V2a, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Mixing, Cleaning/CIP,

General

  • Volume approx.

  • 5.000,00 litres

Dimensions approx.

  • Internal diameter

  • 1.950 mm

  • External diameter

  • 2.050 mm

  • Cyl. height

  • 1.800 mm

  • Foot height

  • 400 mm

  • Total height

  • 2.900 mm

  • Wall thickness of product chamber head

  • 3 mm

  • Wall thickness of product chamber shell

  • 3 mm

  • Wall thickness of product chamber floor

  • 3 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

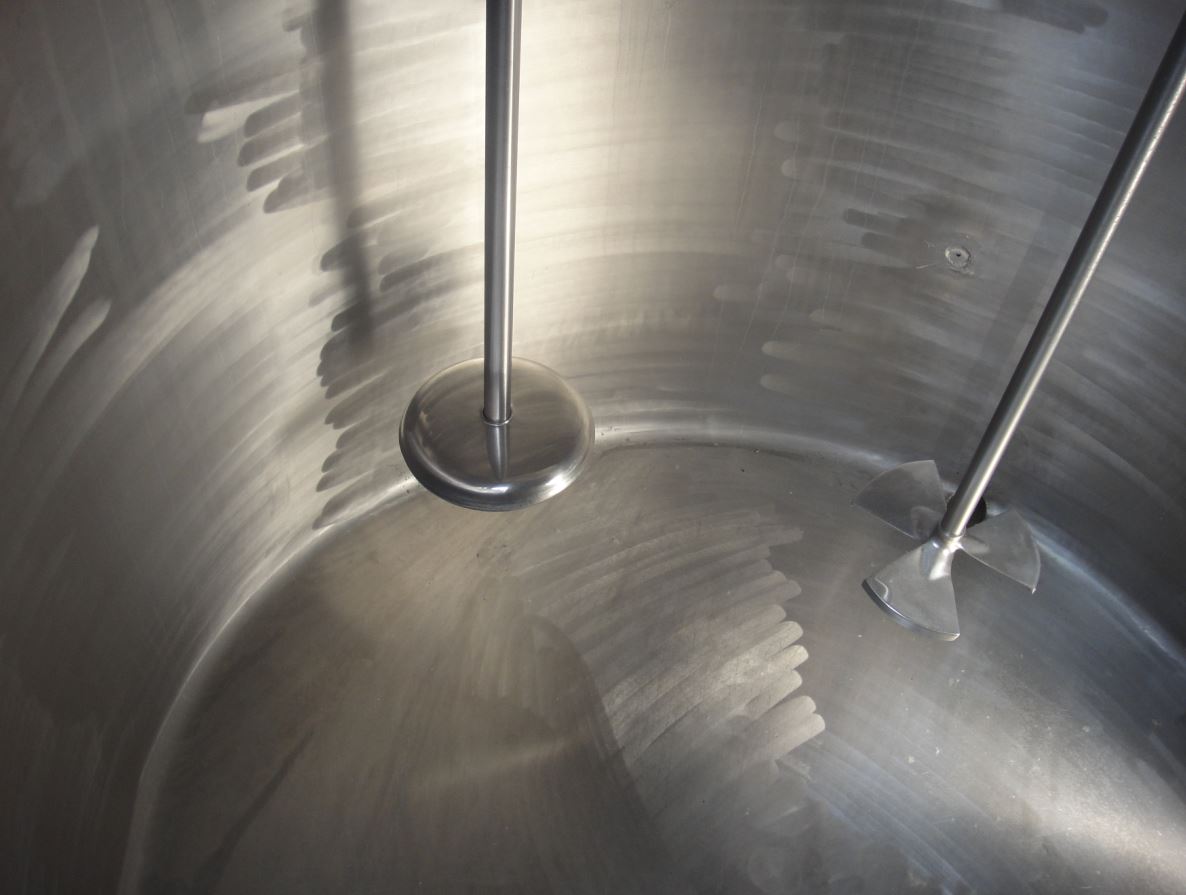

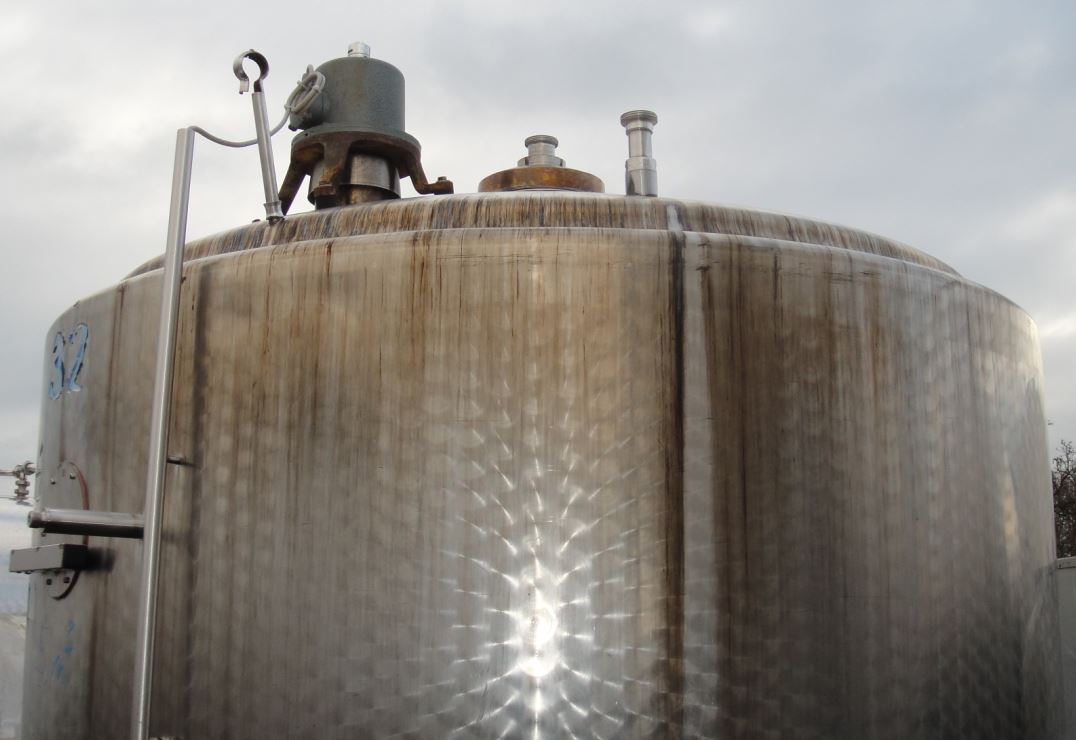

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

  • Stelzer

  • Agitator 1 - Output

  • 0,25 kW

  • Agitator 1 - RPM

  • 470 UpM

  • Agitator 1 - Voltage

  • 220/380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1 (piece)

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Sample taking

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cooling tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
