Product no. M-1418

Container 5.980 liters made of V2A, used, temperature-controllable, isolated, standing

EUR 10.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,980.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

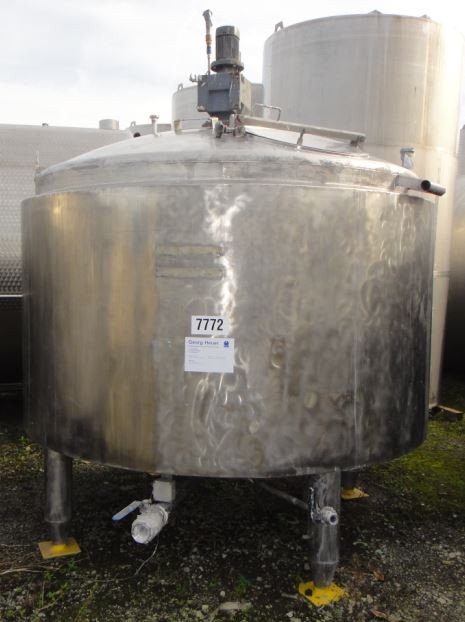

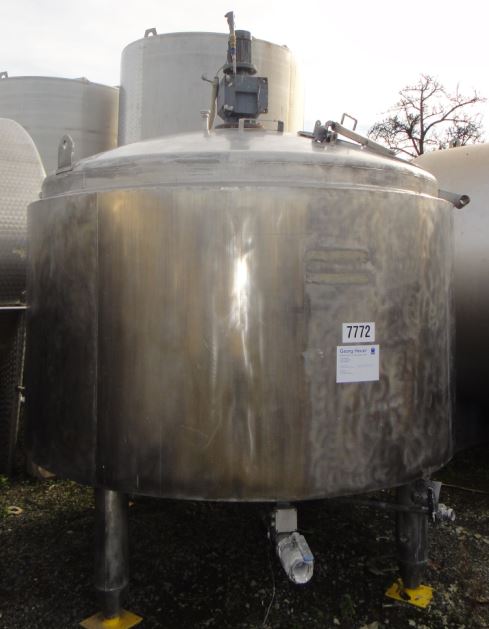

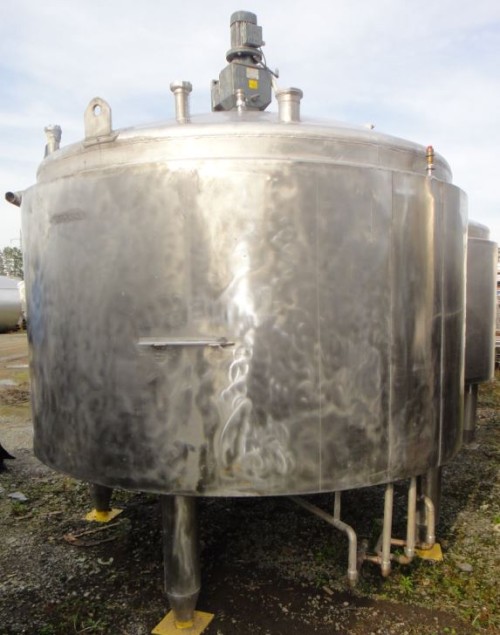

Container 5.980 liters made of V2A, used, temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,980.00 litres. The diameter inside includes 2,270 mm.  Container 5.980 liters made of V2A, used, temperature-controllable, isolated was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing, Processes, Cleaning/CIP,

General

  • Volume approx.

  • 5.980,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.270 mm

  • External diameter

  • 2.430 mm

  • Cyl. height

  • 1.300 mm

  • Foot height

  • 660 mm

  • Total height

  • 2.860 mm

  • Wall thickness of product chamber head

  • 4 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 4 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 70 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 3,5 bar

  • Operating temperature

  • 70 °C

  • Heating medium

  • Water

  • Temperature control system/pipe chamber capacity

  • 119 litres

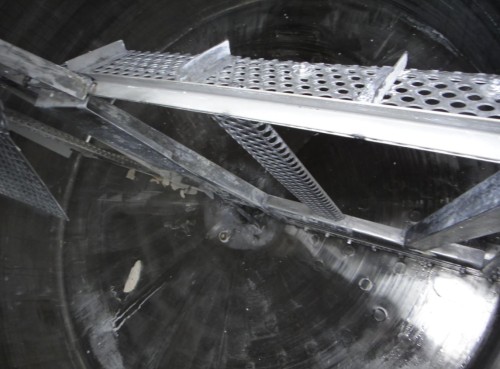

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN 50 1xDN 80 (piece)

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Slurry tank, Silo, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, CIP tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, Fermentation tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Hot water tank, Thermal buffer, Cooling tank, Cold water tank,
