Product no. M-1294

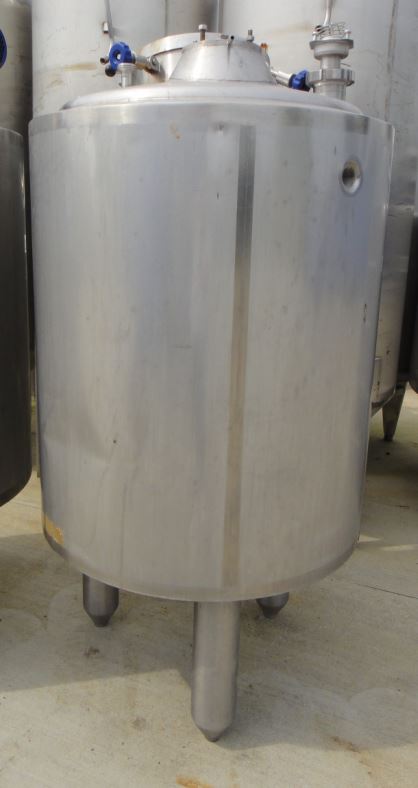

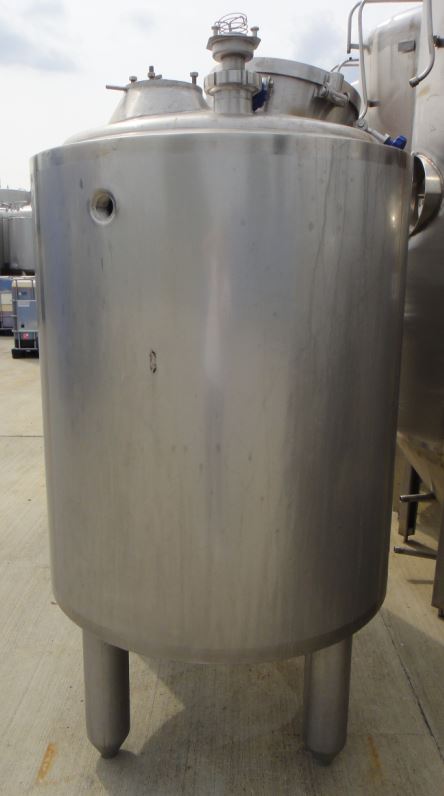

Container 500 liters made of V2A, used, temperature-controllable, isolated, standing

EUR 4.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 500 liters made of V2A, used, temperature-controllable, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 500.00 litres. The diameter inside includes 870 mm.  Container 500 liters made of V2A, used, temperature-controllable, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1995

  • Manufacturer

  • Vanello

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 870 mm

  • External diameter

  • 1.030 mm

  • Cyl. height

  • 1.160 mm

  • Foot height

  • 520 mm

  • Total height

  • 2.180 mm

Design

  • Weight approx.

  • 500,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 0,00 bar

  • Temperature control system operating pressure/pipe chamber

  • 3 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Mash tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Hot water tank, Thermal buffer, Boiling tank, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Process tank, CIP tank, Hot water tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cooling tank, Cold water tank,
