Product no. M-1119

Container 8.000 liters aus V2a, isolated, used, standing

EUR 5.760,00

add. 19 % VAT excl. shipping costs


Volume approx. 8,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

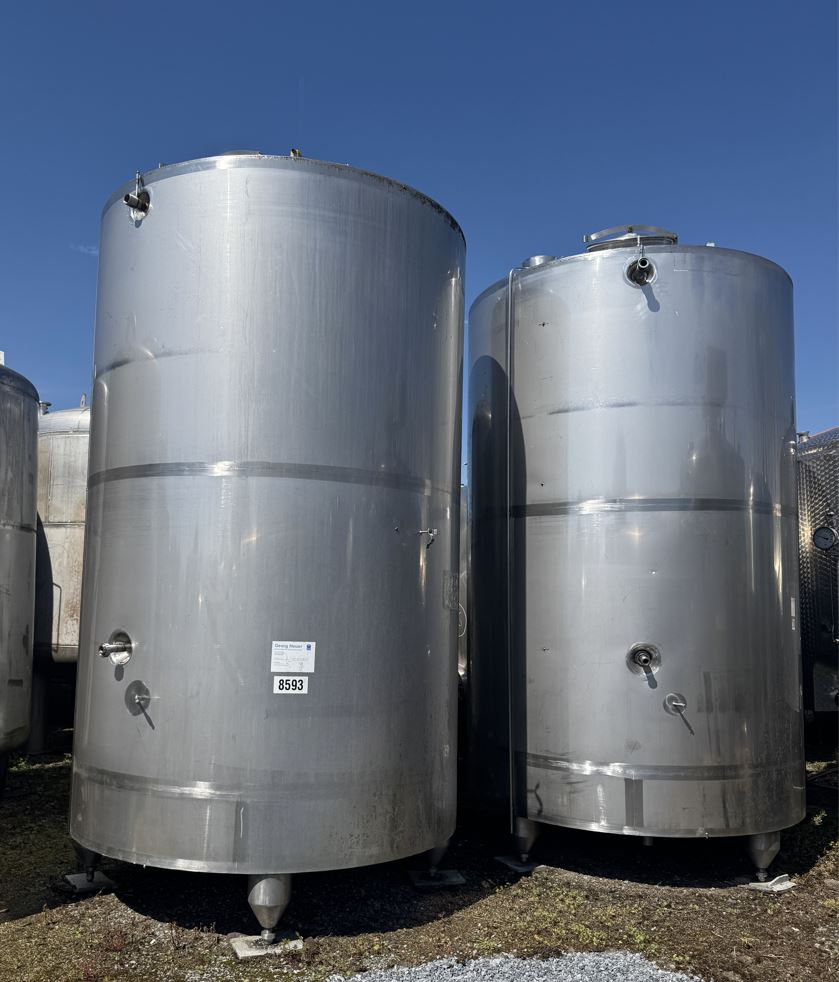

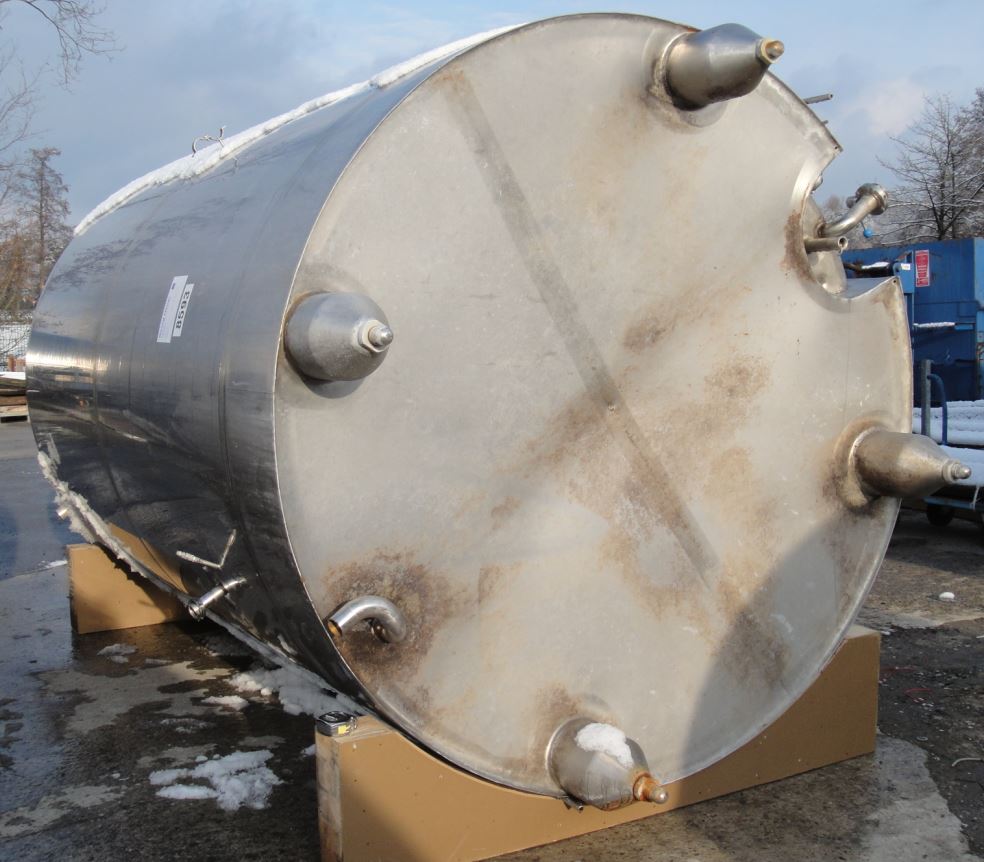

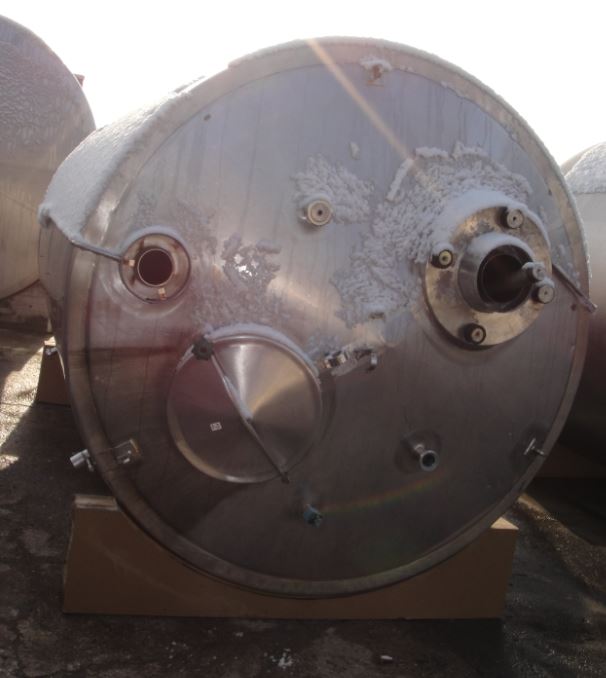

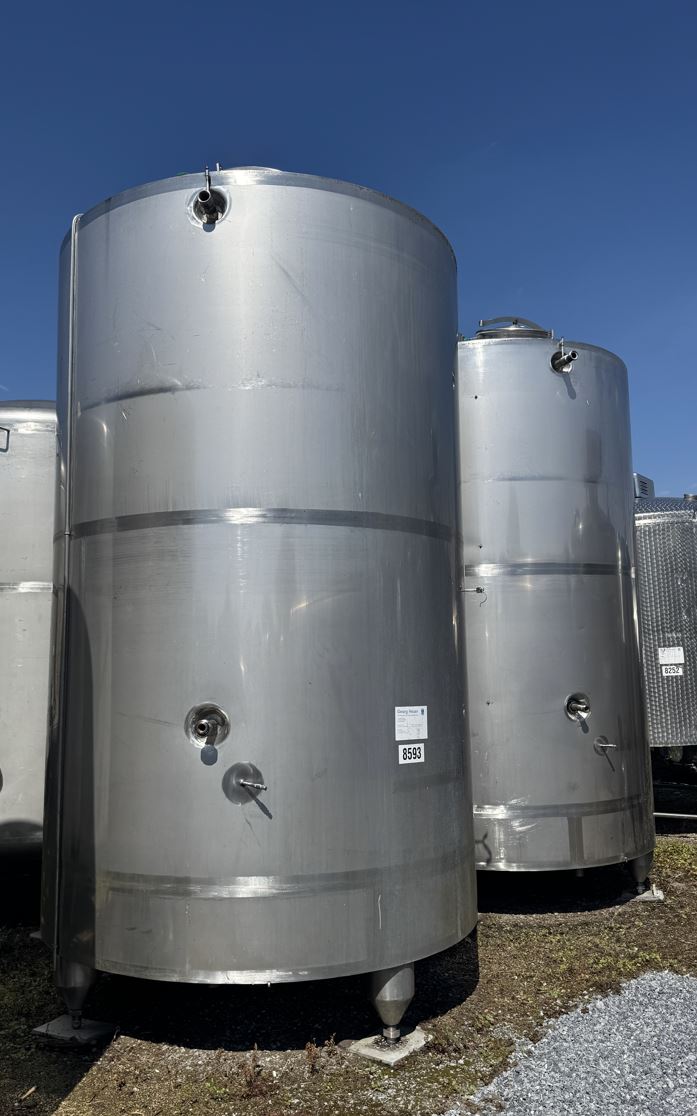

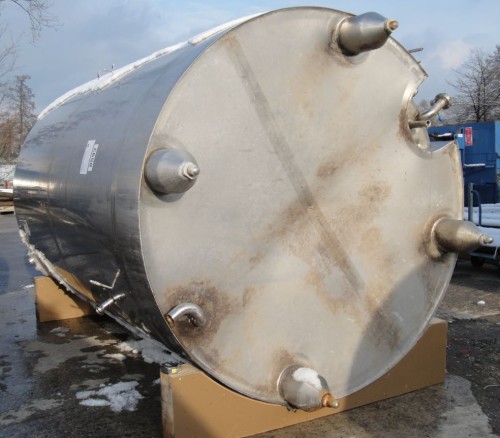

Container 8.000 liters aus V2a, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 8,000.00 litres. The diameter inside includes 2,000 mm.  Container 8.000 liters aus V2a, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Mixing, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 8.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.000 mm

  • External diameter

  • 2.180 mm

  • Cyl. height

  • 3.360 mm

  • Foot height

  • 350 mm

  • Total height

  • 4.460 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

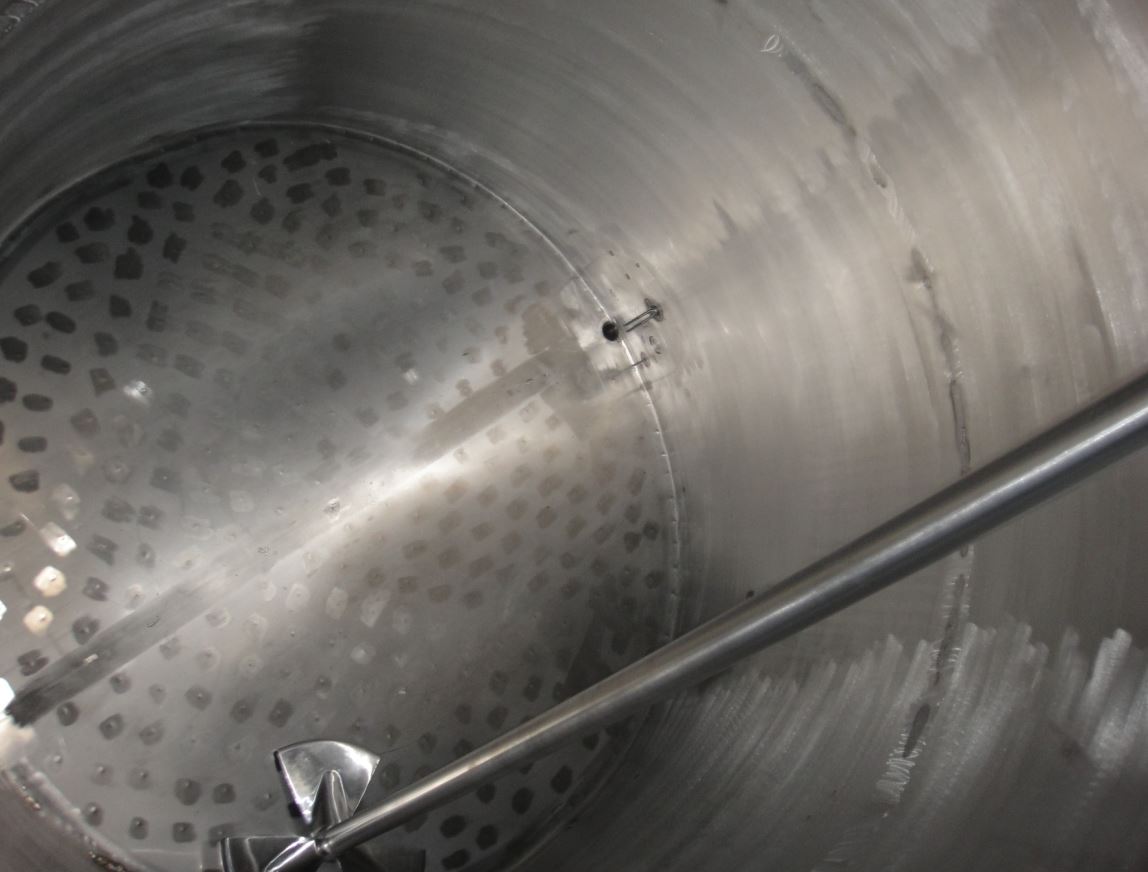

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1 (piece)

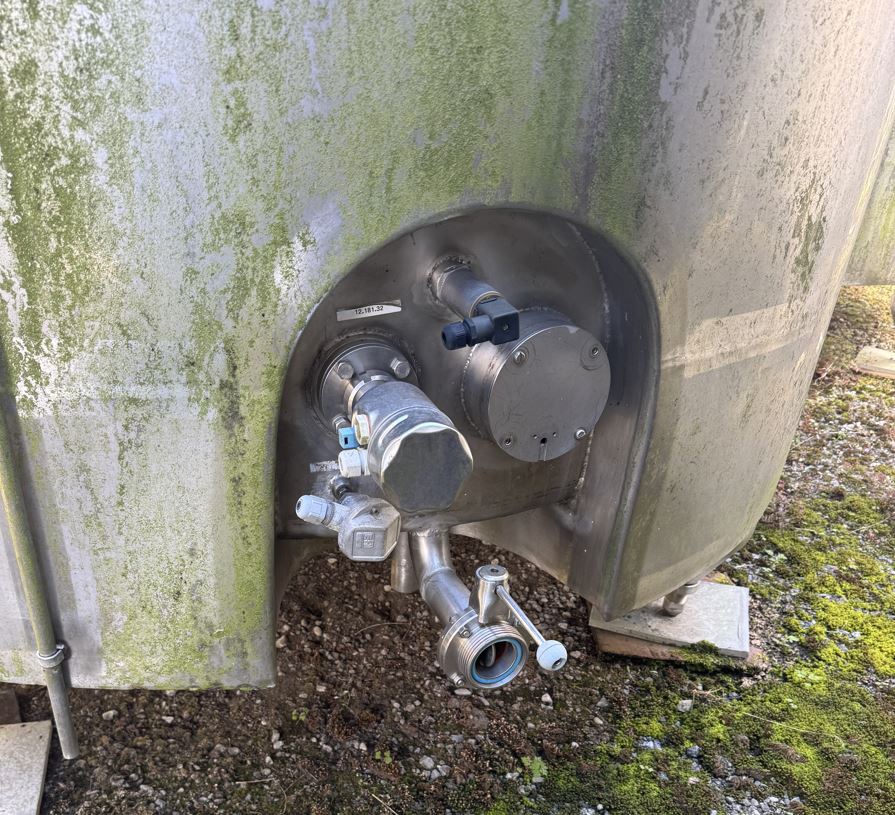

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

Other

  • Note

  • Reparaturstellen im Produktraum / Rührwerk ohne Antrieb/Motor

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
