Product no. M-1838

Container 8.800 liters made of V4A, used, temperature-controllable, standing

EUR 13.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 8,800.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

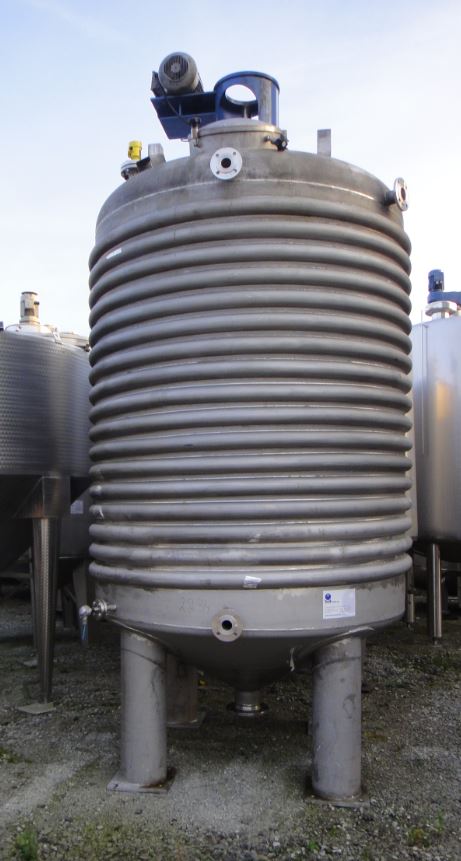

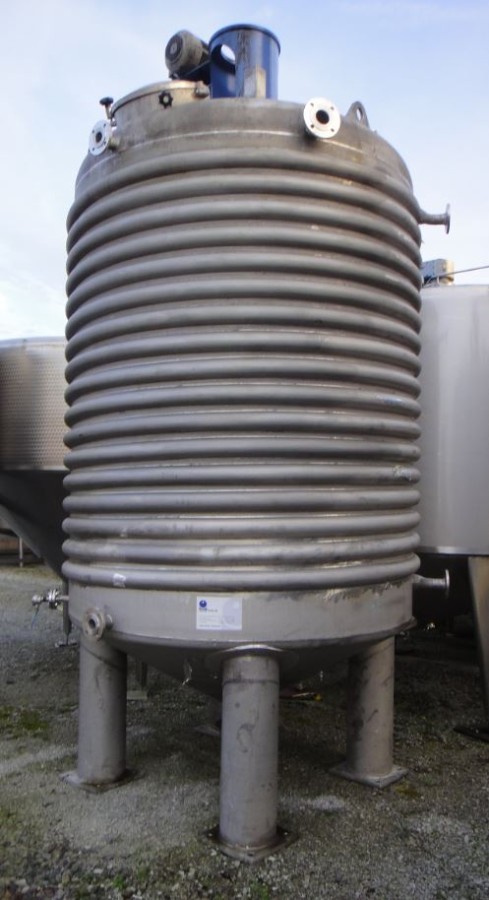

Container 8.800 liters made of V4A, used, temperature-controllable consists of the material 1.4571(AISI316) V4A. The volume is approx. 8,800.00 litres. The diameter inside includes 2,200 mm.  Container 8.800 liters made of V4A, used, temperature-controllable was last used in the following area: Fine chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Processes, Fermentation, Anaerobic digestion, Cleaning/CIP, Reactor,

General

  • Volume approx.

  • 8.800,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2004

  • Manufacturer

  • Heinrich Nowak

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.200 mm

  • External diameter

  • 2.300 mm

  • Cyl. height

  • 2.300 mm

  • Foot height

  • 1.000 mm

  • Outlet height

  • 420 mm

  • Total height

  • 4.800 mm

Design

  • Interior surface

  • Brushed

  • Exterior surface

  • Brushed

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,4 bar

  • Product chamber operating temperature

  • 40 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Half-pipe coils

  • Operating pressure

  • 0,4 bar

  • Operating temperature

  • 40 °C

  • Heating medium

  • Water

  • Temperature control system/pipe chamber capacity

  • 288 litres

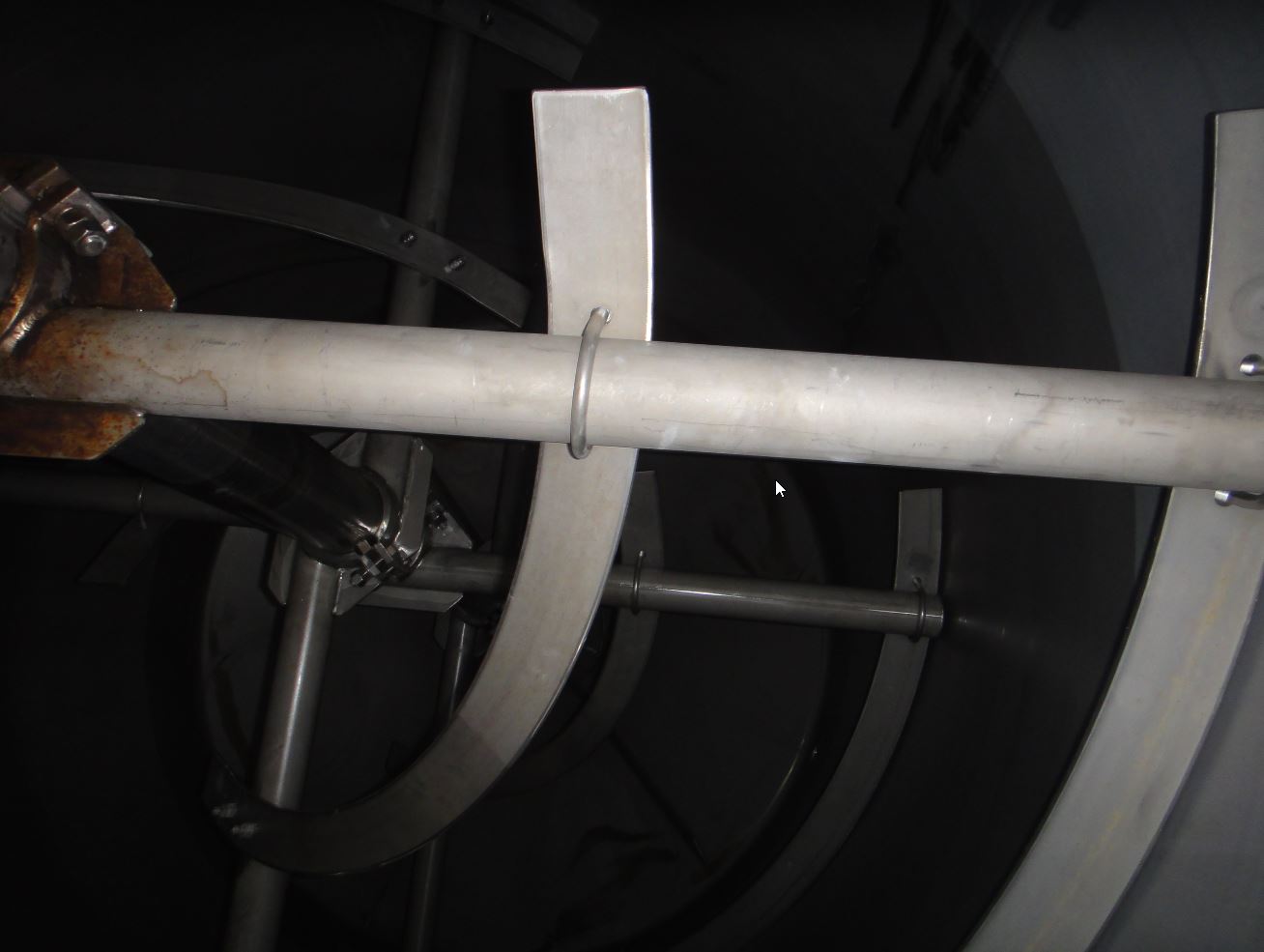

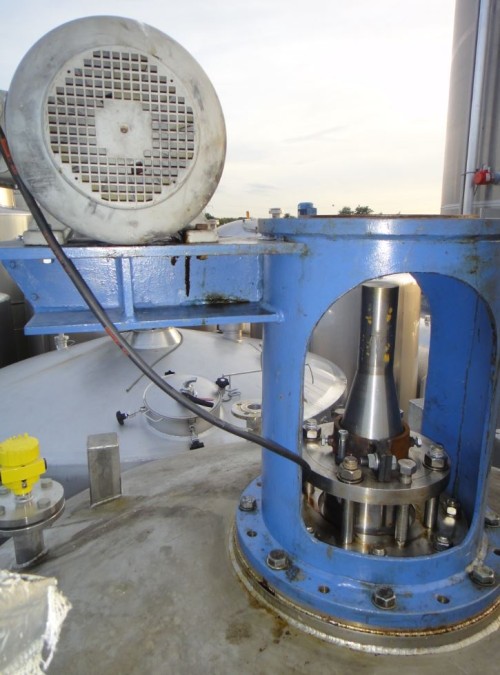

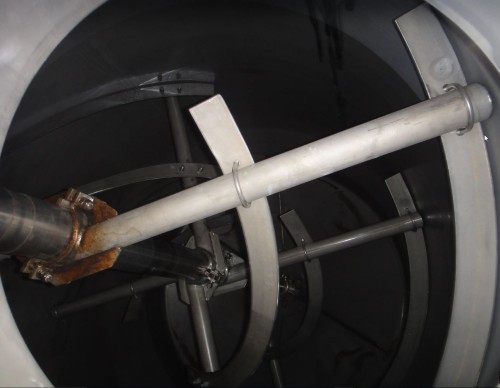

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

  • Agitator manufacturer

  • Getriebe fehlt

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • 2xDN50 (piece)

  • Nozzles/connectors in head

  • 2xDN25 2xDN50 1xDN65 1xDN80 (piece)

  • Outlet nozzle

  • 150

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Rührwerk ohne Antrieb/Motor

  • Last usage

  • Fine chemistry

This product is suitable for use as:

Foodstuffs: CIP tank,

Agriculture: Substrate tank, Rainwater tank, Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, CIP tank, Hot water tank, Cooling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Mixing tank, Process tank, Anaerobic digestion tank, CIP tank, Reactor/reaction tank, Thermal buffer, Cooling tank, Cold water tank,
