Product no. M-1647

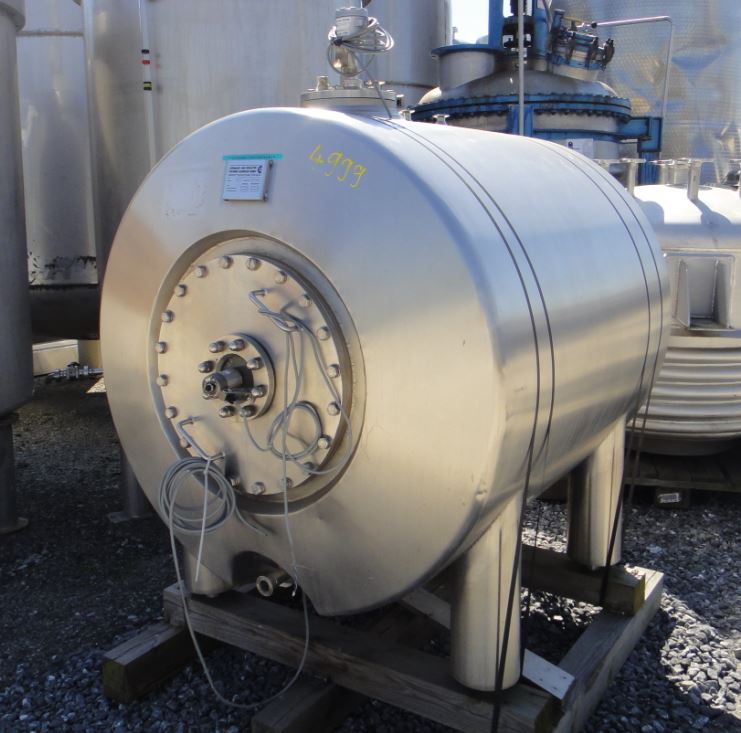

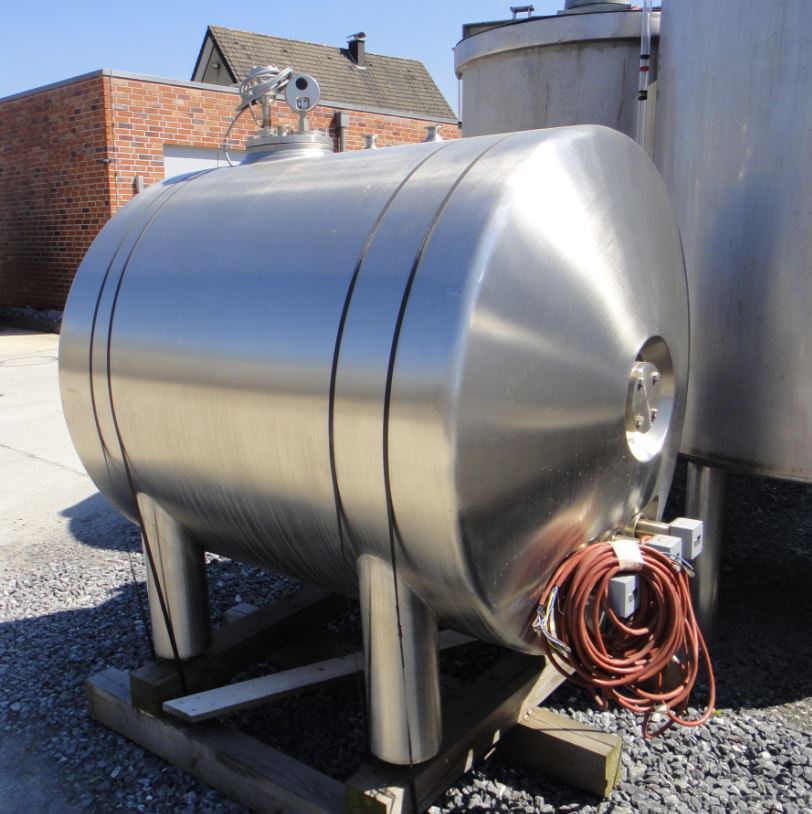

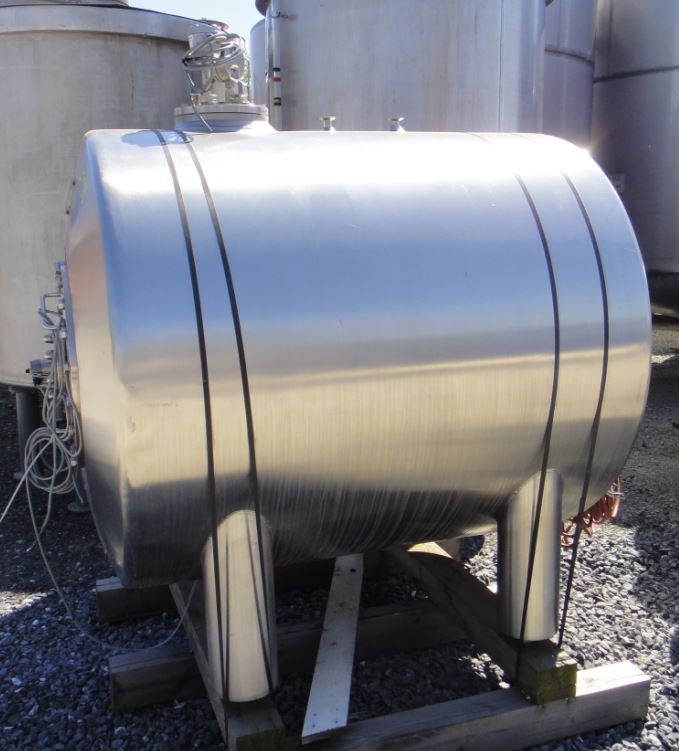

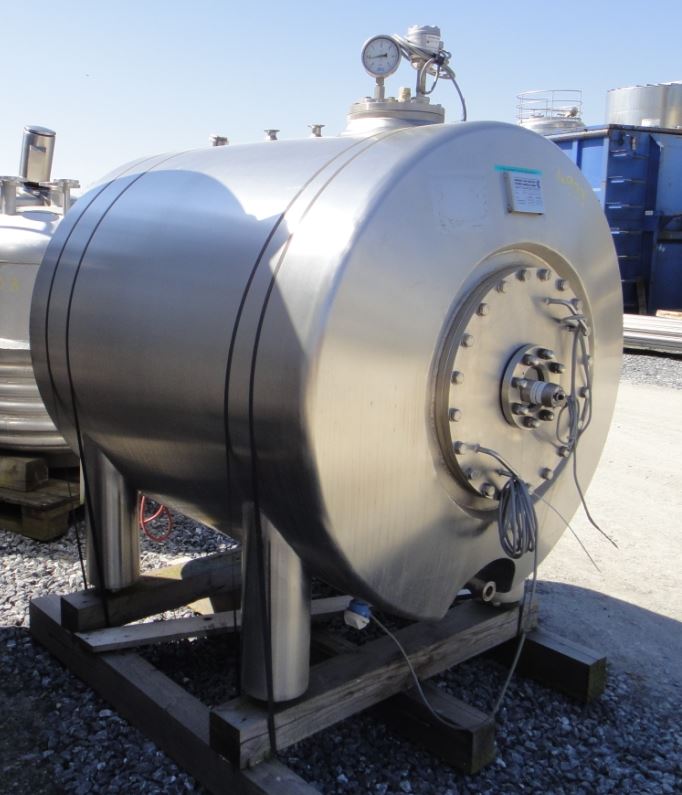

Pressure tank 1.220 liters made of V4A, used, isolated, temperature-controllable, horizontal

EUR 4.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,220.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 1.220 liters made of V4A, used, isolated, temperature-controllable consists of the material 1.4404(AISI316) V4A. The volume is approx. 1,220.00 litres. The diameter inside includes 1,100 mm.  Pressure tank 1.220 liters made of V4A, used, isolated, temperature-controllable was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Tempering, Filtering, Under/over-pressure, Reactor,

General

  • Volume approx.

  • 1.220,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.100 mm

  • External diameter

  • 1.210 mm

  • Cyl. length

  • 1.000 mm

  • Total height

  • 1.700 mm

  • Total length

  • 1.750 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 3,4 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 150 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

  • Temperature control system

  • Electric

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Handlochposition Handhole position

  • In head

  • Outlet nozzle

  • 32

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Pharmaceuticals

This product is suitable for use as:

Foodstuffs:

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, CIP tank, Reactor/reaction tank, Thermal buffer, Cooling tank, Cold water tank,
