Product no. M-1980

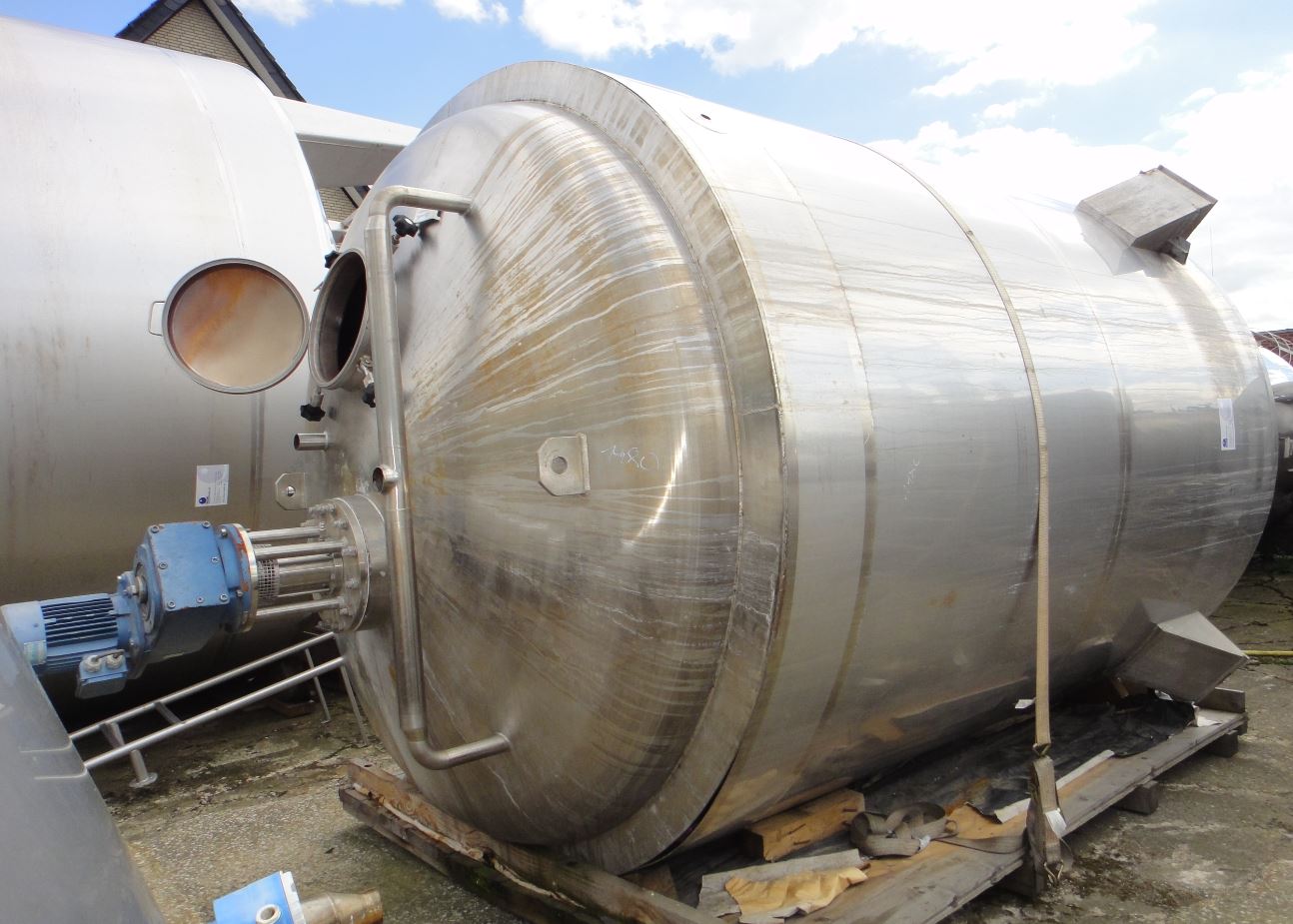

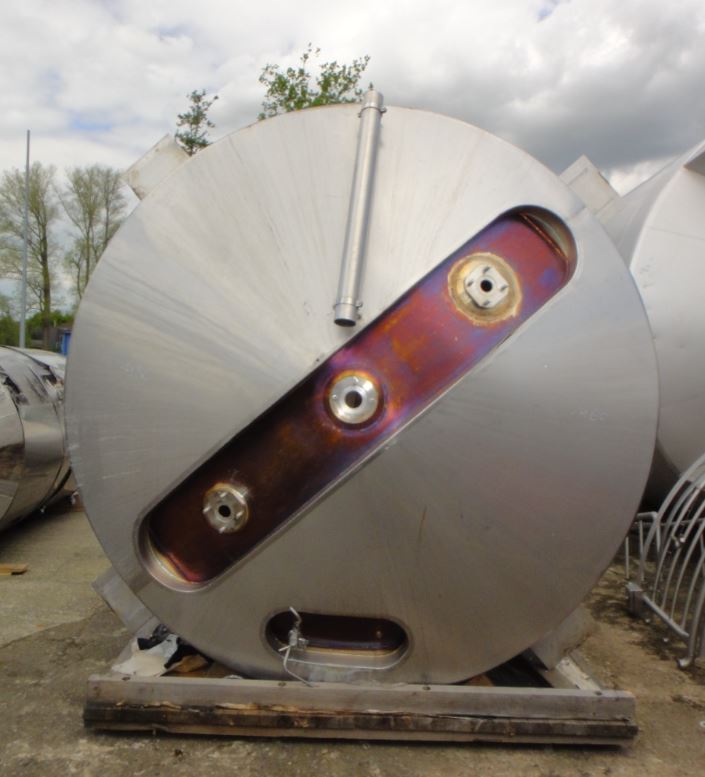

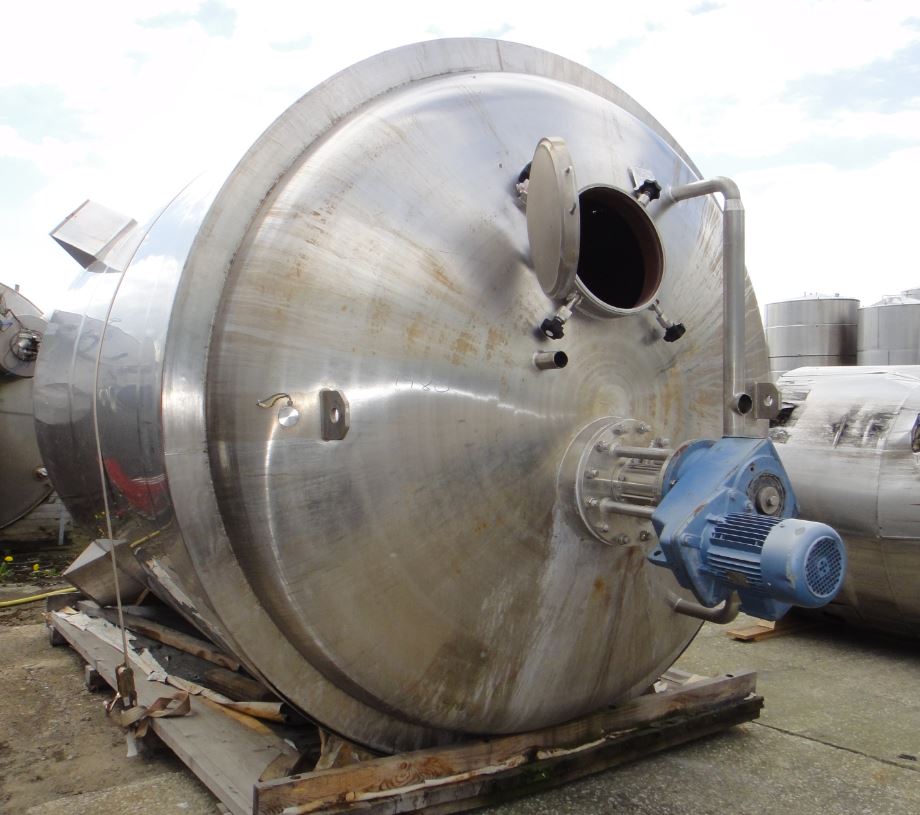

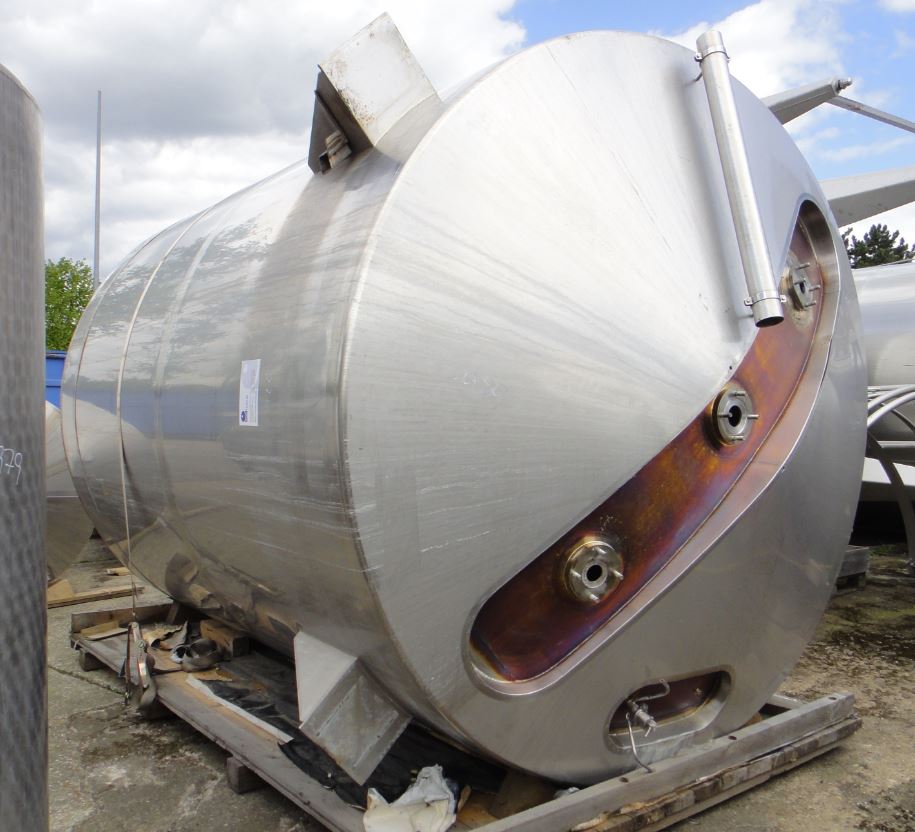

Pressure tank 15.000 liters made of V2A, used, isolated, hanging

EUR 15.700,00

add. 19 % VAT excl. shipping costs

Volume approx. 15,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 15.000 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 15,000.00 litres. The diameter inside includes 2,300 mm.  Pressure tank 15.000 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Filtering, Mixing, Under/over-pressure, Cleaning/CIP,

General

  • Volume approx.

  • 15.000,00 litres

  • Structure

  • Hanging

  • Year of manufacture

  • 2003

  • Manufacturer

  • Thrun

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.300 mm

  • External diameter

  • 2.560 mm

  • Cyl. height

  • 3.250 mm

  • Total height

  • 5.100 mm

Design

  • Weight approx.

  • 3.000,00 kg

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,5 bar

  • Product chamber operating under-pressure

  • -0,8 bar

  • Product chamber operating temperature

  • 145/100 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Spray cooling

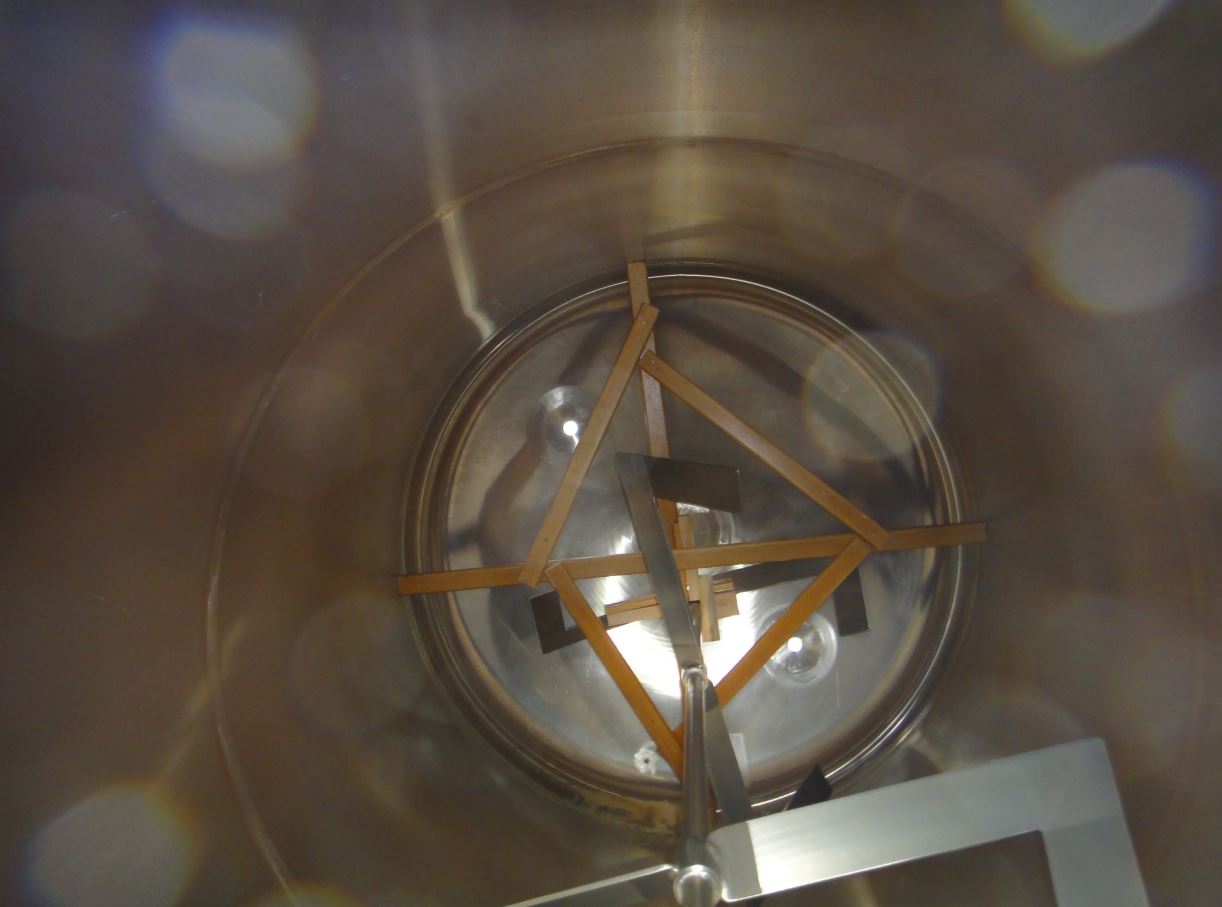

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

  • Agitator 1 - Output

  • 3 kW

  • Agitator 1 - RPM

  • 145 UpM

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Nameplate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, CIP tank, Thermal buffer, Cold water tank,
