Product no. M-3012

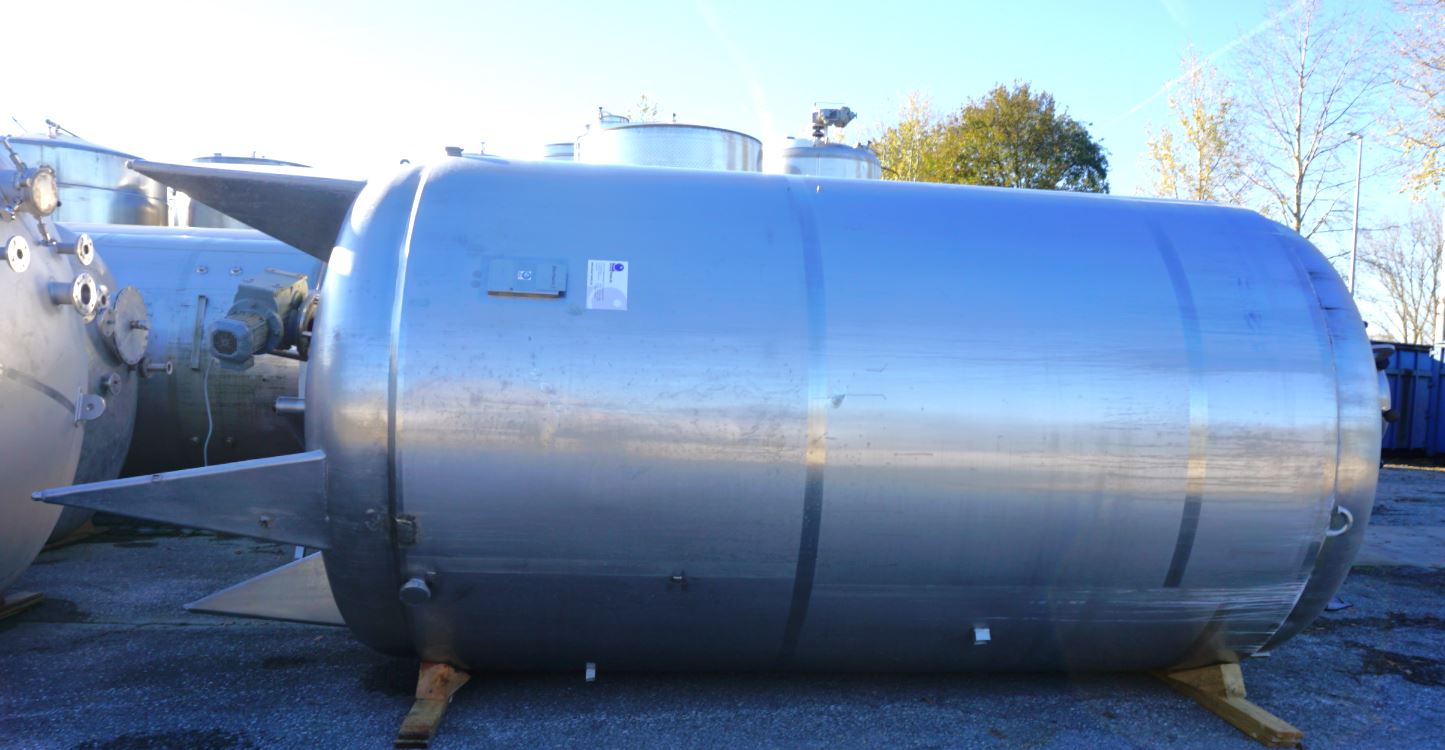

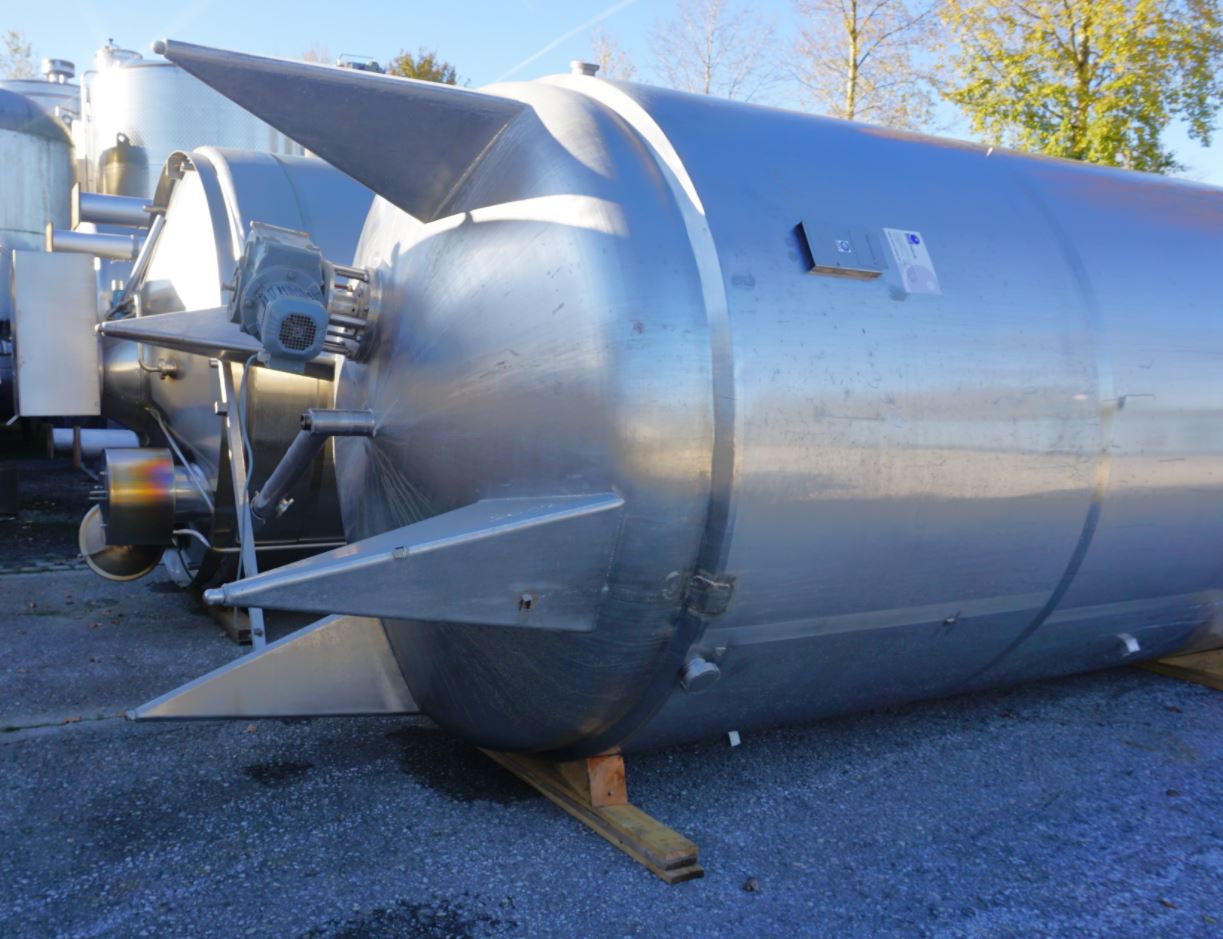

Pressure tank 16.200 liters made of V2A temperature-controllable, used, standing

EUR 16.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 16,200.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 16.200 liters made of V2A temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 16,200.00 litres. The diameter inside includes 2,200 mm.  Pressure tank 16.200 liters made of V2A temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing, Under/over-pressure,

General

  • Volume approx.

  • 16.200,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1991

  • Manufacturer

  • CMK DK-Kolding

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.200 mm

  • External diameter

  • 2.300 mm

  • Cyl. height

  • 3.700 mm

  • Foot height

  • 1.250 mm

  • Total height

  • 5.700 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

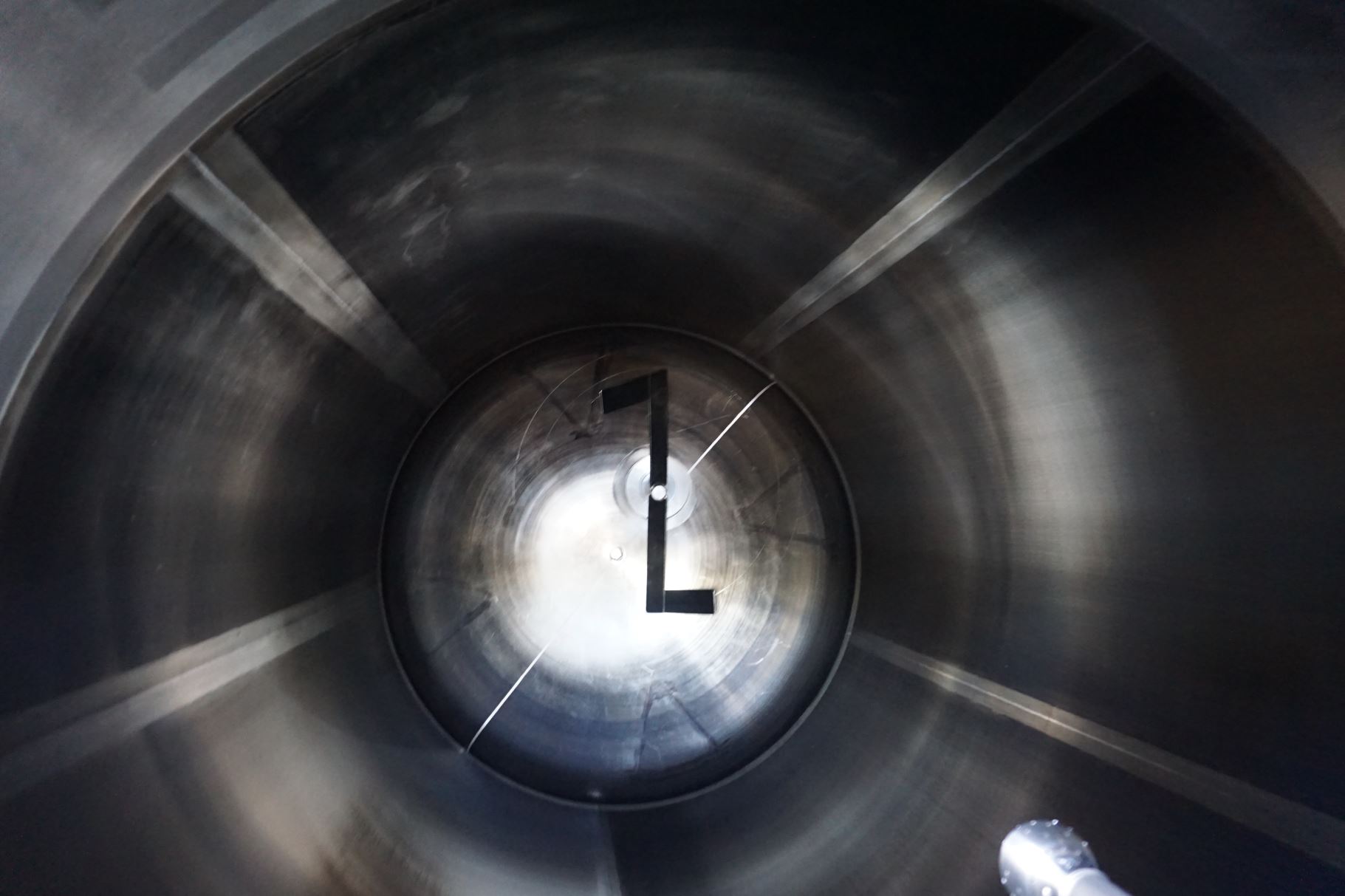

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,50 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Spray cooling

  • Operating temperature

  • 150 °C

  • Temperature control system operating pressure/pipe chamber

  • 0,0 bar

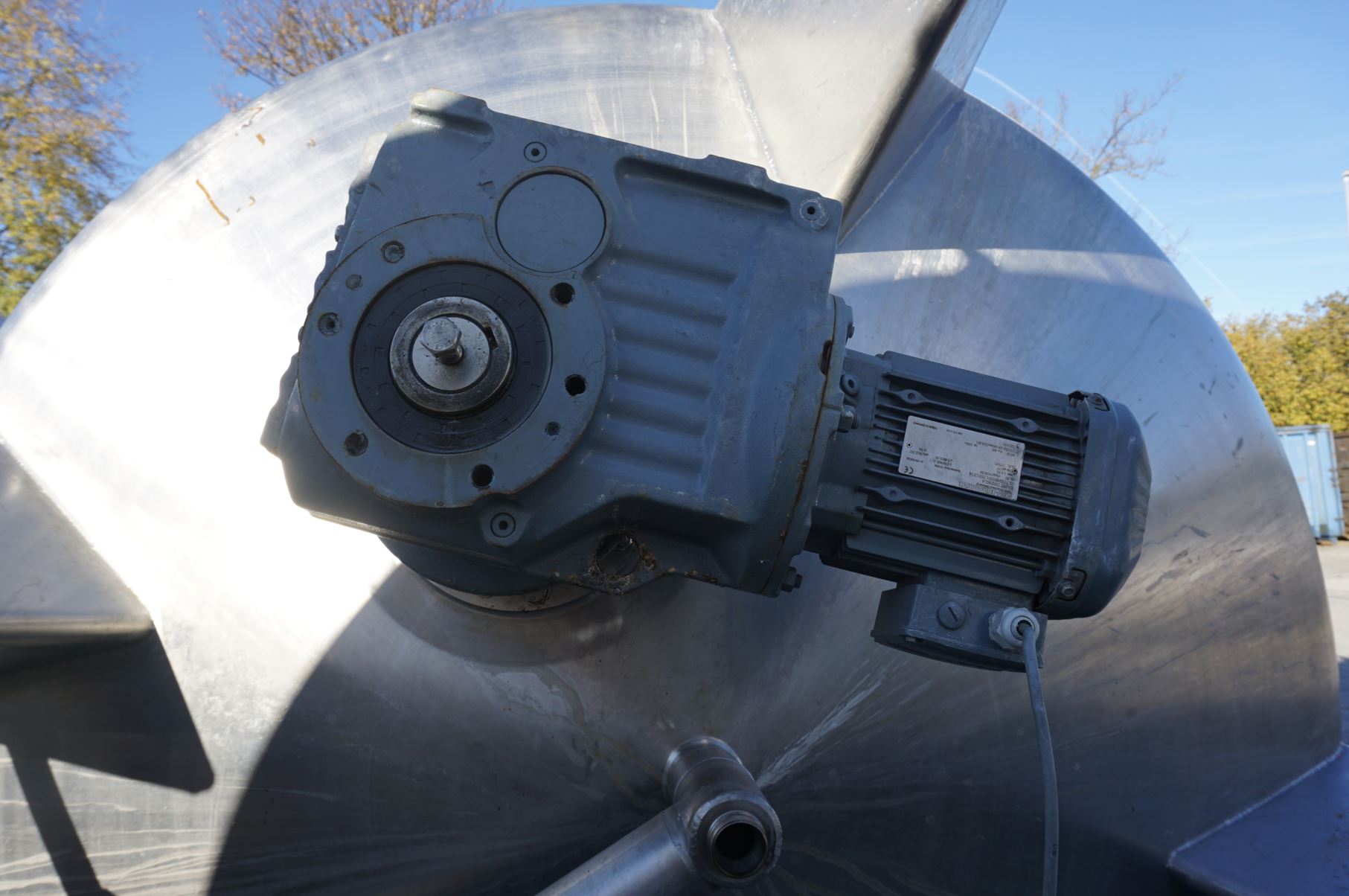

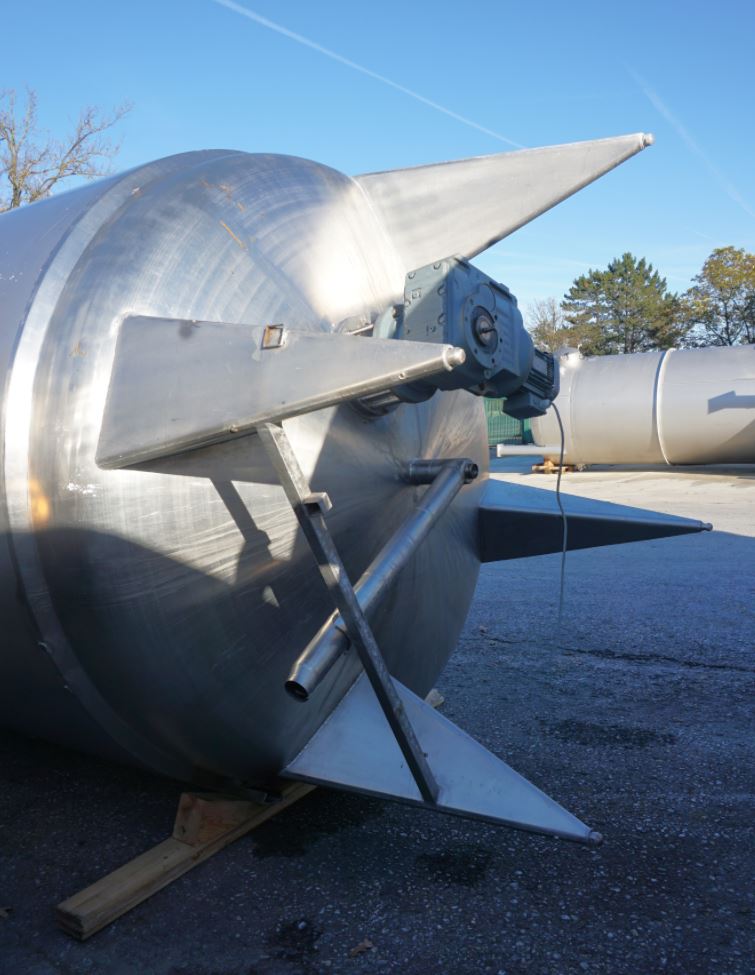

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Floor

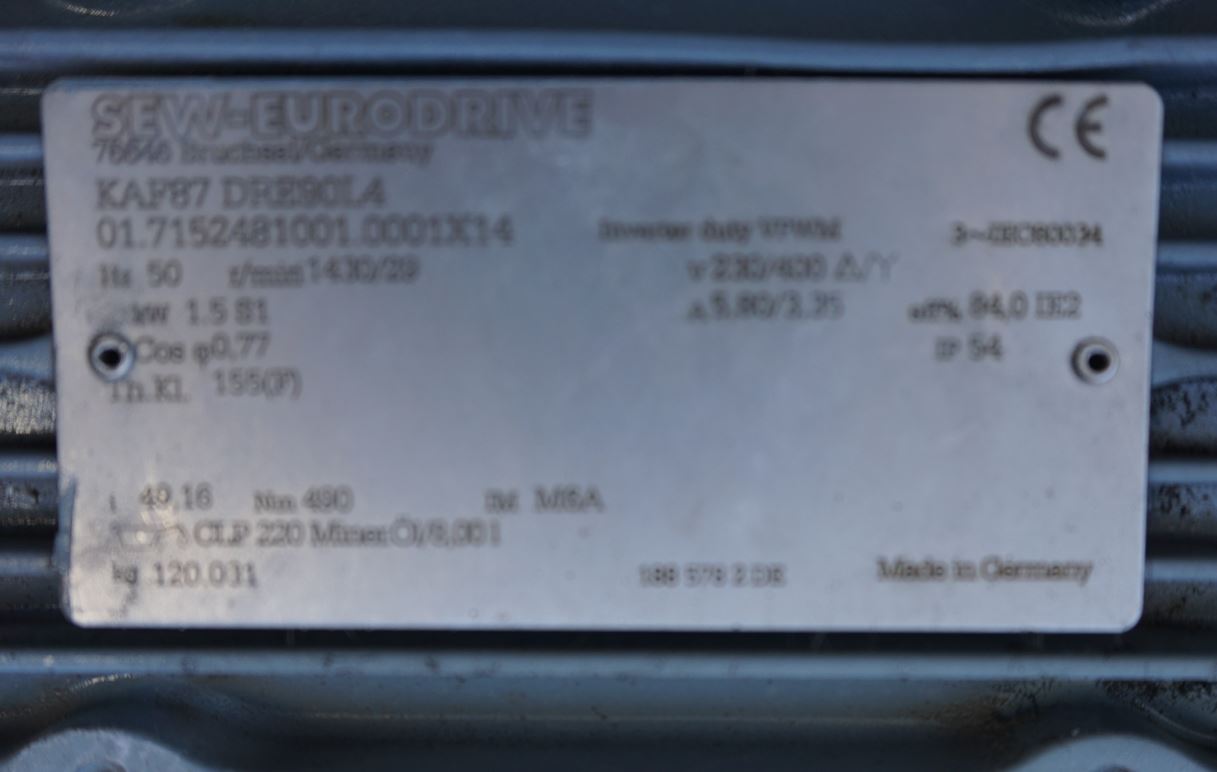

  • Agitator 1 - Output

  • 1,5 kW

  • Agitator 1 - RPM

  • 29 UpM

  • Agitator 1 - Voltage

  • 380 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

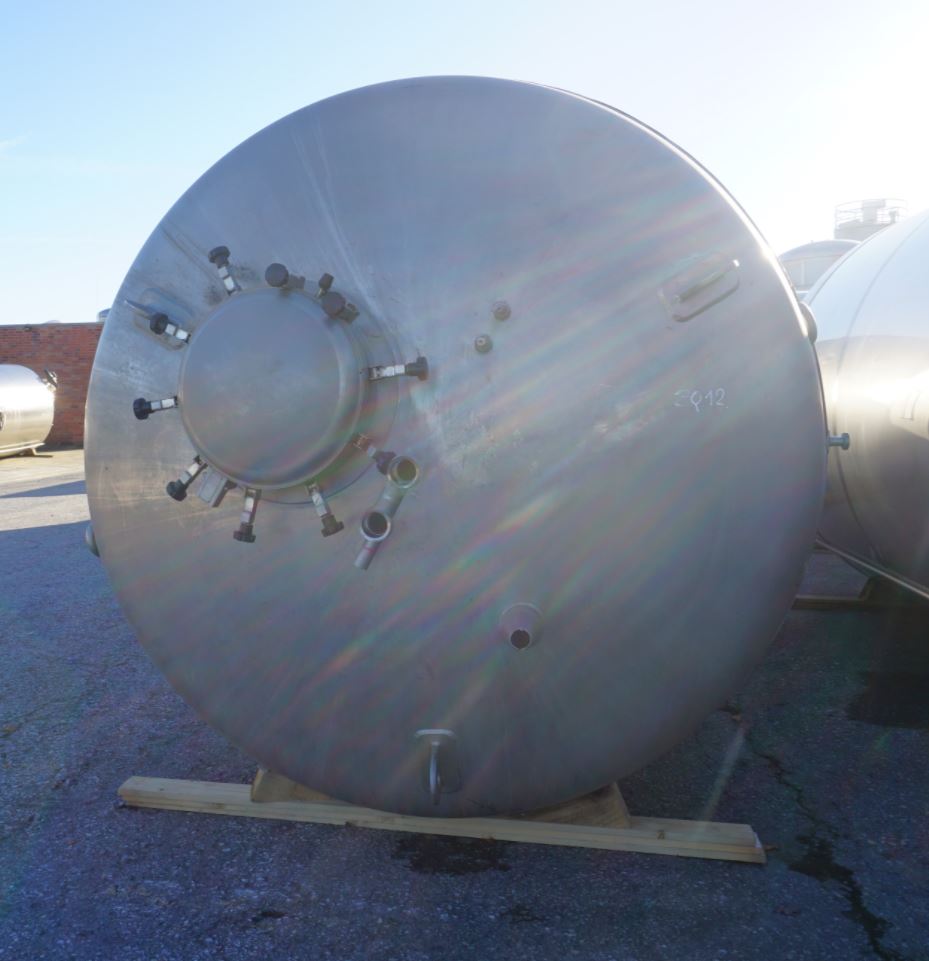

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 1xDN50 1xDN80 (piece)

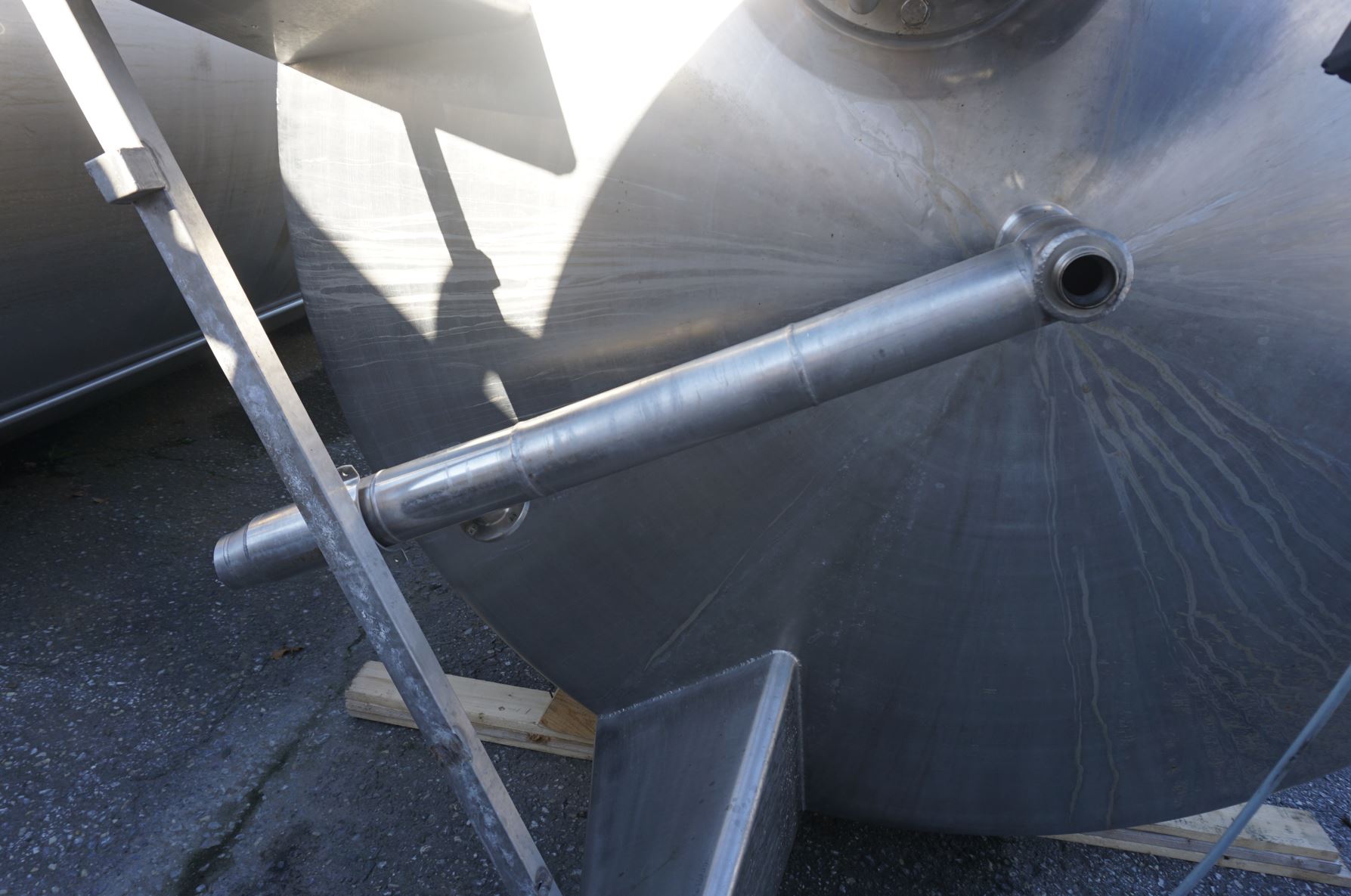

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

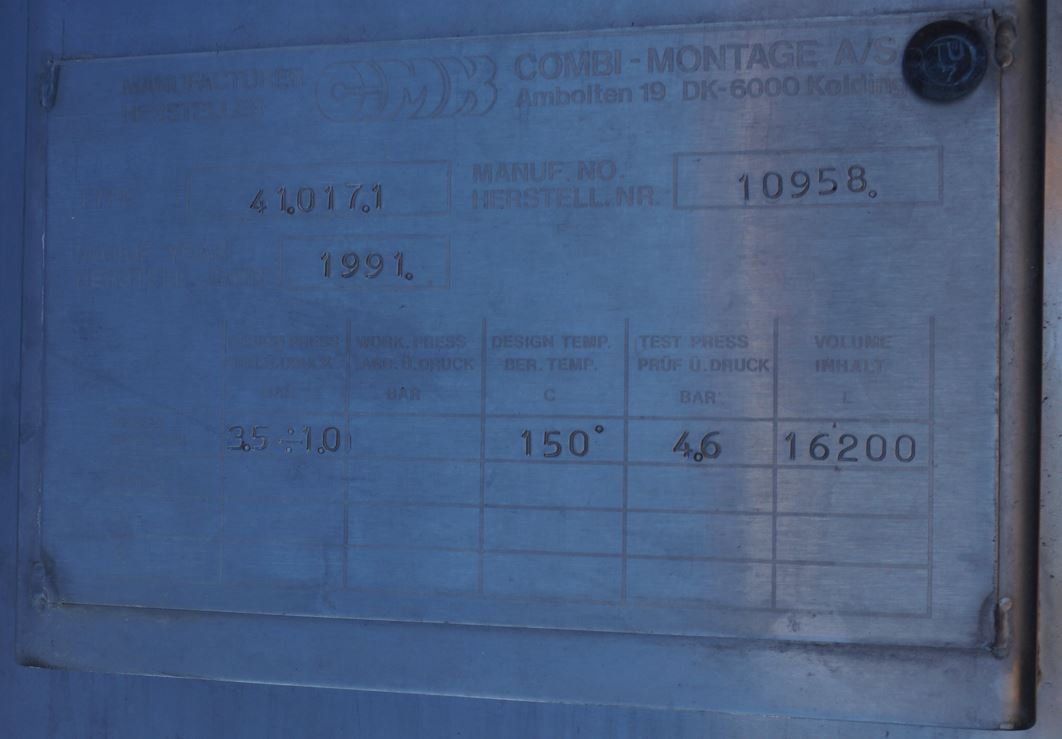

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

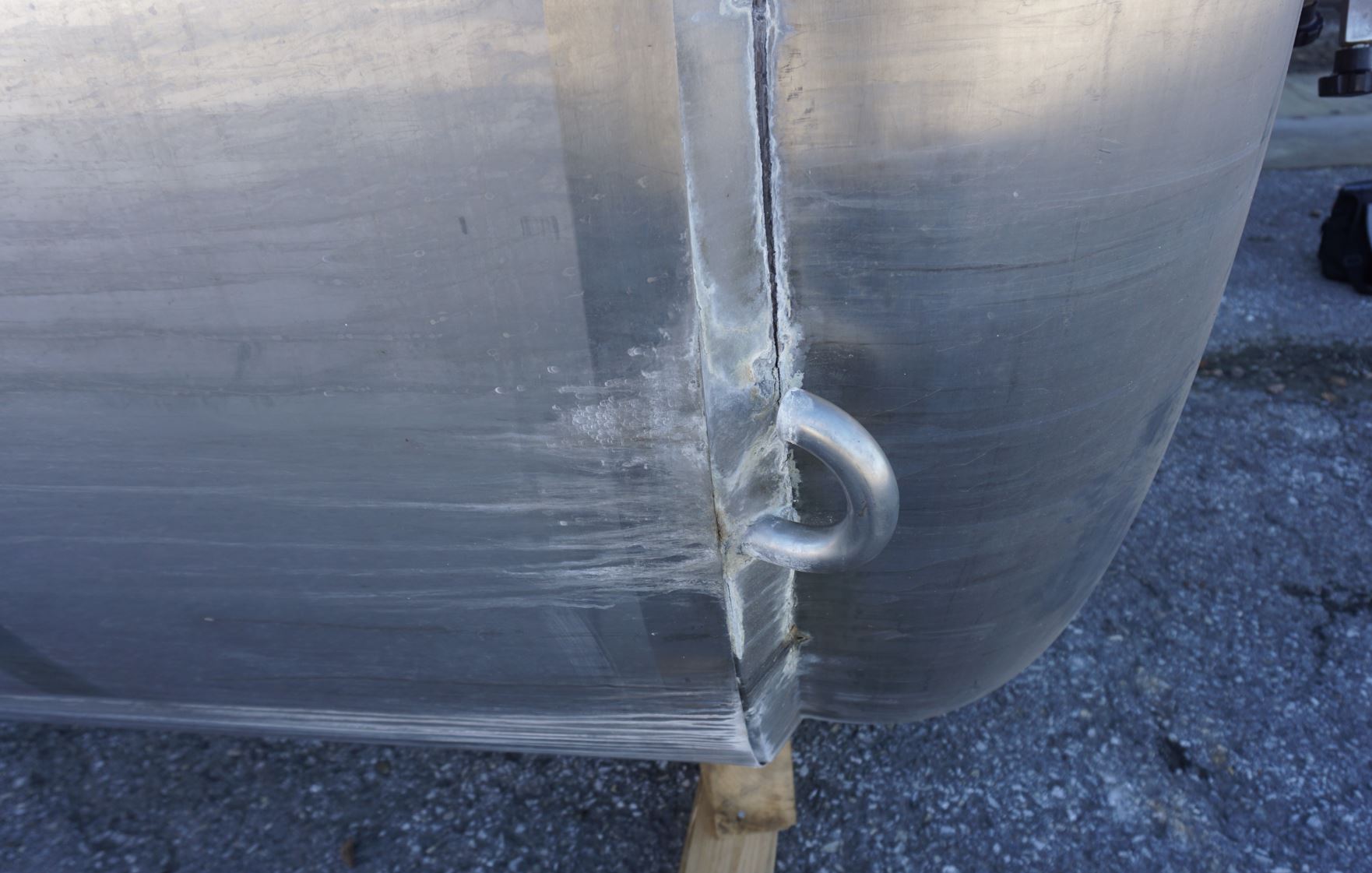

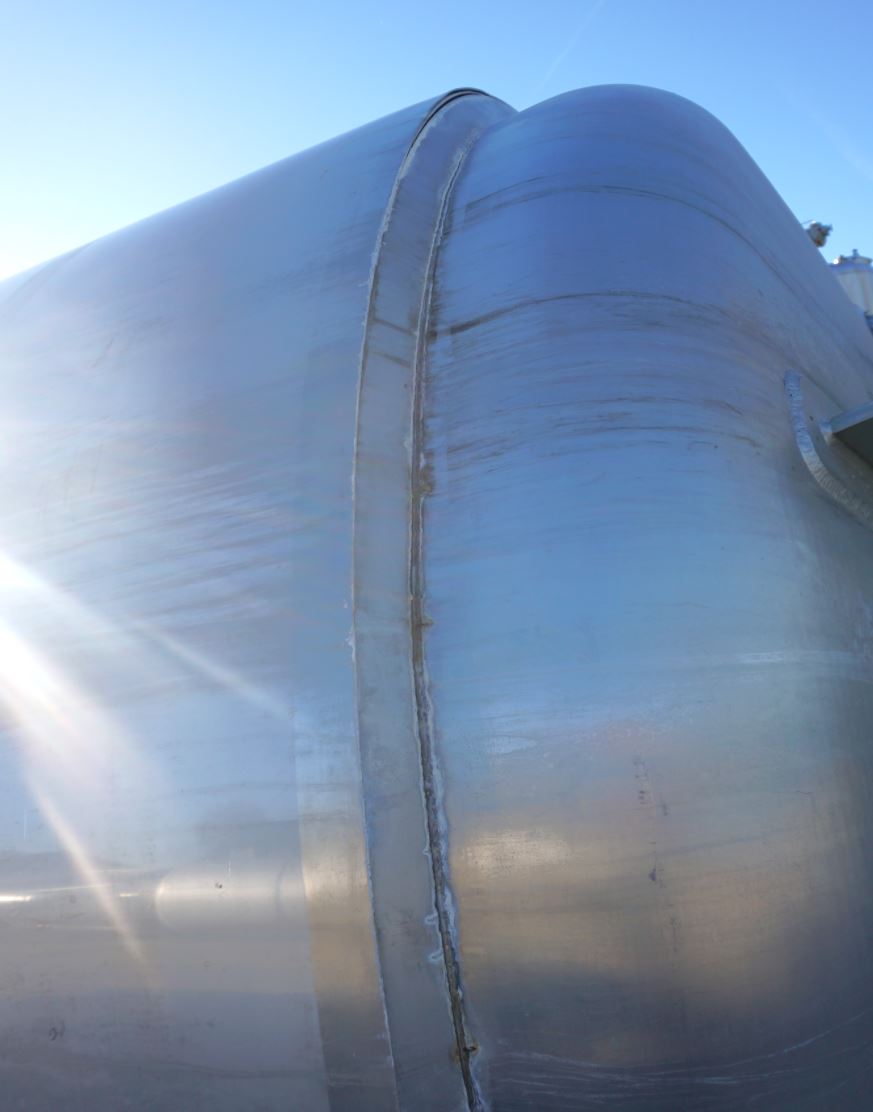

  • Auslauf abgeflext. Doppelmantel an der Schweißnaht gerissen (s. Foto). Kleine Beulen im Doppelmantel

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Pressure tank, Process tank,
