Product no. M-2584

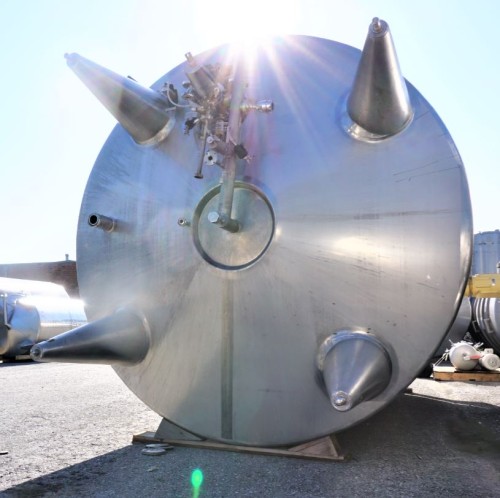

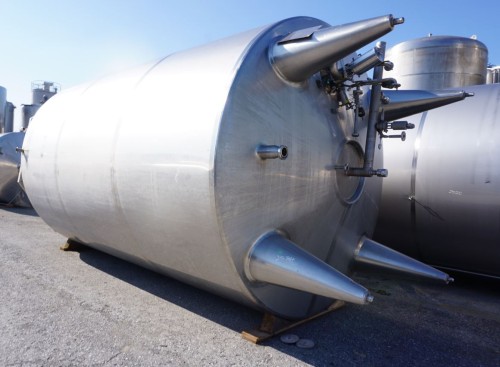

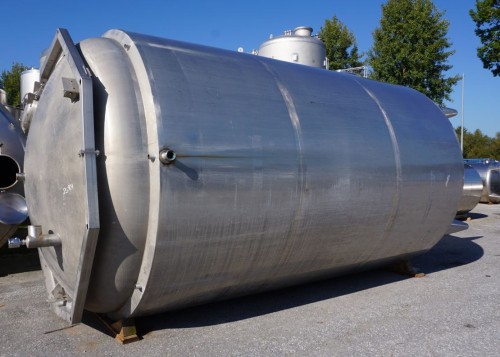

Pressure tank 30.395 liters made of V2A temperature-controllable, used, standing

EUR 30.500,00

add. 19 % VAT excl. shipping costs

Volume approx. 30,395.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 30.395 liters made of V2A temperature-controllable, used consists of the material 1.4541(AISI321). The volume is approx. 30,395.00 litres. The diameter inside includes 2,800 mm.  Pressure tank 30.395 liters made of V2A temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 30.395,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1997

  • Manufacturer

  • Aurich

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.800 mm

  • External diameter

  • 3.000 mm

  • Cyl. height

  • 4.500 mm

  • Total height

  • 6.400 mm

Design

  • Weight approx.

  • 4.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

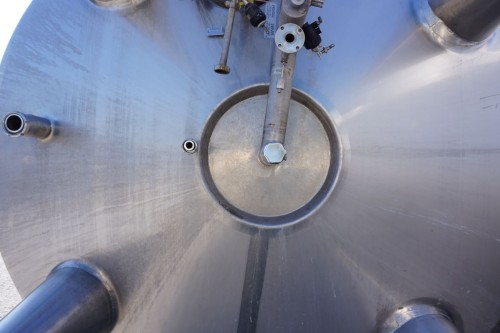

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,50 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Spray cooling

  • Operating temperature

  • 140 °C

  • Temperature control system operating pressure/pipe chamber

  • 0 bar

  • Temperature control system operating temperature/pipe chamber

  • 140 °C

  • Temperature control system/pipe chamber capacity

  • 4000 litres

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

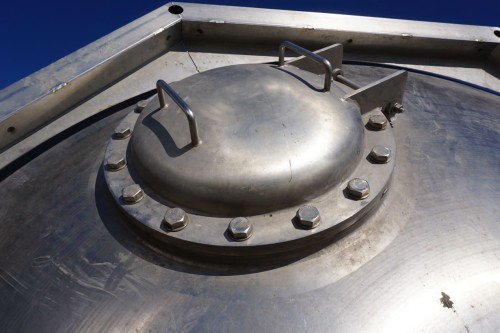

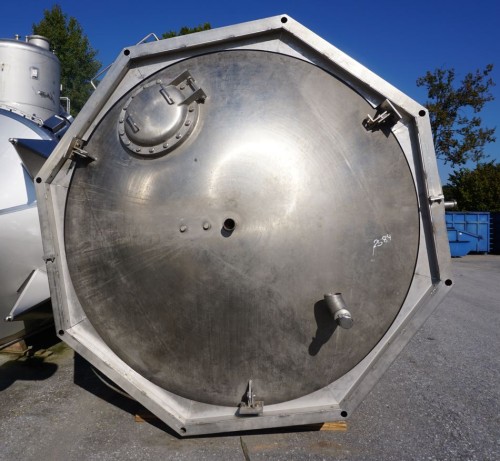

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

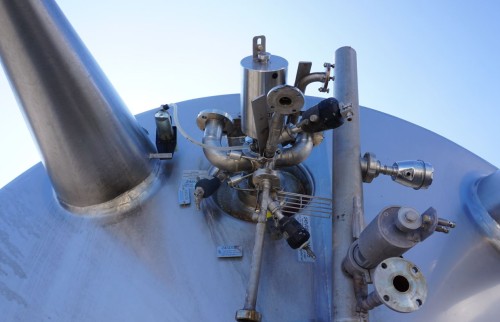

  • Nozzles/connectors in head

  • 1xDN50 1xDN80 (piece)

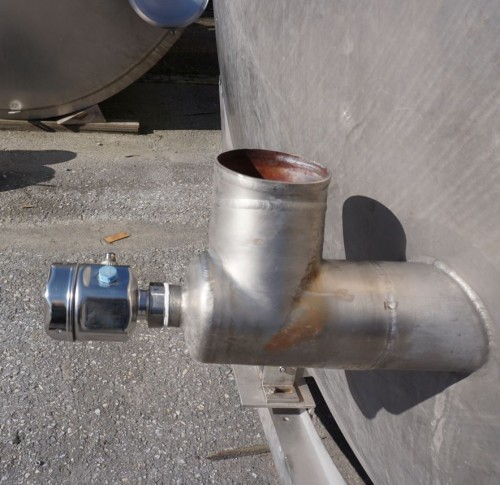

  • Outlet nozzle

  • 65

  • Additional fixtures and fittings

  • Ladder stay

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Auslauf abgeflext. Bauähnlicher Tank kann ggf. aus externem Lagerbestand angeboten werden.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Pressure tank, Process tank,
