Product no. M-3134

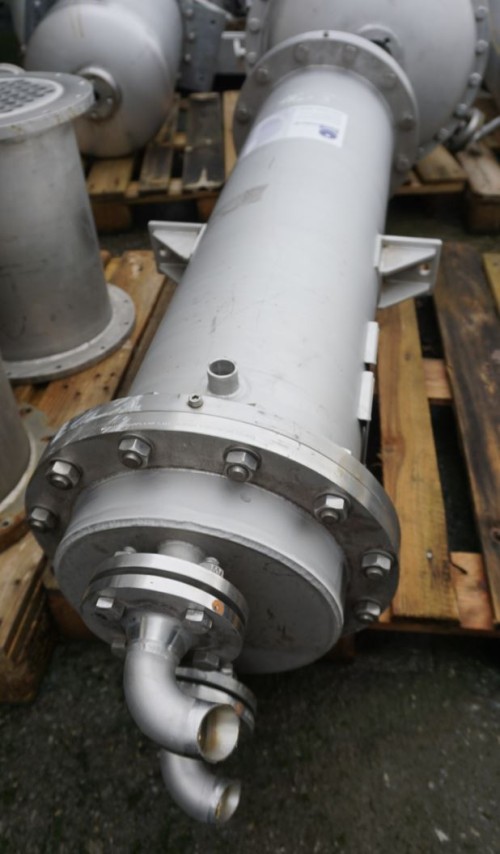

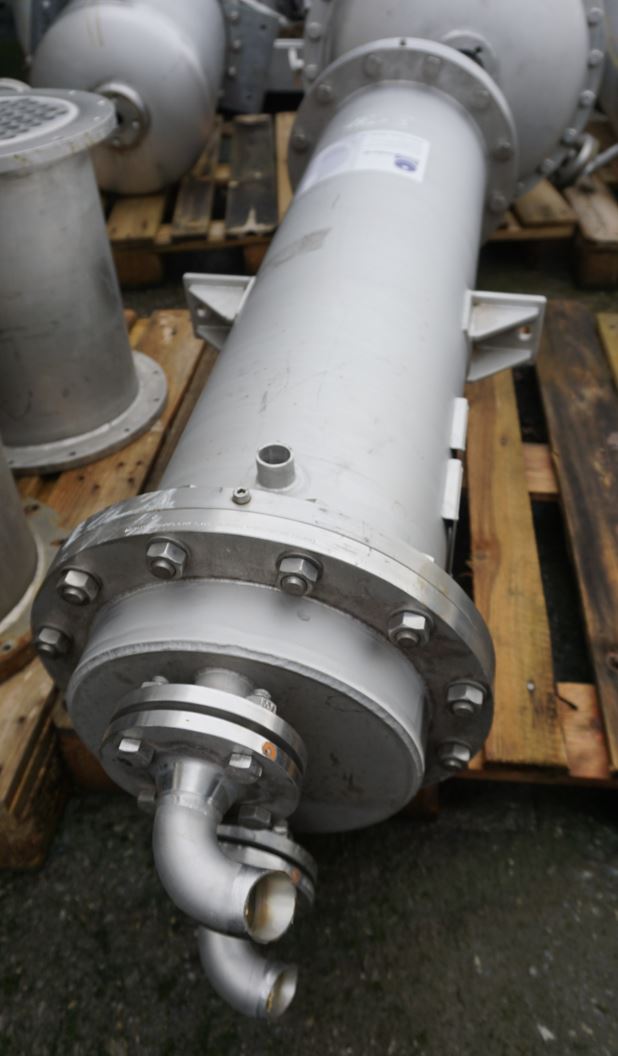

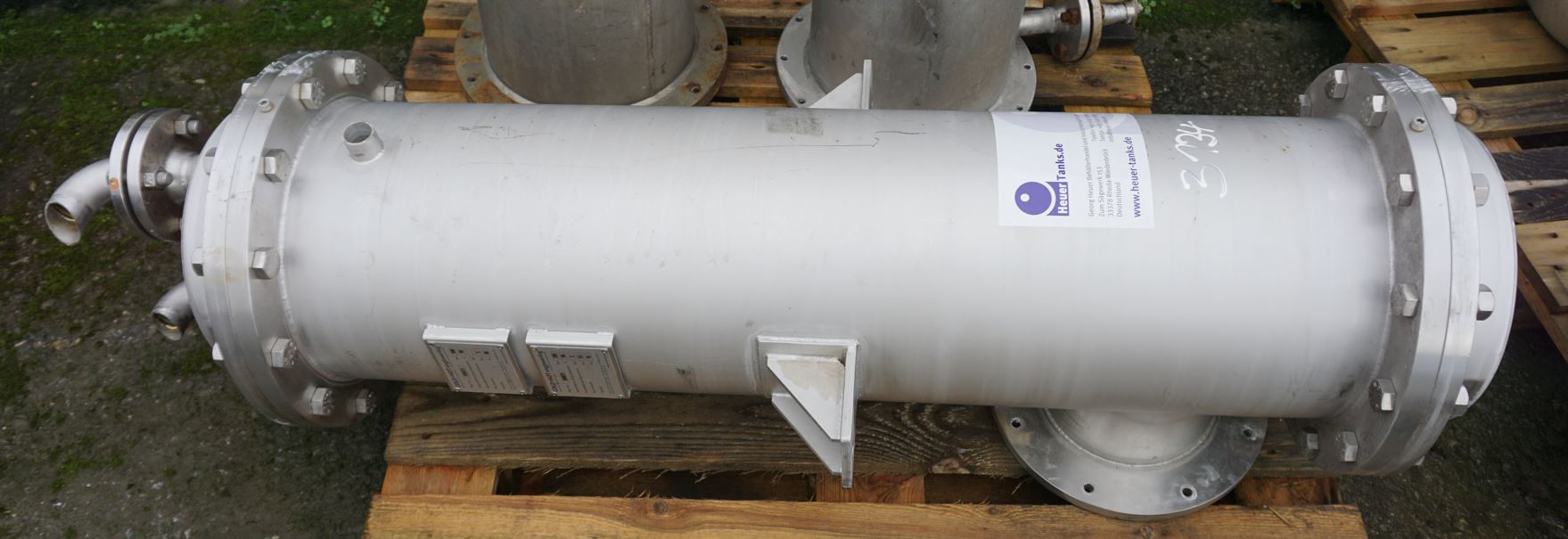

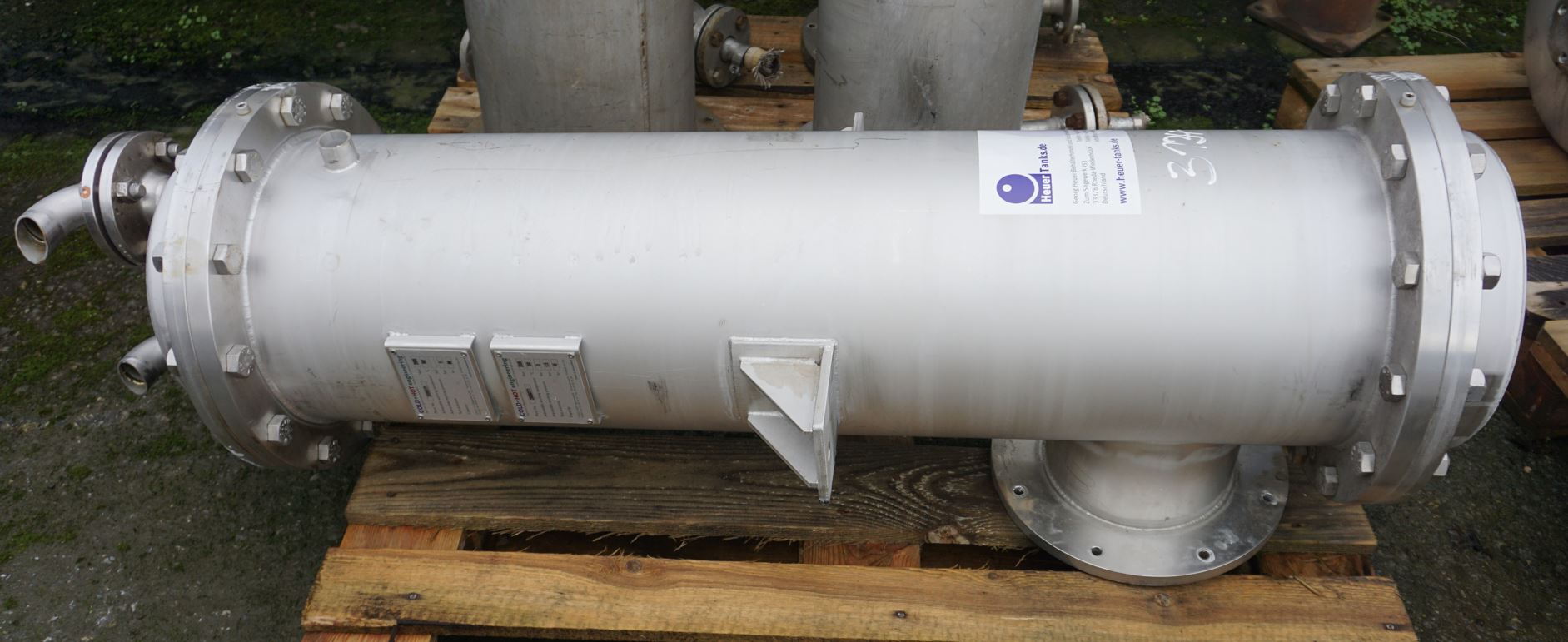

Bundle of pipeswärmetauscher 60 liters V4A, used, horizontal

EUR 3.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 60.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Bundle of pipeswärmetauscher 60 liters V4A, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 60.00 litres. Bundle of pipeswärmetauscher 60 liters V4A, used has the following dimensions: length 1,150 mm,  Bundle of pipeswärmetauscher 60 liters V4A, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Tempering, Under/over-pressure,

General

  • Volume approx.

  • 60,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 2005

  • Manufacturer

  • Cold+Hot engineering

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 300 mm

  • Length

  • 1.150 mm

Design

  • Insulation

  • no

  • Product chamber operating over-pressure

  • 1,00 bar

  • Product chamber operating temperature

  • 100,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

  • Operating pressure

  • 1,00 bar

  • Operating temperature

  • 100 °C

  • Temperature control system operating pressure/pipe chamber

  • 5,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 100 °C

  • Temperature control system/pipe chamber capacity

  • 45 litres

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 2 (piece)

Fixtures and fittings

  • Additional fixtures and fittings

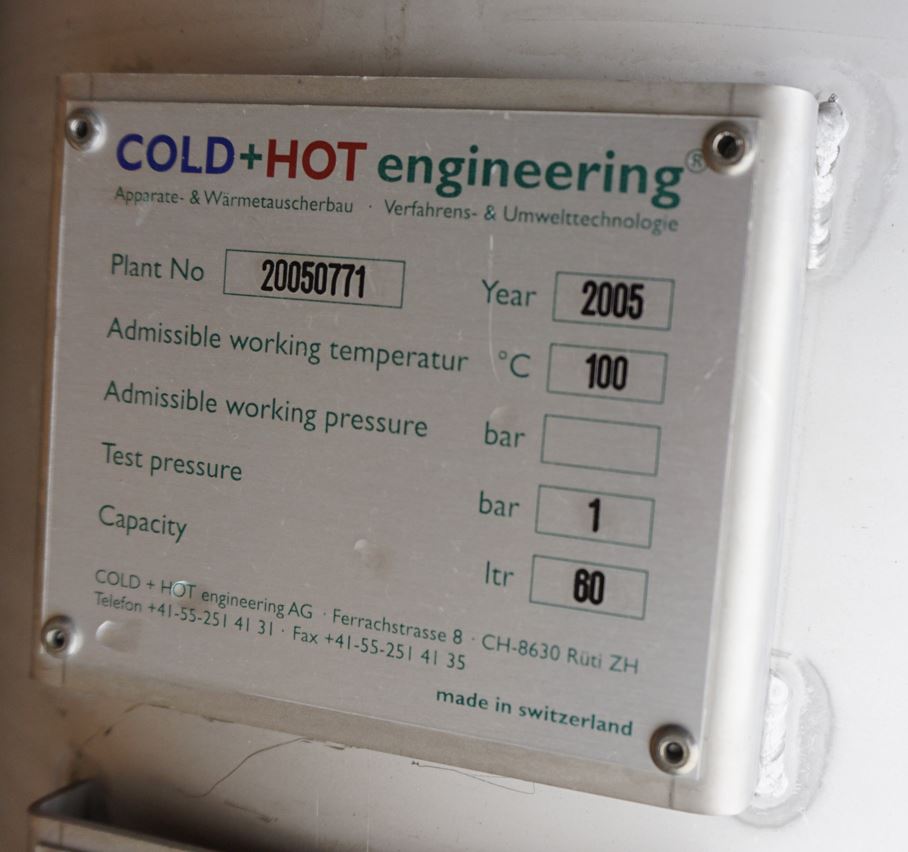

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture:

Chemistry and pharmaceuticals :
