Product no. M-2917

Container 1.000 liters ais V2A, single-walled, used, standing

EUR 3.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

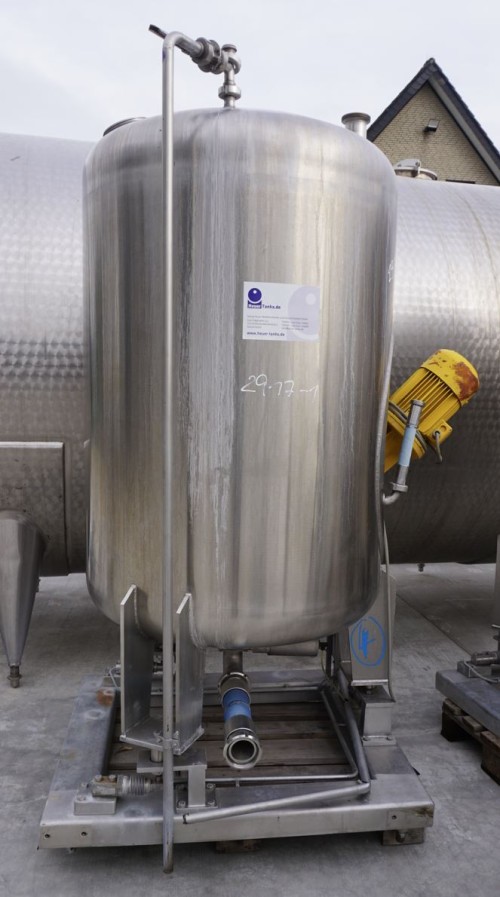

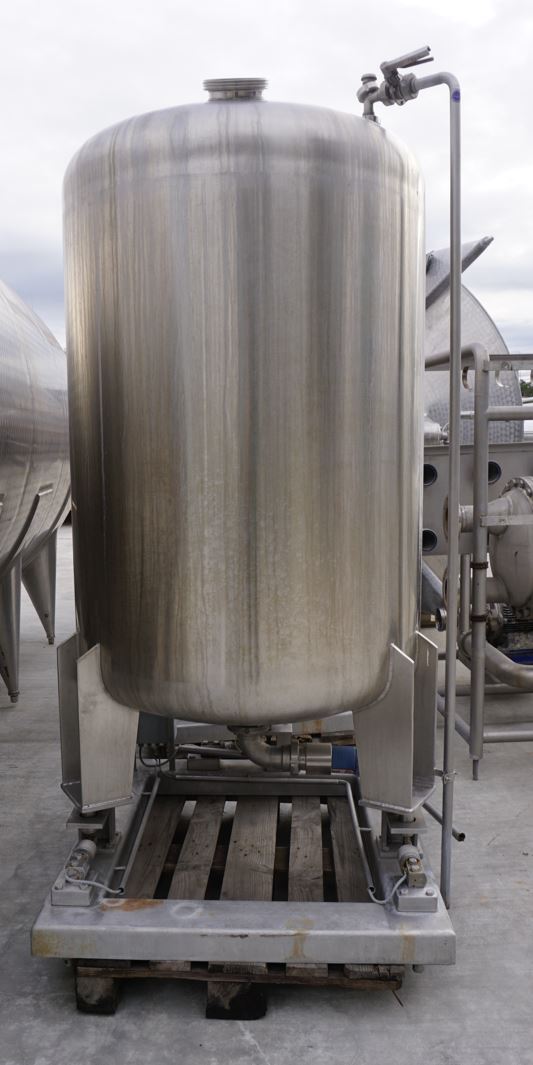

Container 1.000 liters ais V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,000.00 litres.  Container 1.000 liters ais V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 1.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.000 mm

  • Cyl. height

  • 1.300 mm

  • Foot height

  • 650 mm

  • Total height

  • 2.400 mm

Design

  • Weight approx.

  • 400,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

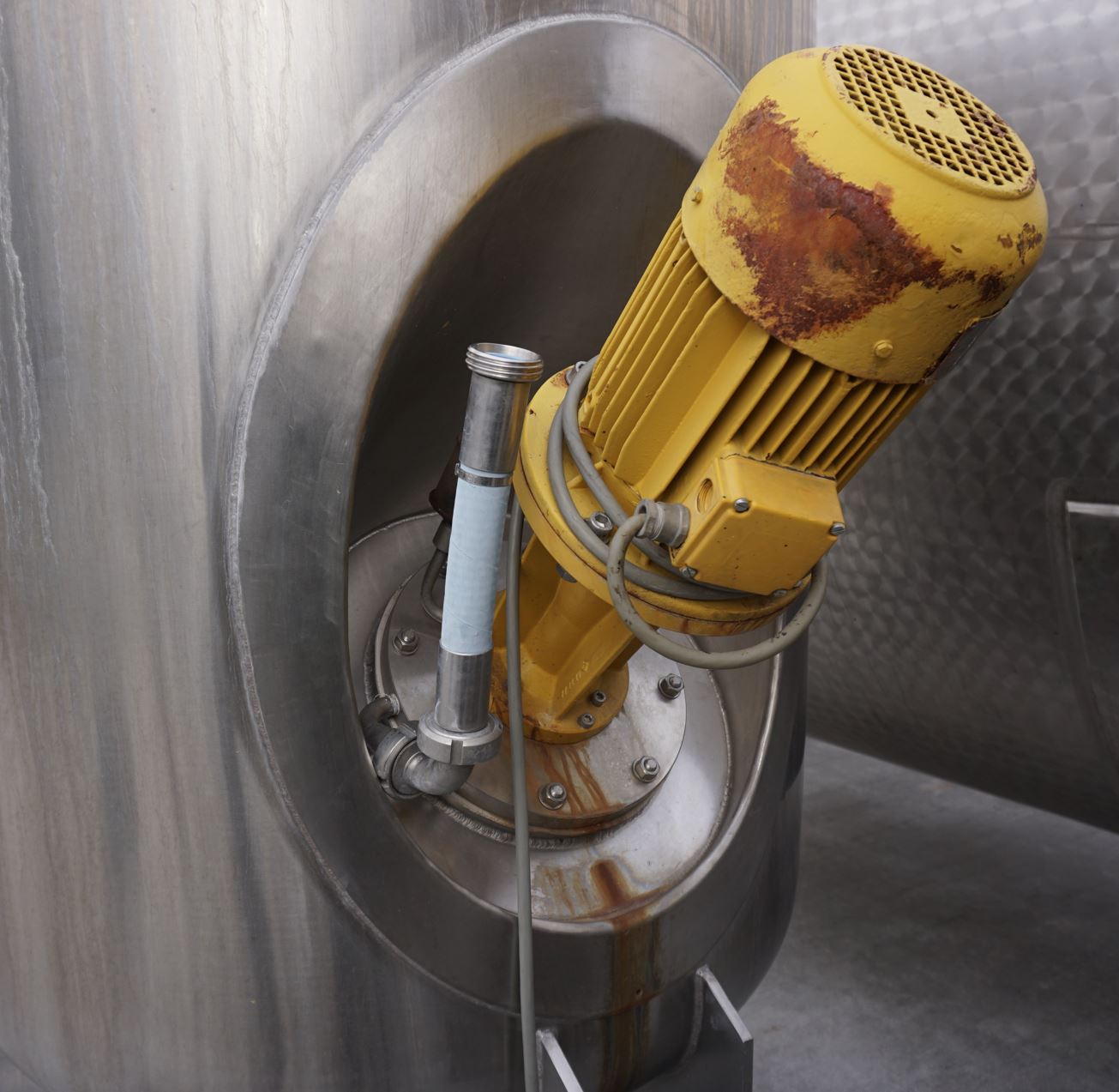

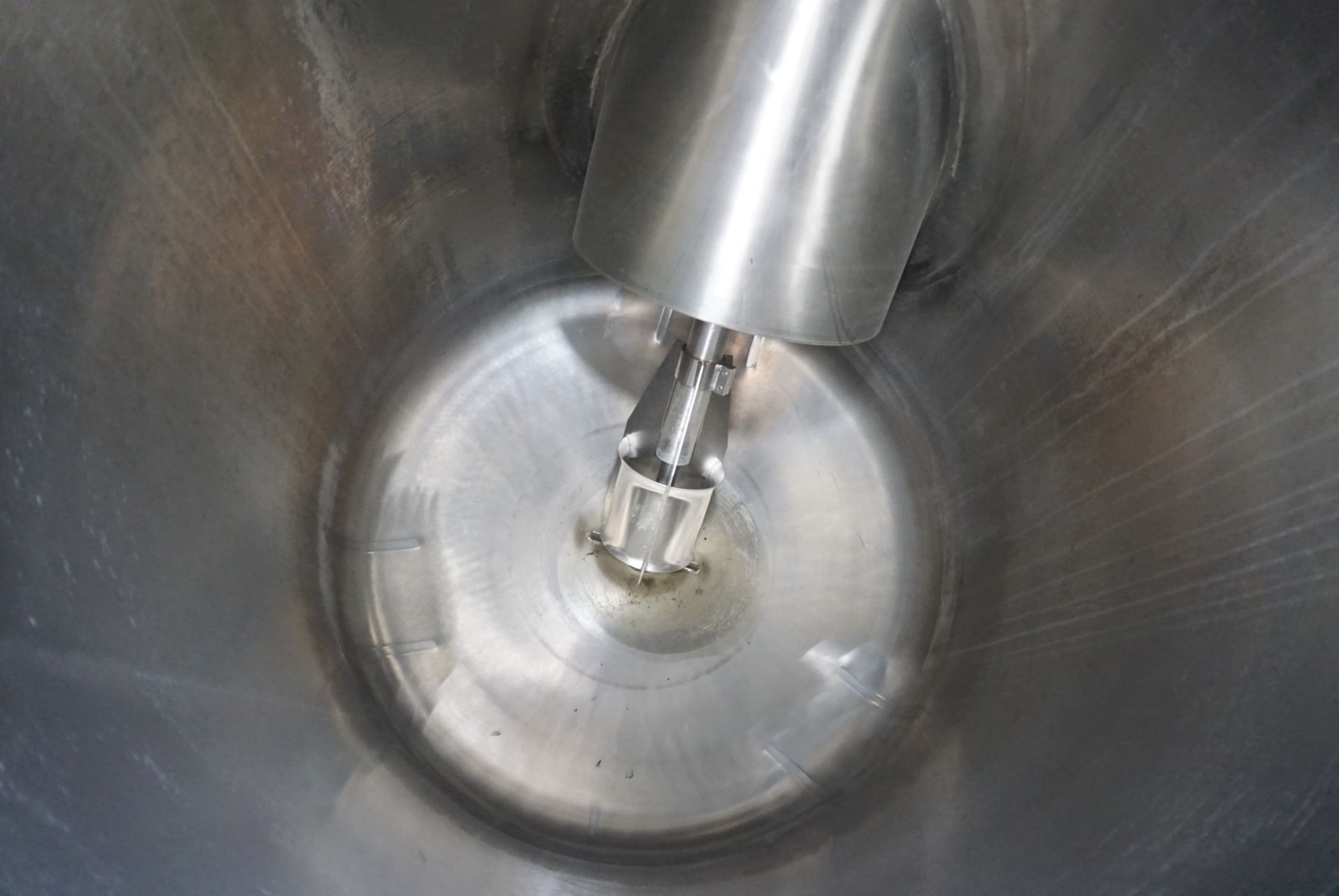

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

    • Agitator position

    • At bottom at the side in shell

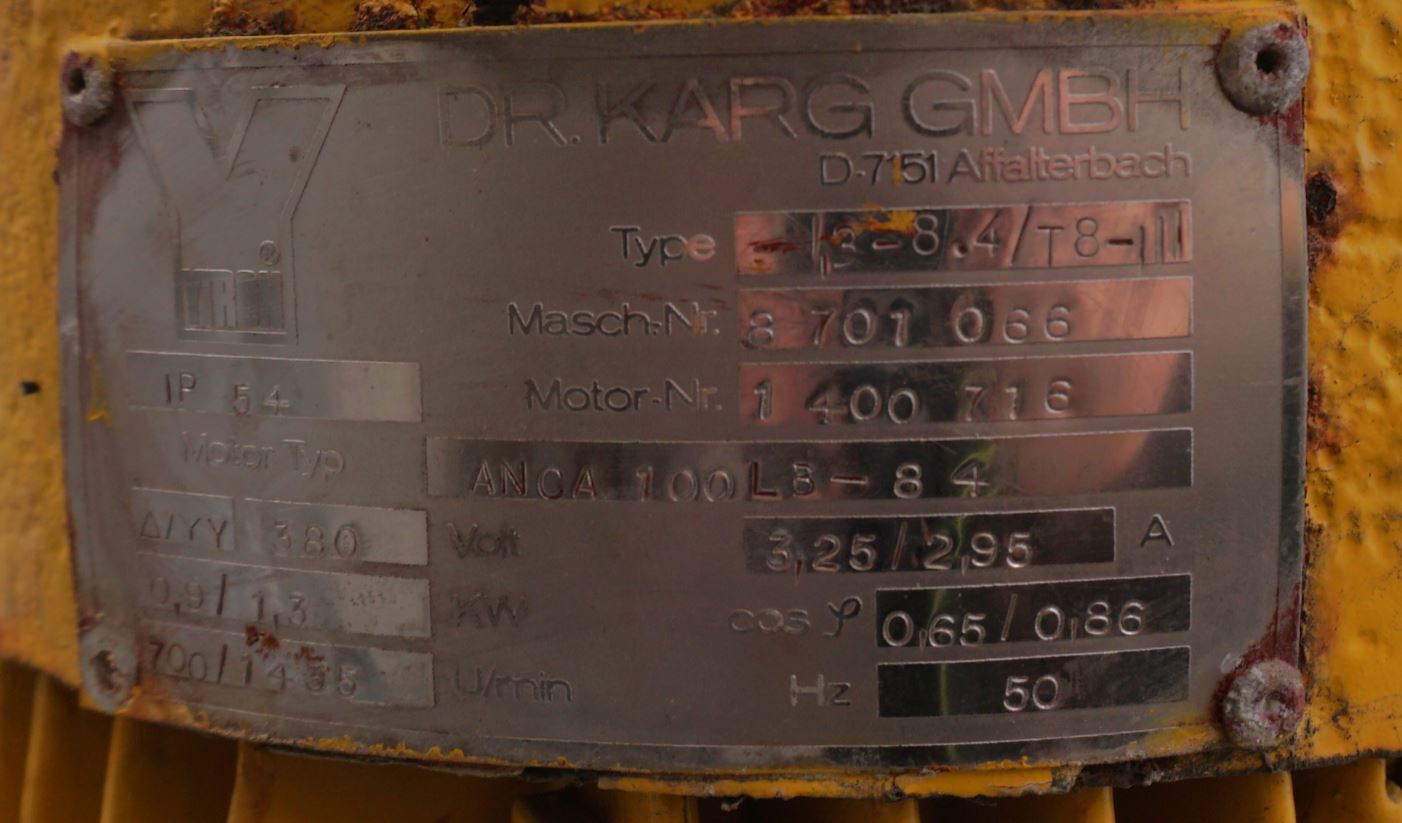

    • Agitator manufacturer

    • Ytron

    • Agitator 1 - Output

    • 0,9 / 1,3 kW

    • Agitator 1 - RPM

    • 700 / 1455 UpM

    • Agitator 1 - Voltage

    • 380 V

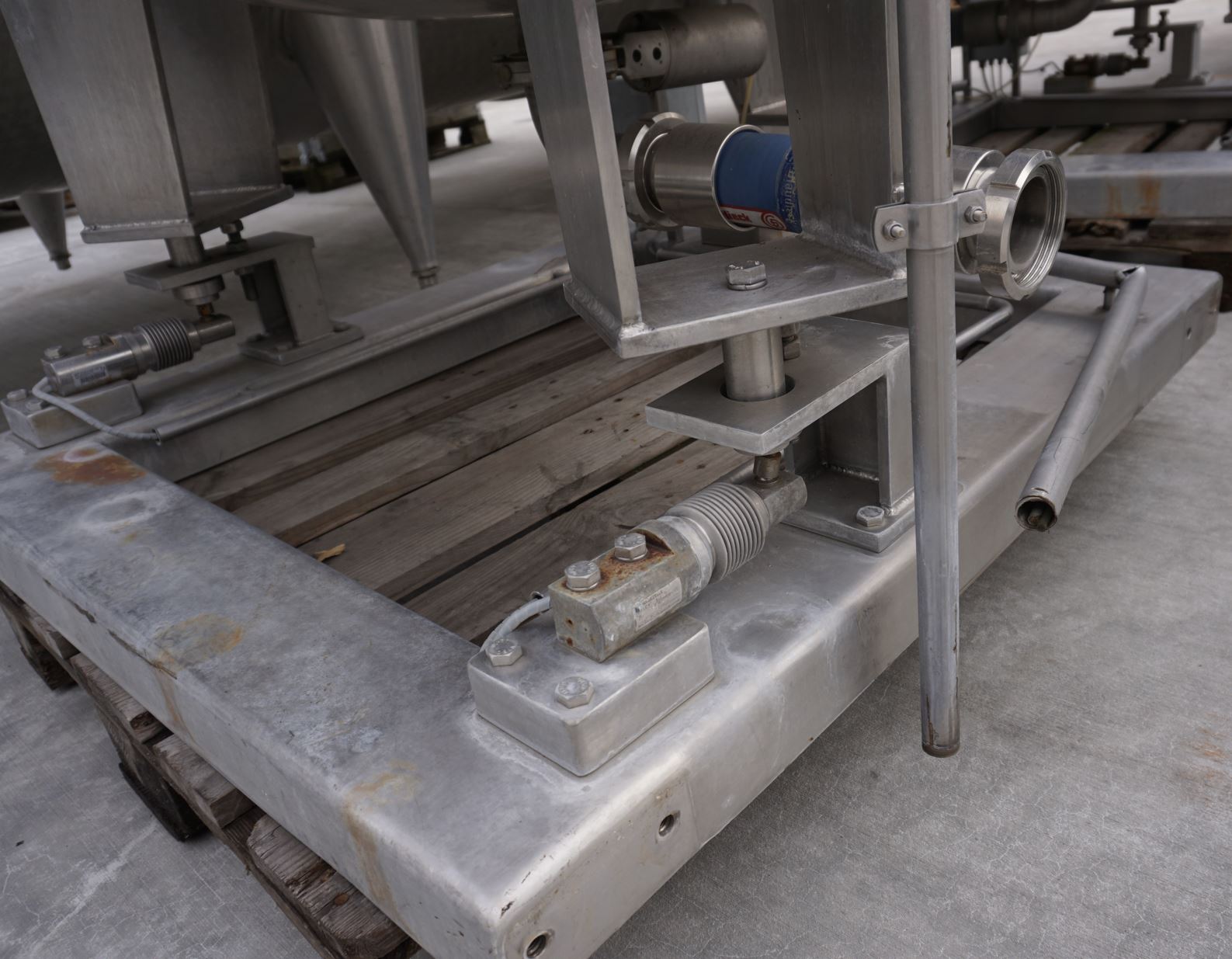

    Supports

    • Supports

    • Stainless steel feet

    • Number of feet

    • 3 (piece)

    • Note on supports

    • zuletzt als Wiegefüsse verwendet

    Fixtures and fittings

    • Manway position

    • None

    • Nozzle connector

    • Screw thread

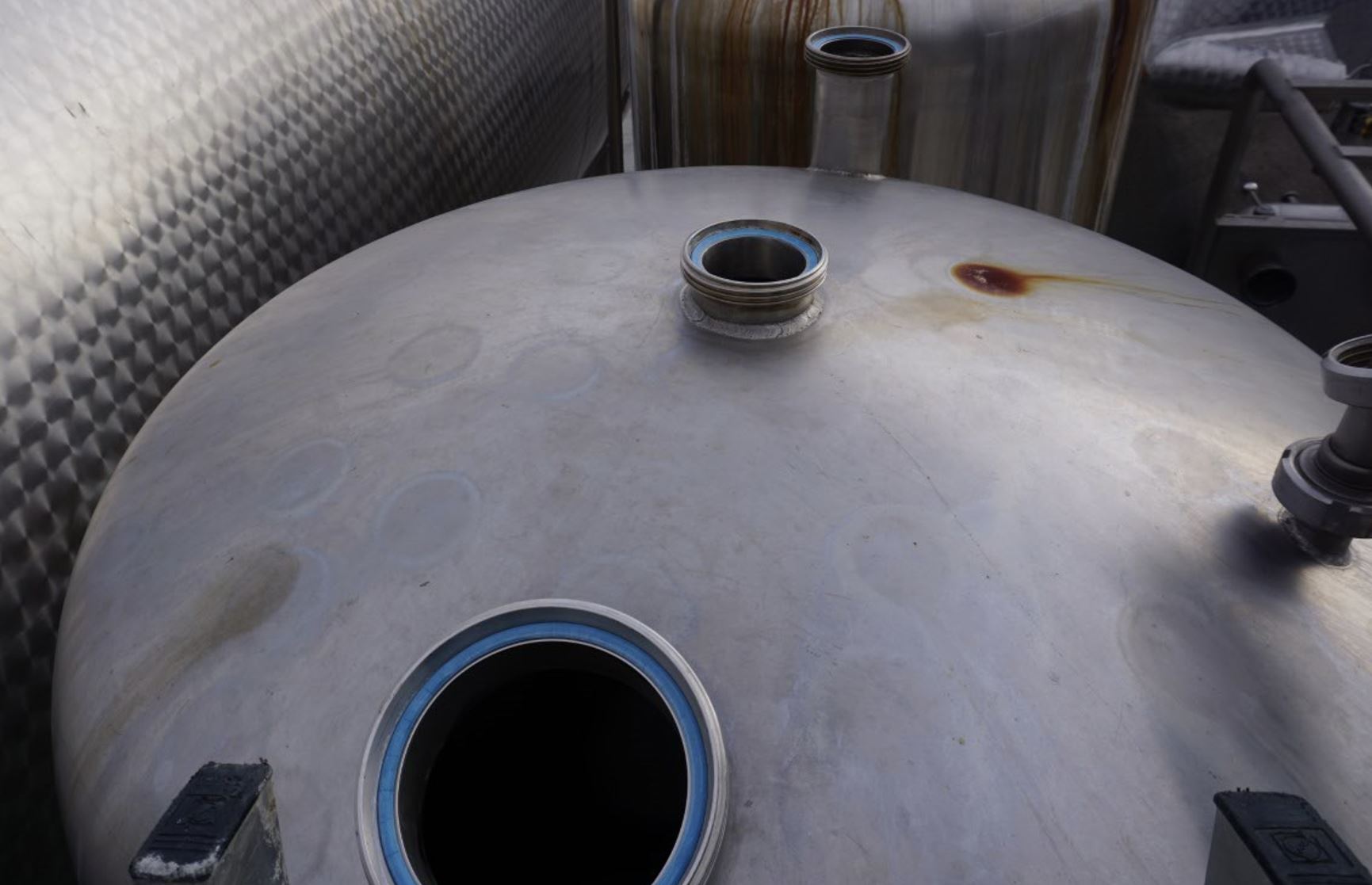

    • Nozzles/connectors in head

    • 1xDN100 2xDN65 1xDN15 (piece)

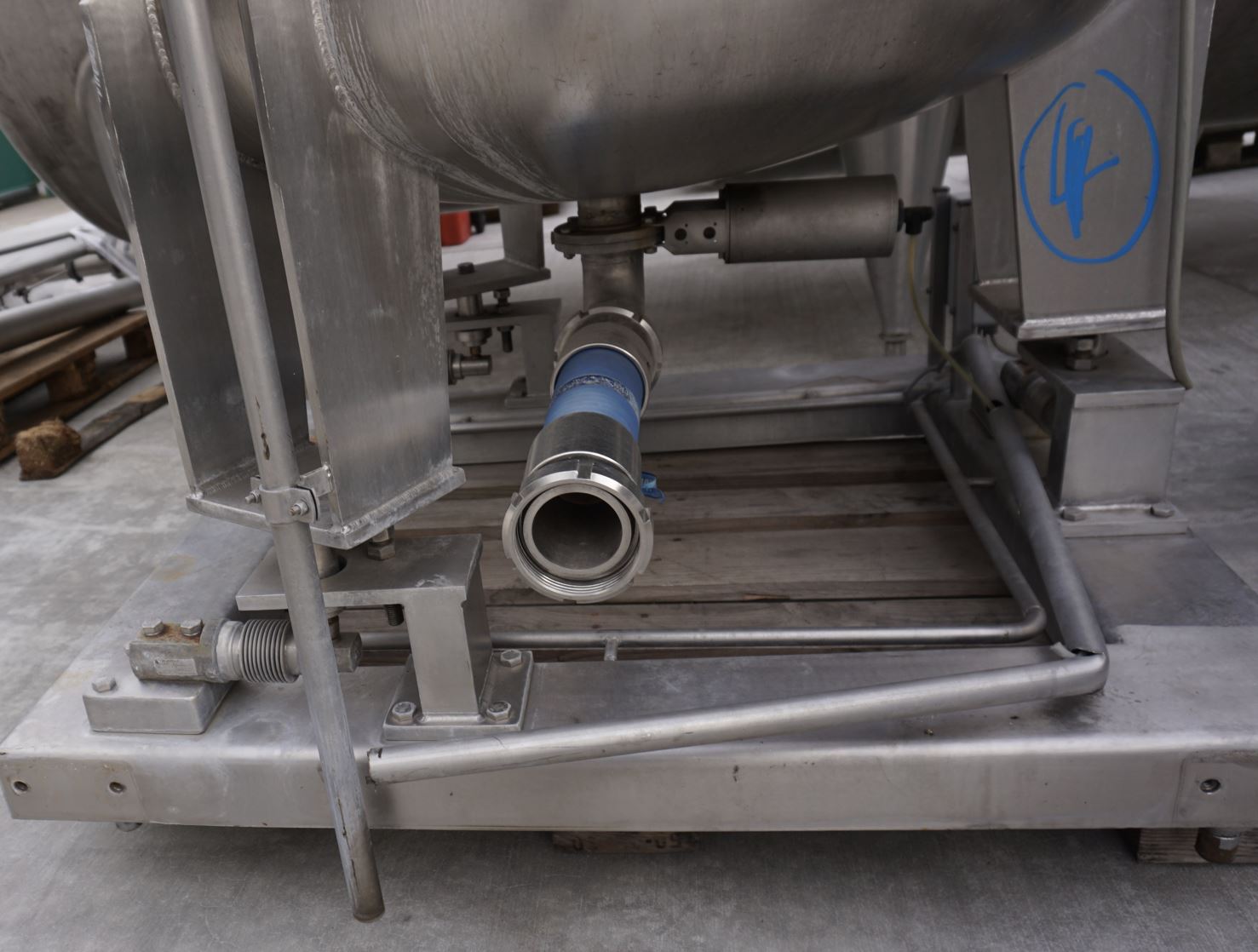

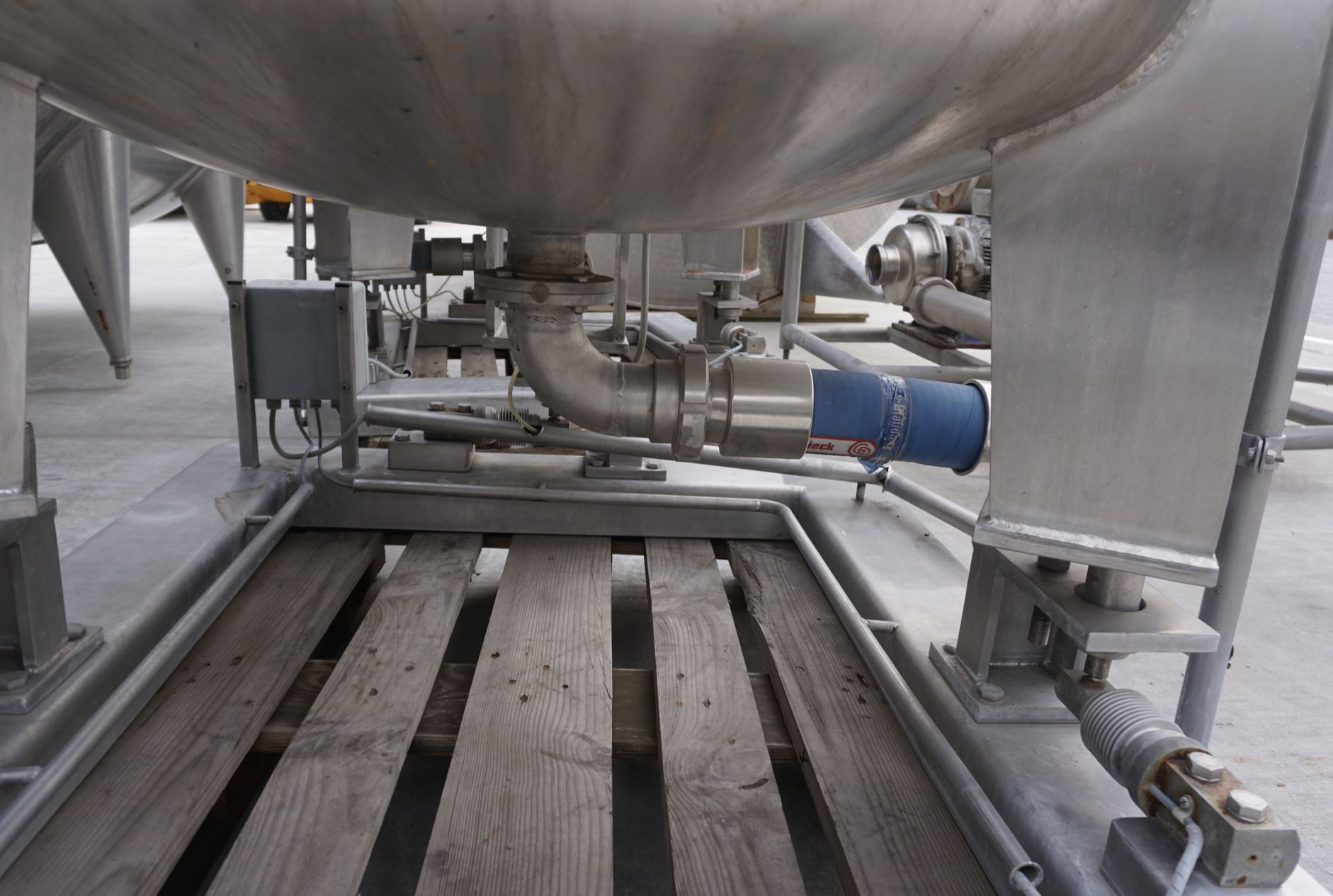

    • Outlet nozzle

    • 65

    Other

    • Last usage

    • Foodstuffs

    This product is suitable for use as:

    Foodstuffs: Foodstuffs tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

    Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

    Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
