Product no. M-2864

Container 1.500 liters made of V2A isolated, used, standing

EUR 2.900,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

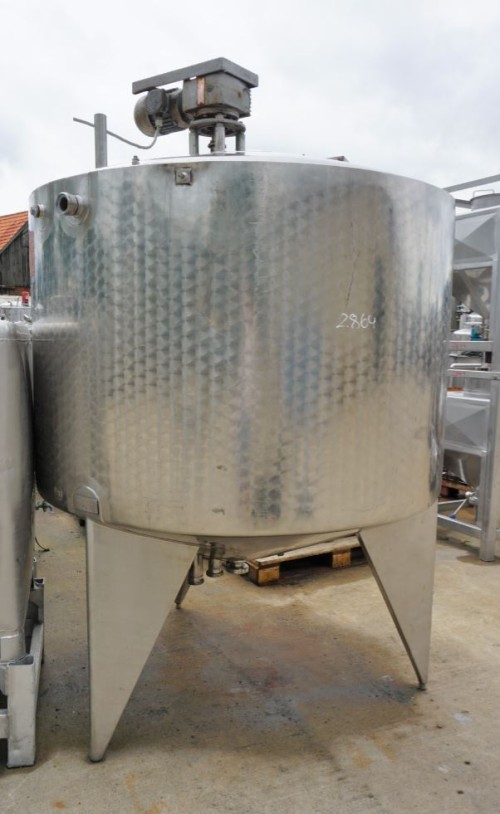

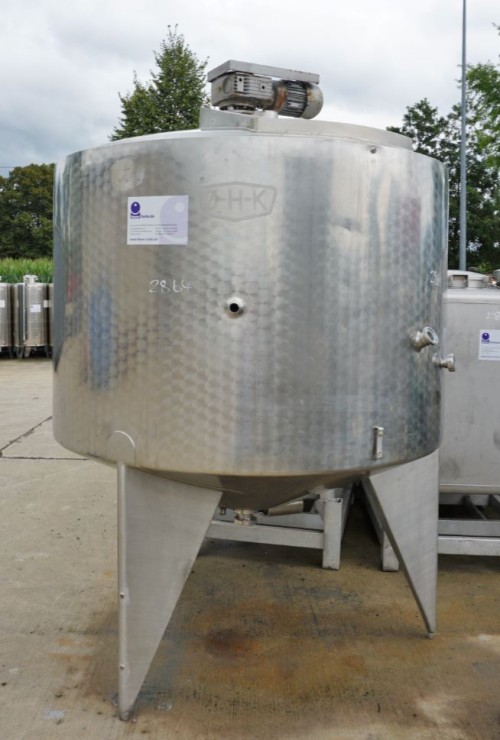

Container 1.500 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,500.00 litres. The diameter inside includes 1,360 mm.  Container 1.500 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 1.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1984

  • Manufacturer

  • OHK

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.360 mm

  • External diameter

  • 1.520 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 840 mm

  • Total height

  • 2.340 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

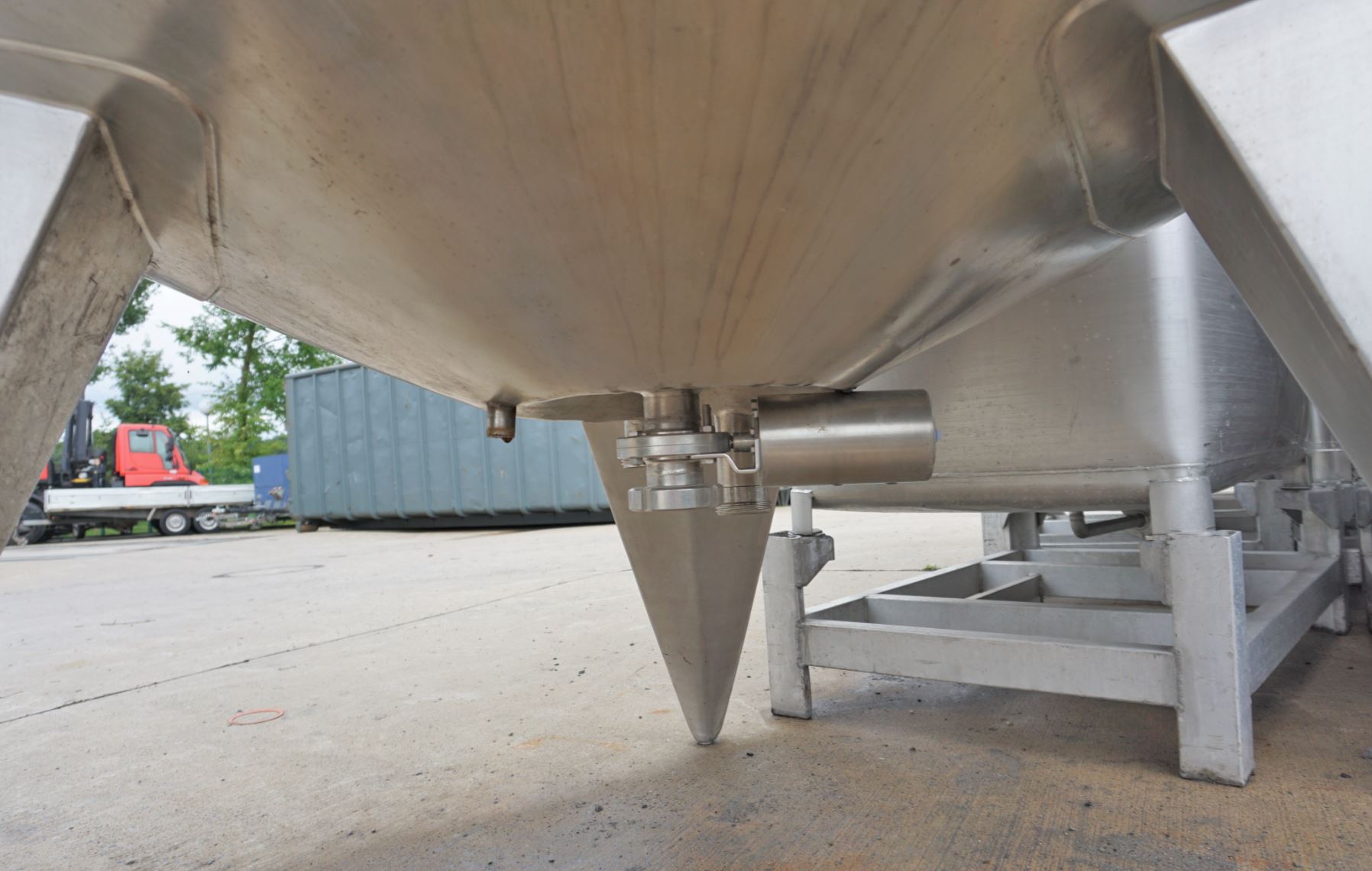

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

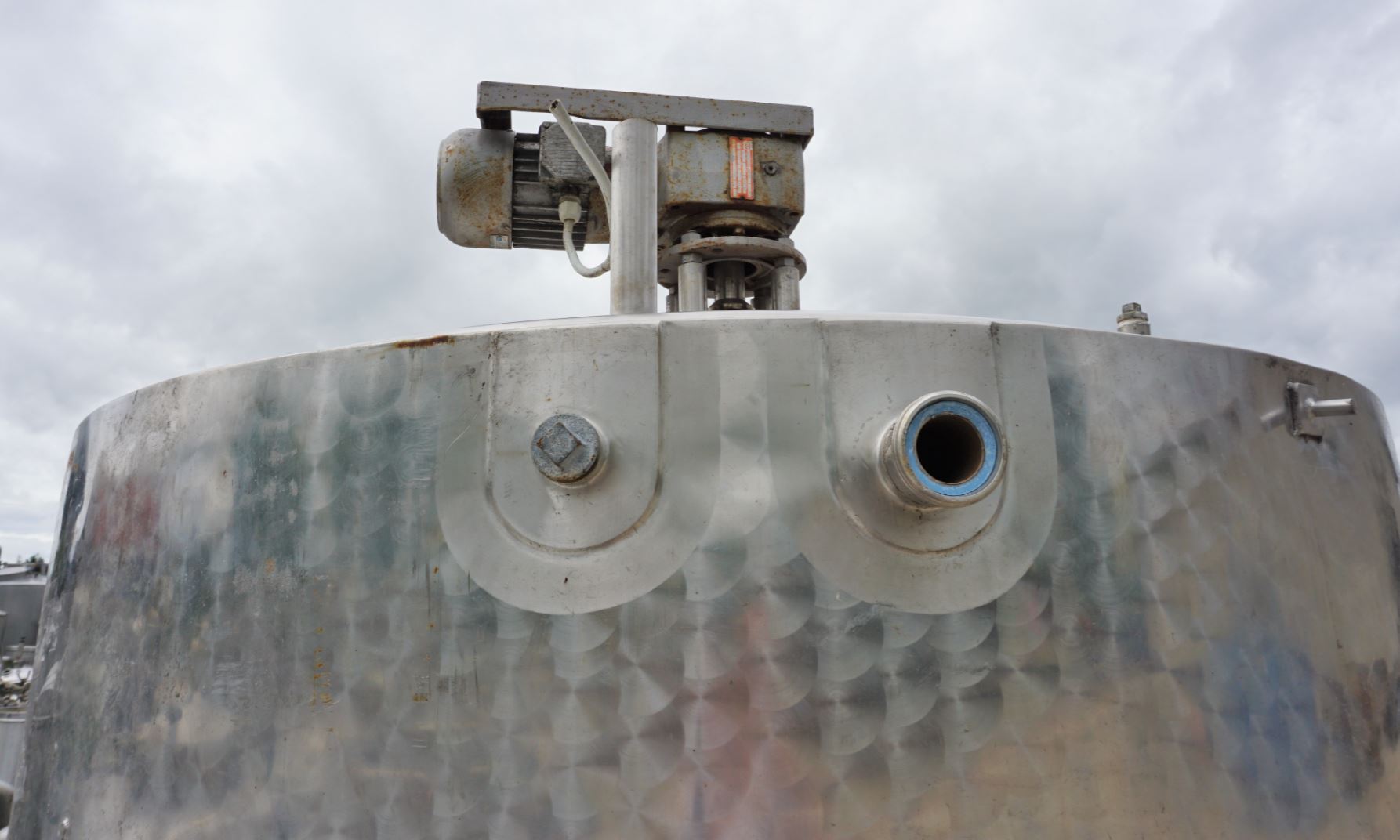

Agitator

  • Agitator quantity

  • 1 (piece)

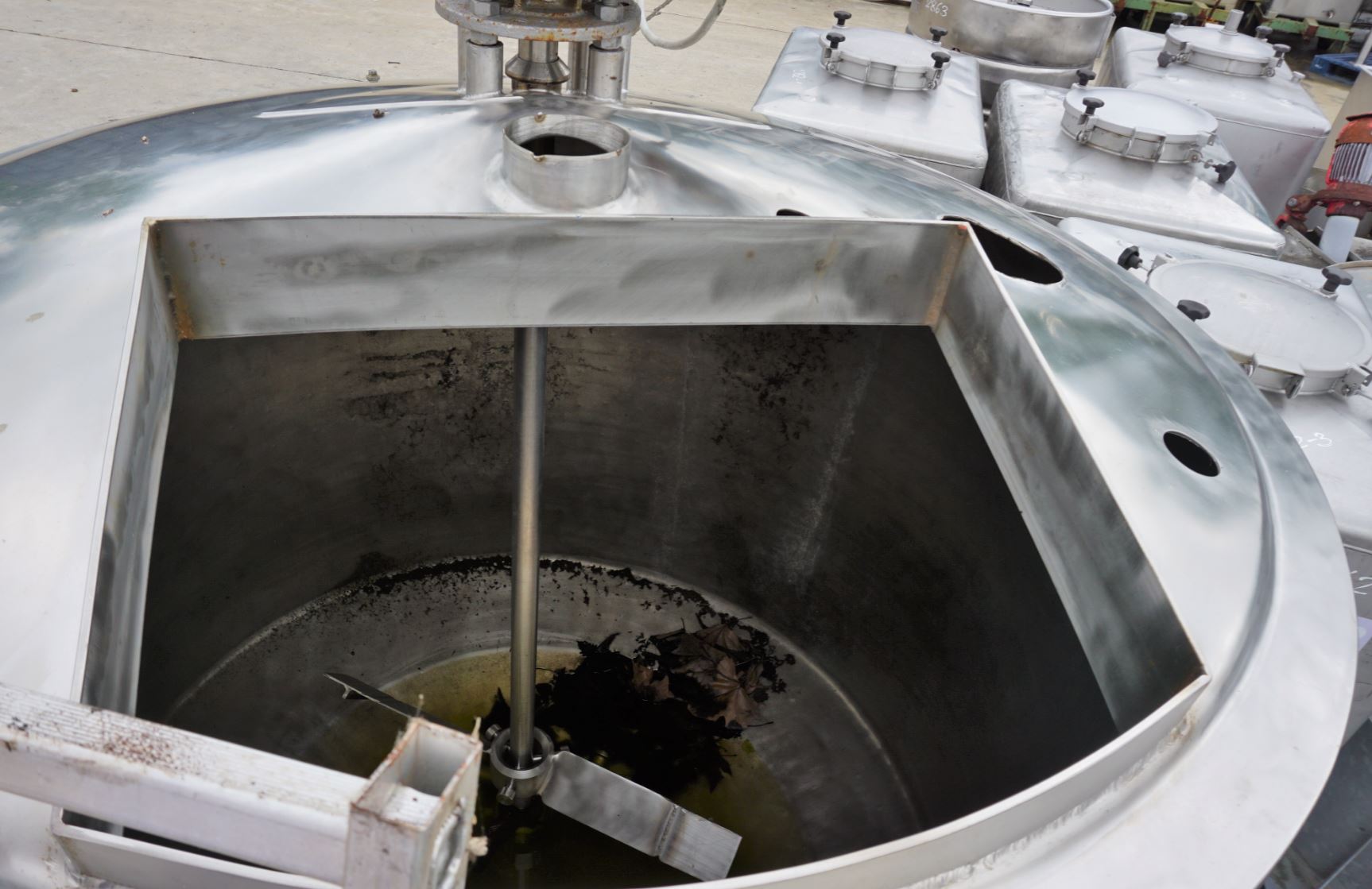

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway 1 size

  • 480x620 DN mm

  • Manway position

  • In head

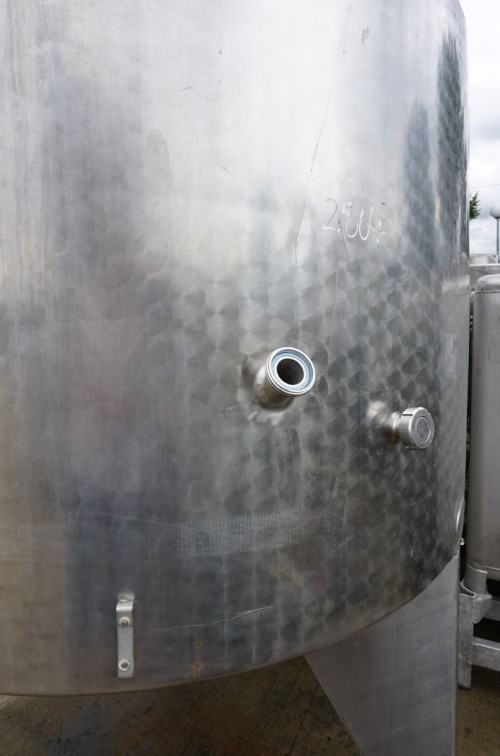

  • Outlet nozzle

  • 50

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • ohne Mannlochdeckel, kleine Beule seitlich im Mantel, Temperiermantel defekt

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
