Product no. M-2854

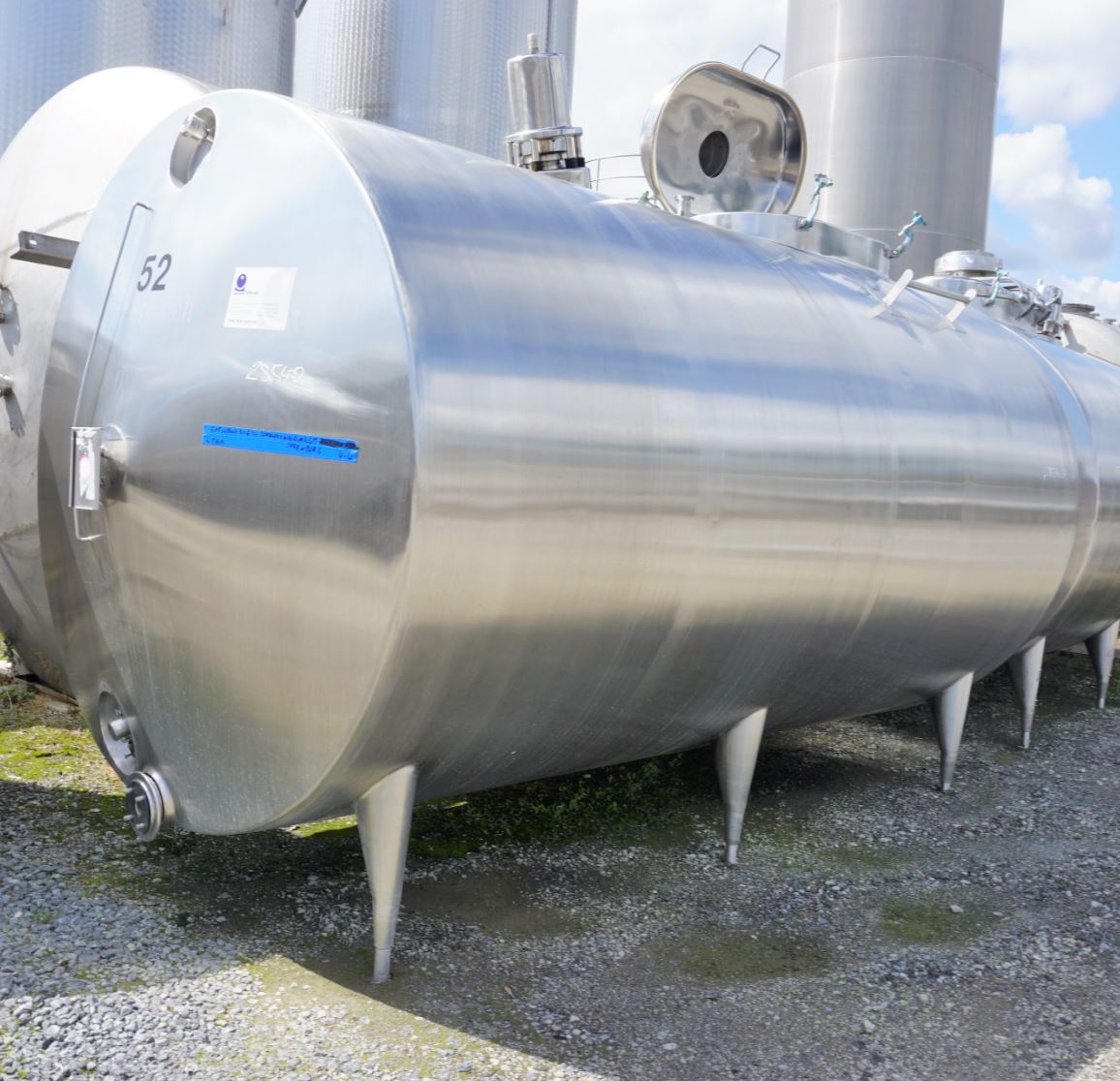

Container 10.000 liters made of V2A, isolated, used, horizontal

EUR 8.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

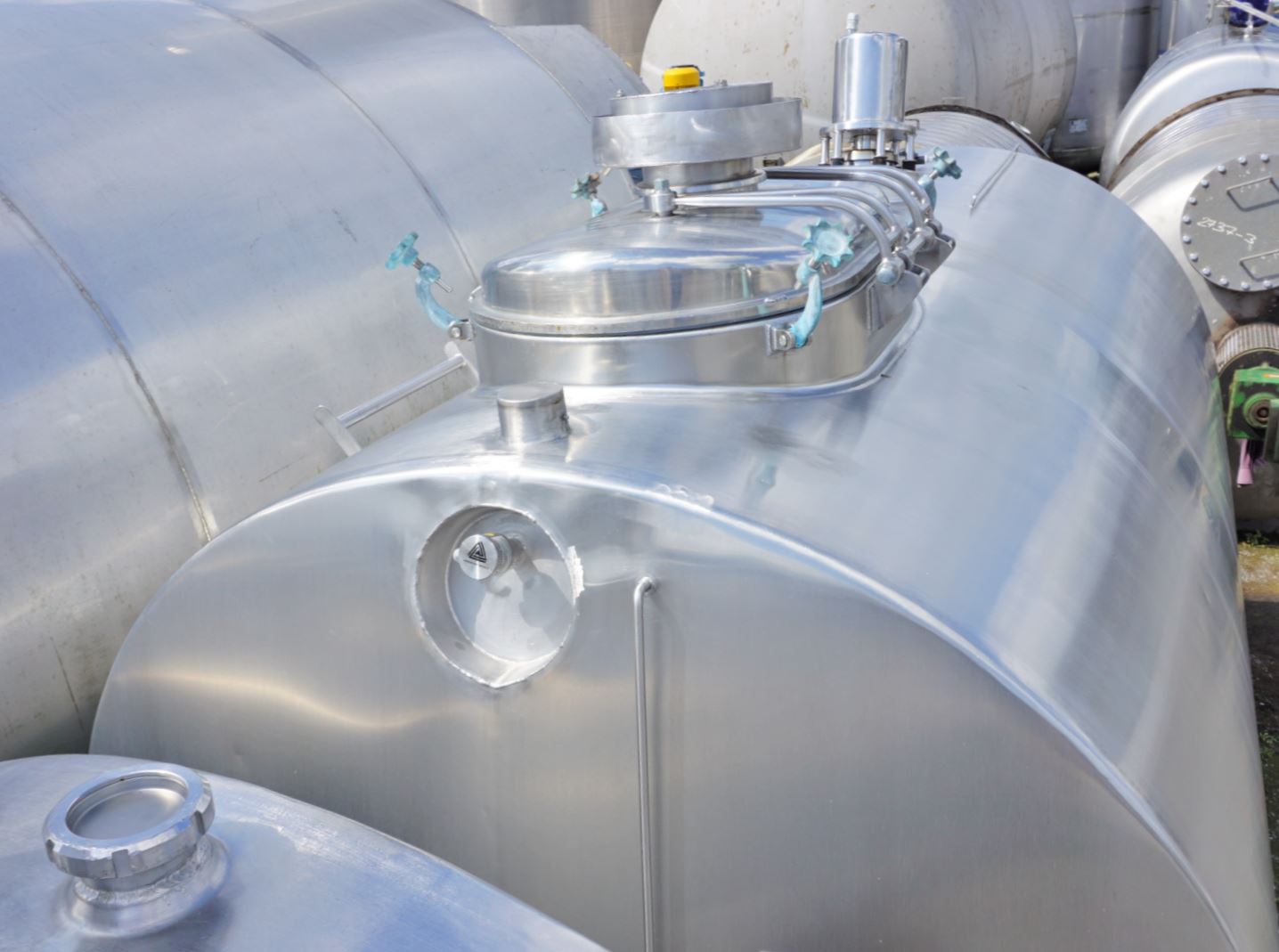

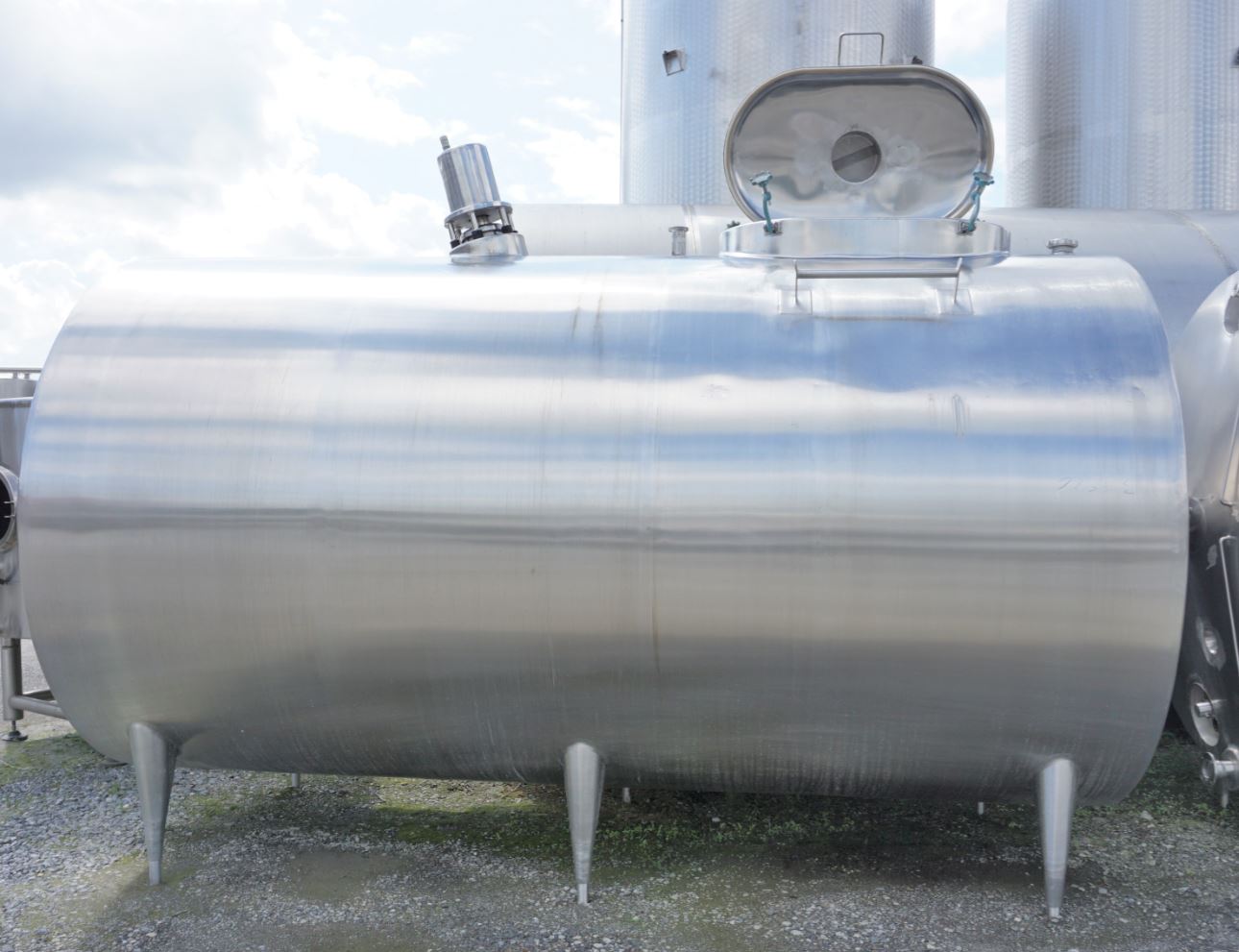

Container 10.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,000 mm.  Container 10.000 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.000 mm

  • External diameter

  • 2.100 mm

  • Cyl. length

  • 3.580 mm

  • Outlet height

  • 300 mm

  • Total height

  • 2.750 mm

  • Total length

  • 4.200 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

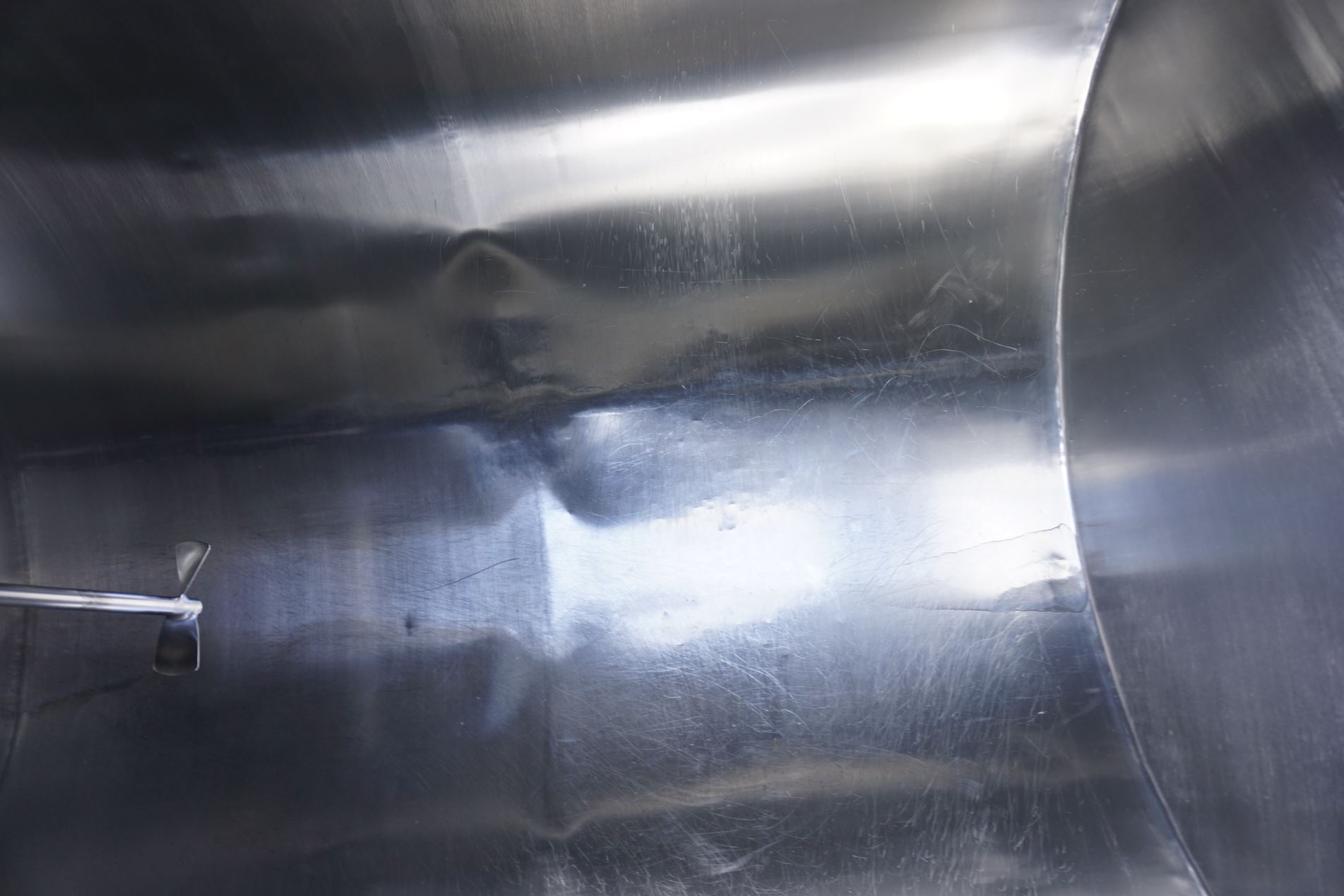

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

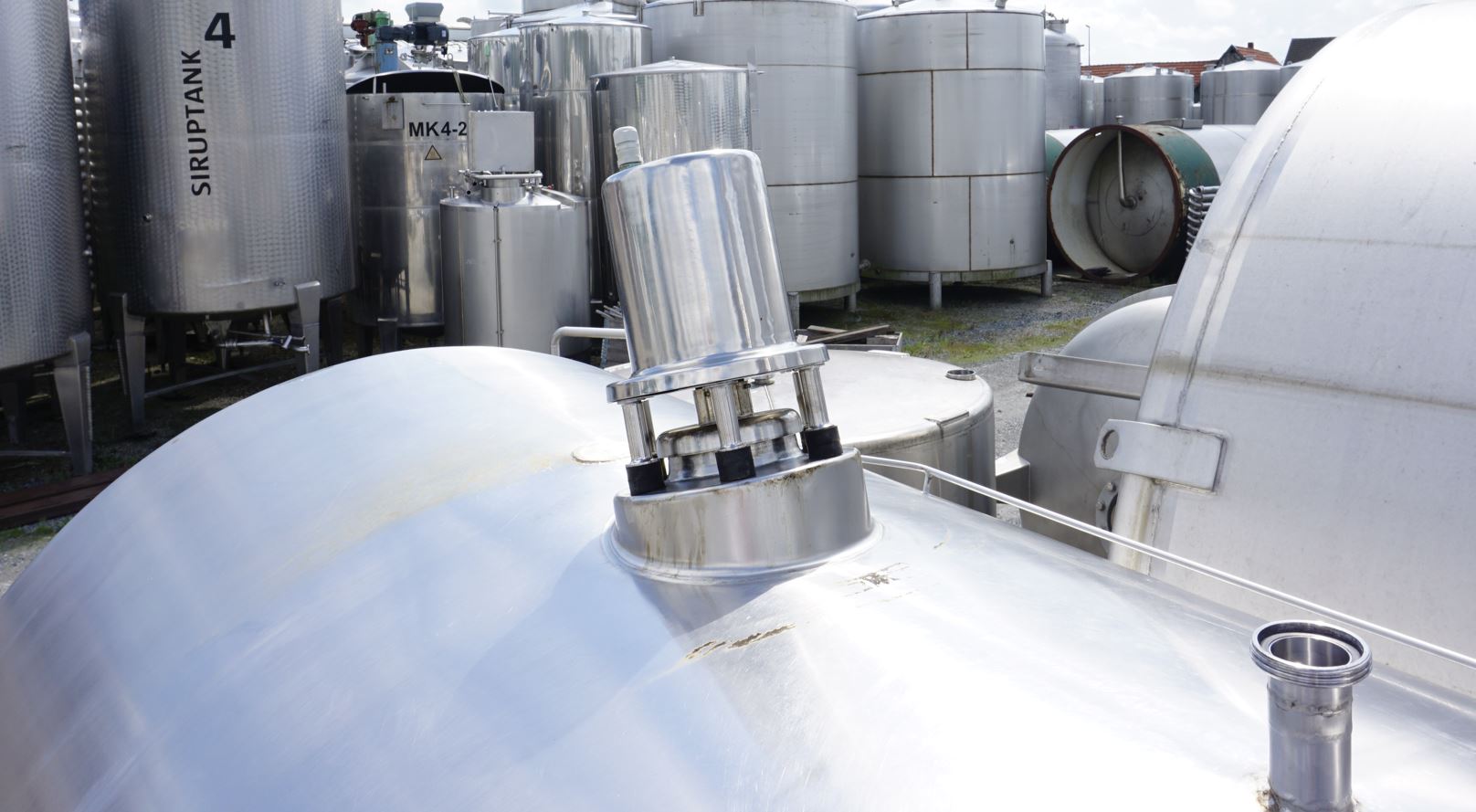

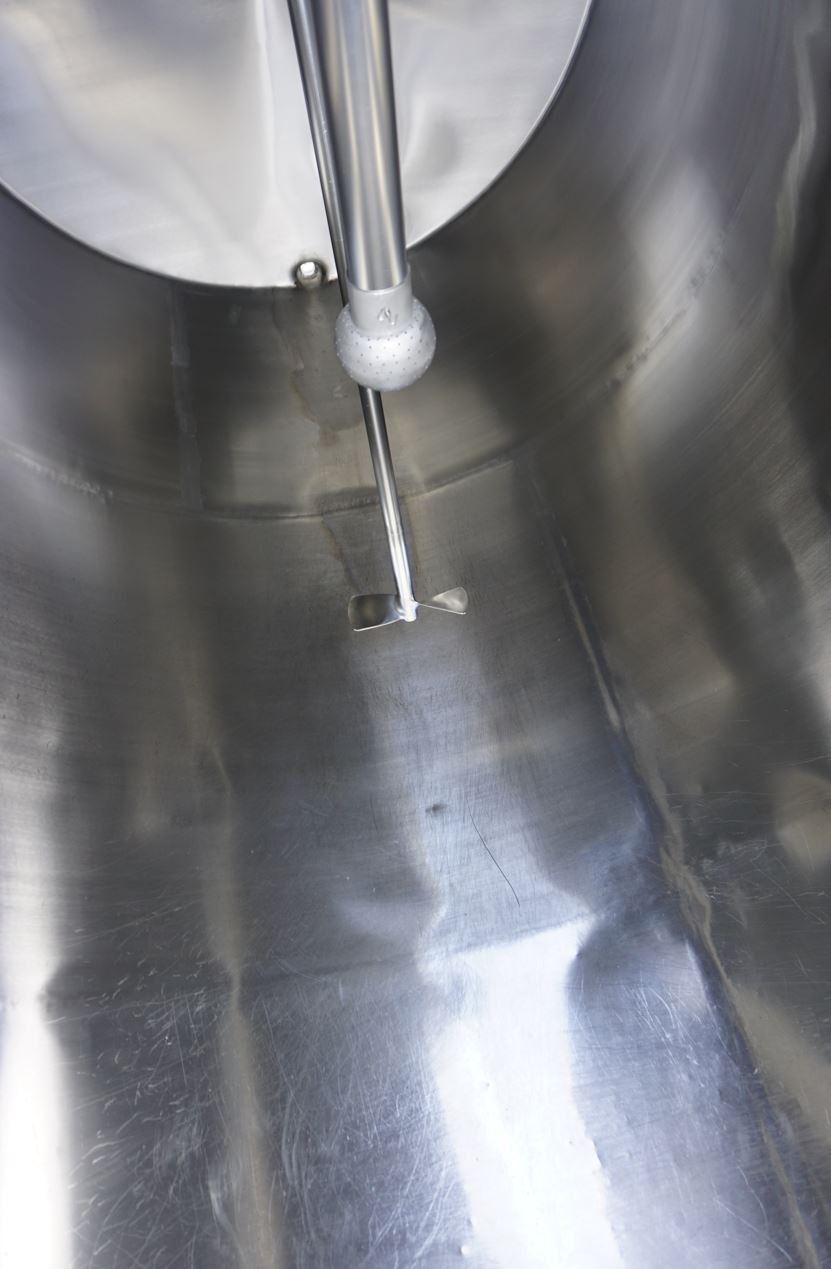

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

  • Note on supports

  • hoehenverstellbar

Fixtures and fittings

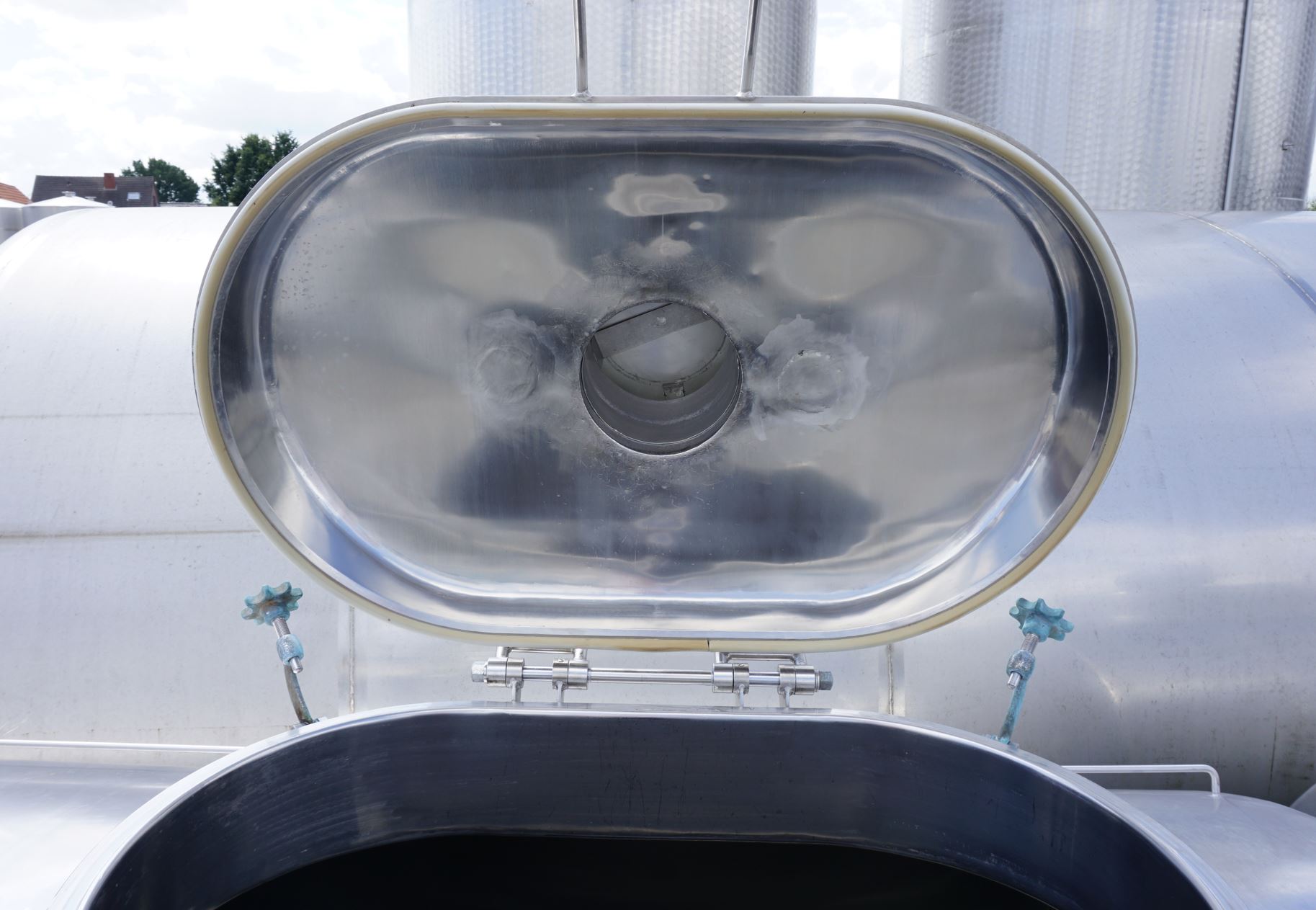

  • Manway position

  • In head

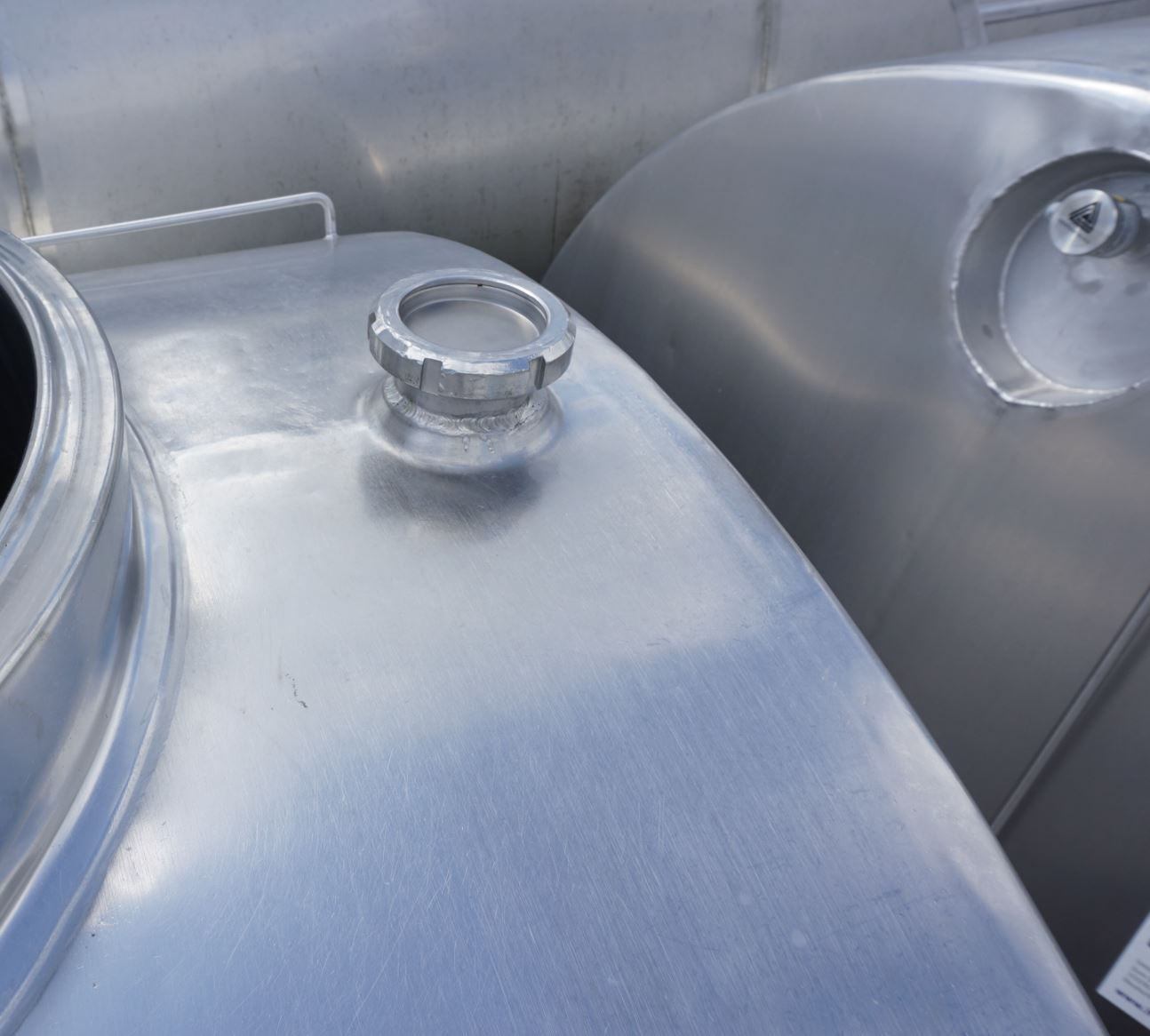

  • Nozzles/connectors in head

  • 1xDN65 (piece)

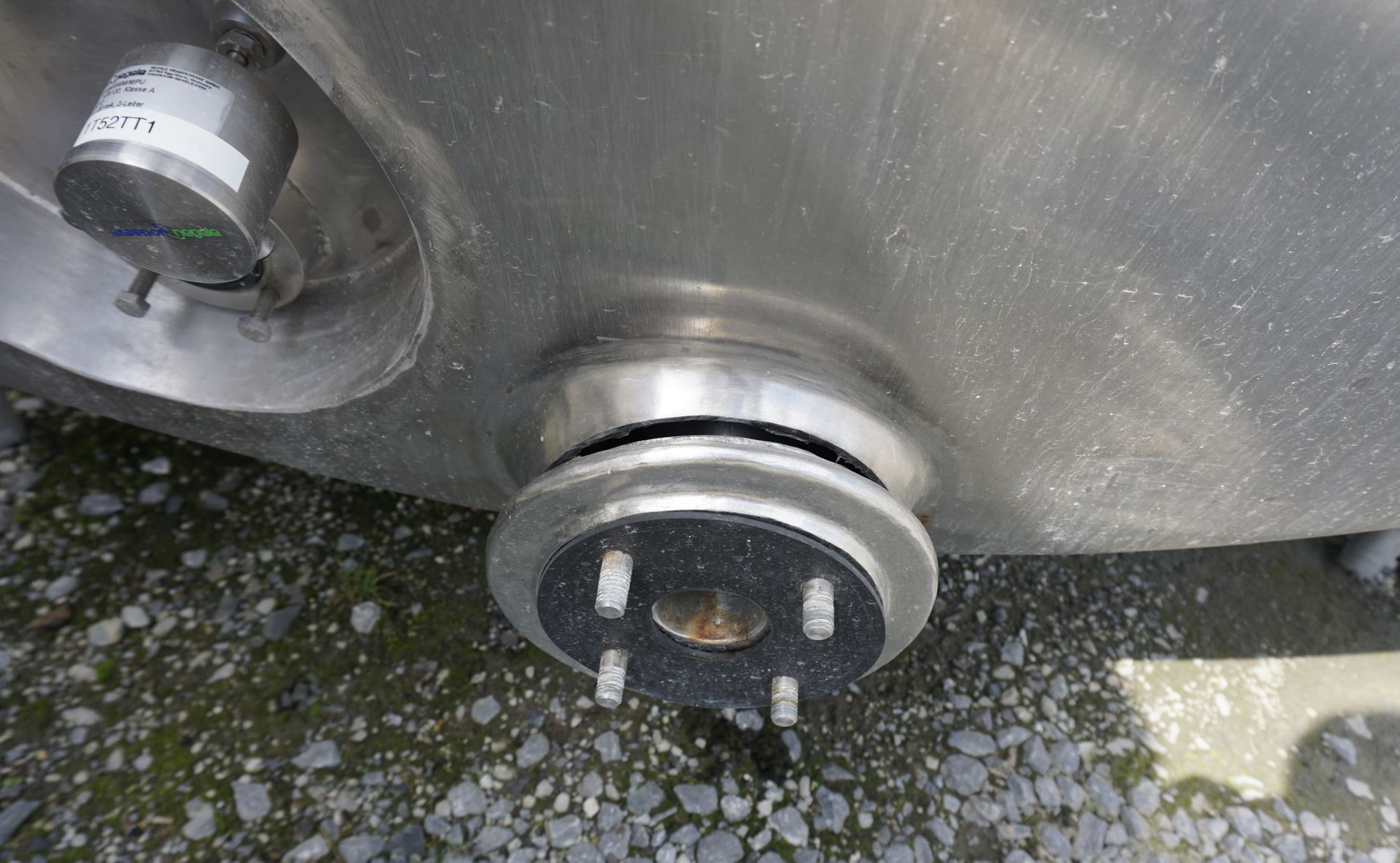

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Isolierverkleidung am Auslauf aufgeschnitten

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
