Product no. M-2881

Container 10.000 liters made of V2A isolated, used, standing

EUR 7.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

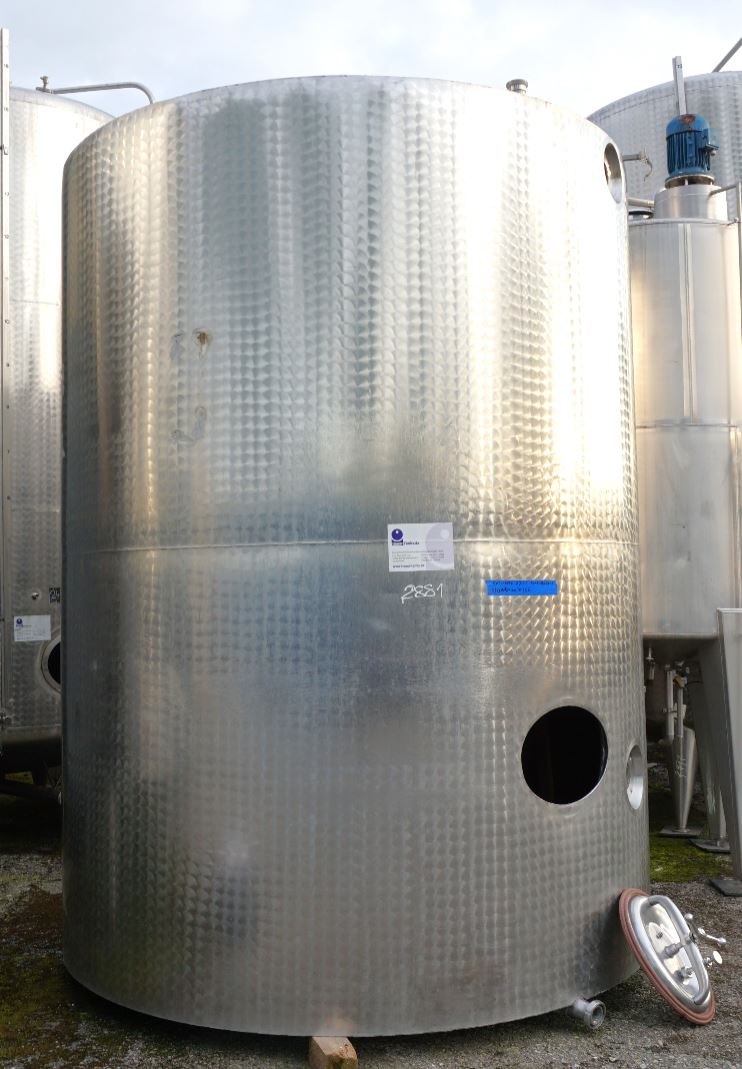

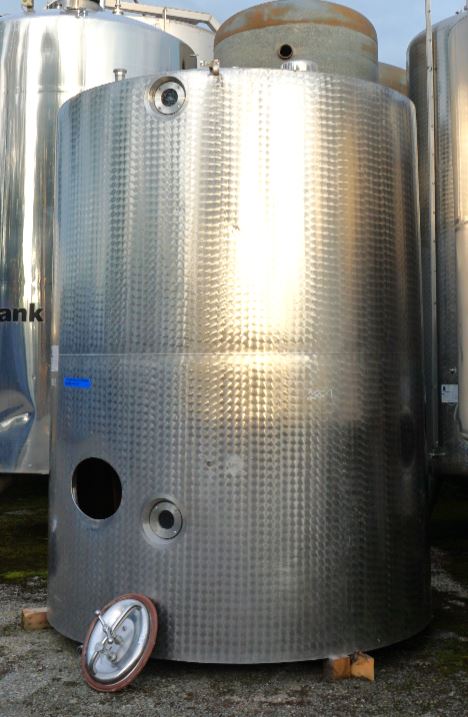

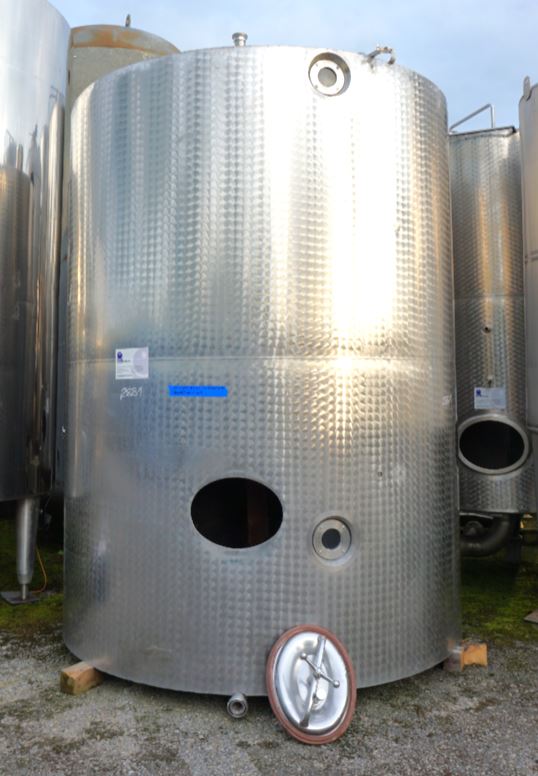

Container 10.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,200 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.200 mm

  • External diameter

  • 2.300 mm

  • Cyl. height

  • 2.950 mm

  • Total height

  • 3.500 mm

Design

  • Weight approx.

  • 1.600,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell

  • Insulation cladding

  • Fully welded stainless steel

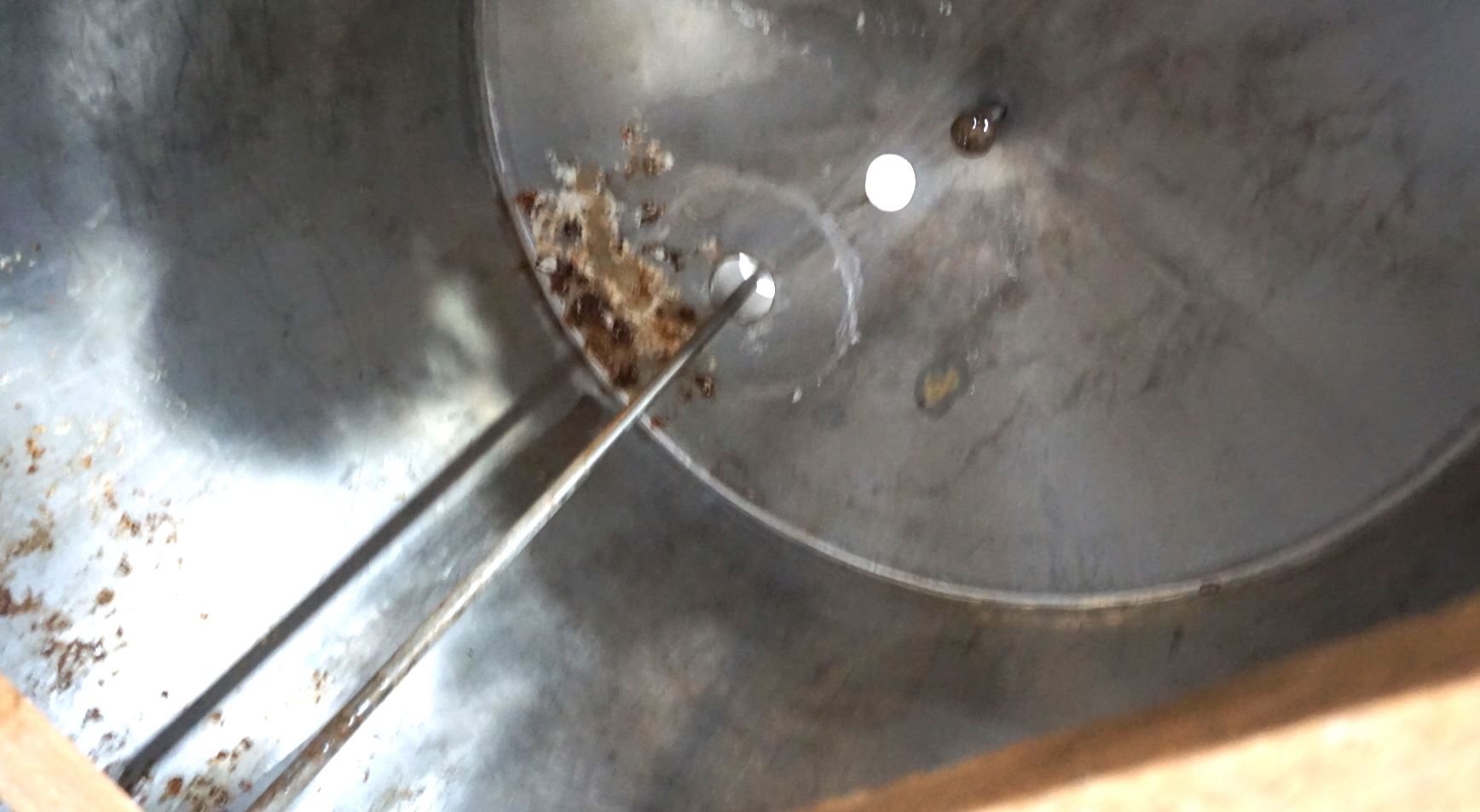

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

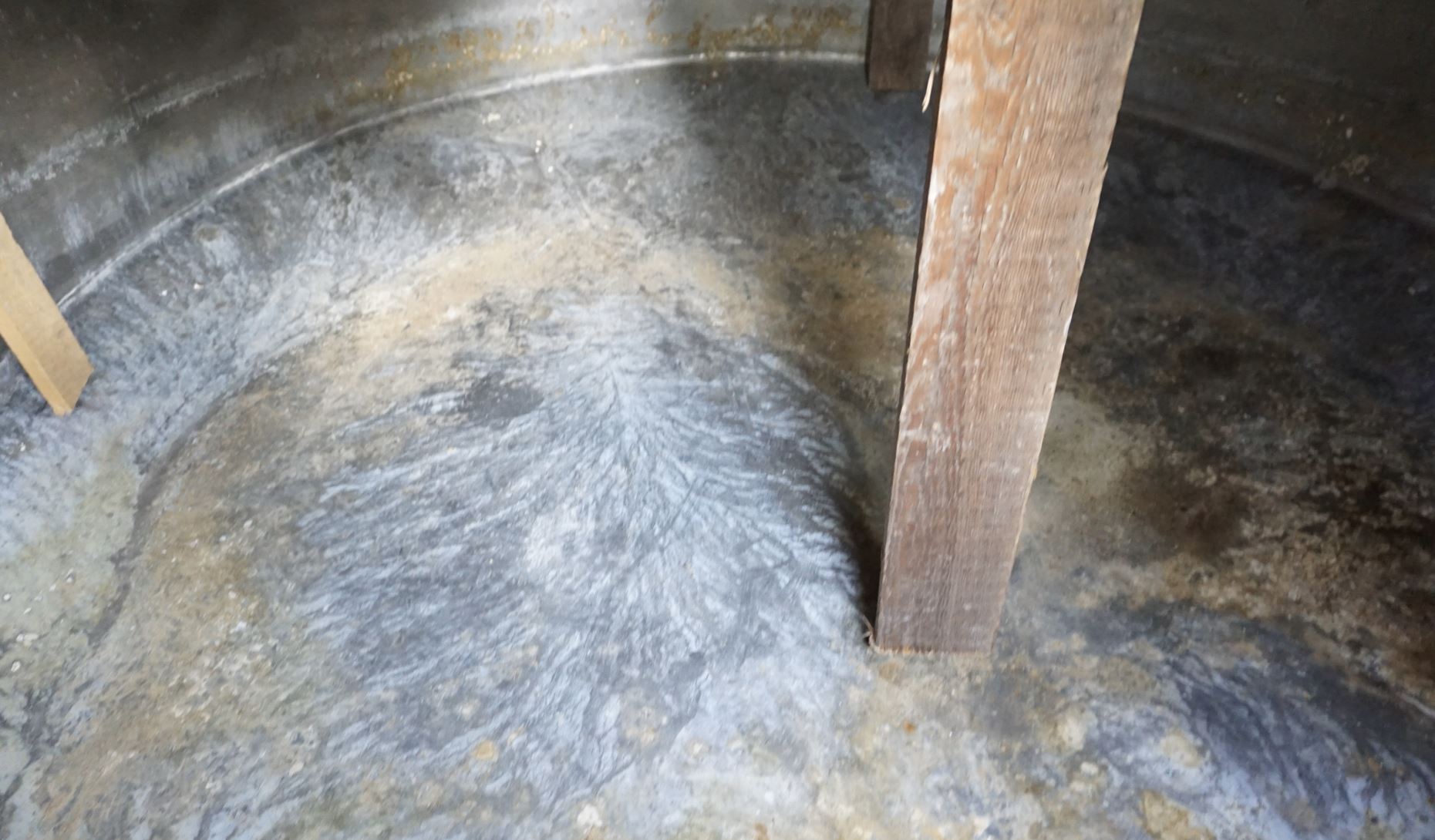

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Fixtures and fittings

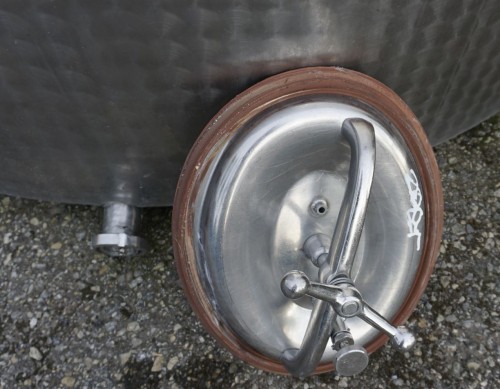

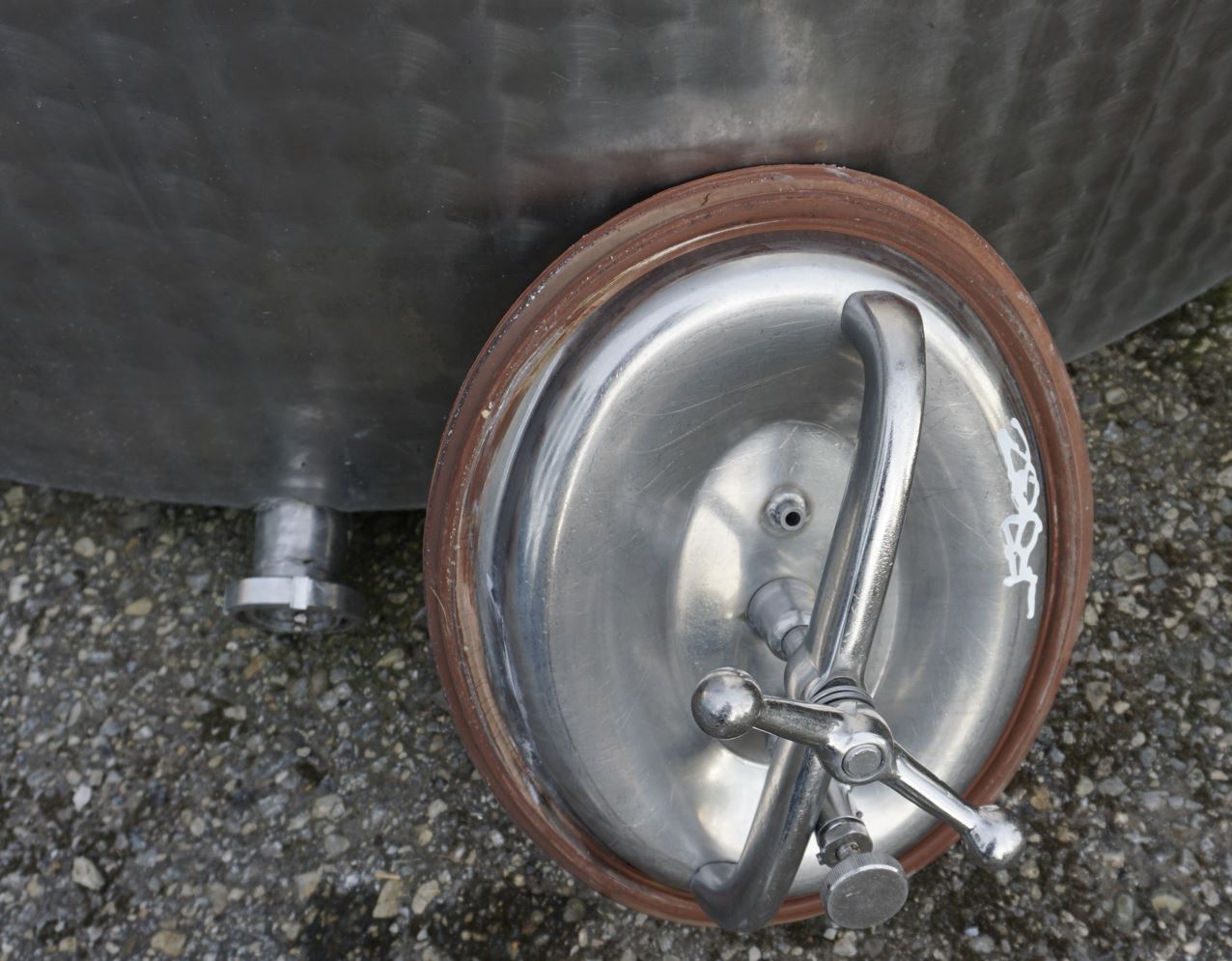

  • Manway position

  • In shell

  • Nozzles/connectors in head

  • 1xDN 40 (piece)

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in head

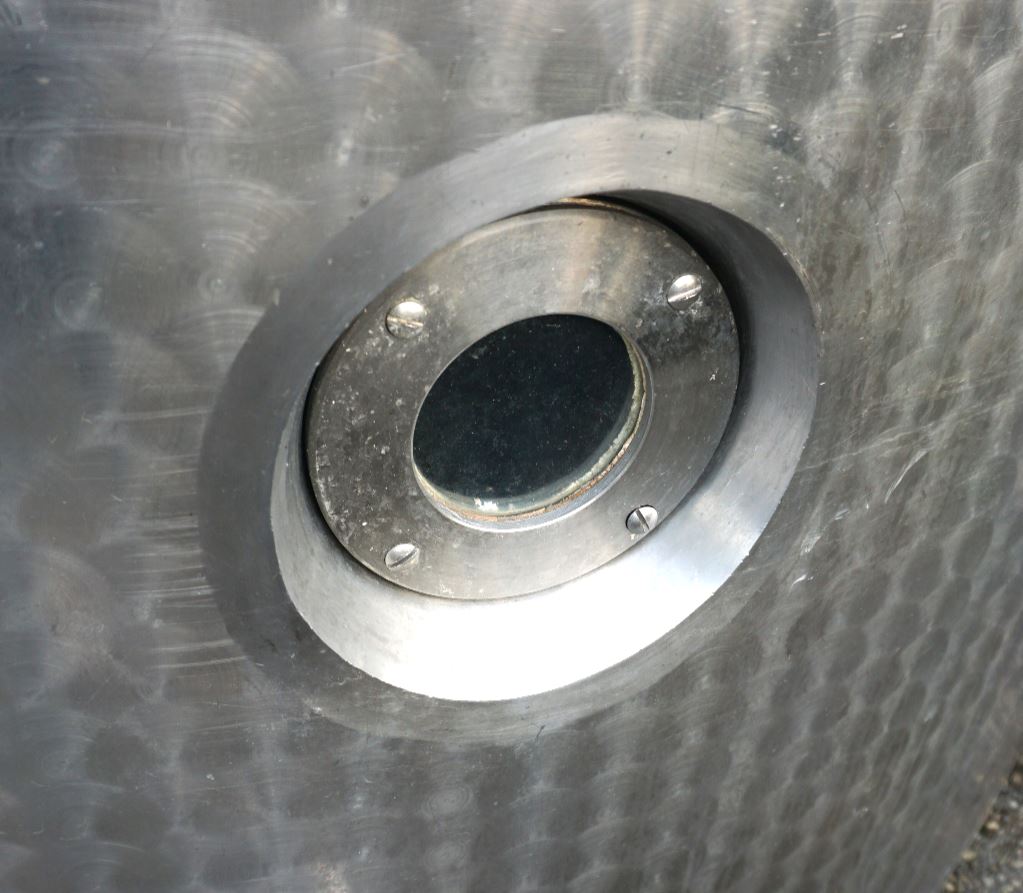

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Leichte Anhaftungen im Produktraum.

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Lye tank, Buffer tank, Pre-buffer tank, Mixing tank, CIP tank,
