Product no. M-2928

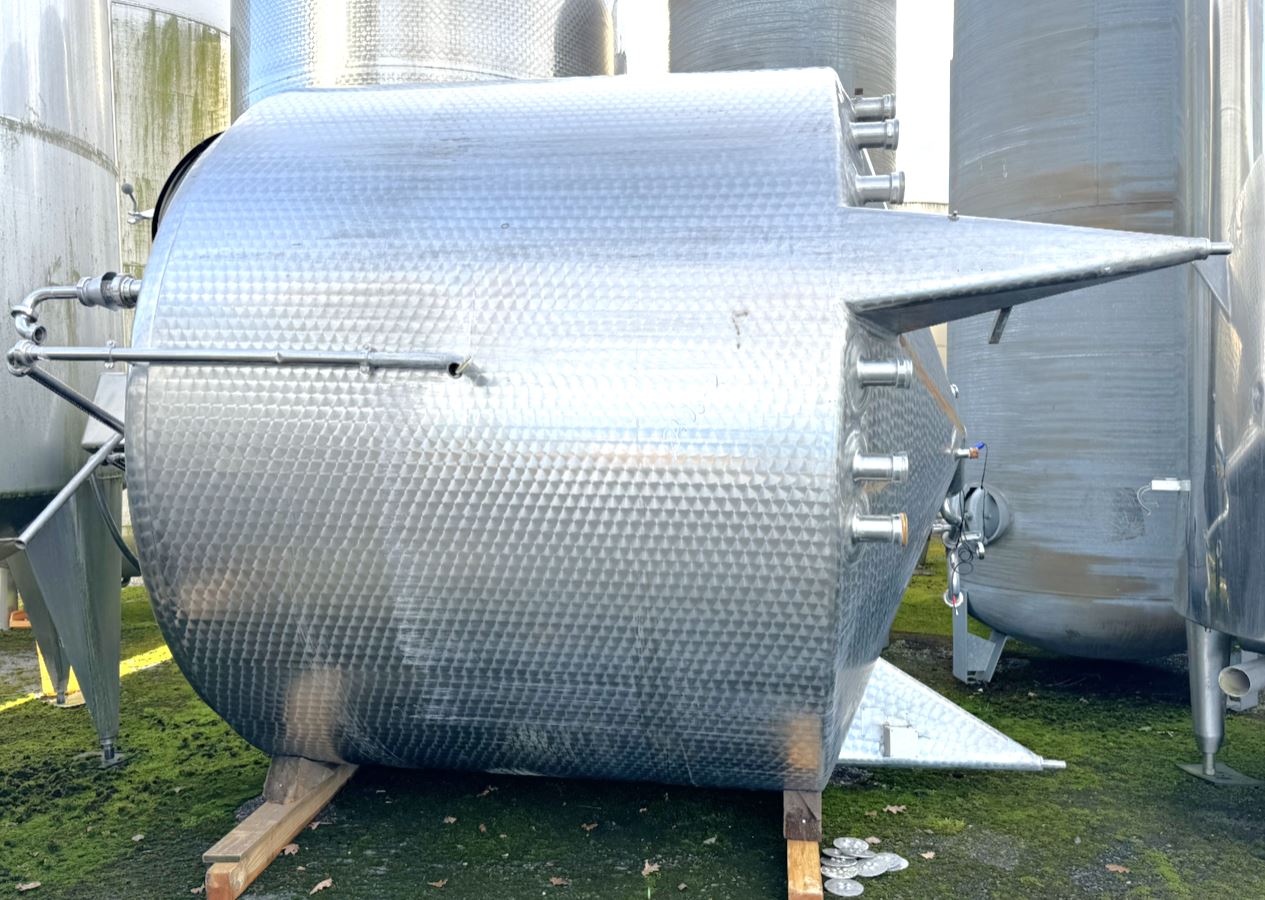

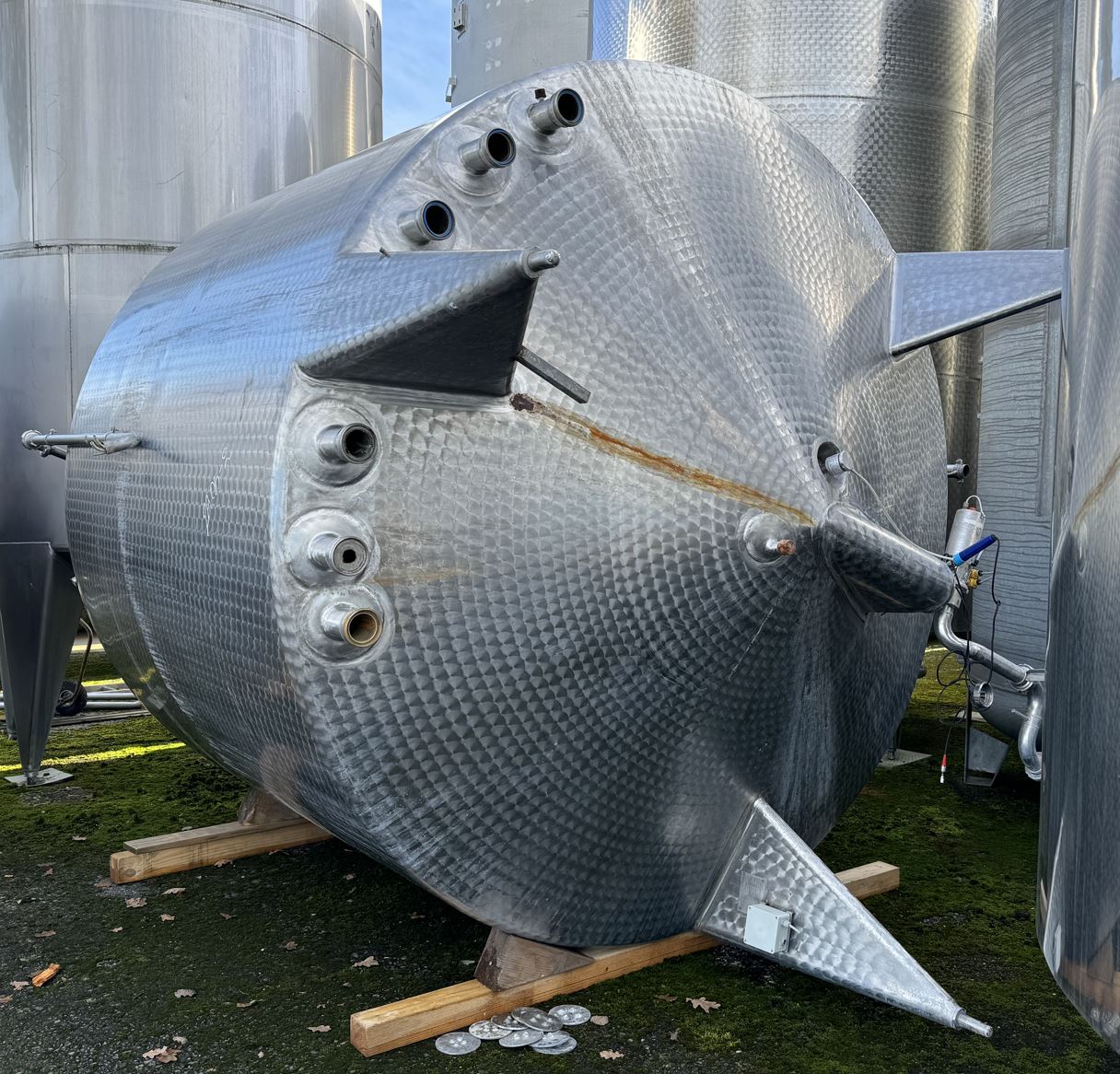

Container 10.000 liters made of V2A temperature-controllable, isolated, used, standing
EUR 16.000,00
add. 19 % VAT excl. shipping costs
Volume approx. 10,000.00 litres
Product description
Container 10.000 liters made of V2A temperature-controllable, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,540 mm. Container 10.000 liters made of V2A temperature-controllable, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Tempering, Mixing, Processes,General
- Volume approx.
- 10.000,00 litres
- Structure
- Standing
- Year of manufacture
- 1977
- Manufacturer
- ahrens + bode
- Condition
- Used
Dimensions approx.
- Internal diameter
- 2.540 mm
- External diameter
- 2.700 mm
- Cyl. height
- 2.050 mm
- Foot height
- 1.000 mm
- Total height
- 4.100 mm
Design
- Weight approx.
- 2.000,00 kg
- Weight per unit volume approx.
- 1.000,00 kg/m³
- Insulation
- yes
- Insulated area
- Shell and floor
- Insulation cladding
- Fully welded stainless steel
- Interior surface
- Smoothed
- Exterior surface
- Marbled
- Floor type
- Conical bottom
- Head design
- Dished
Equipment
- Temperature-controllable
- Yes
- Temperature control area
- Shell and floor area
- Heating medium
- Water
- Temperature control system/pipe chamber capacity
- 380 litres

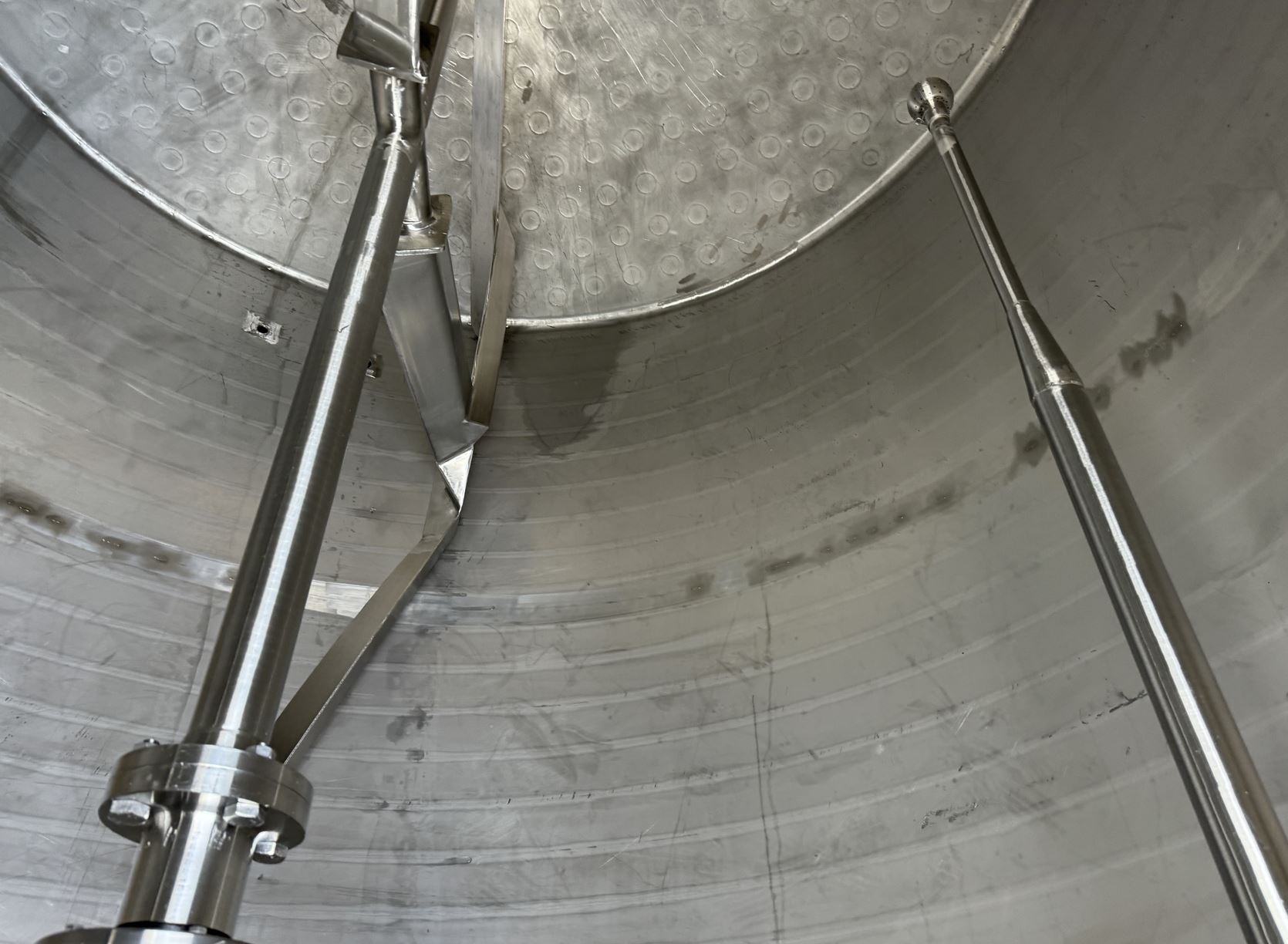

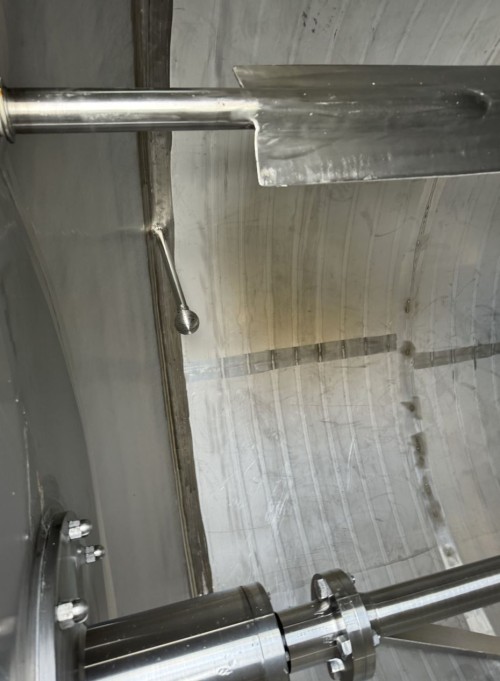

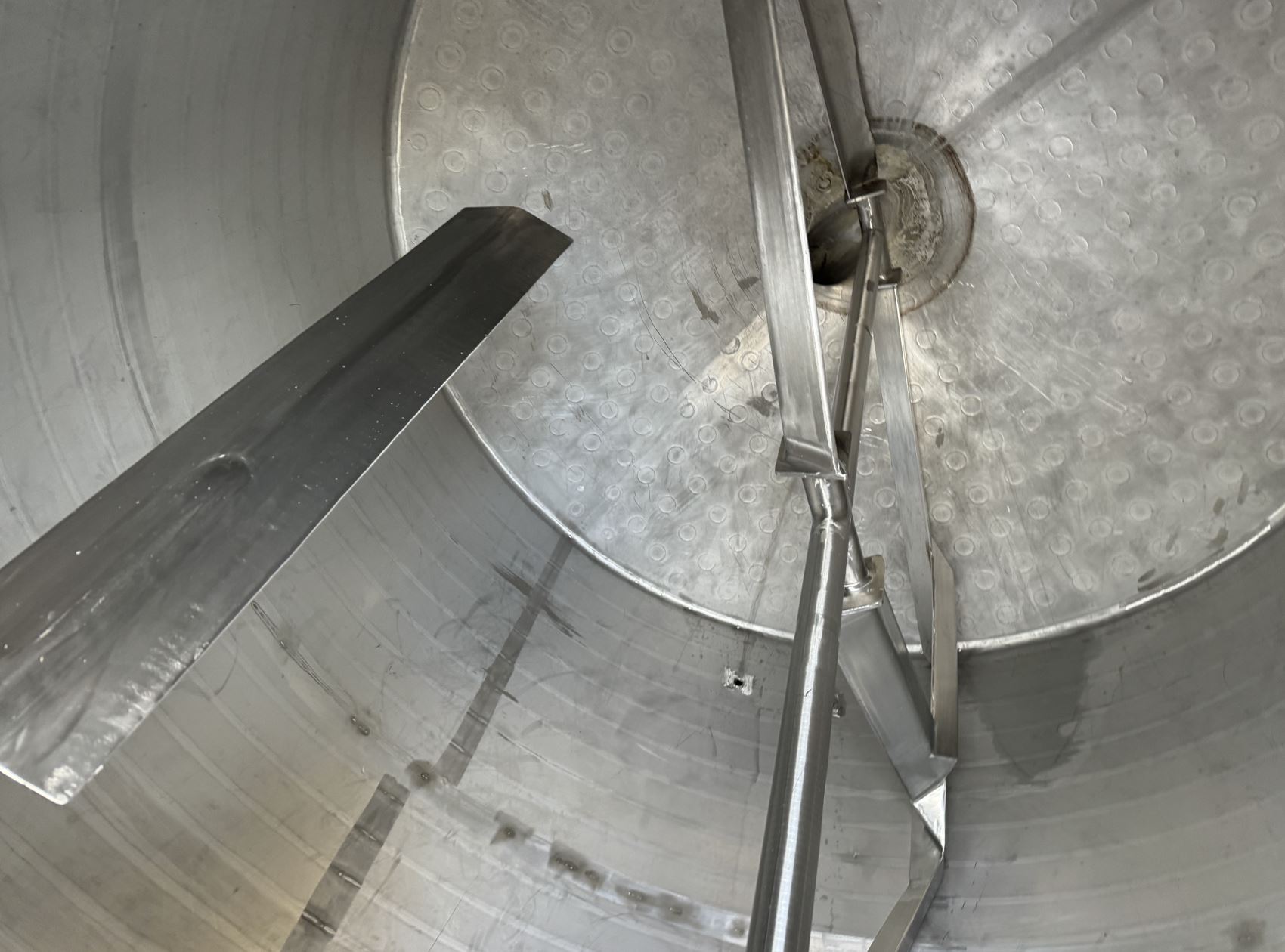

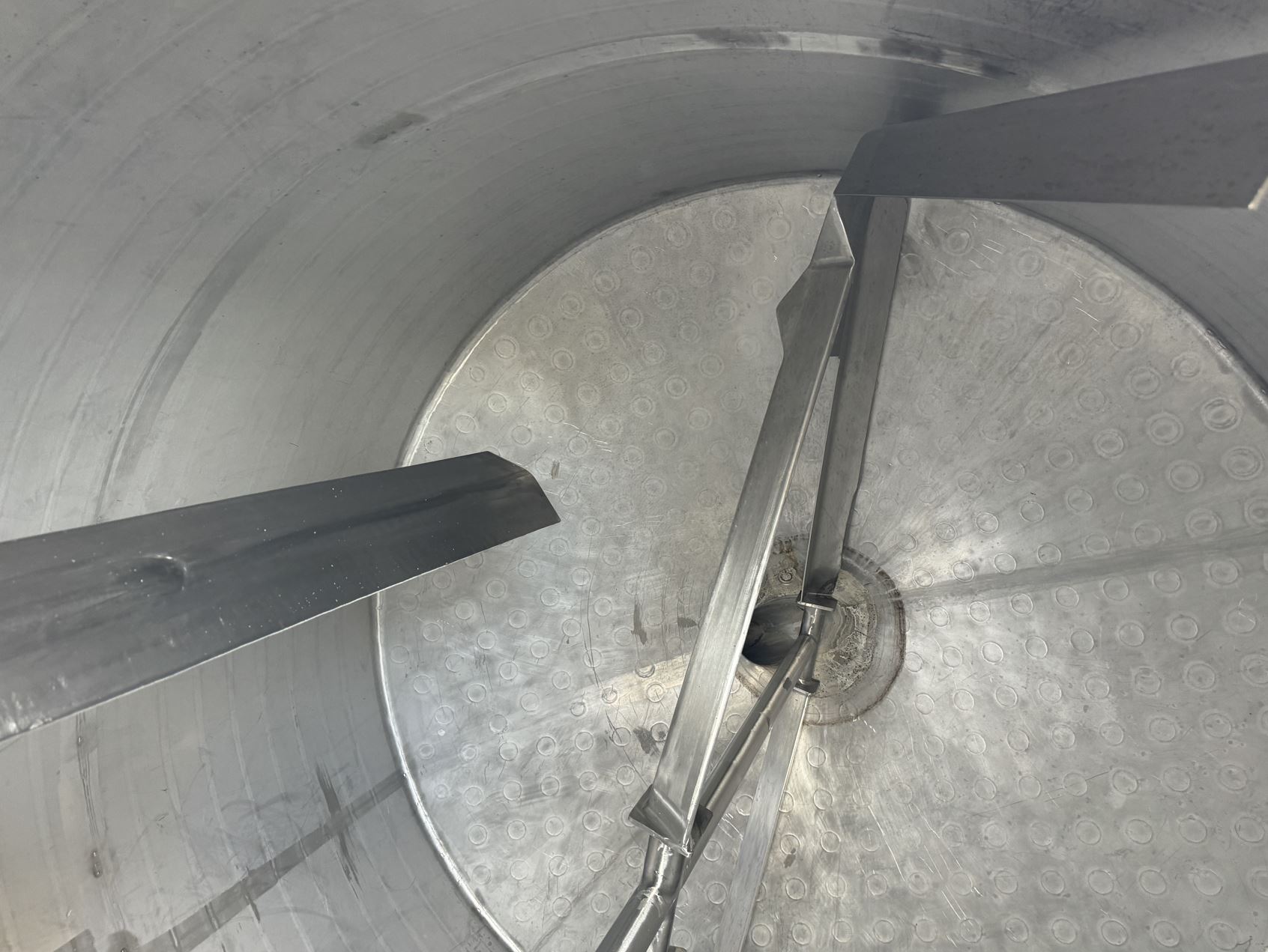

Agitator
- Agitator quantity
- 1 (piece)
- Agitator type
- Wall scraper
- Agitator position
- Head central
Supports
- Supports
- Stainless steel feet
- Number of feet
- 3 (piece)
- Note on supports
- höhenverstellbar
Fixtures and fittings

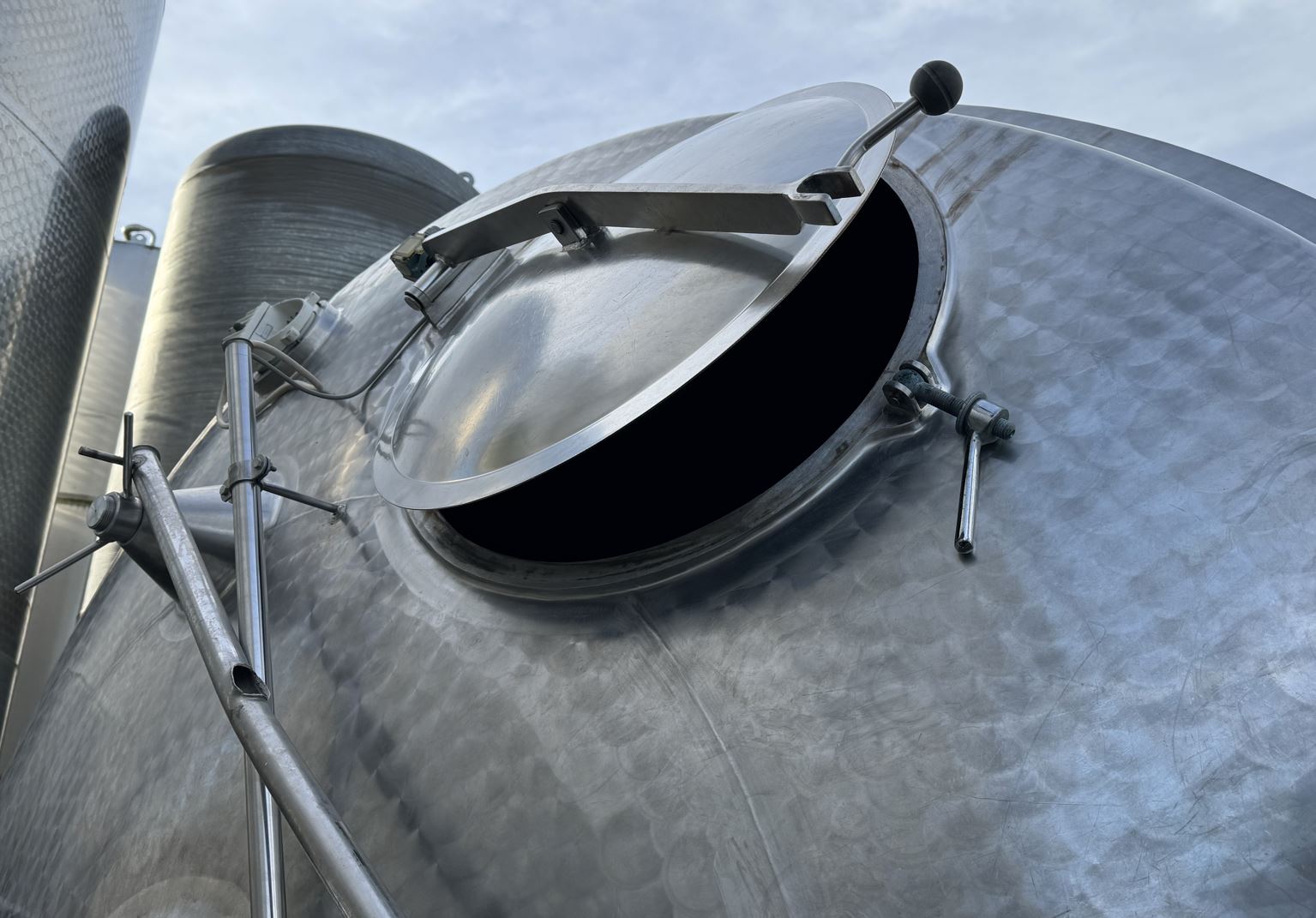

- Manway 1 size
- 600 DN mm
- Manway position
- In head

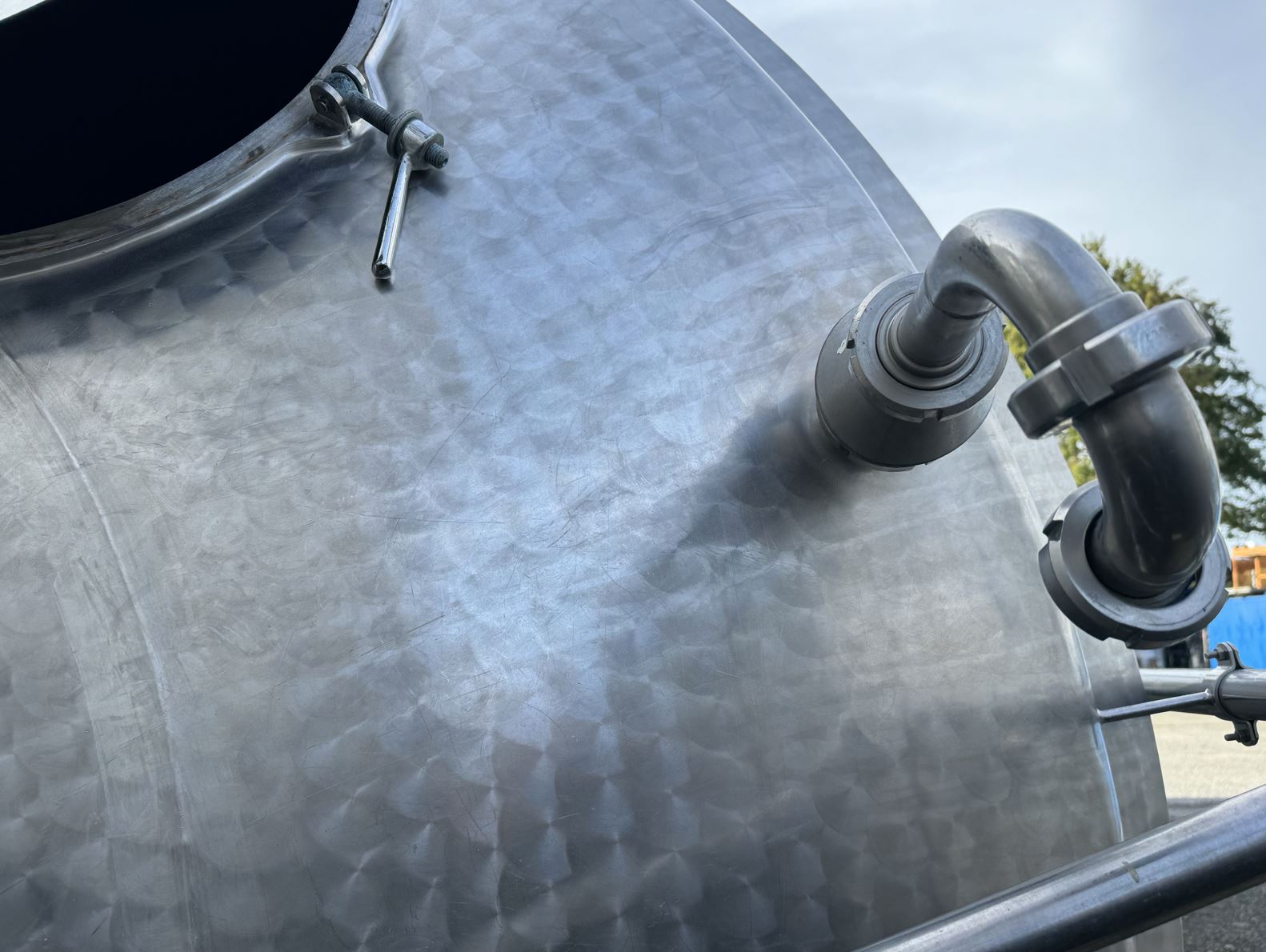

- Nozzles/connectors in head
- 1xDN65 (piece)
- Outlet nozzle
- 50
- Cleaning/CIP nozzle
- in shell and head
- Additional fixtures and fittings

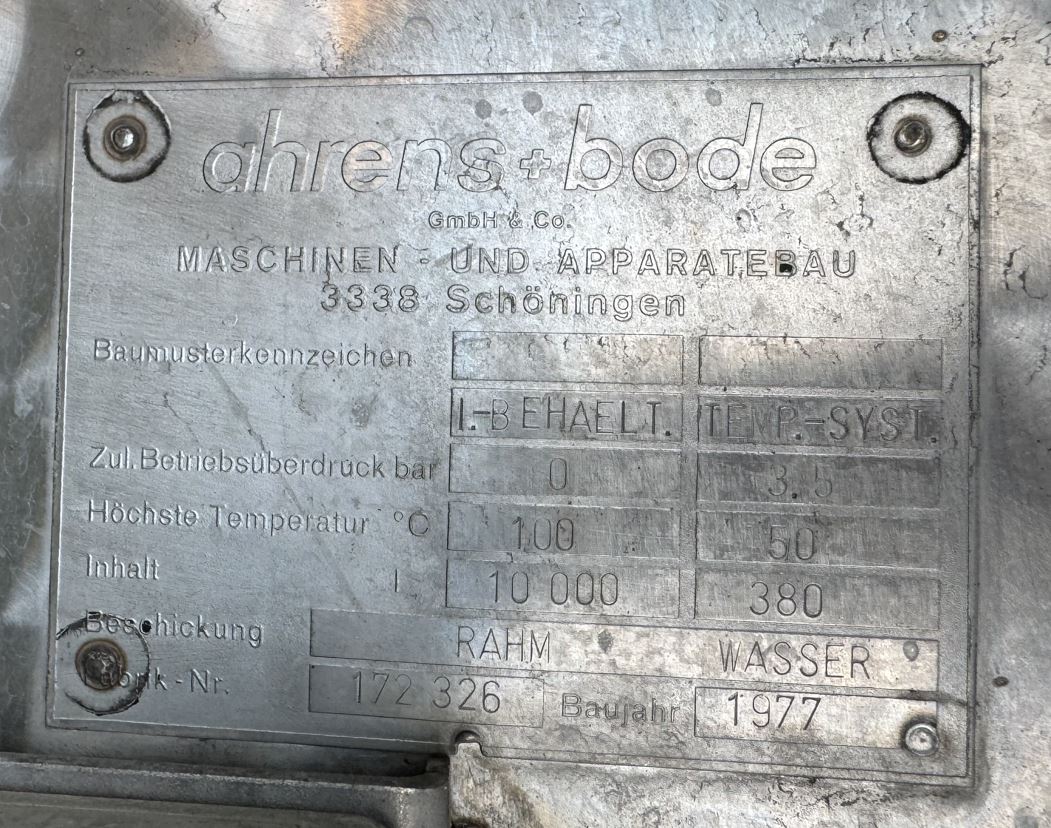

- Nameplate
Technical documentation
- Technical documentation
- None
Other
- Note
- 1 Temperierzone im Mantel undicht.
- Last usage
- Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,
