Product no. M-3112

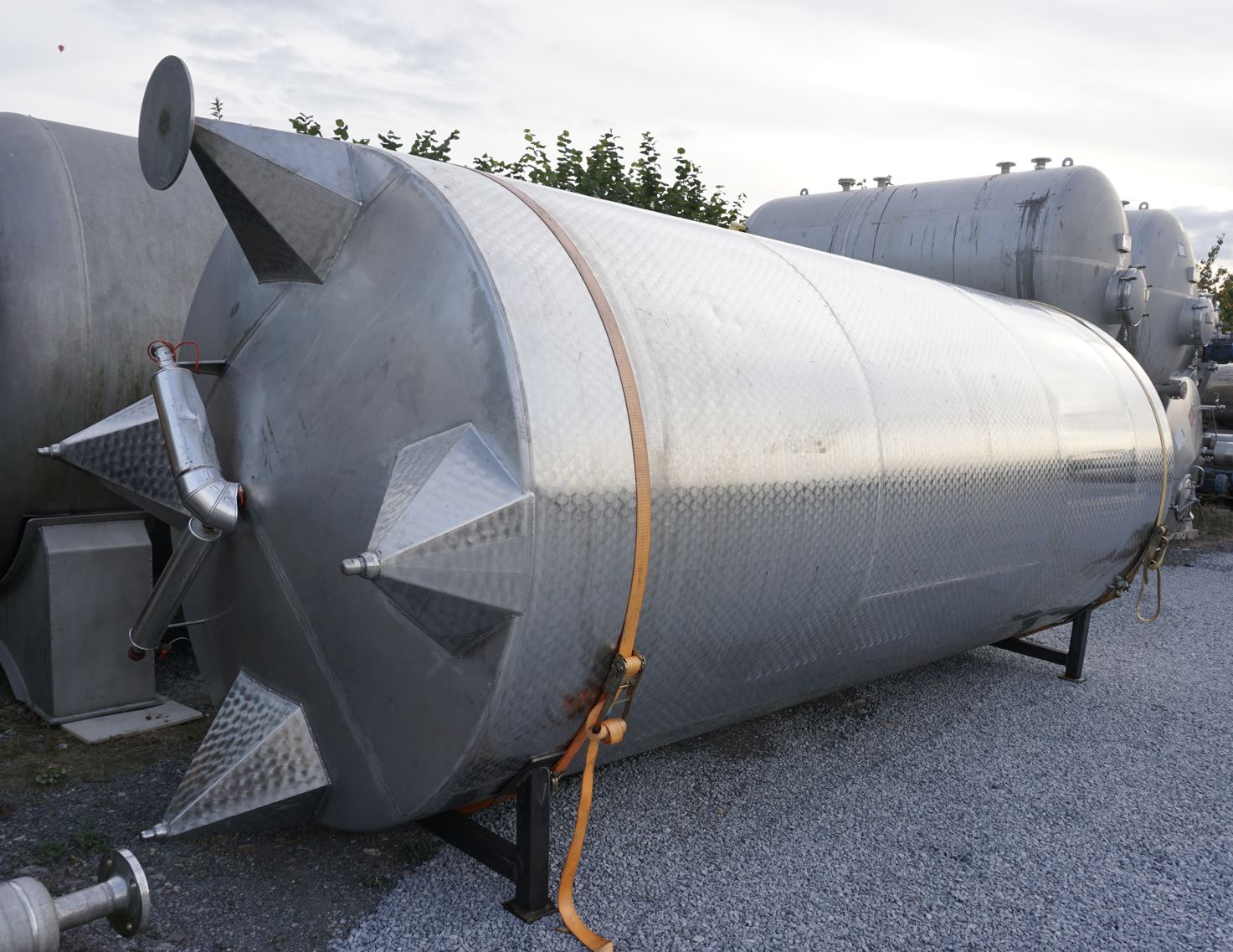

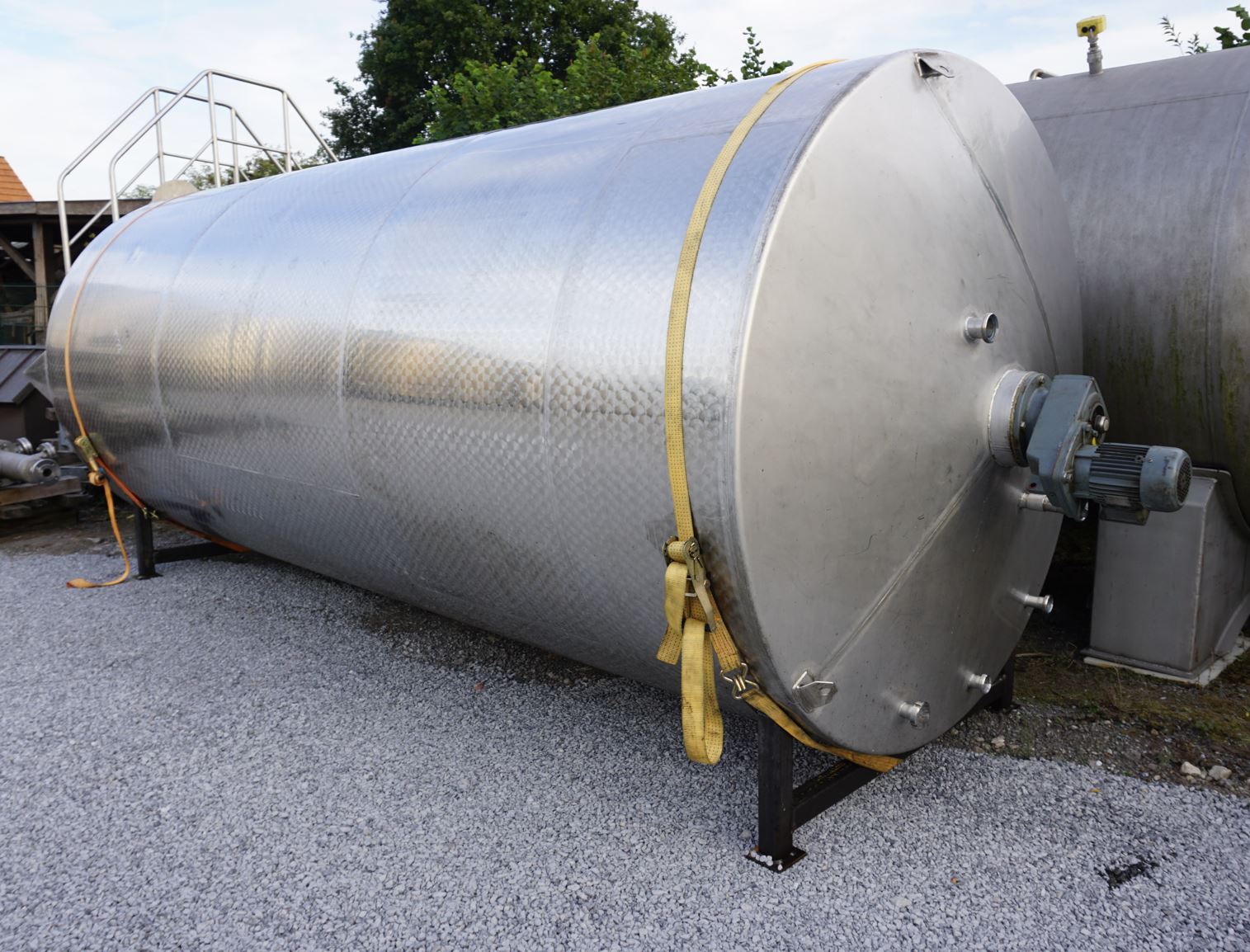

Container 11.000 liters made of V2A, temperature-controllable, isolated, used, standing
EUR 16.500,00
add. 19 % VAT excl. shipping costs
Volume approx. 11,000.00 litres
Product description
Container 11.000 liters made of V2A, temperature-controllable, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 11,000.00 litres. The diameter inside includes 1,880 mm. Container 11.000 liters made of V2A, temperature-controllable, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Tempering, Mixing,General
Volume approx.
11.000,00 litres
Structure
Standing

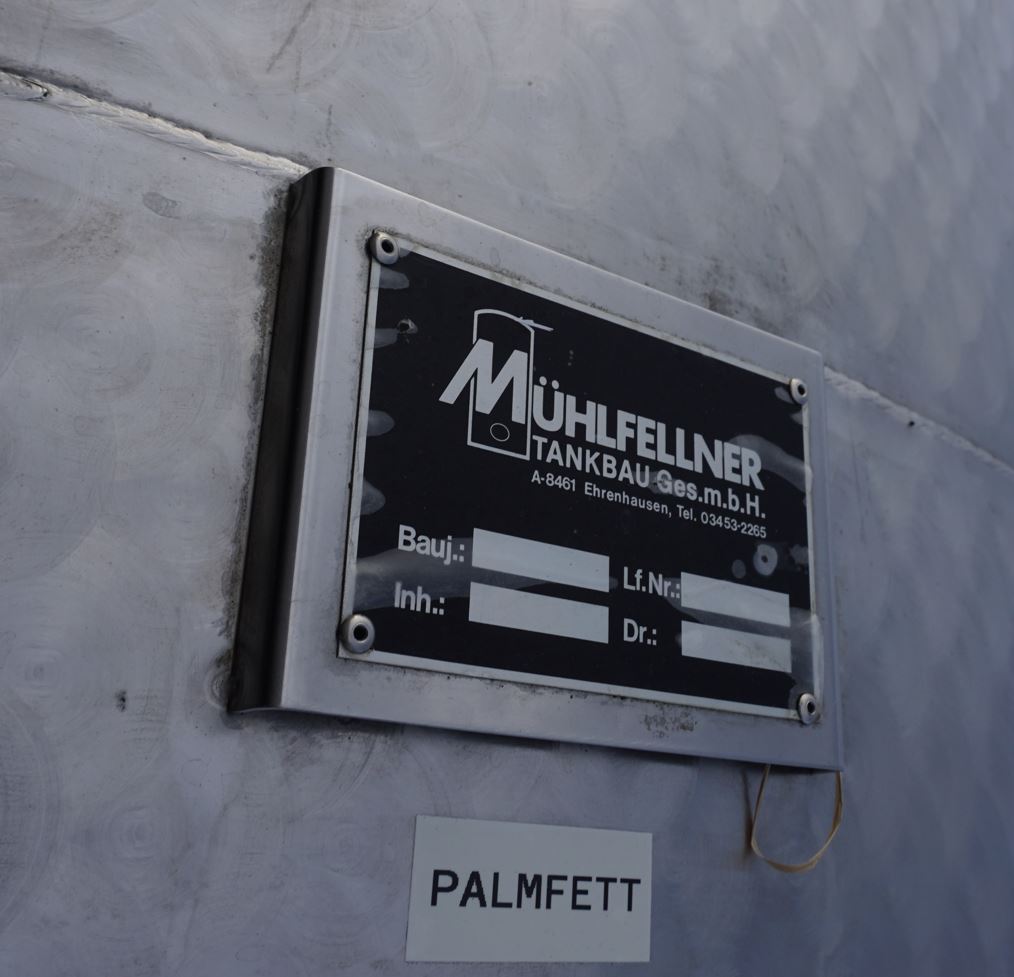

Manufacturer
Mühlfellner
Condition
Used
Dimensions approx.
Internal diameter
1.880 mm
External diameter
2.000 mm
Cyl. height
4.600 mm
Foot height
460 mm
Total height
5.660 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel

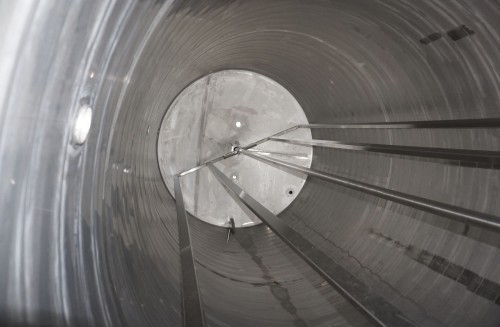

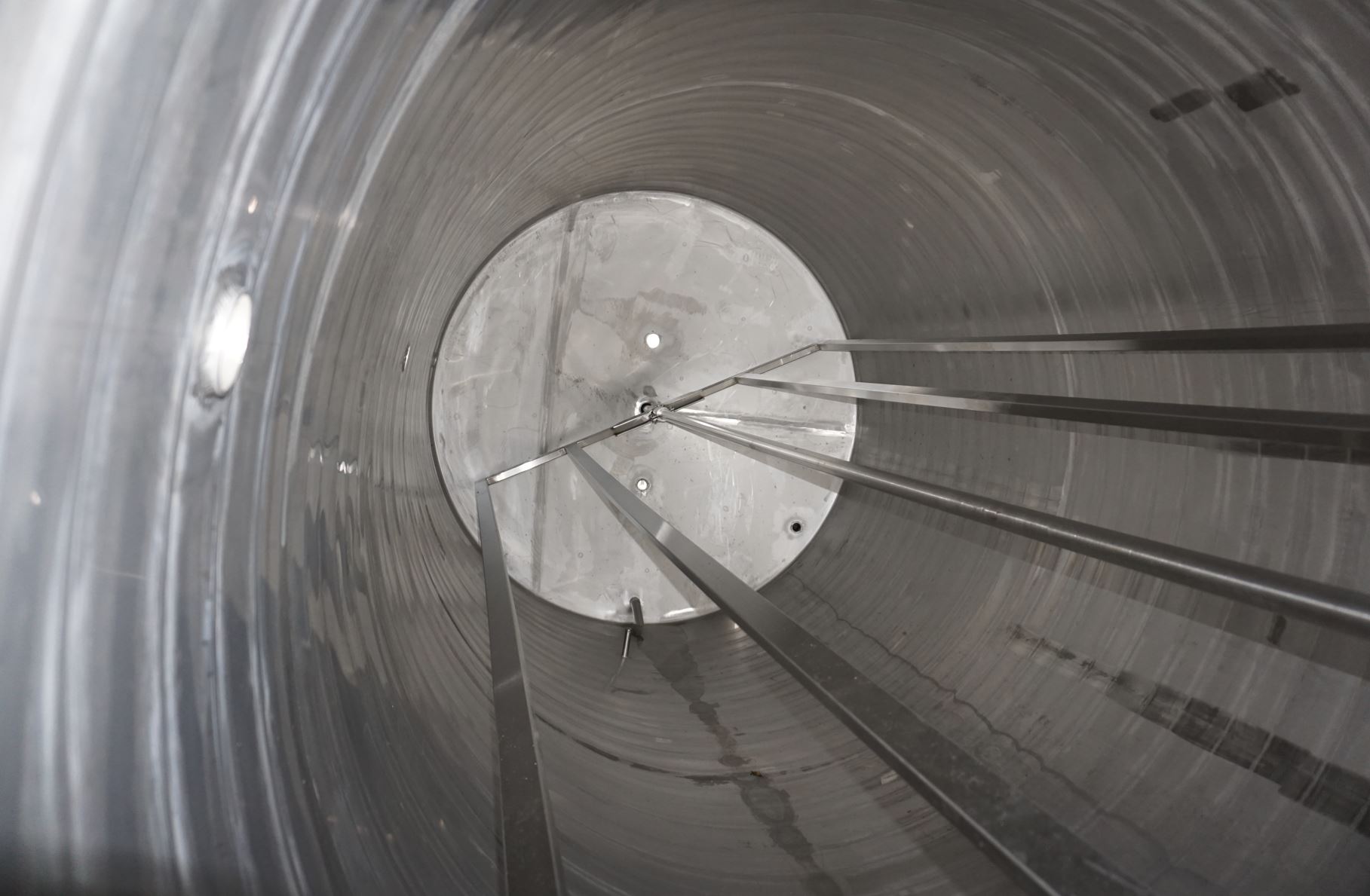

Interior surface
Smoothed
Exterior surface
Marbled

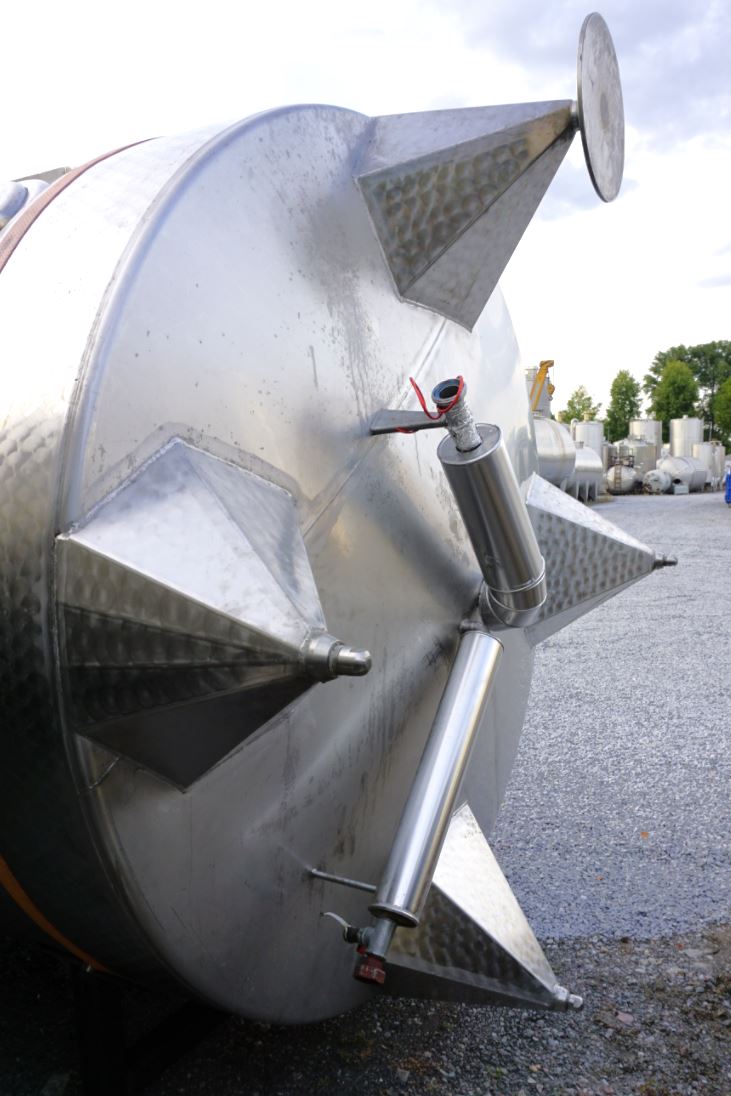

Floor type
Conical bottom
Head design
Conical bottom
Equipment
Temperature-controllable
Yes
Temperature control area
Shell and floor area
Temperature control system
Half-pipe coils

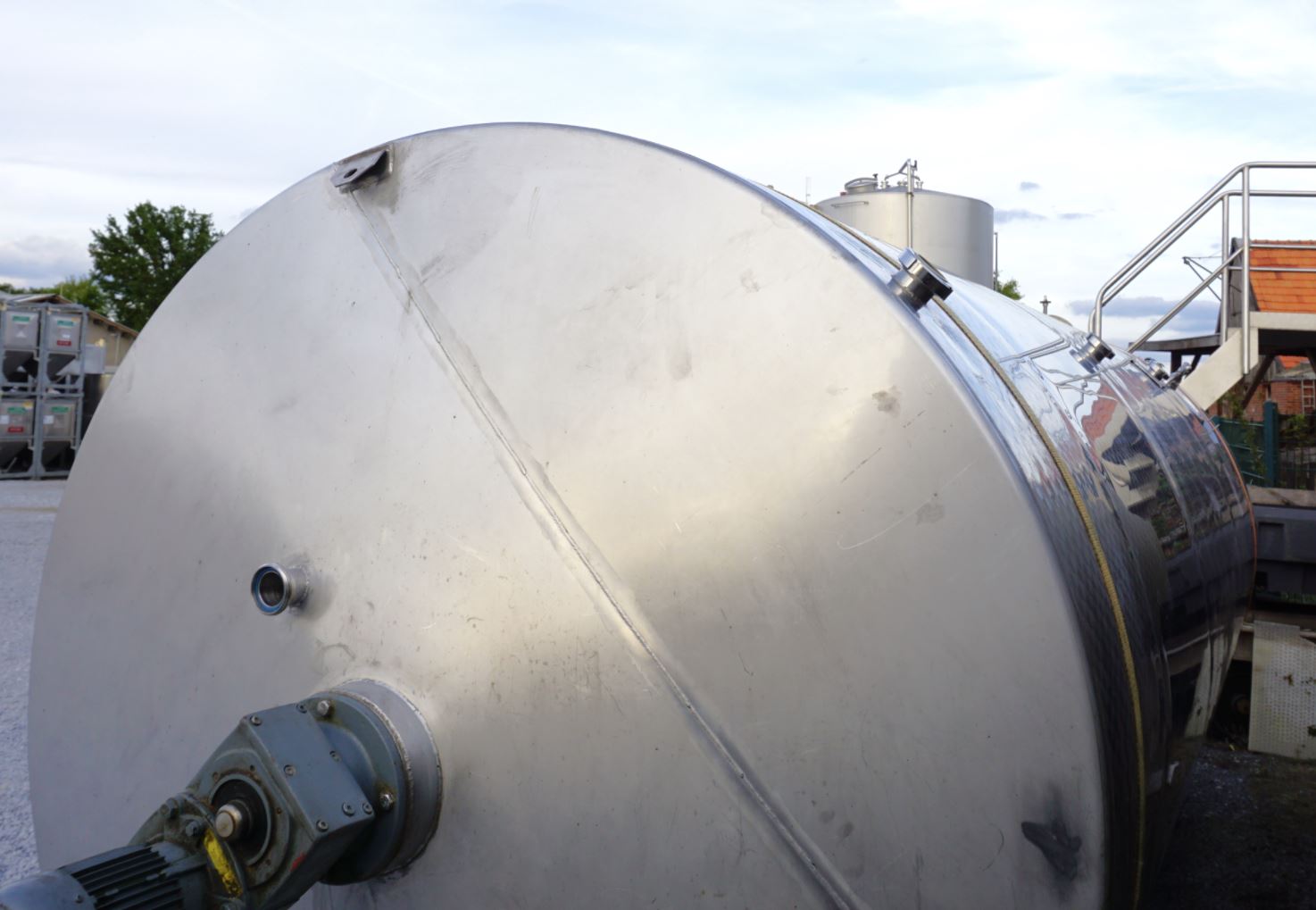

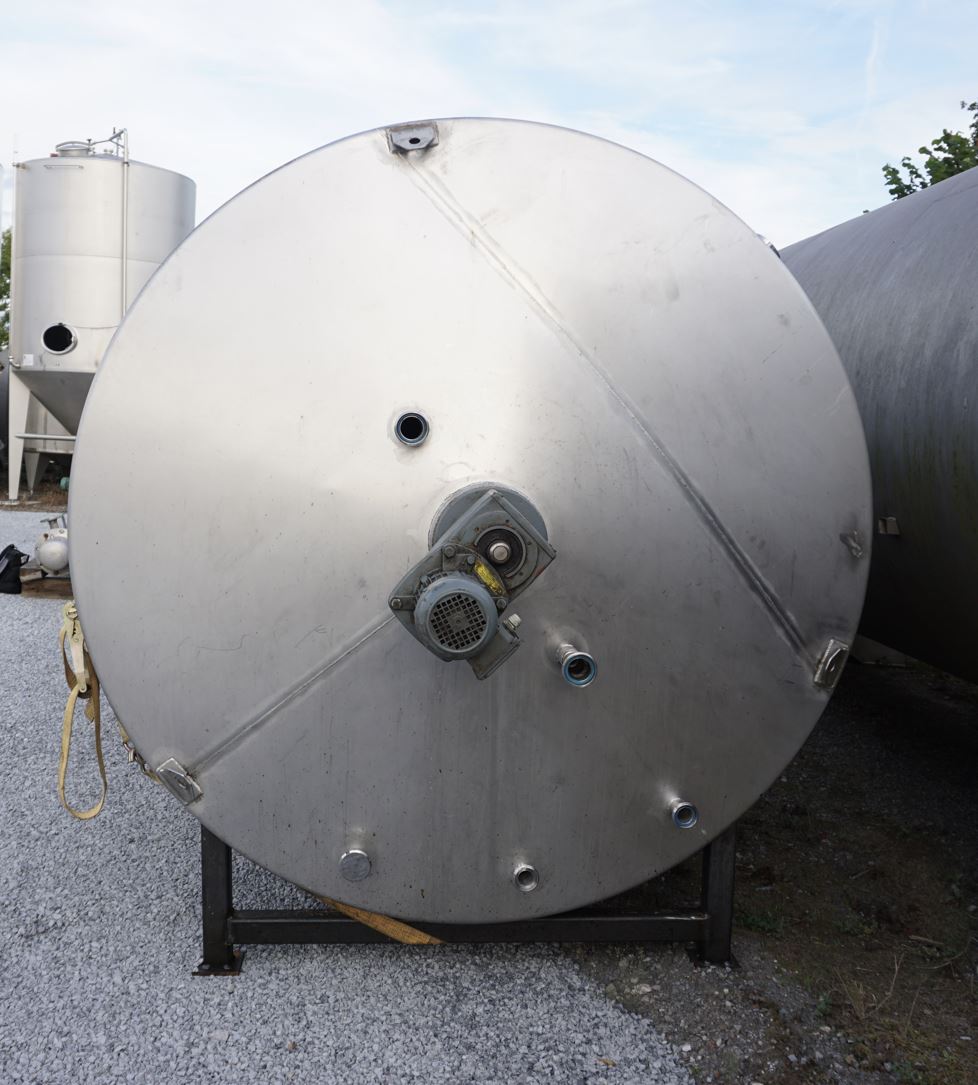

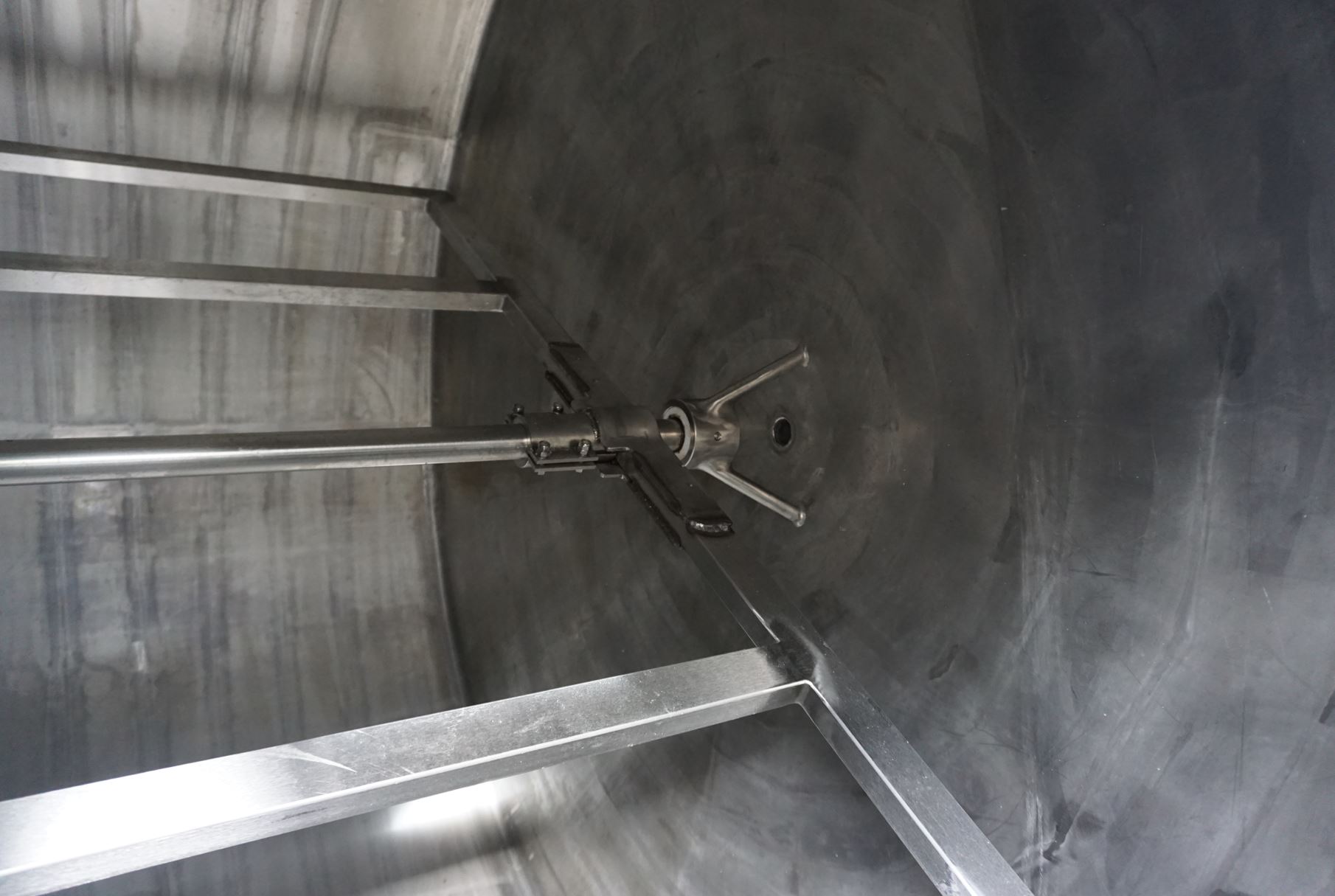

Agitator
Agitator quantity
1 (piece)
Agitator type
Paddle agitator
Note on agitator
Welle mit Bodenlager
Agitator position
Head central

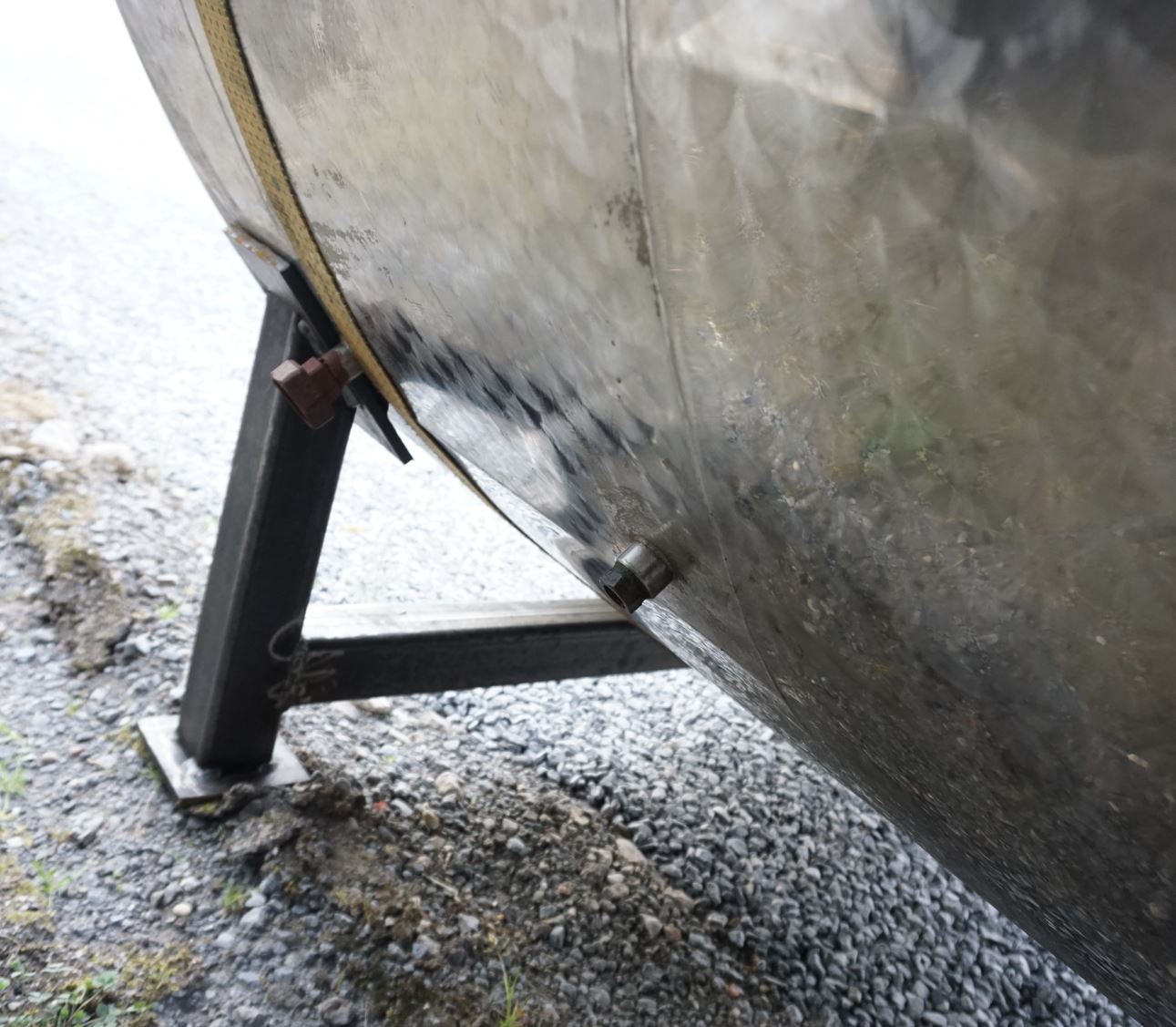

Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

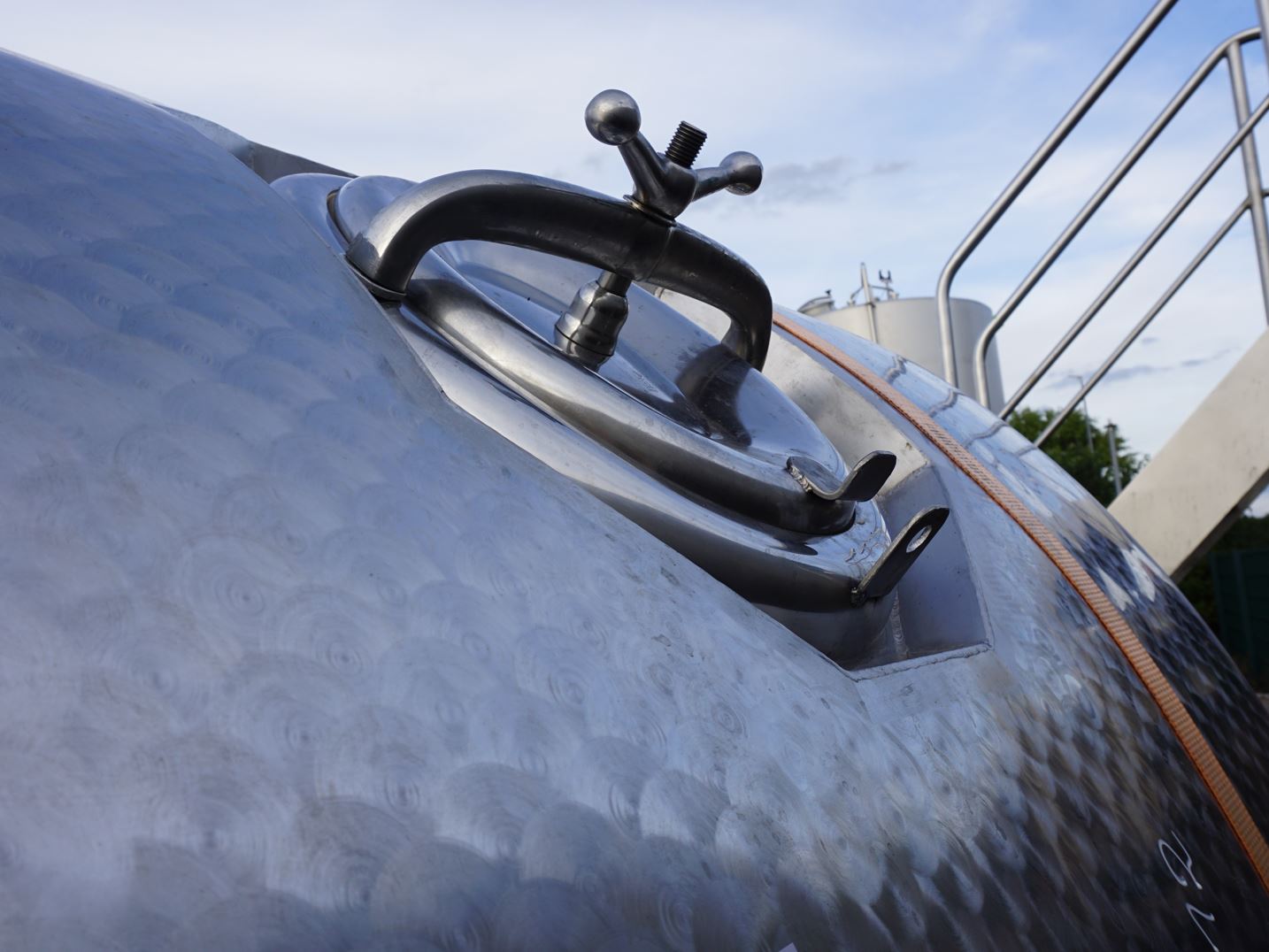

Manway position
In shell
Nozzles/connectors in head
2xDN50 2xDN40 (piece)
Outlet nozzle
50
Fixtures and fittings
Lifting lugs
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Mash tank, Fruit juice tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
