Product no. M-3078

Container 16.000 liters made of V2A, isolated, used, horizontal

EUR 8.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 16,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 16.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 16,000.00 litres.  Container 16.000 liters made of V2A, isolated, used was last used in the following area: Unknown. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 16.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.400 mm

  • Cyl. length

  • 3.970 mm

  • Outlet height

  • 400 mm

  • Total height

  • 3.100 mm

  • Total length

  • 4.700 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

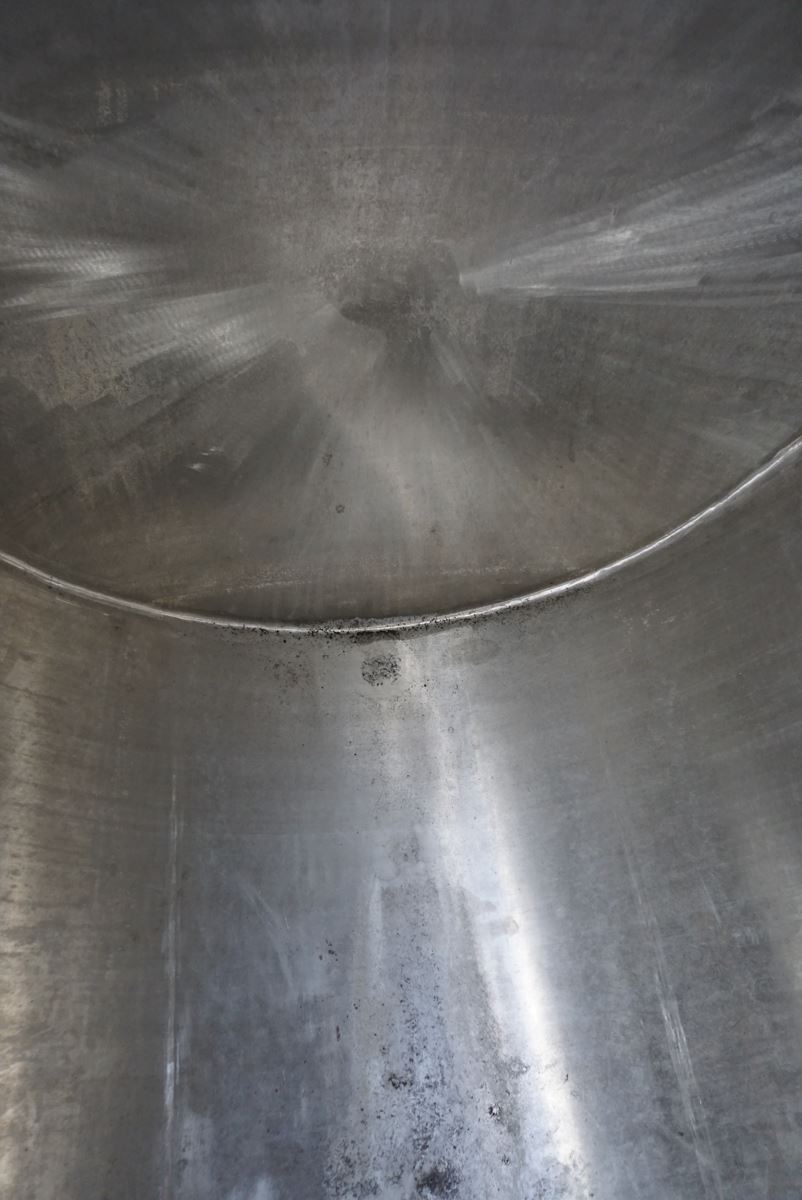

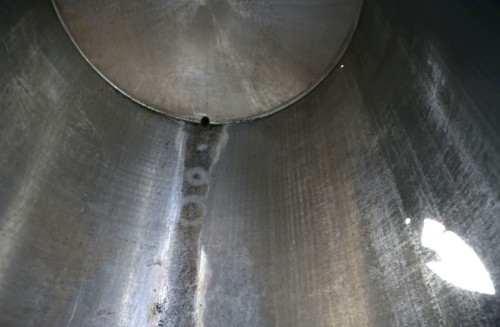

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

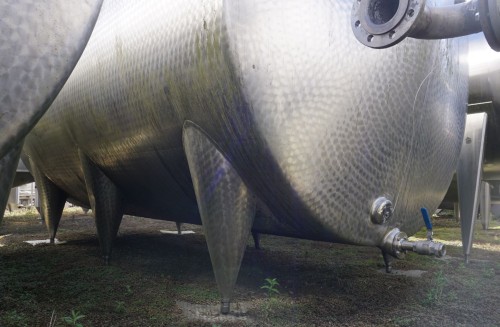

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

  • Note on supports

  • hoehenverstellbar

Fixtures and fittings

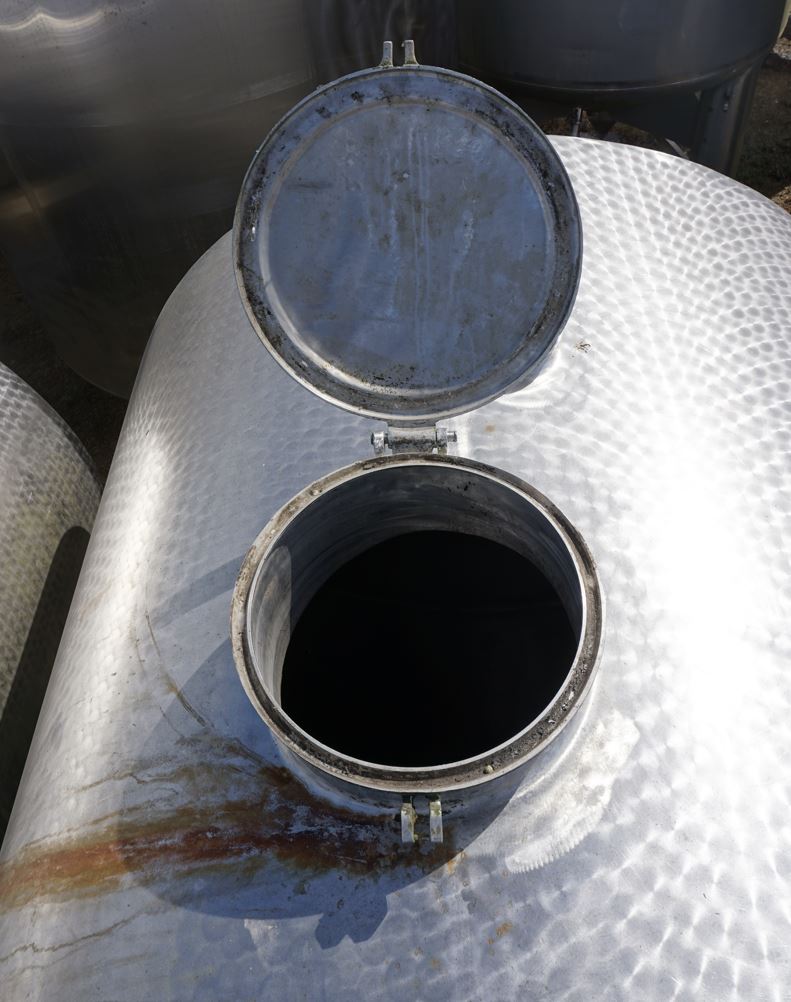

  • Manway position

  • In head

  • Outlet nozzle

  • 50

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Unknown

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Cold water tank,
