Product no. M-2599

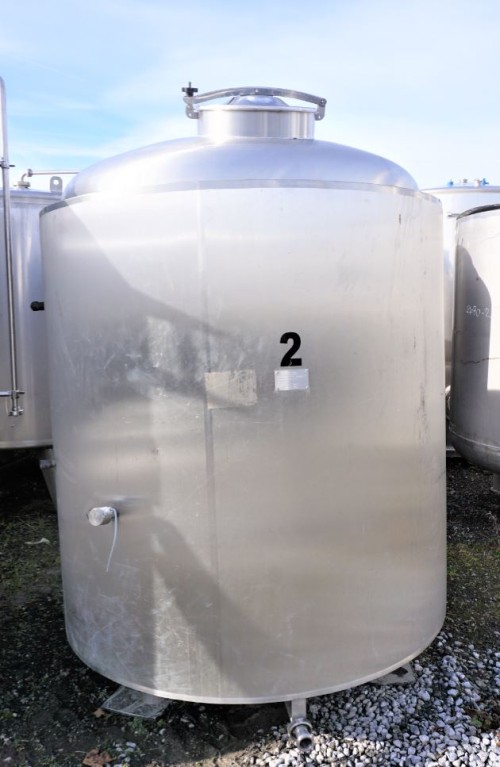

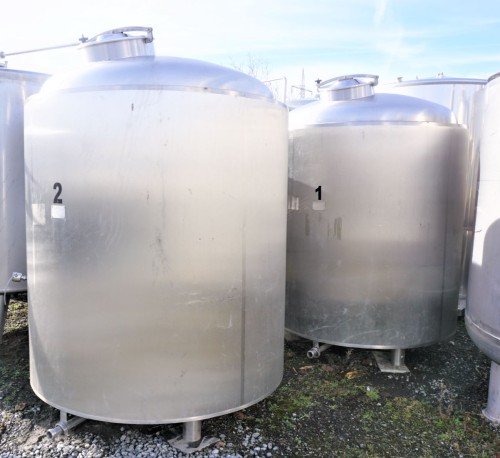

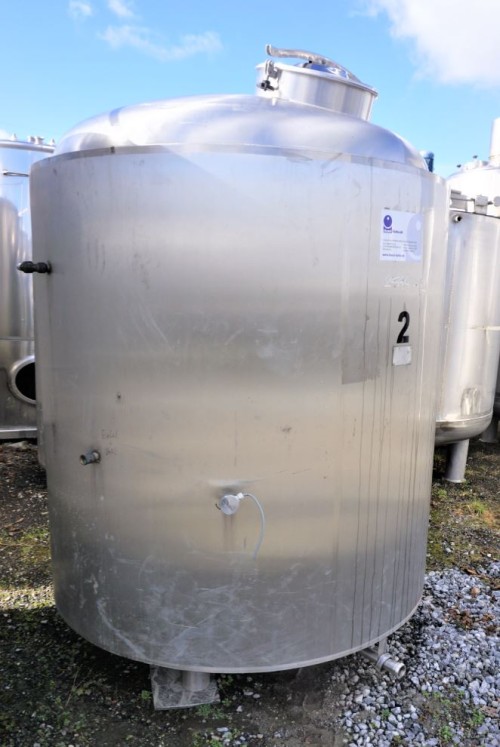

Container 2.400 liters made of V2A isolated, temperature-controllable, used, standing

EUR 7.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,400.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 2.400 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,400.00 litres. The diameter inside includes 1,400 mm.  Container 2.400 liters made of V2A isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Processes,

General

  • Volume approx.

  • 2.400,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1997

  • Manufacturer

  • HBH GmbH, H-Dudapest

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.400 mm

  • External diameter

  • 1.540 mm

  • Cyl. height

  • 1.600 mm

  • Foot height

  • 250 mm

  • Total height

  • 2.500 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

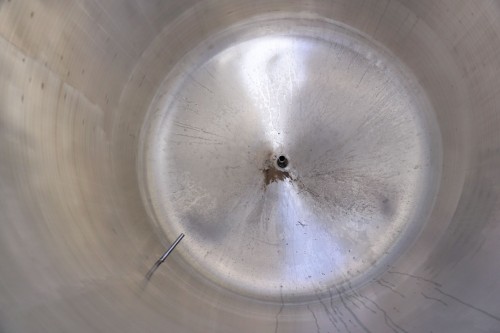

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Half-pipe coils

  • Temperature control system operating pressure/pipe chamber

  • 1,5 bar

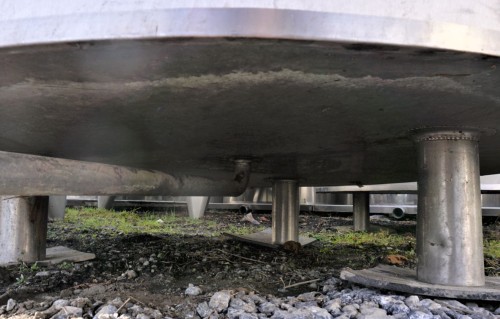

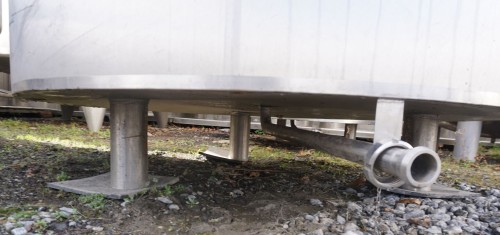

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

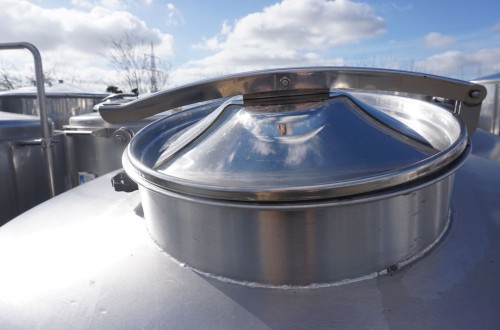

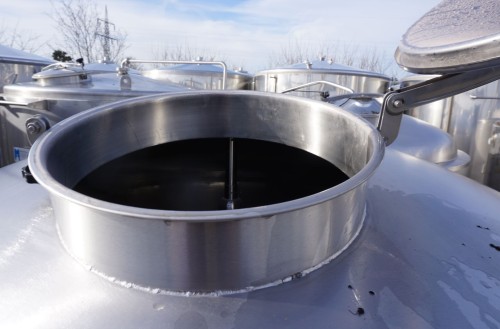

  • Manway position

  • In head

  • Outlet nozzle

  • 40

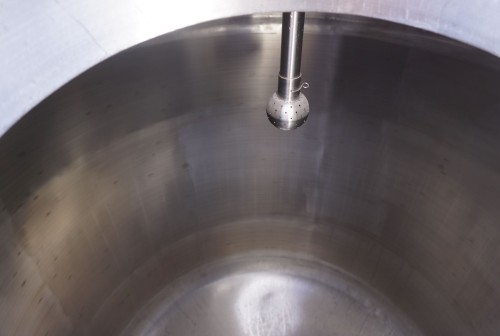

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

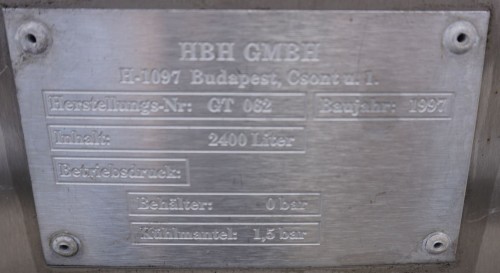

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
