Product no. M-2763

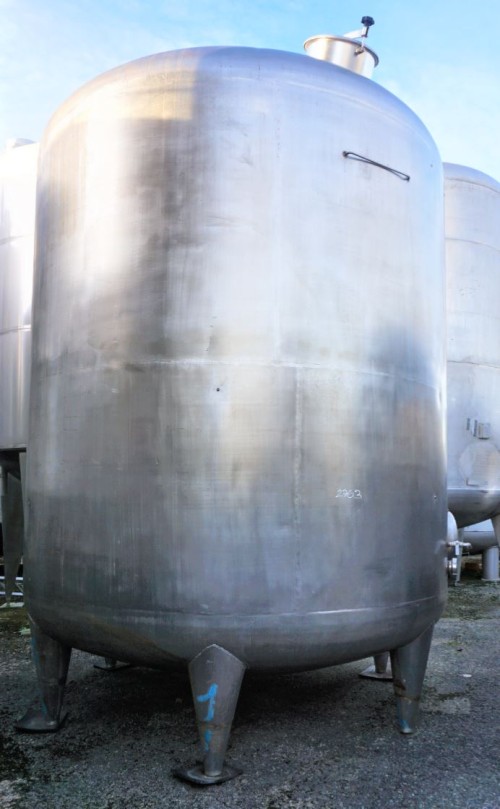

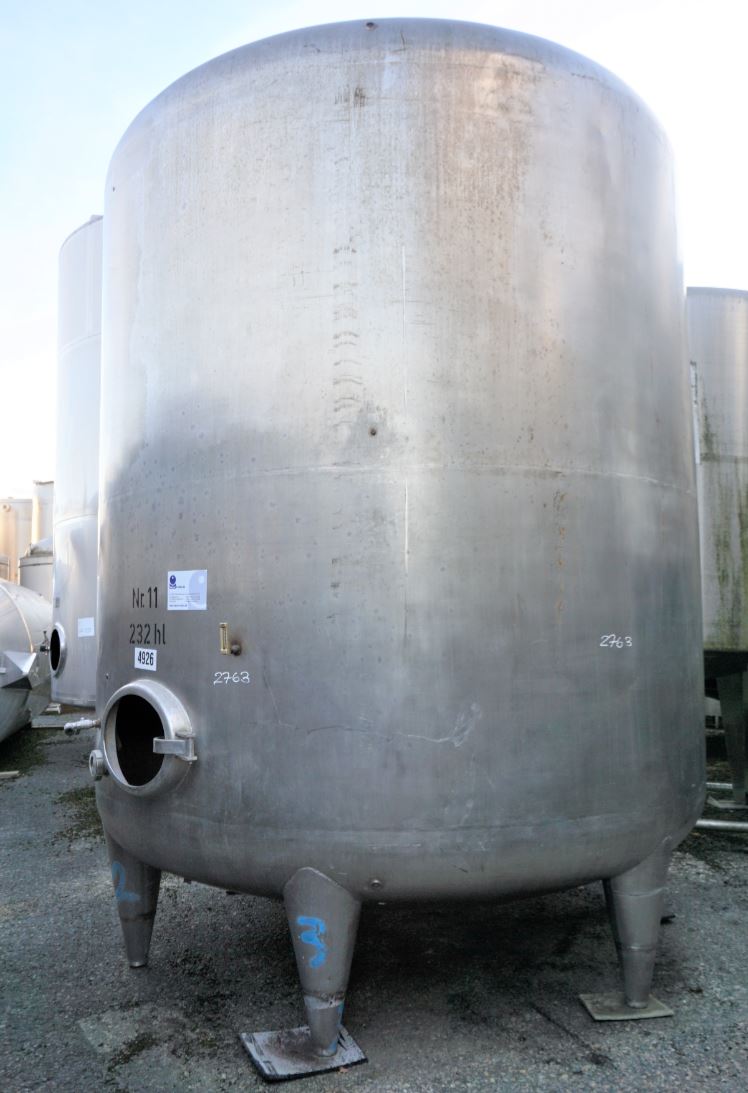

Container 20.000 liters made of V2A single-walled, used, standing
EUR 10.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 20,000.00 litres
Product description
Container 20.000 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 20,000.00 litres. Container 20.000 liters made of V2A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
- Volume approx.
- 20.000,00 litres
- Structure
- Standing
- Condition
- Used
Dimensions approx.
- External diameter
- 2.900 mm
- Cyl. height
- 2.800 mm
- Foot height
- 860 mm
- Total height
- 4.500 mm
Design
- Weight approx.
- 1.800,00 kg
- Weight per unit volume approx.
- 1.000,00 kg/m³
- Insulation
- no

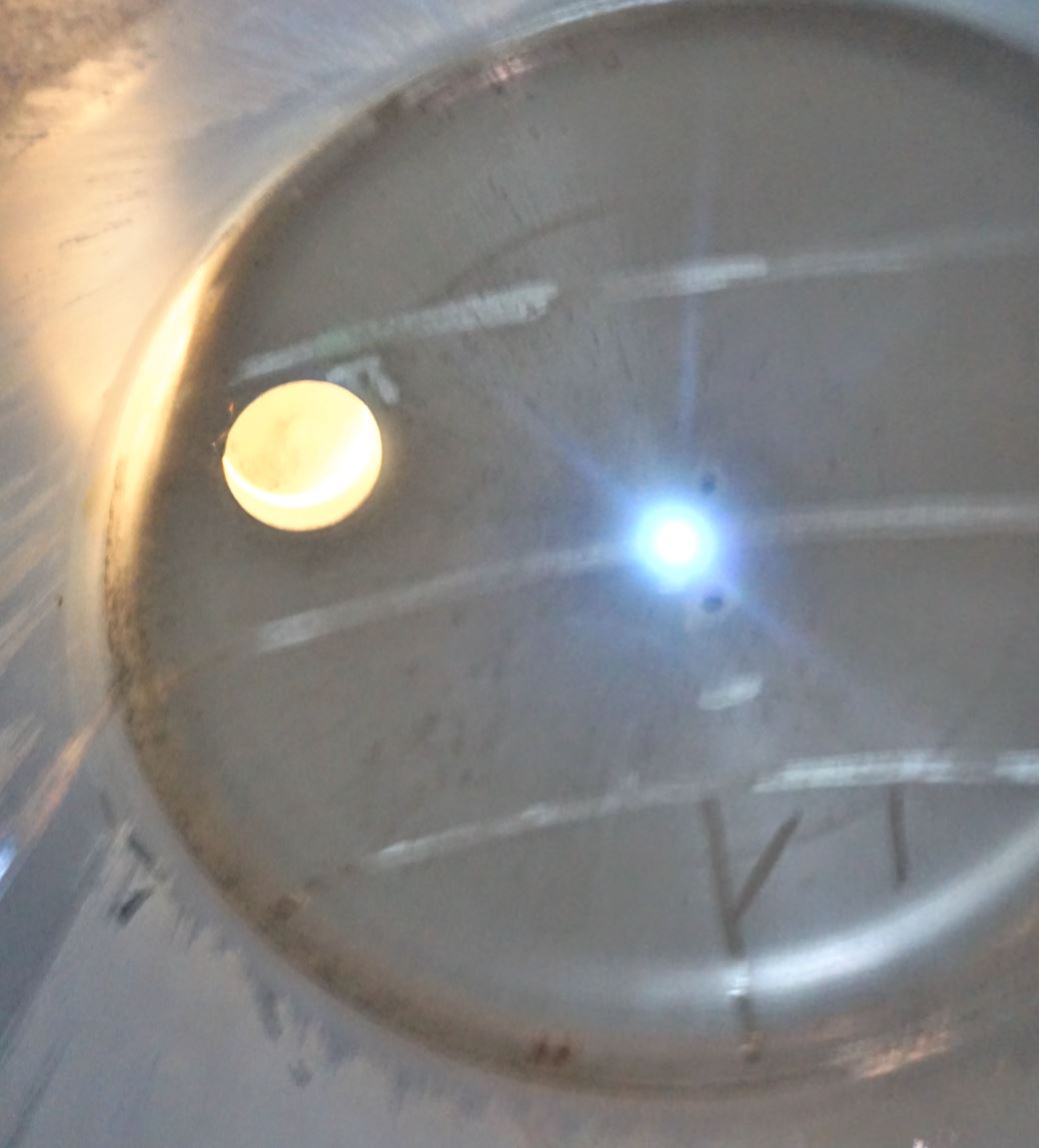

- Interior surface
- Smoothed
- Exterior surface
- Smoothed
- Floor type
- Torispherical bottom
- Head design
- Torispherical bottom
Supports

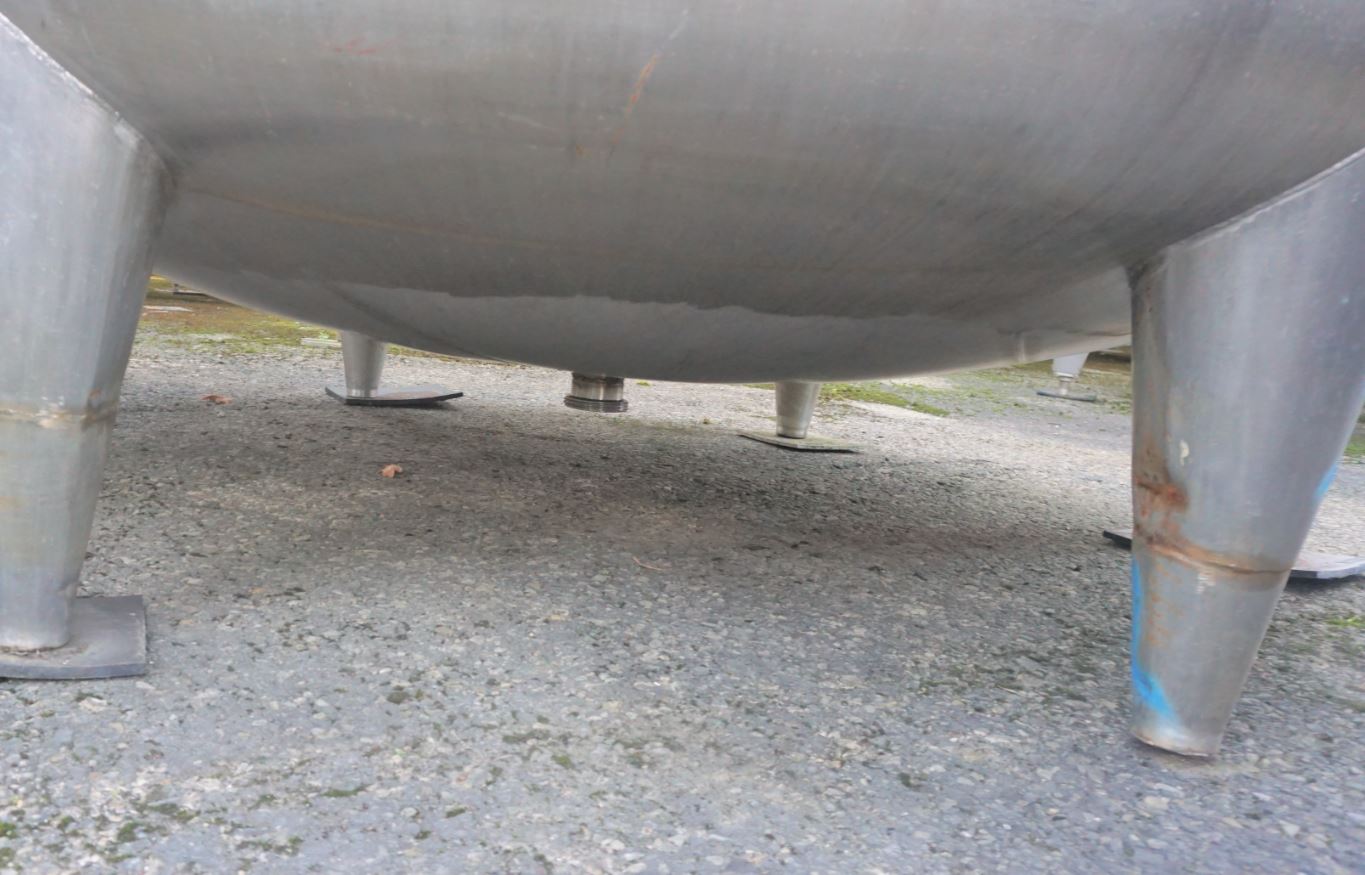

- Supports
- Stainless steel feet
- Number of feet
- 6 (piece)
Fixtures and fittings

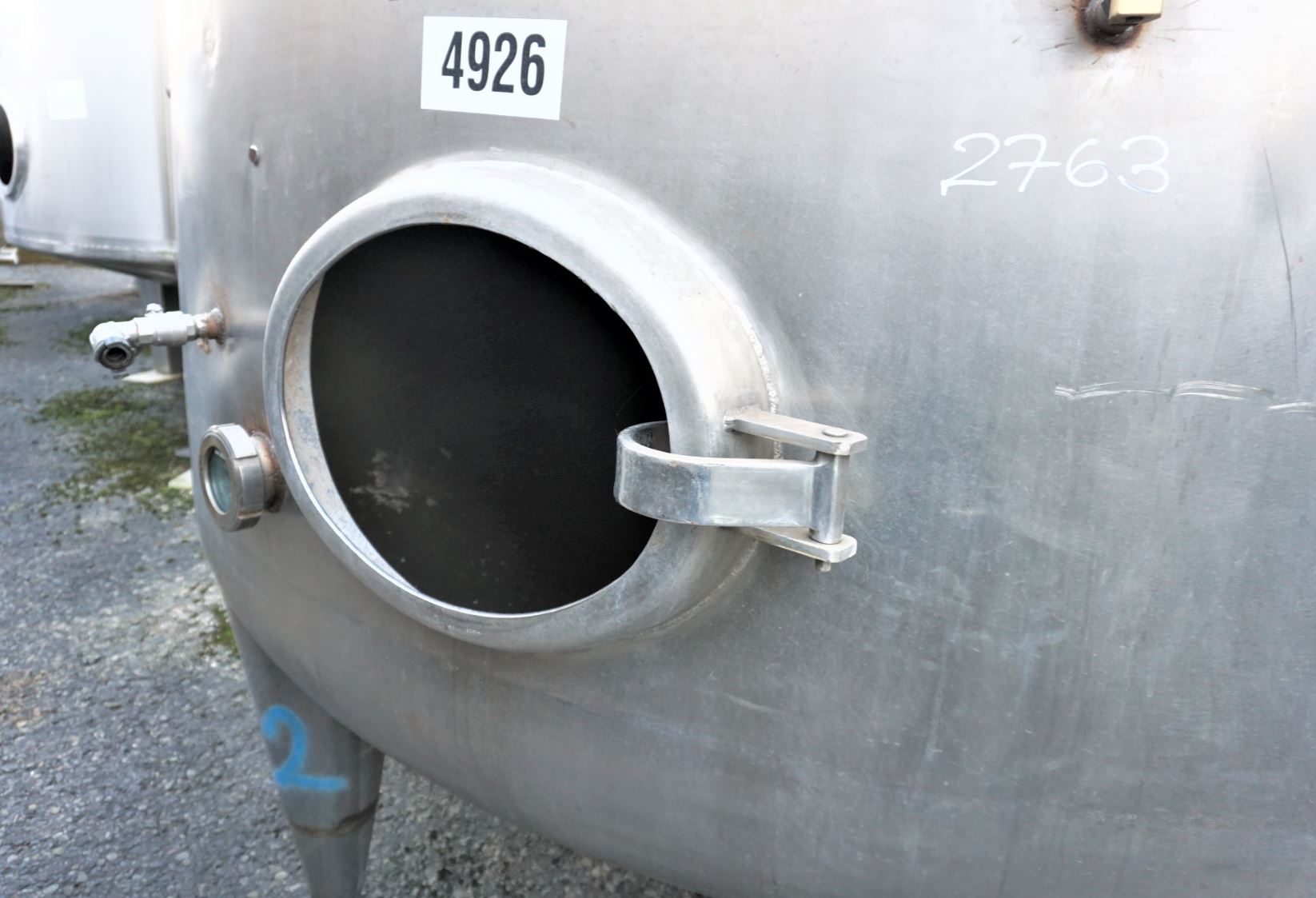

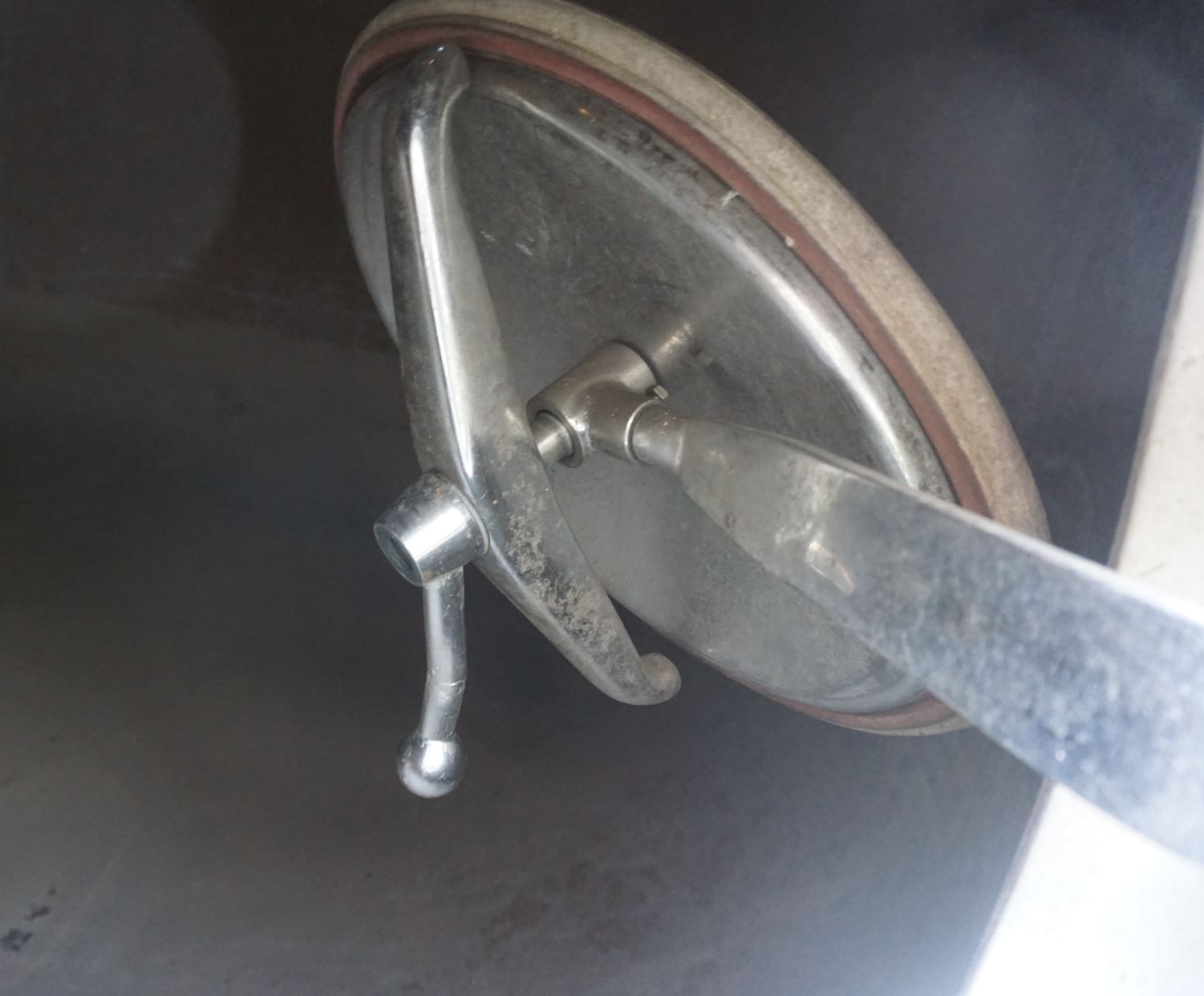

- Manway position
- In shell and head
- Nozzles/connectors in head
- 1xDN50 (piece)
- Outlet nozzle
- 100

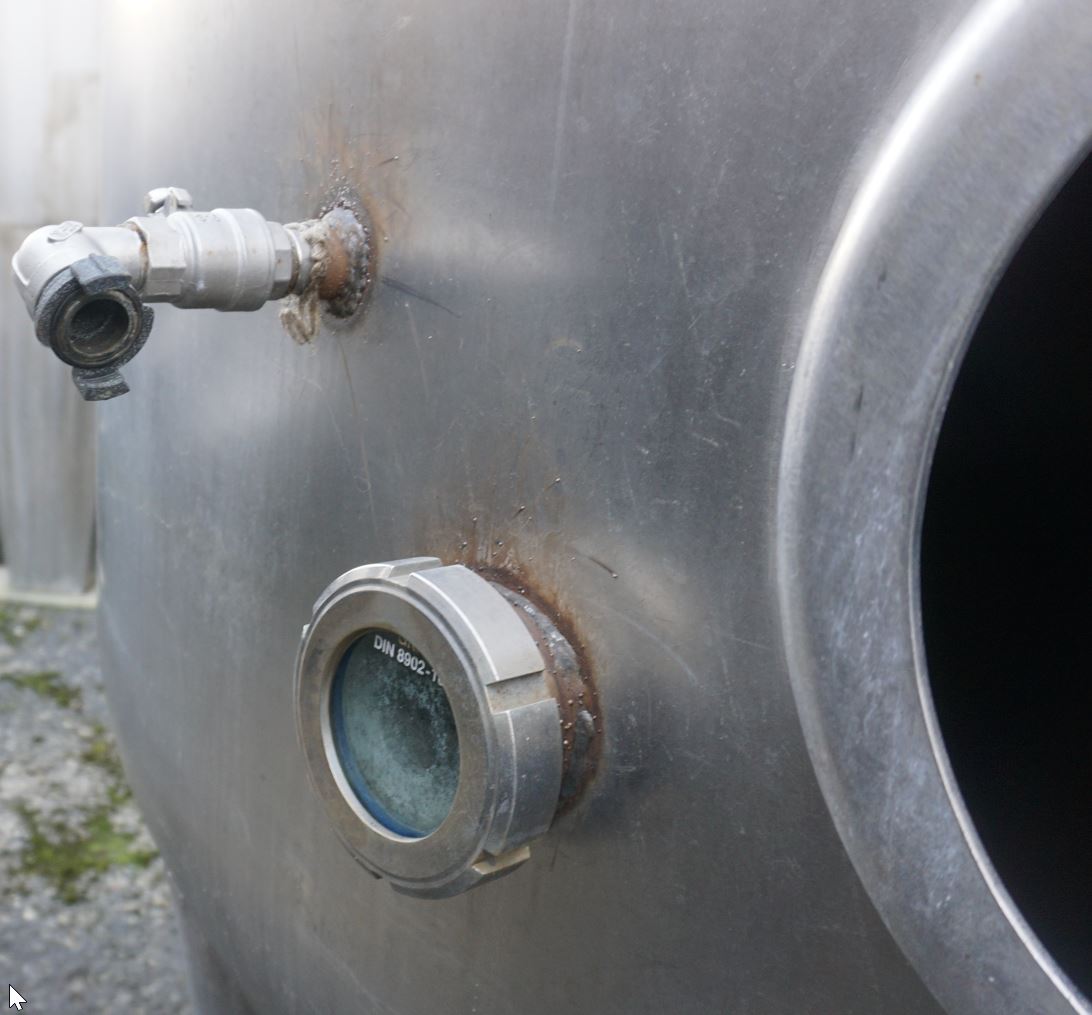

- Additional fixtures and fittings
- Drain port
Technical documentation
- Technical documentation
- None
Other
- Note
- leichte Anhaftungen im Behaelter
- Last usage
- Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Fruit juice tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
