Product no. M-3088

Container 25.000 liters made of V2A. isolated, used, standing

EUR 19.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 25,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

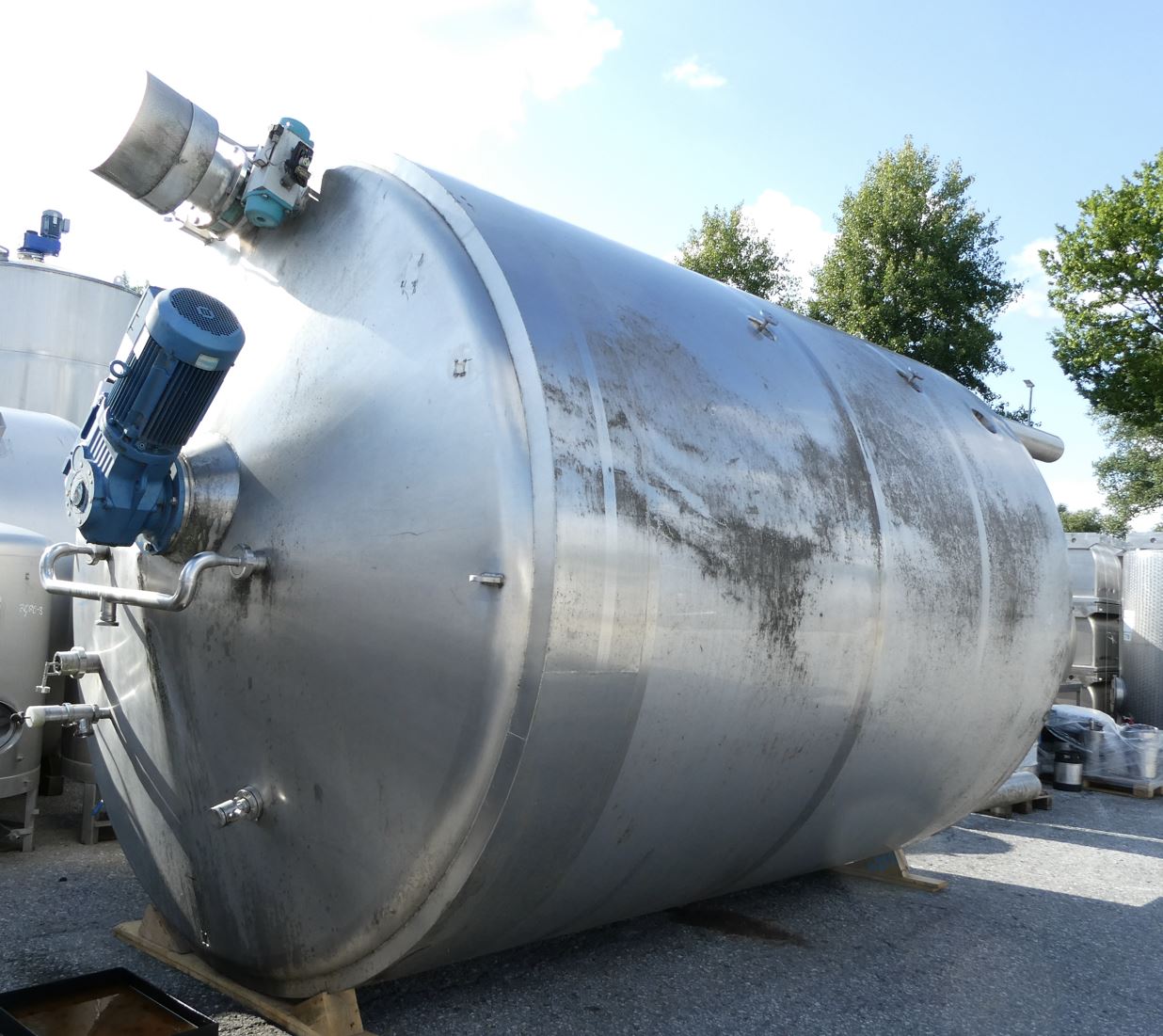

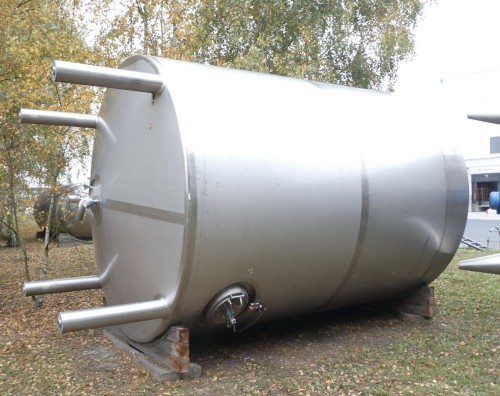

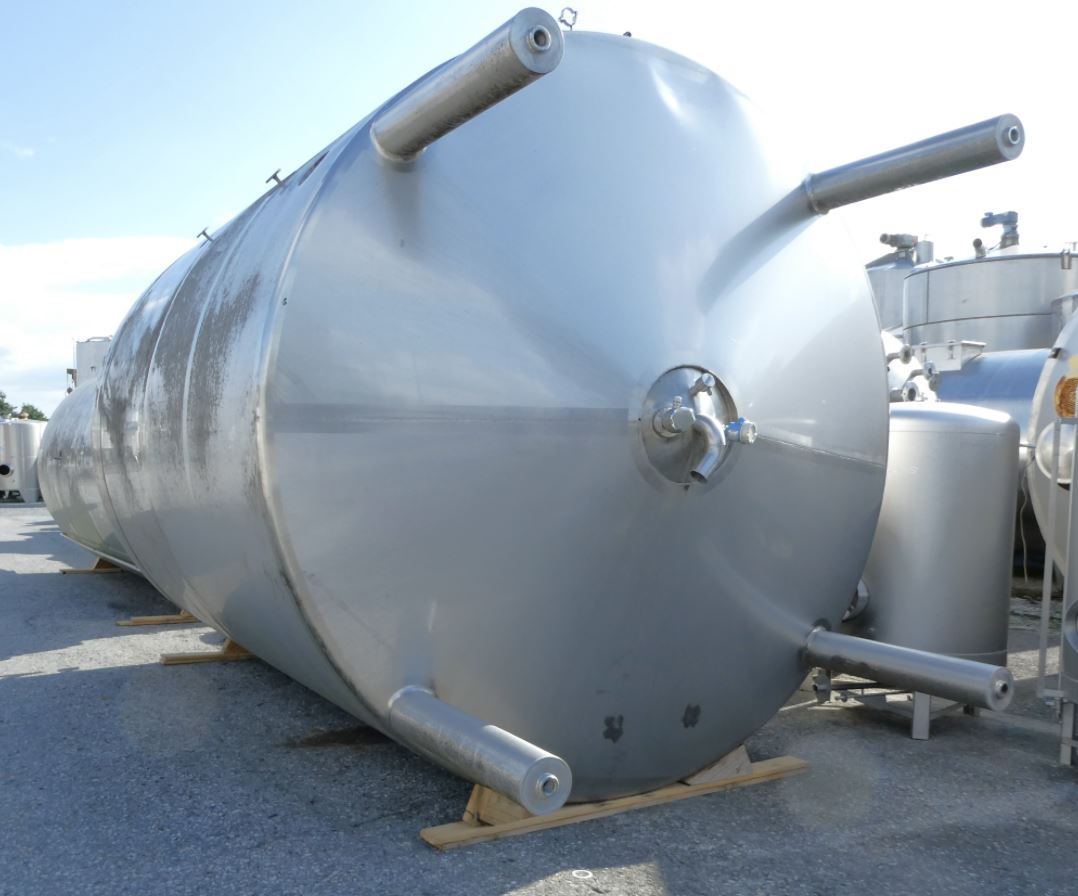

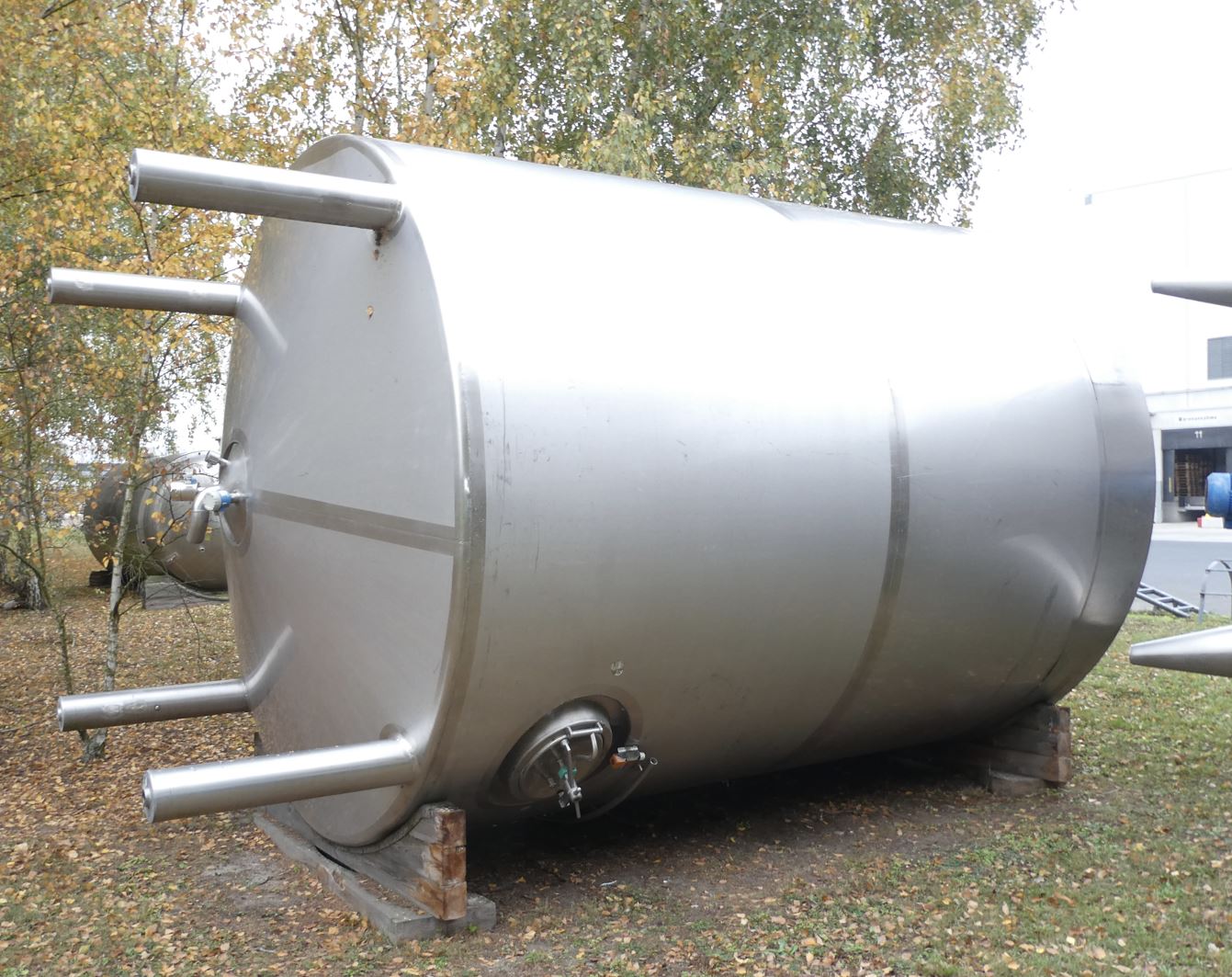

Container 25.000 liters made of V2A. isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. The diameter inside includes 2,925 mm.  Container 25.000 liters made of V2A. isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 25.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2000

  • Manufacturer

  • TVG

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.925 mm

  • External diameter

  • 3.035 mm

  • Cyl. height

  • 3.800 mm

  • Foot height

  • 1.000 mm

  • Total height

  • 5.500 mm

  • Wall thickness of product chamber head

  • 5,00 mm

  • Wall thickness of product chamber shell

  • 3,00 mm

  • Wall thickness of product chamber floor

  • 5,00 mm

Design

  • Weight approx.

  • 3.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating over-pressure

  • 0,99 bar

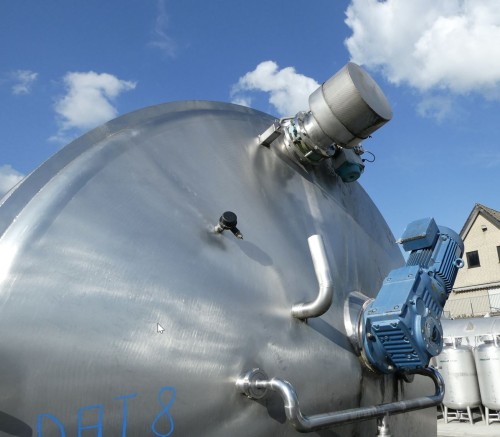

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Note on agitator

  • Welle mit Bodenlager

  • Agitator position

  • Head off-centre

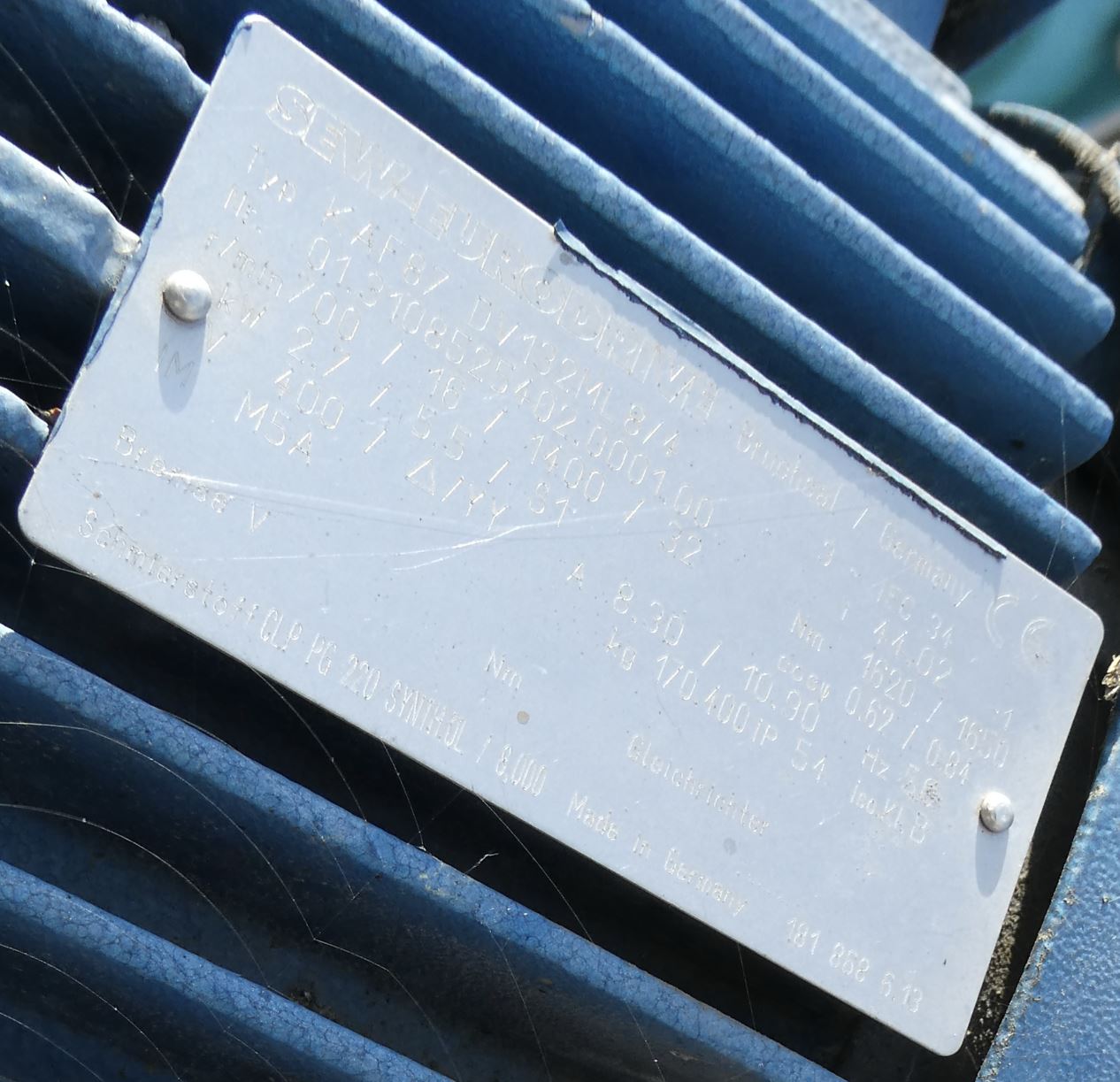

  • Agitator 1 - Output

  • 2,7 / 5,5 kW

  • Agitator 1 - RPM

  • 16 / 32 UpM

  • Agitator 1 - Voltage

  • 400 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

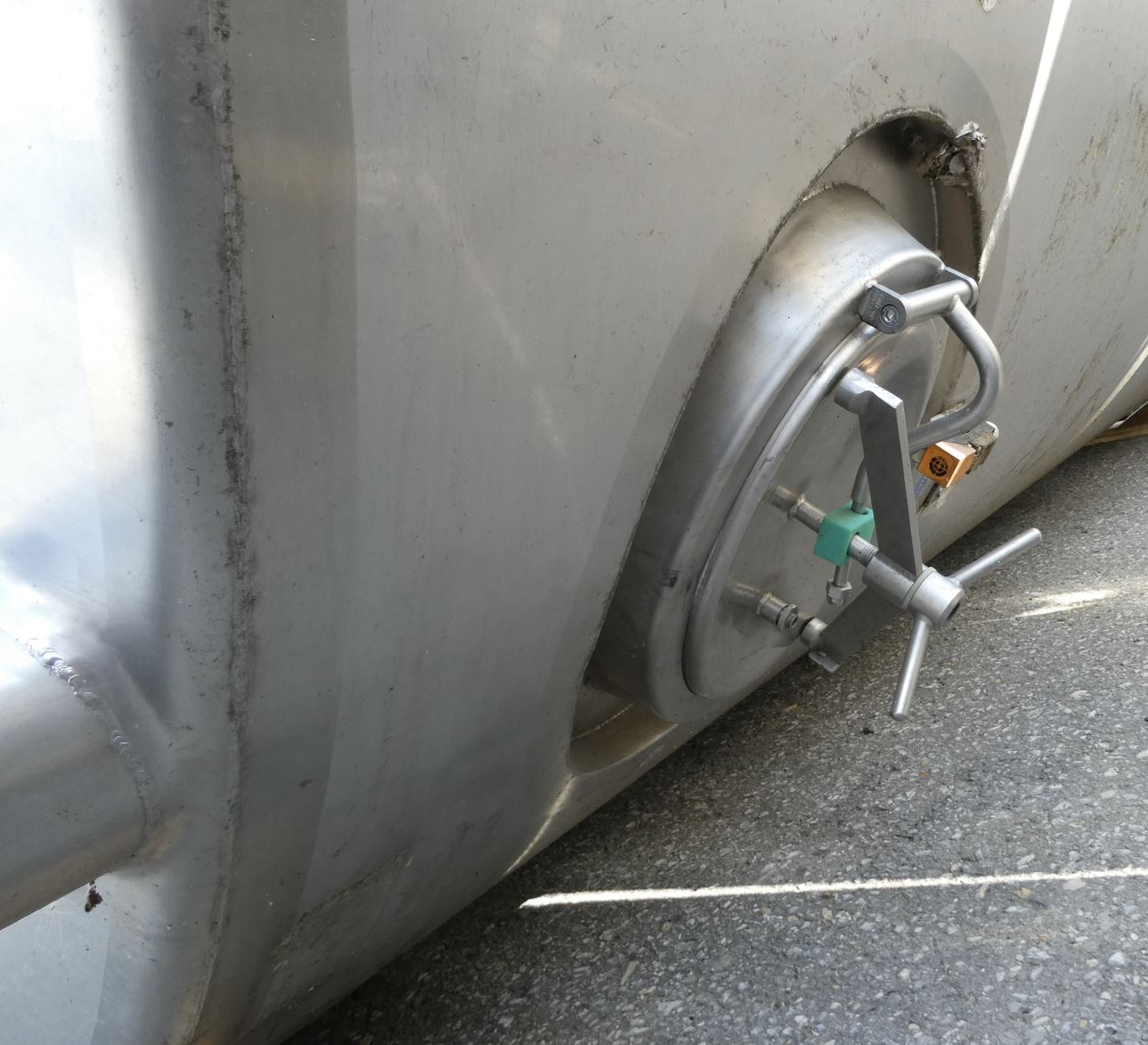

  • Manway 1 size

  • 350 x 450 DN mm

  • Manway position

  • In shell

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in shell and head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Downloads

filefile size
  3088-8.pdf0.36 MB
