Product no. M-3059

Container 250.000 liters made of V2A isolated, used - Preis auf Anfrage -,

EUR 0,00

add. 19 % VAT excl. shipping costs


Volume approx. 250,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

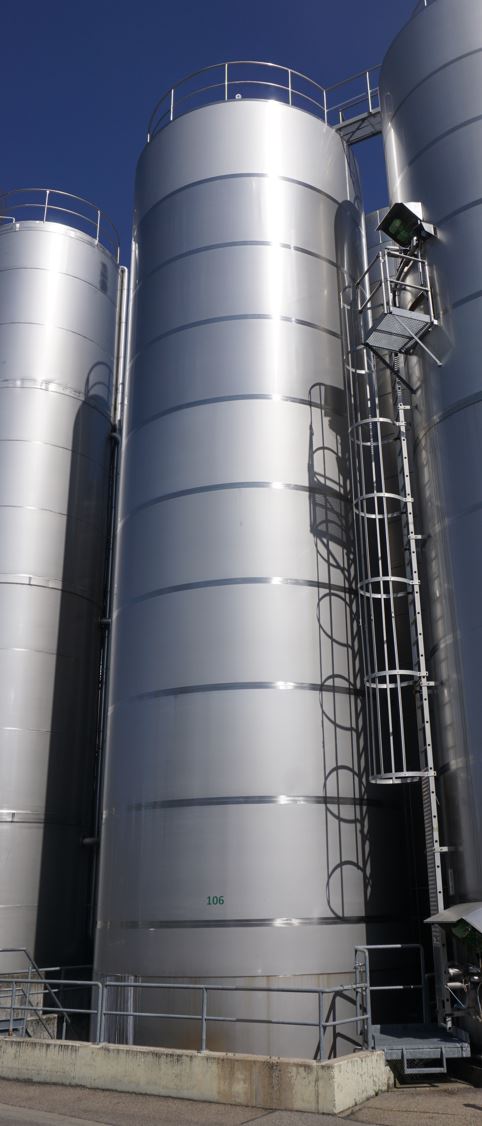

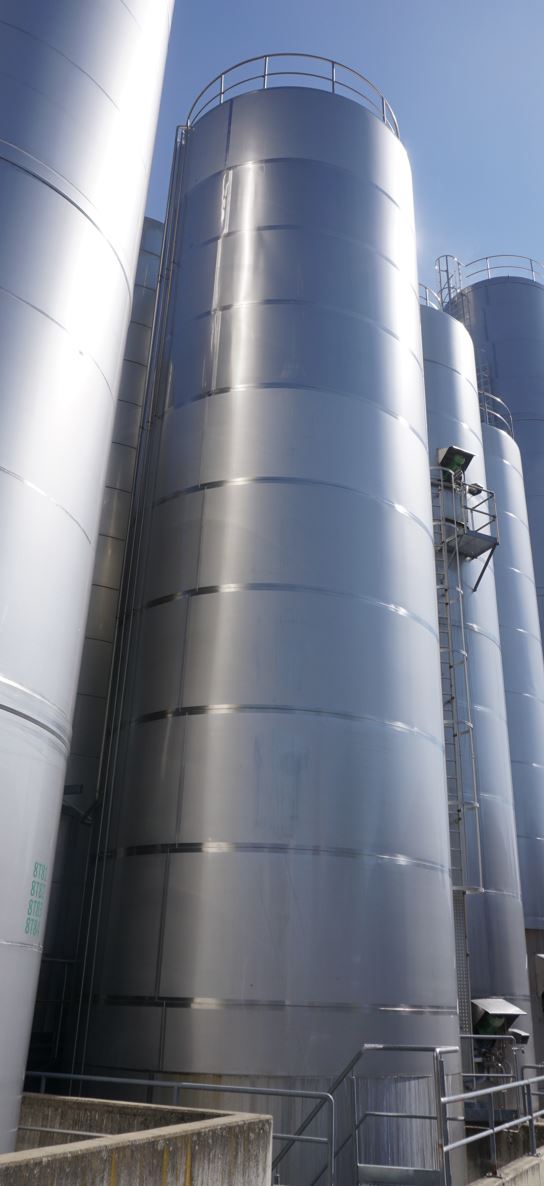

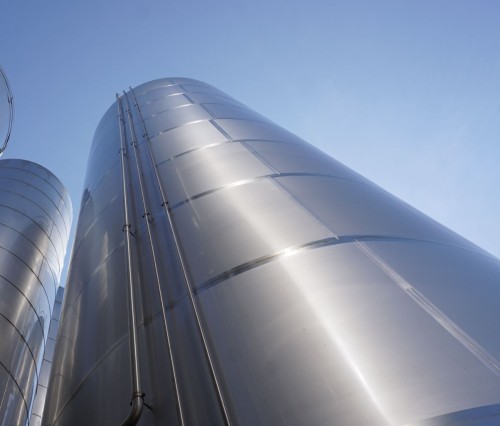

Container 250.000 liters made of V2A isolated, used - Preis auf Anfrage - consists of the material 1.4301(AISI304) V2A. The volume is approx. 250,000.00 litres. The diameter inside includes 4,500 mm.  Container 250.000 liters made of V2A isolated, used - Preis auf Anfrage - was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 250.000,00 litres

  • Year of manufacture

  • 1998

  • Manufacturer

  • Thrun

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 4.500 mm

  • External diameter

  • 4.620 mm

  • Cyl. height

  • 17.000 mm

  • Outlet height

  • 500 mm

  • Total height

  • 18.250 mm

  • Wall thickness of product chamber head

  • 4,00 mm

  • Wall thickness of product chamber shell

  • 4,00 mm

  • Wall thickness of product chamber floor

  • 5,00 mm

Design

  • Weight approx.

  • 49.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Dished with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

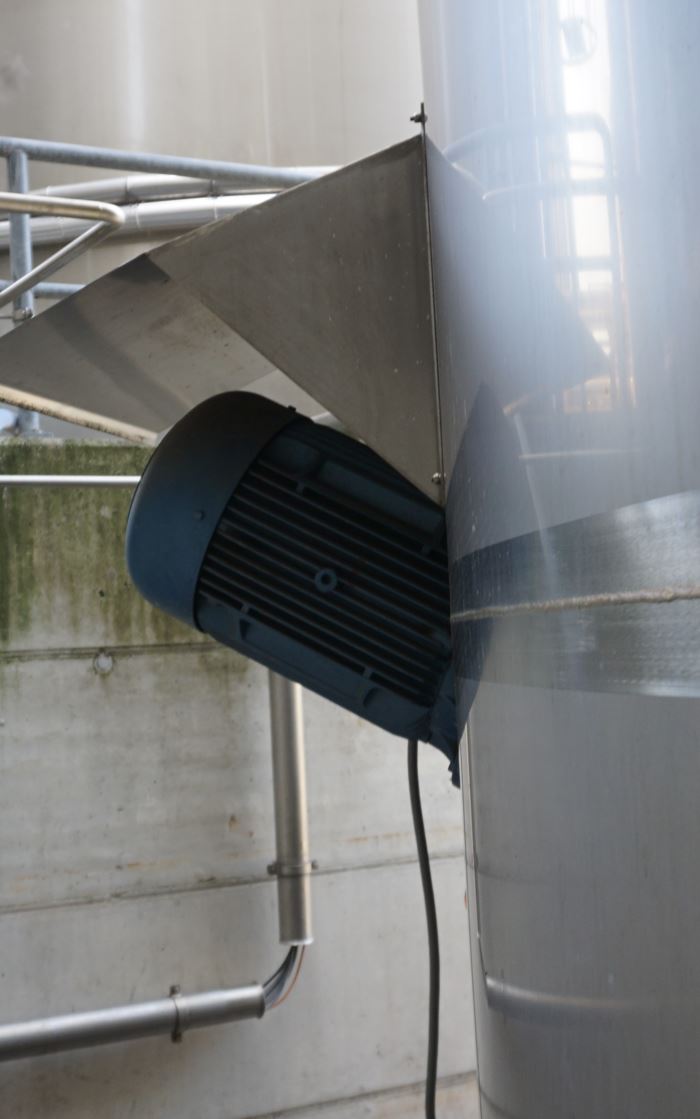

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

  • Agitator manufacturer

  • PRG

Supports

  • Supports

  • Stainless steel support skirt

  • Note on supports

  • Standzarge mit Betonfüllung

Fixtures and fittings

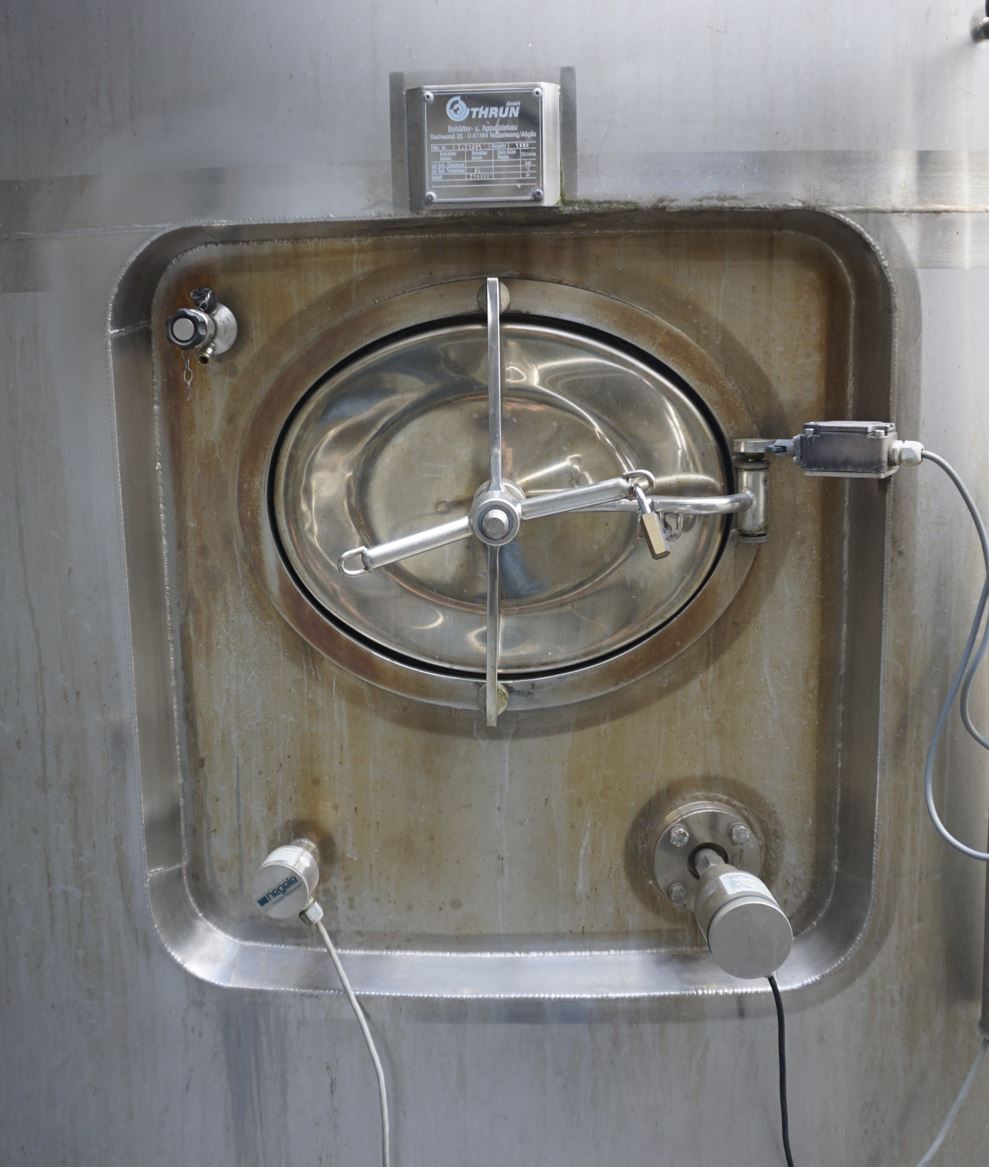

  • Manway 1 size

  • 340x440 DN mm

  • Manway position

  • In shell

  • Outlet nozzle

  • 100

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

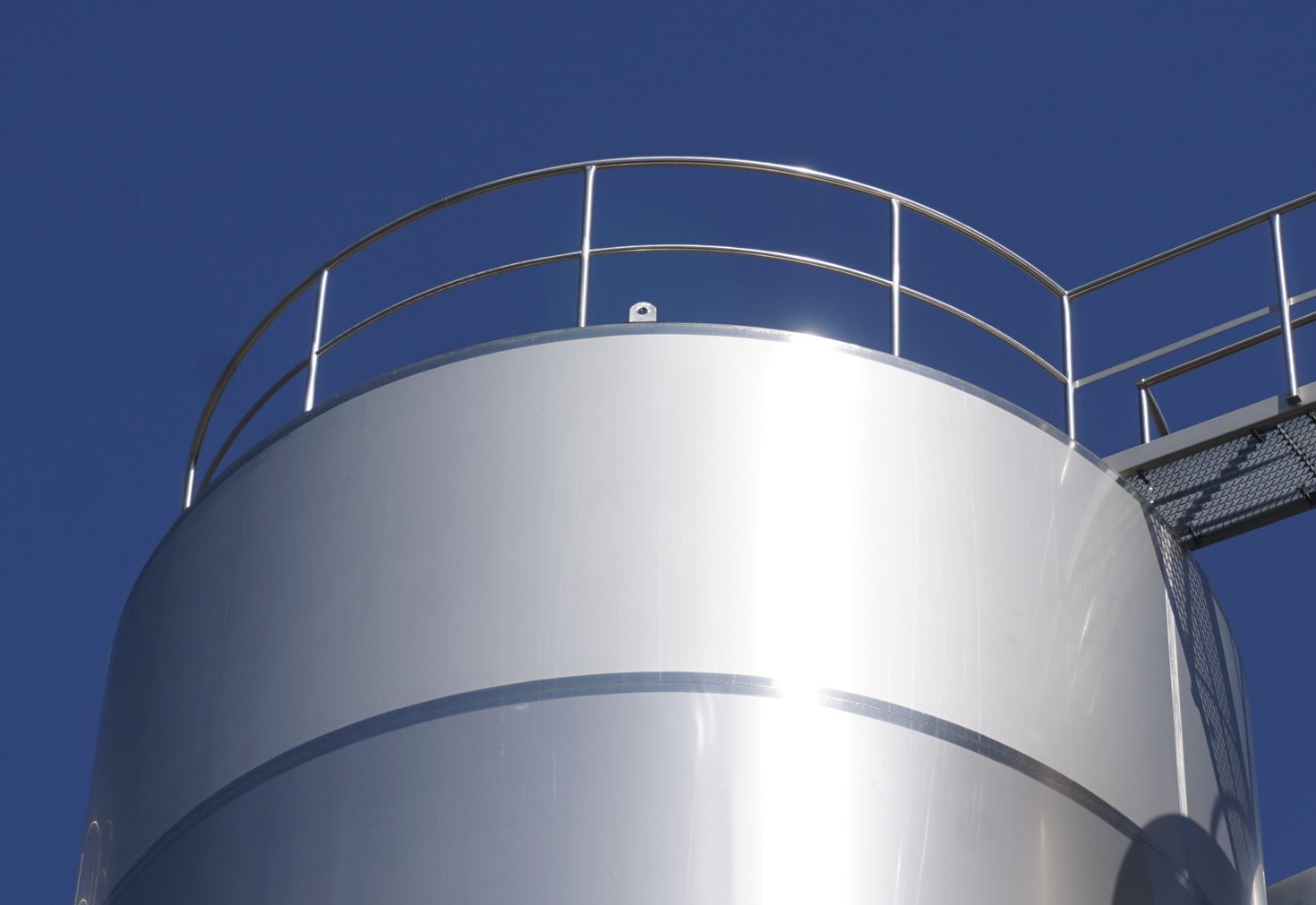

  • Additional fixtures and fittings

  • Air vent

  • Handrails

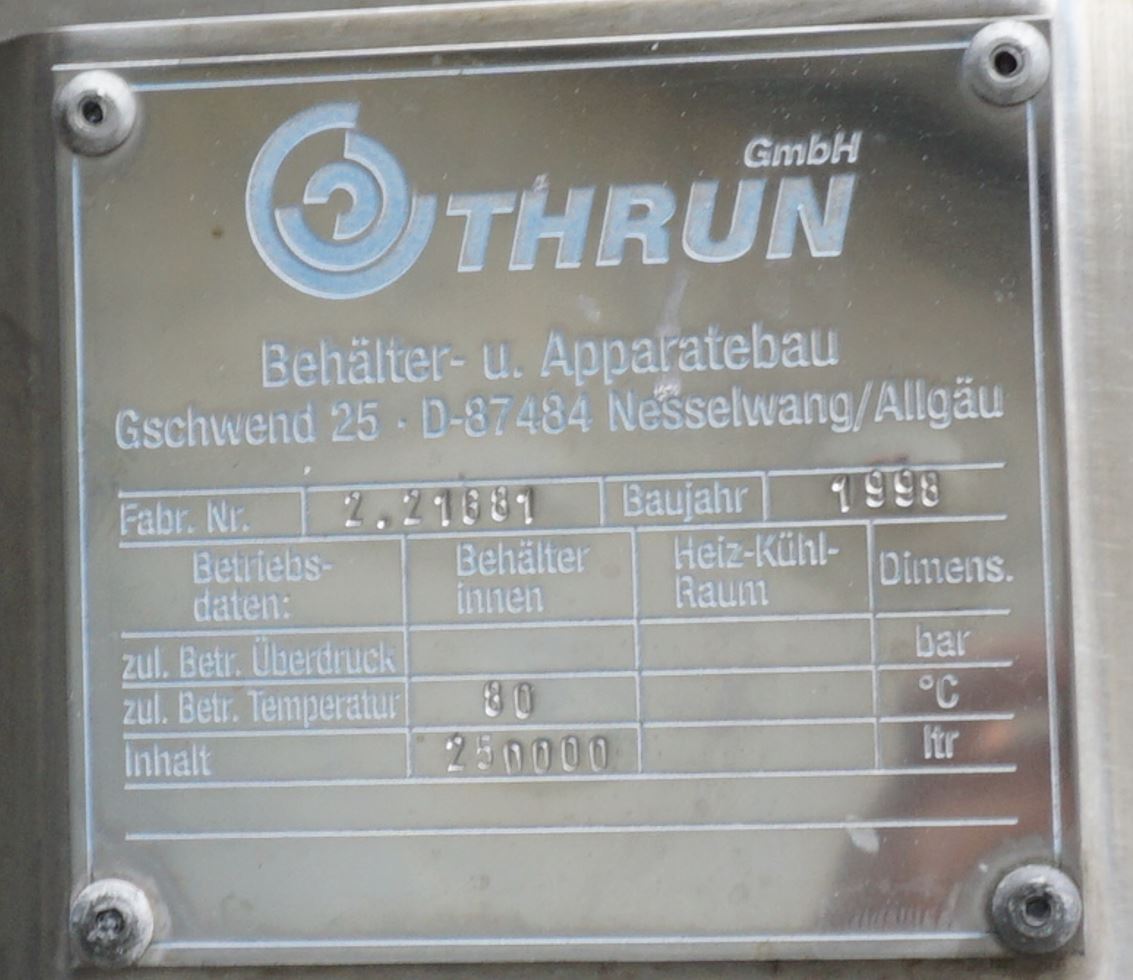

  • Nameplate

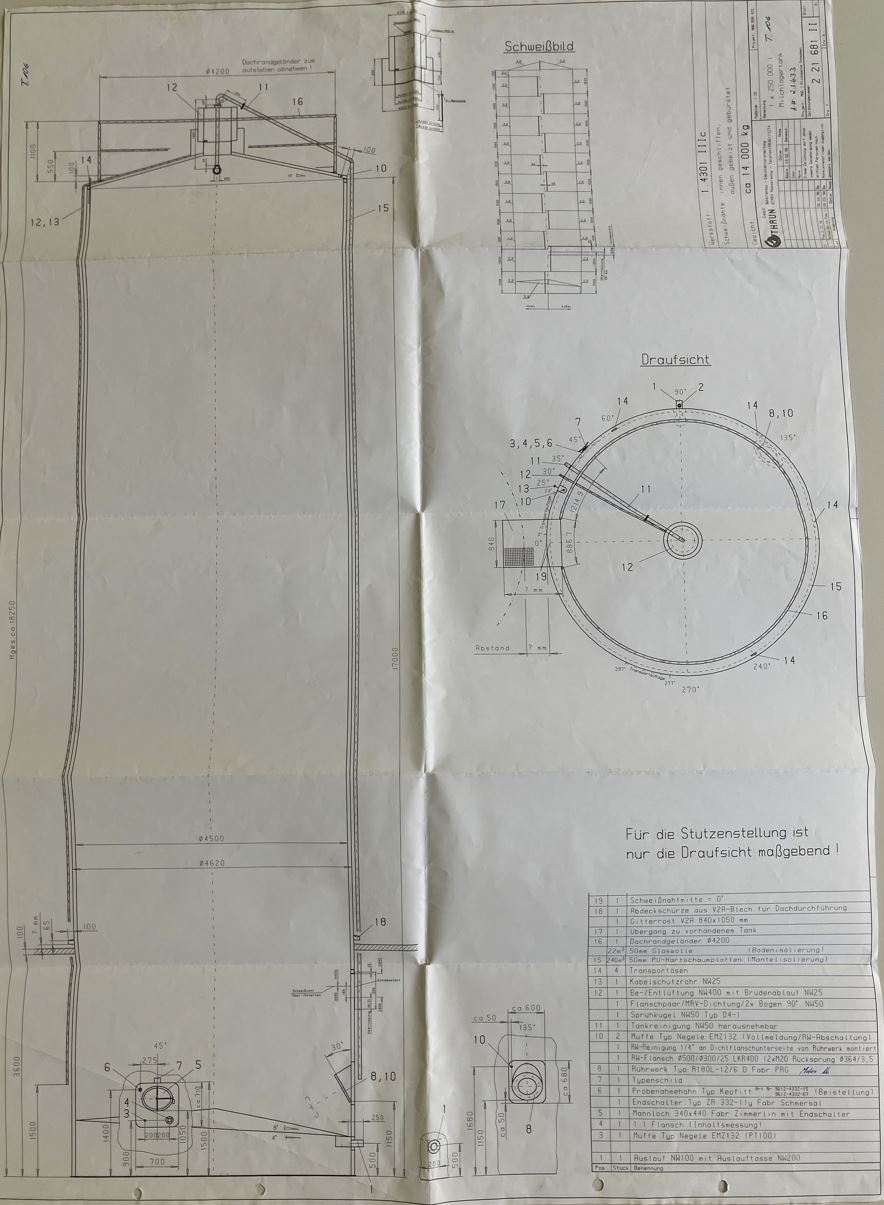

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Downloads

filefile size

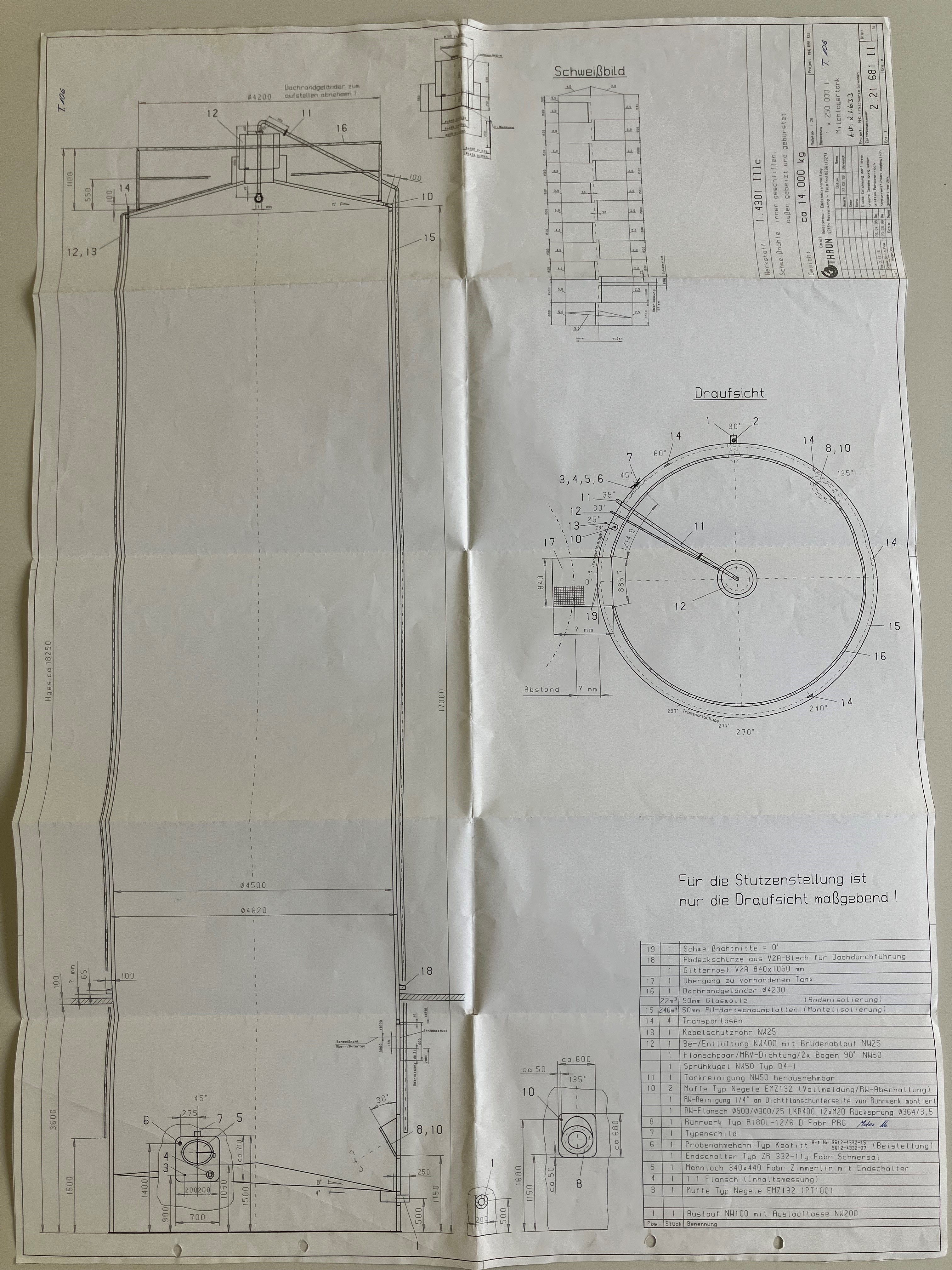

  3059-13.jpg2.50 MB
