Product no. M-2739

Container 3.965 liters made of V2A isolated, temperature-controllable, used, standing

EUR 7.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 3,965.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

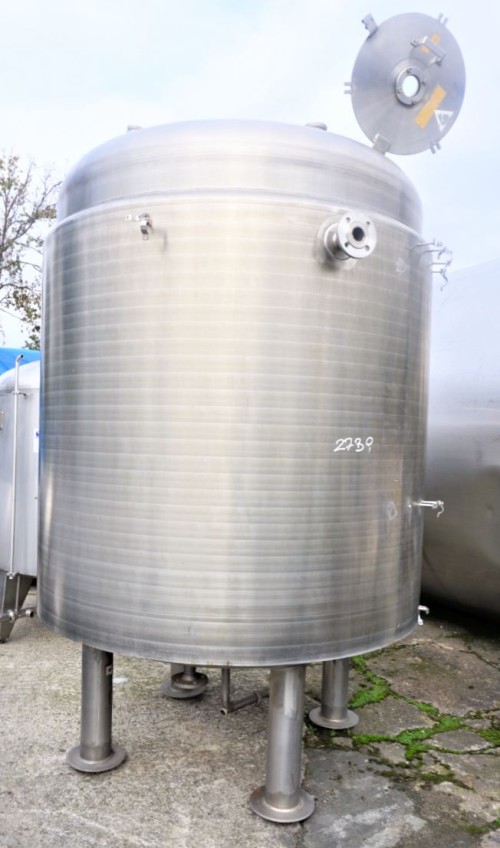

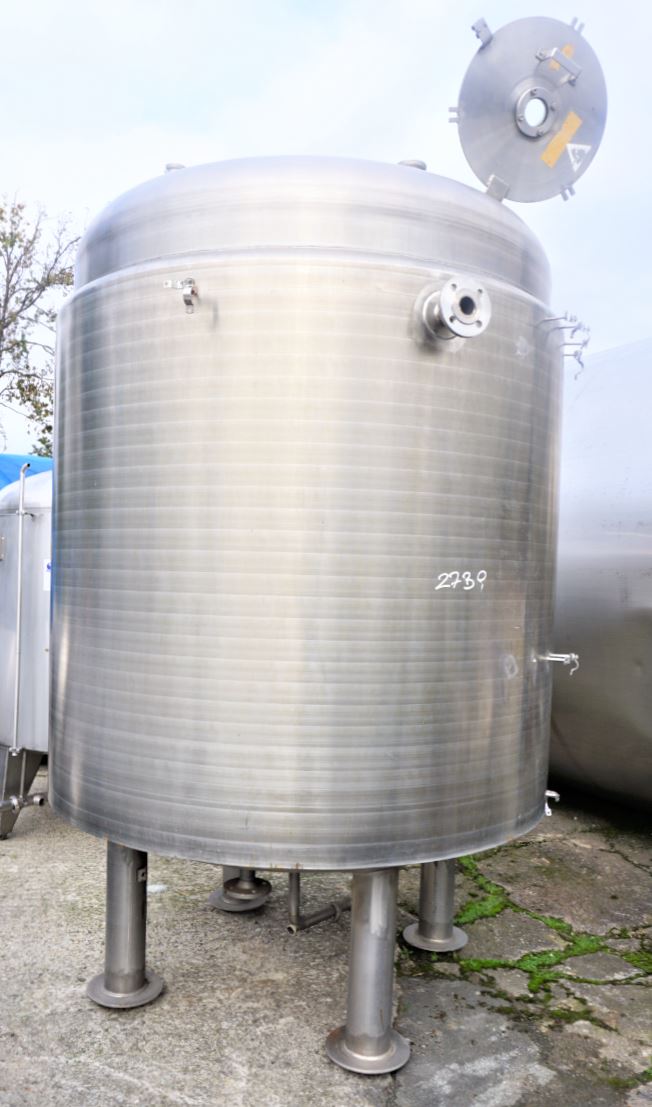

Container 3.965 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4541(AISI321). The volume is approx. 3,965.00 litres. The diameter inside includes 1,600 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Processes,

General

  • Volume approx.

  • 3.965,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Wilhelm Ecken

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.720 mm

  • Cyl. height

  • 1.700 mm

  • Foot height

  • 700 mm

  • Total height

  • 3.330 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,10 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • 150 °C

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 150 °C

Agitator

  • Agitator quantity

  • 1 (piece)

  • Note on agitator

  • ohne Rührwerksantrieb

  • Agitator position

  • Head central

Supports

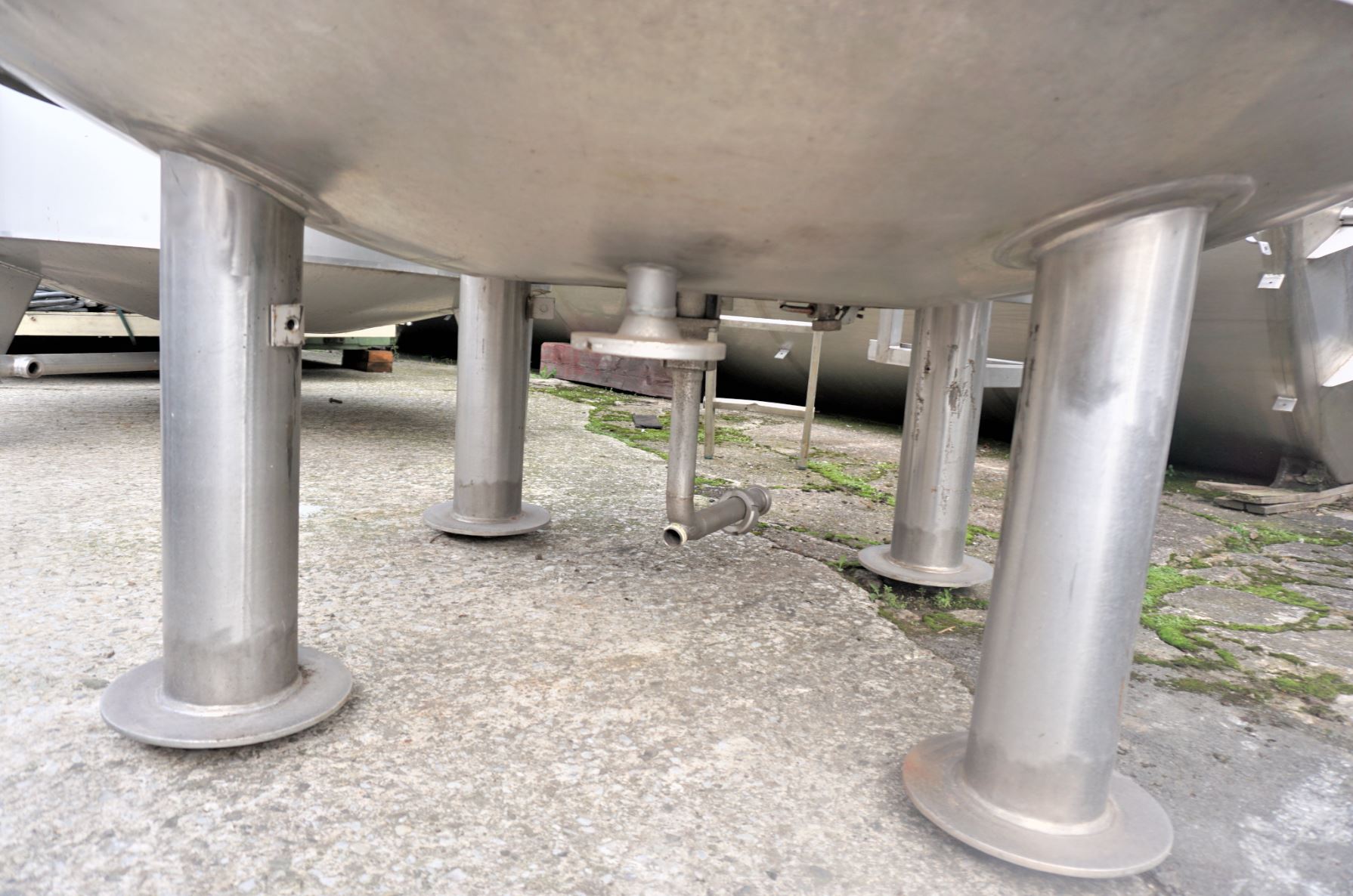

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

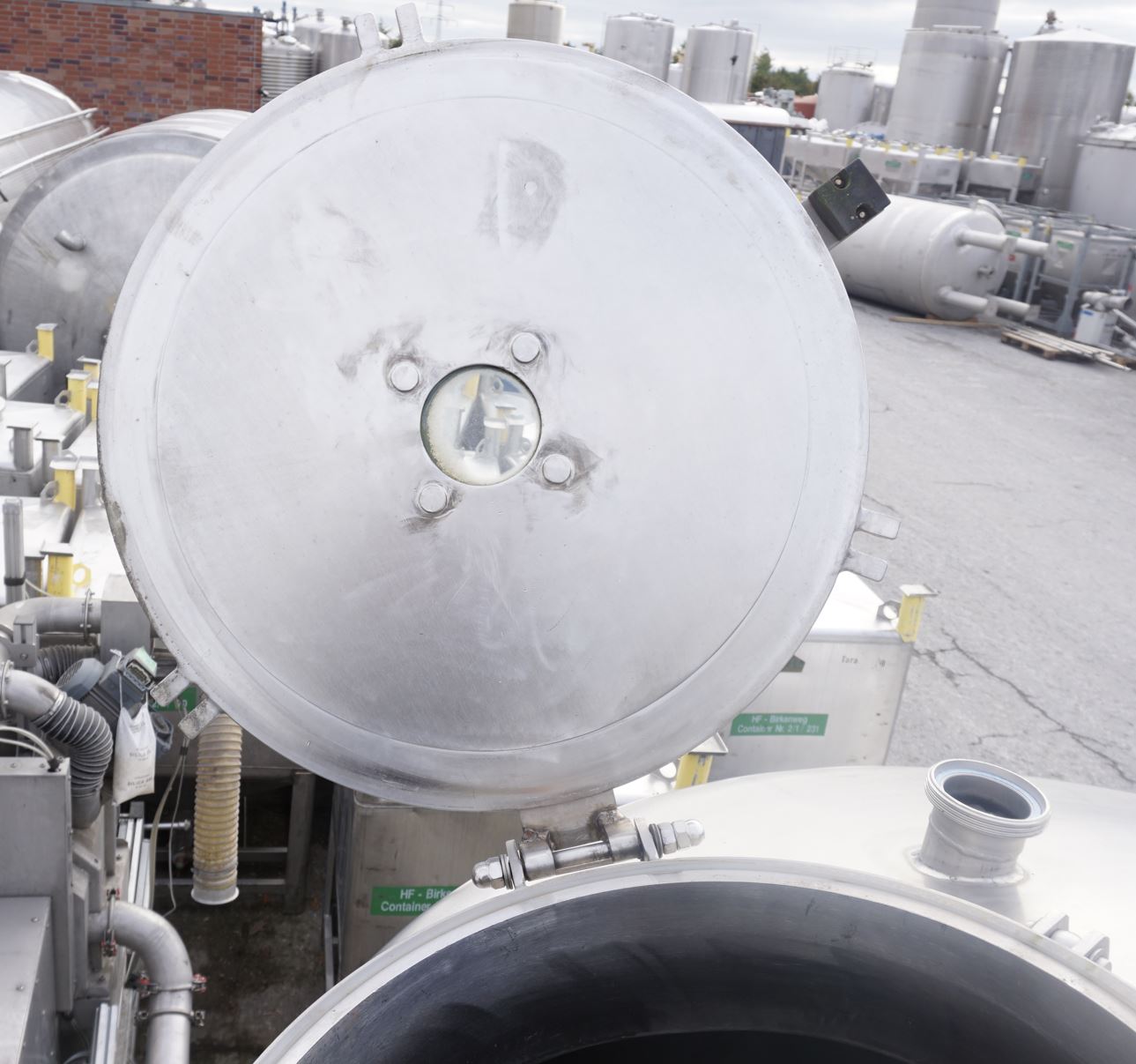

  • Manway 1 size

  • 490 DN mm

  • Manway position

  • In head

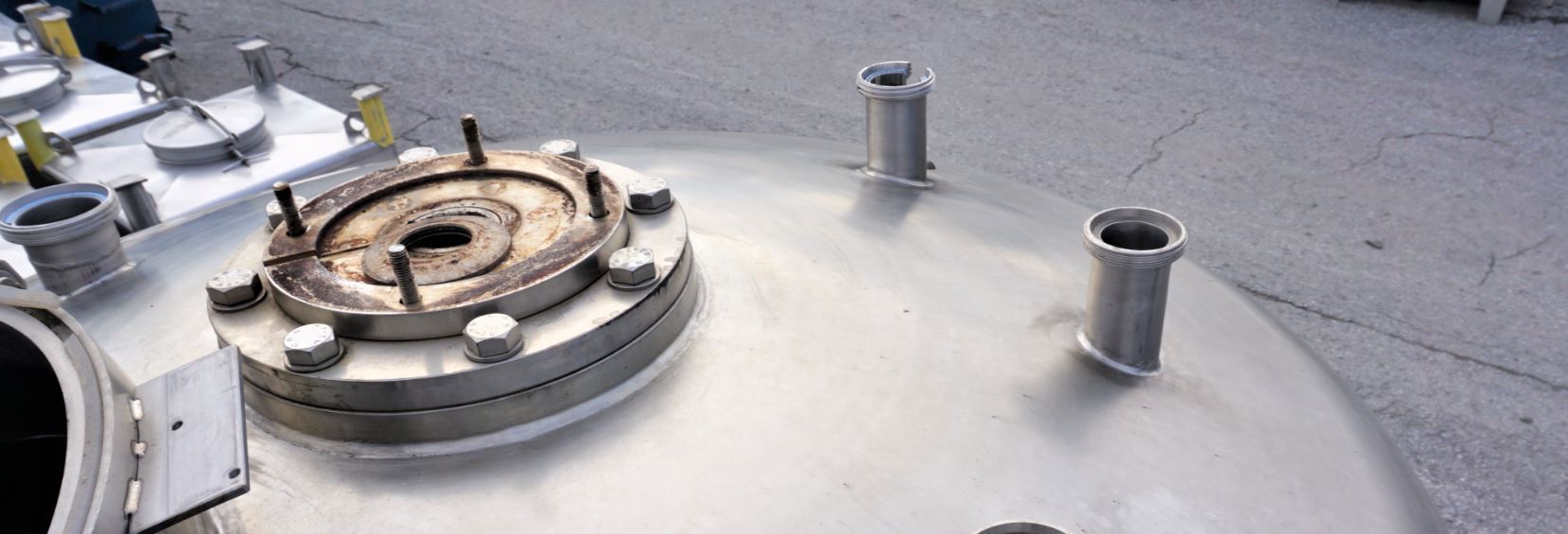

  • Nozzles/connectors in head

  • 3xDN50 1xDN65 (piece)

  • Outlet nozzle

  • 50/40

  • Additional fixtures and fittings

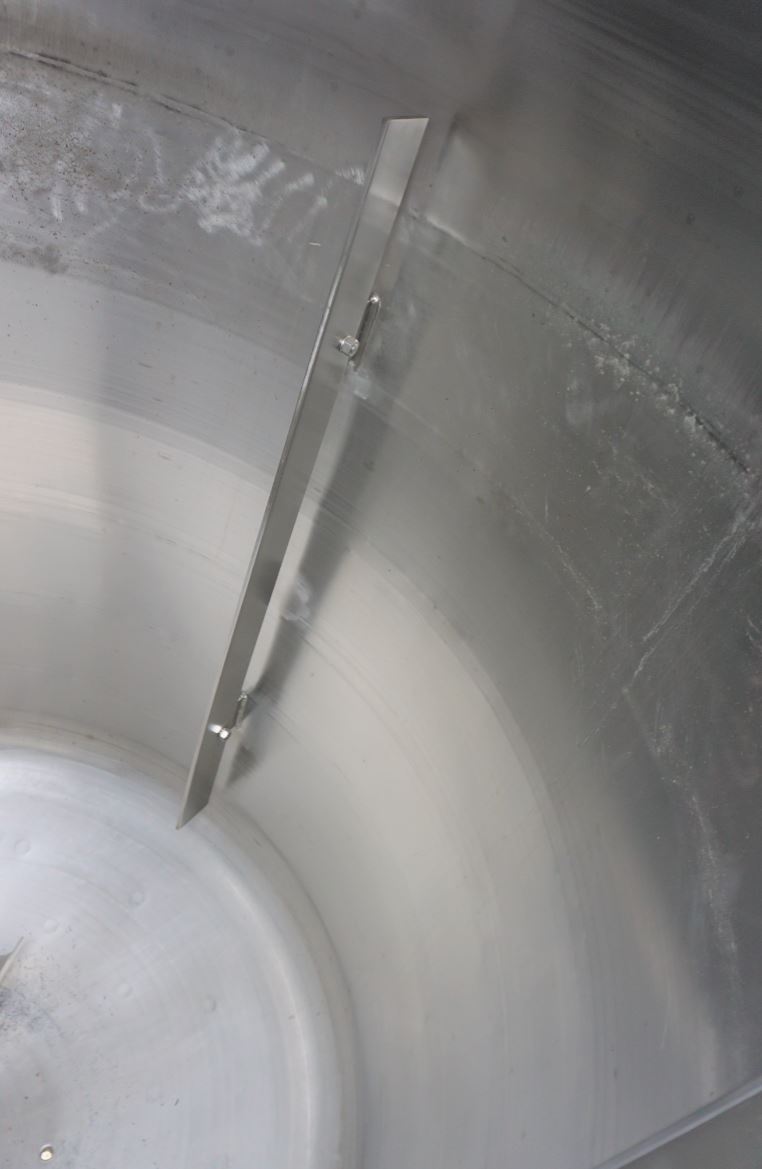

  • Flow rectifier

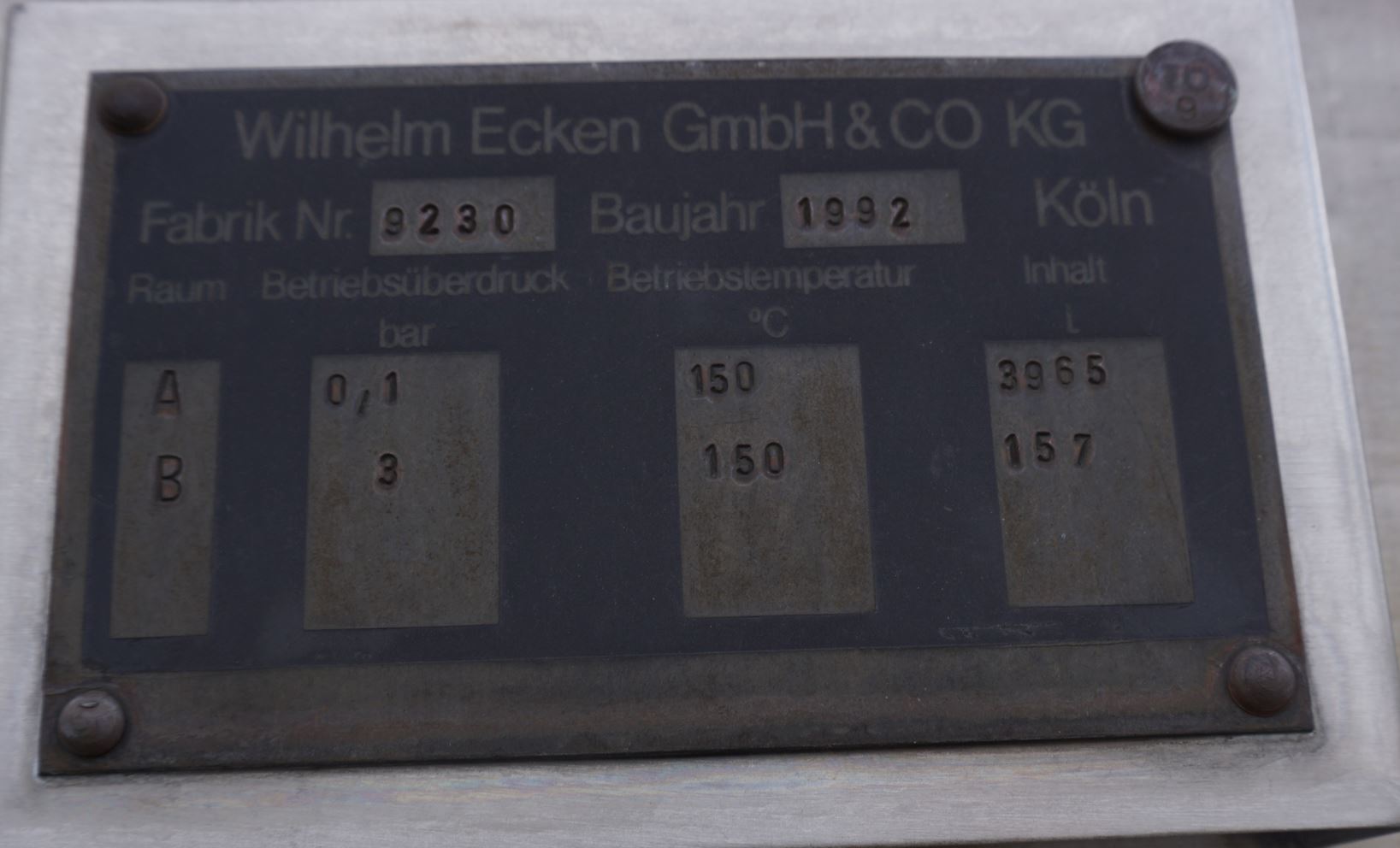

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • ohne Rührwerksantrieb

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
