Product no. M-3087

Container 30.000 liters made of V2A. isolated, used, standing

EUR 21.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 30,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

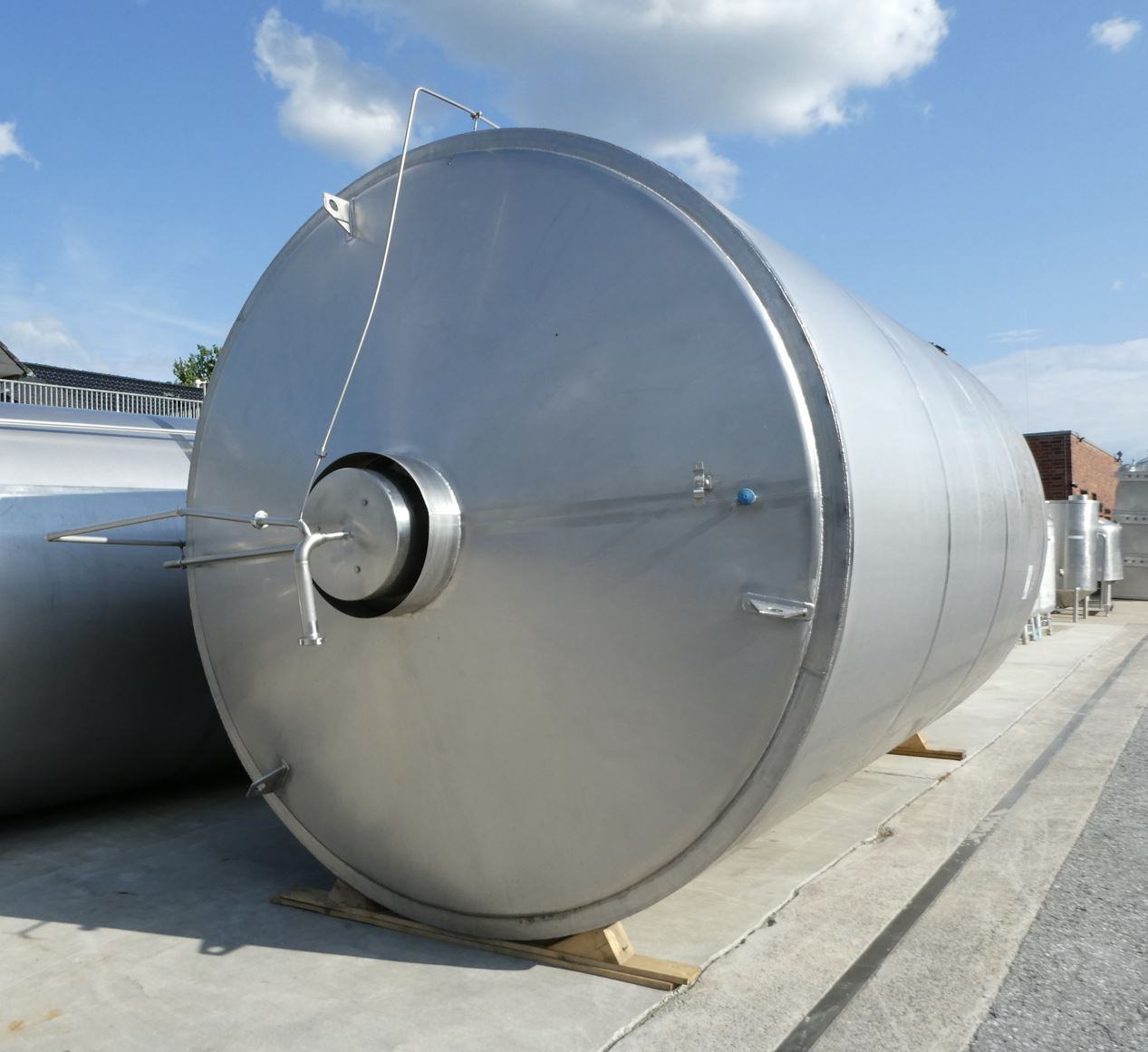

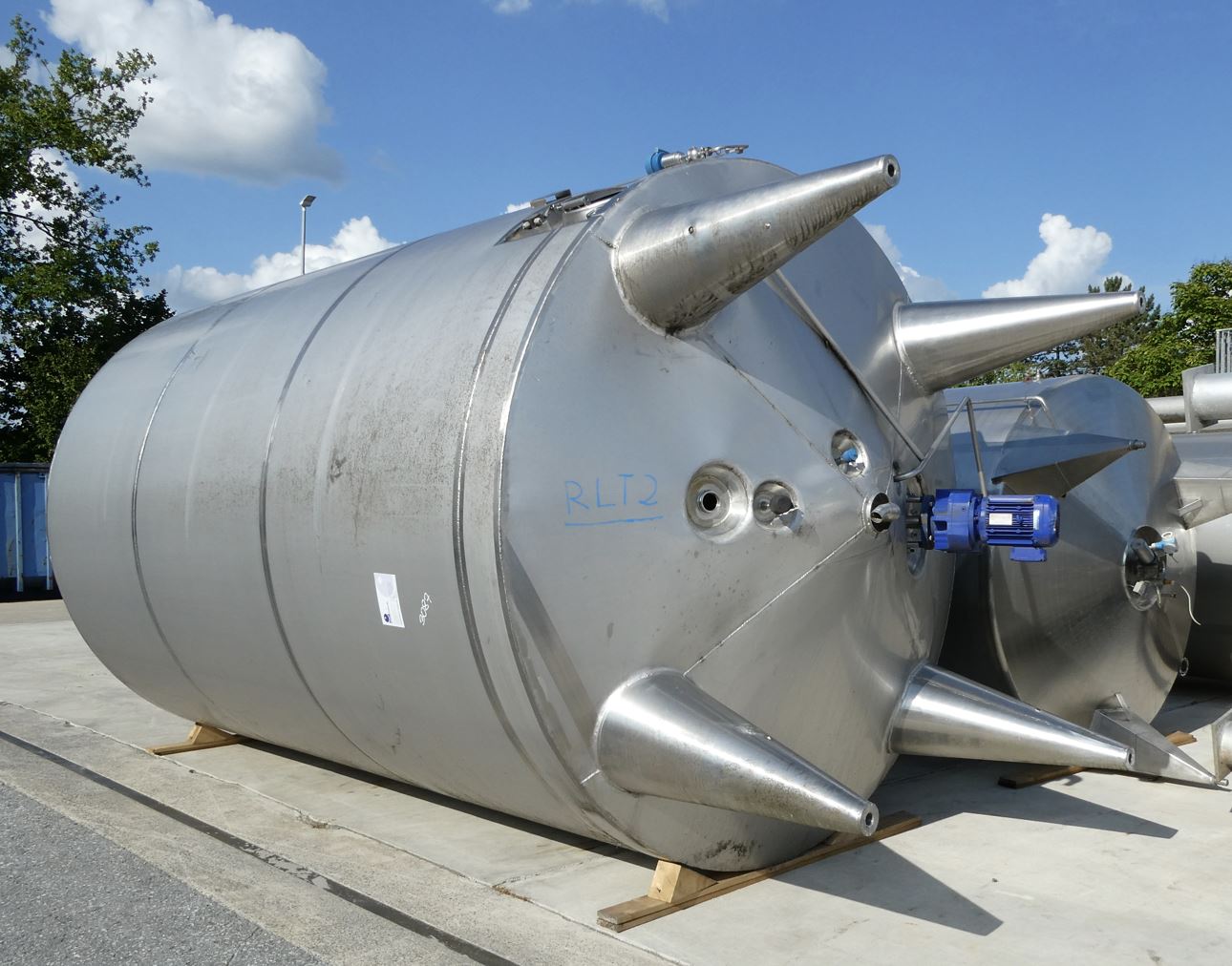

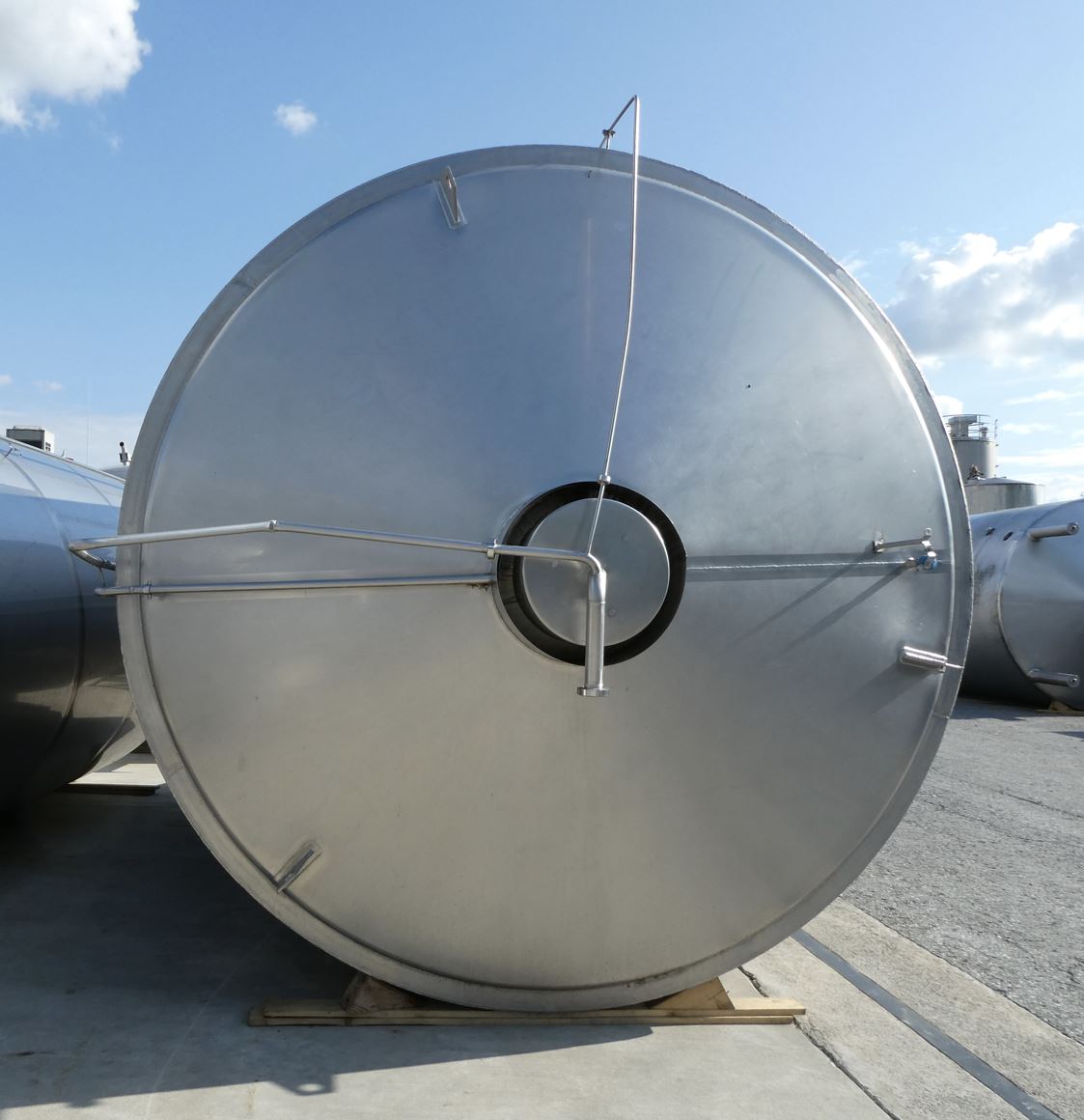

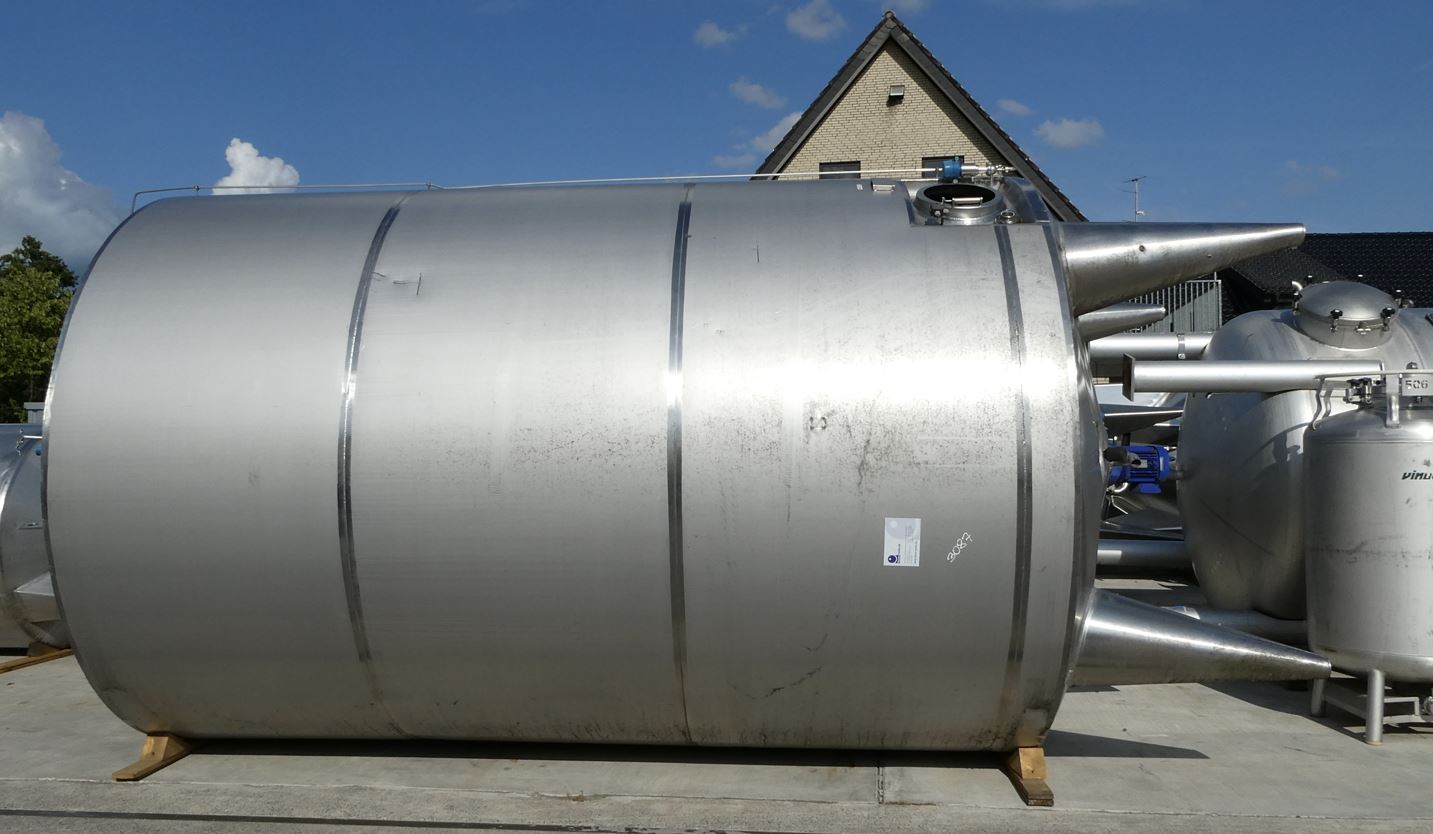

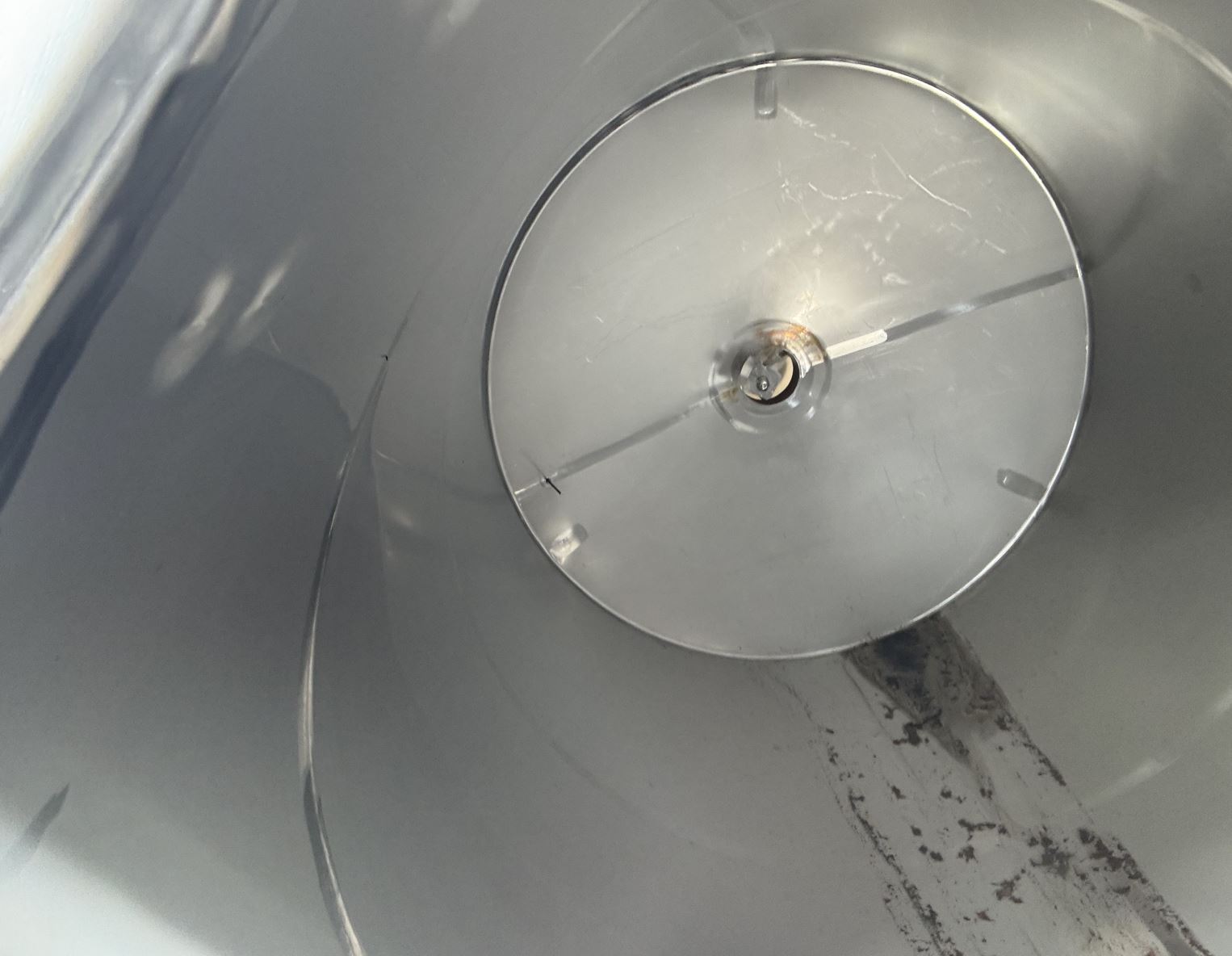

Container 30.000 liters made of V2A. isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 30,000.00 litres. The diameter inside includes 2,900 mm.  Container 30.000 liters made of V2A. isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 30.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1992

  • Manufacturer

  • Tuchenhagen

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.900 mm

  • External diameter

  • 3.000 mm

  • Cyl. height

  • 4.500 mm

  • Foot height

  • 1.320 mm

  • Total height

  • 7.000 mm

Design

  • Weight approx.

  • 3.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

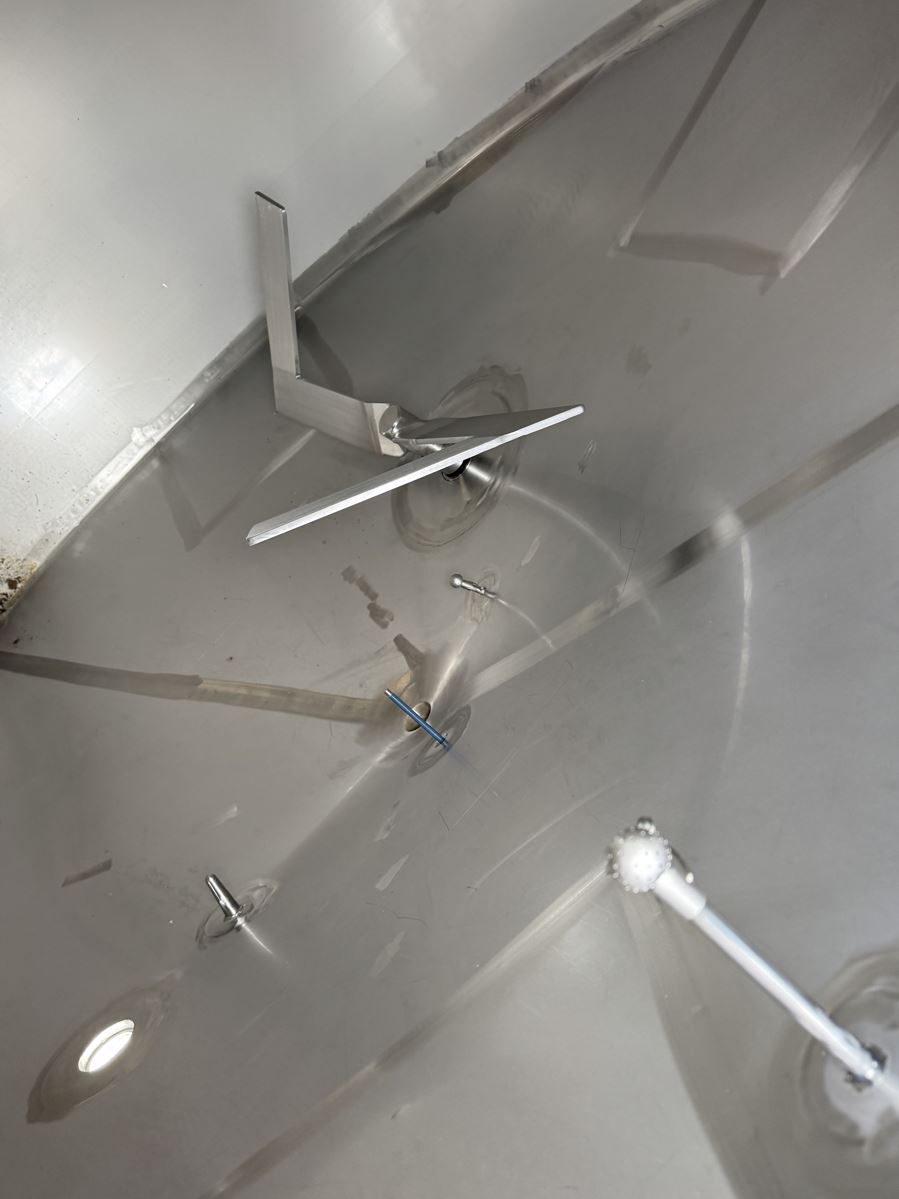

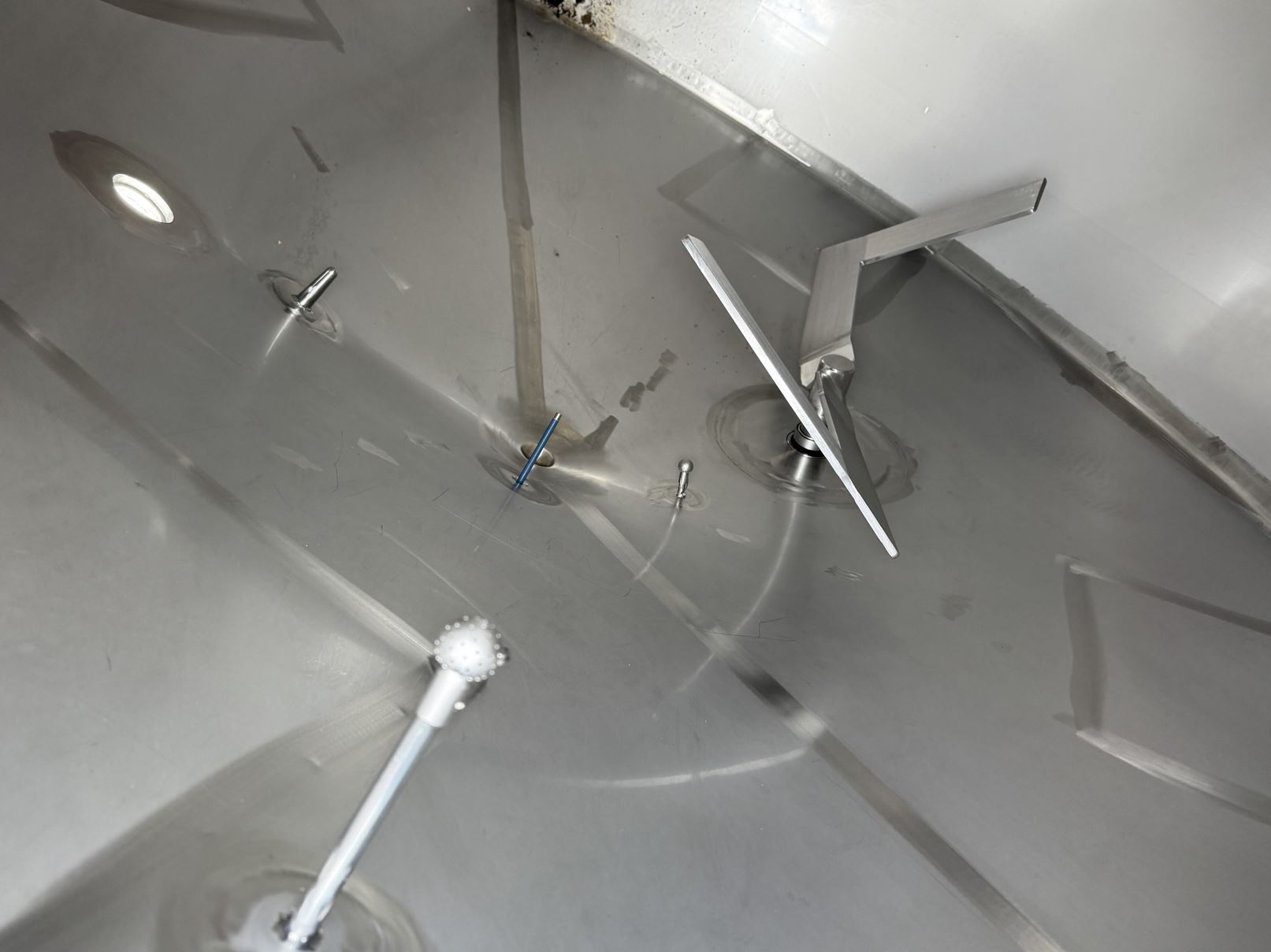

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Floor

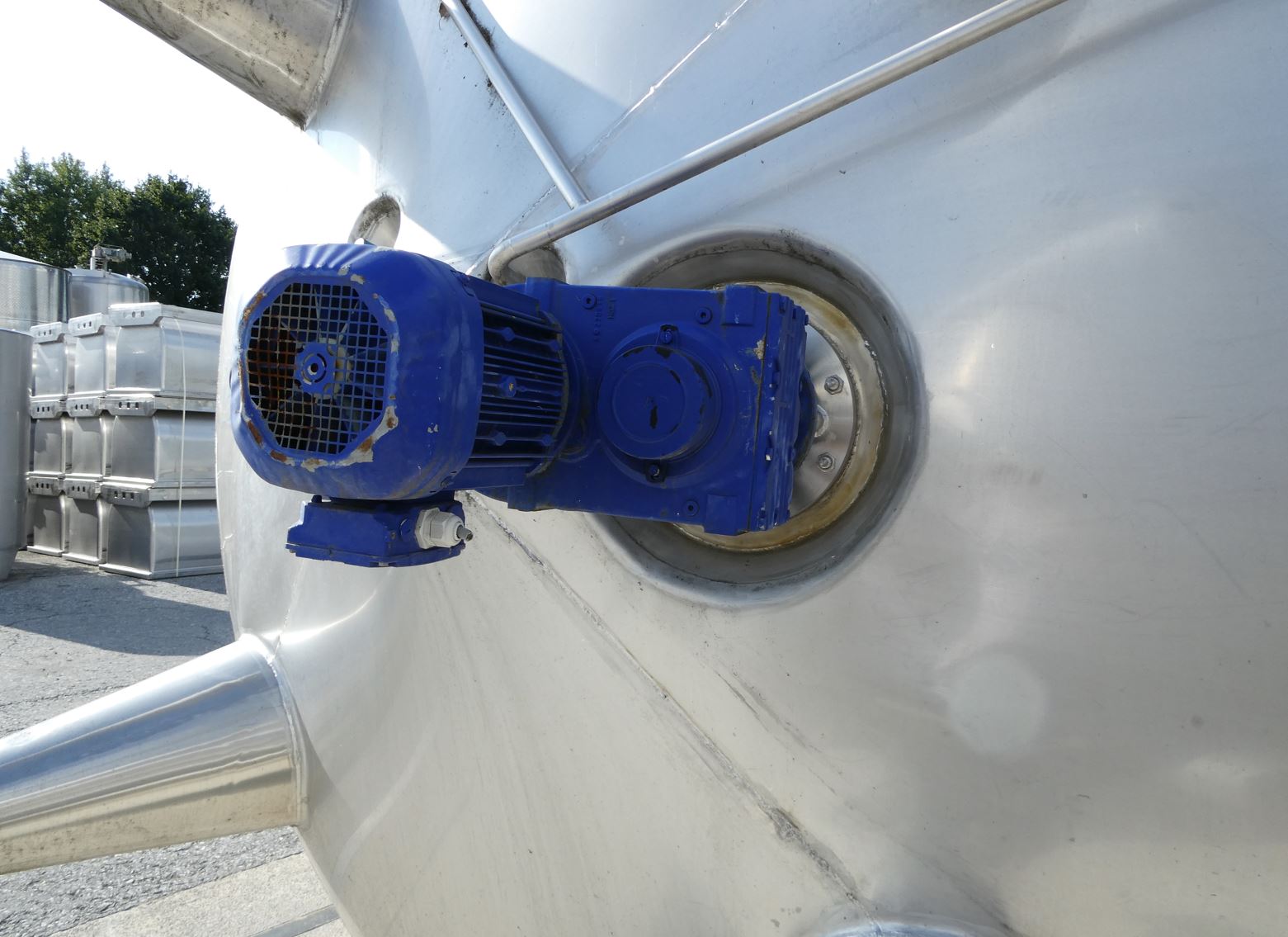

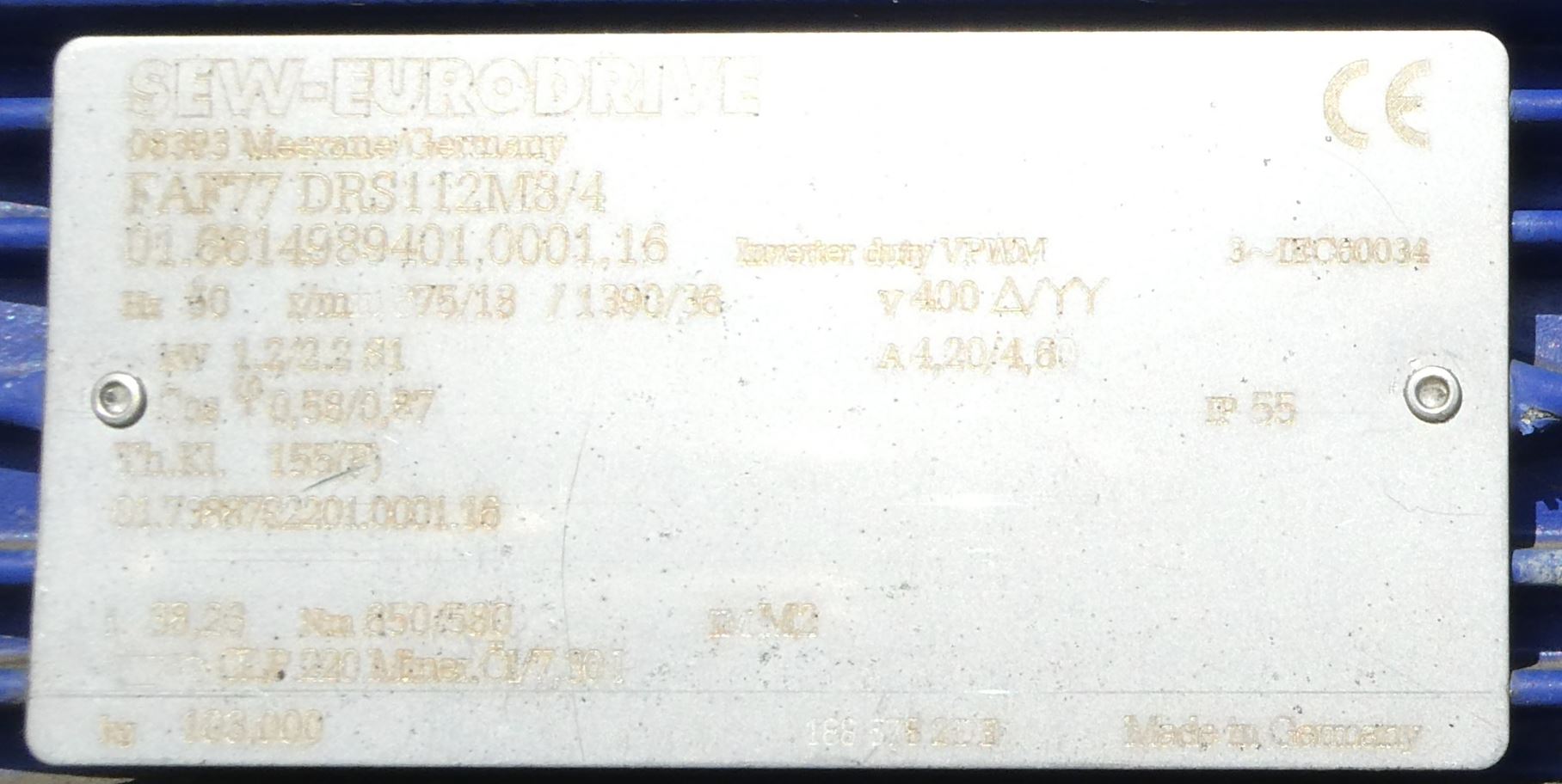

  • Agitator 1 - Output

  • 1,2 / 2,2 kW

  • Agitator 1 - RPM

  • 75 / 18 UpM

  • Agitator 1 - Voltage

  • 400 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway position

  • In shell

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in floor and head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

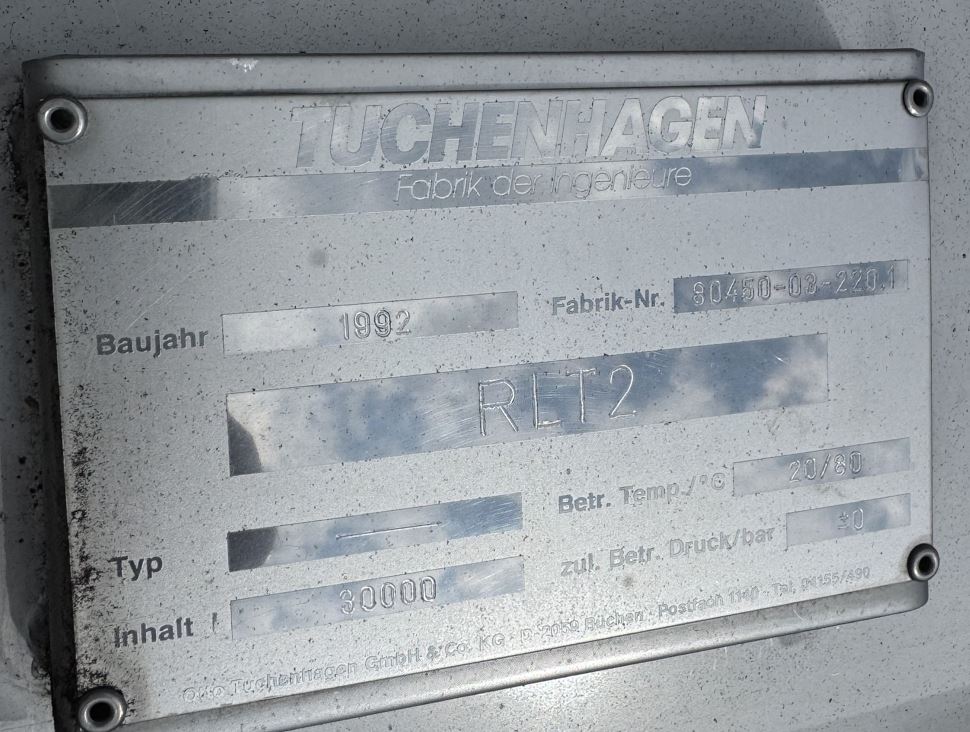

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
