Product no. M-2671

Container 37.100 liters made of V4A, single-walled, used, standing

EUR 22.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 37,100.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

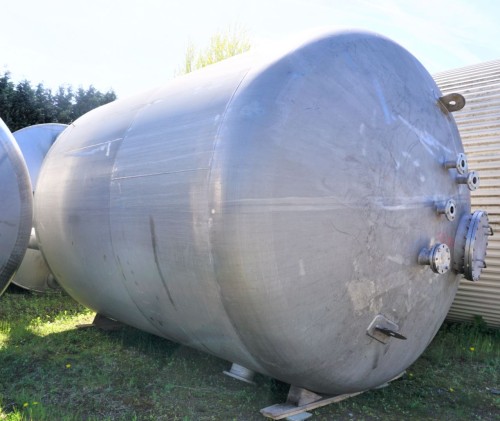

Container 37.100 liters made of V4A, single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 37,100.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Filtering, Under/over-pressure,

General

  • Volume approx.

  • 37.100,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1996

  • Manufacturer

  • ADF Apparatebau Freudenberg

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.200 mm

  • Cyl. height

  • 3.500 mm

  • Foot height

  • 1.600 mm

  • Total height

  • 6.200 mm

Design

  • Weight approx.

  • 5.730,00 kg

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 5,00 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In shell and head

  • Nozzles/connectors in head

  • 3xDN50 1xDN100 (piece)

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

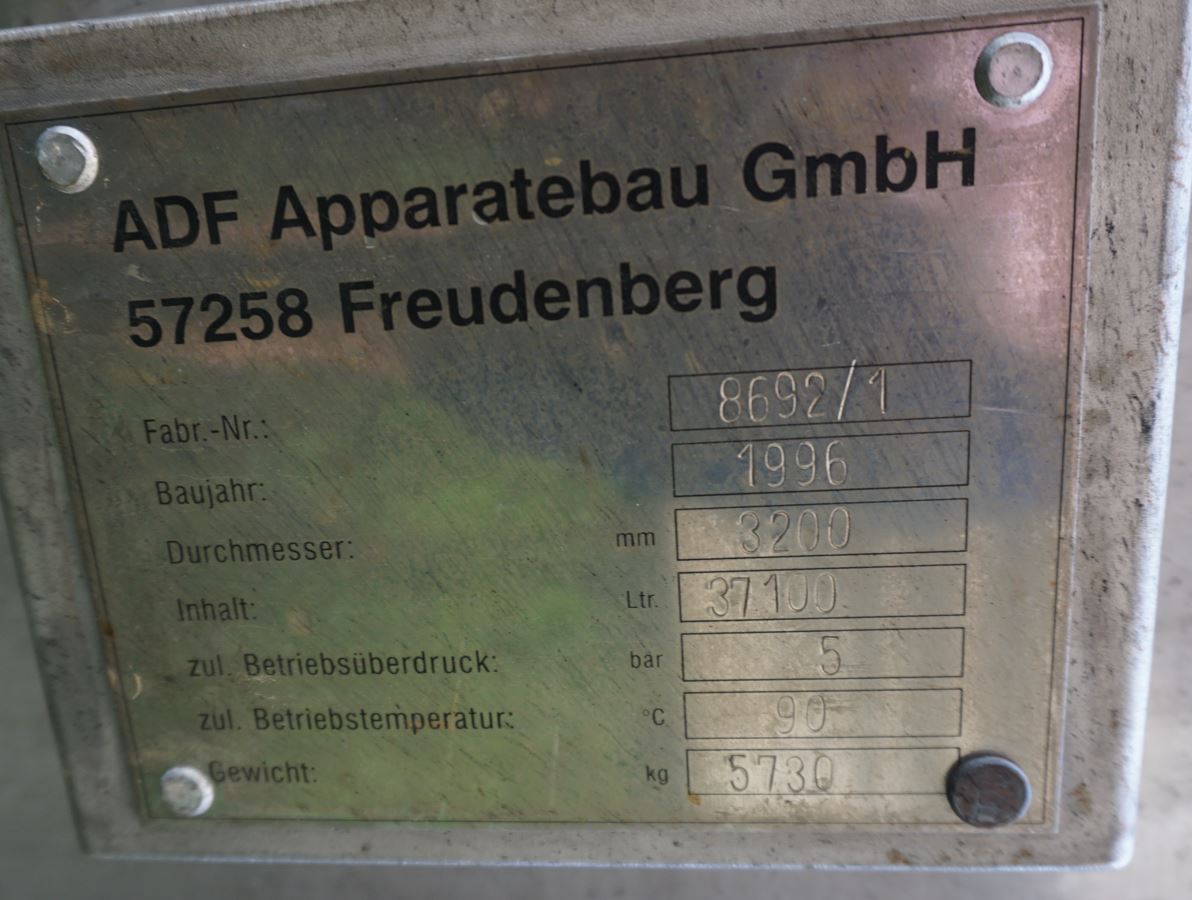

  • Nameplate

Technical documentation

  • Technical documentation

  • None

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, CIP tank, Filter tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Filter tank,
