Product no. M-2774

Container 5.000 liters made of V2A single-walled, used, horizontal

EUR 5.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

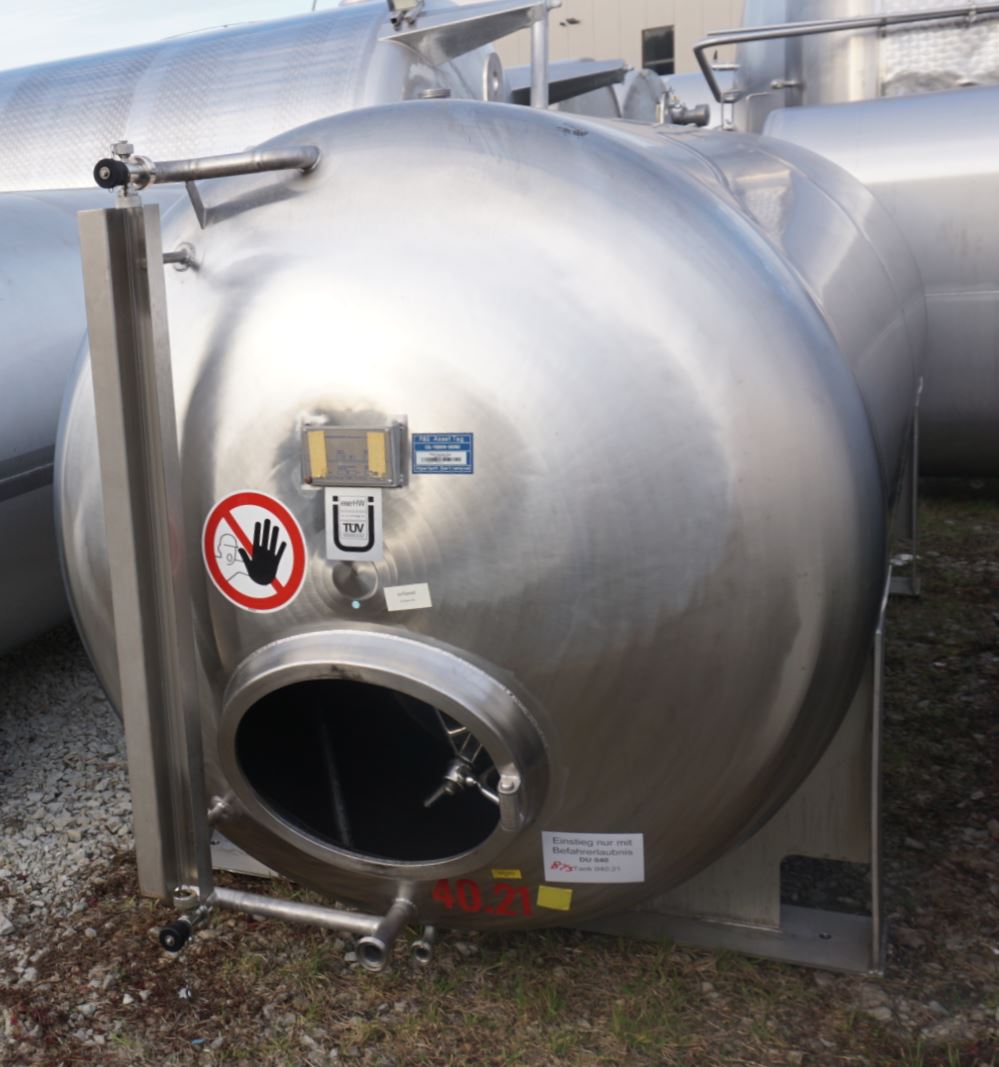

Container 5.000 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,000.00 litres. The diameter inside includes 1,400 mm.  Container 5.000 liters made of V2A single-walled, used was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 5.000,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 2000

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.400 mm

  • Cyl. length

  • 3.000 mm

  • Total height

  • 2.000 mm

  • Total length

  • 3.800 mm

Design

  • Weight approx.

  • 530,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel storage consoles

  • Number of feet

  • 2 (piece)

Fixtures and fittings

  • Manway 1 size

  • 345x440 DN mm

  • Manway position

  • Front face

  • Nozzle connector

  • Screw thread

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Drain port

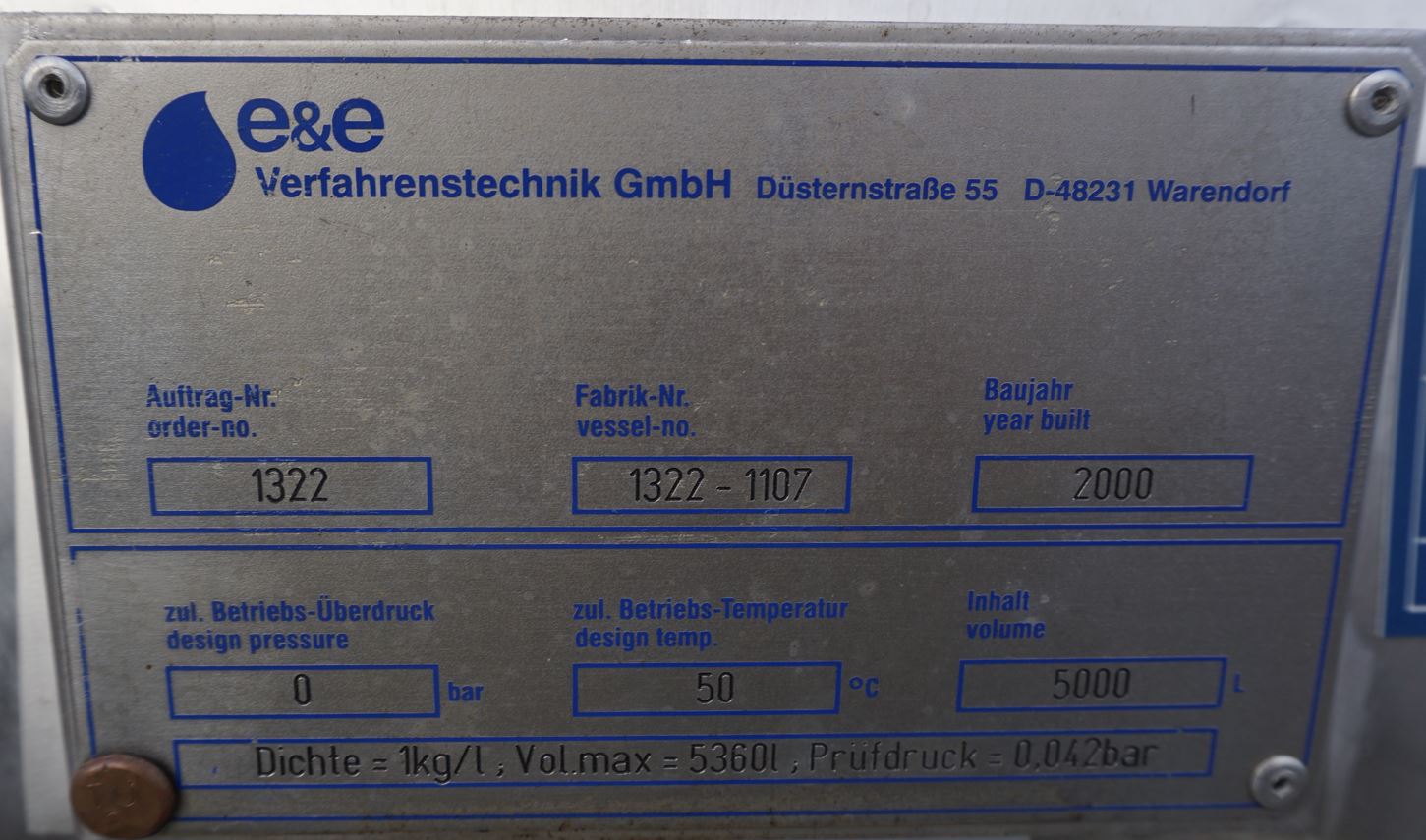

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs: Water tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Cold water tank,

Agriculture: Rainwater tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Cold water tank,
