Product no. M-2821

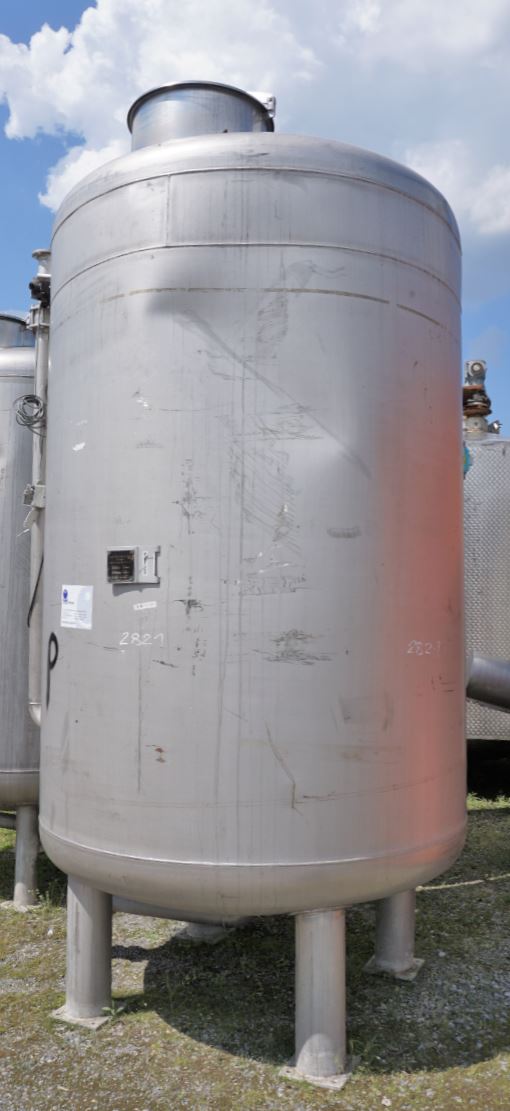

Container 5.000 liters made of V4A single-walled, used, standing
EUR 5.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 5,000.00 litres
Product description
Container 5.000 liters made of V4A single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 5,000.00 litres. Container 5.000 liters made of V4A single-walled, used was last used in the following area: Cosmetics. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
- Volume approx.
- 5.000,00 litres
- Structure
- Standing
- Year of manufacture
- 2001
- Manufacturer
- Oesterwiemann
- Condition
- Used
Dimensions approx.
- External diameter
- 1.600 mm
- Cyl. height
- 2.250 mm
- Foot height
- 750 mm
- Total height
- 3.800 mm
Design
- Weight approx.
- 800,00 kg
- Weight per unit volume approx.
- 1.000,00 kg/m³
- Insulation
- no

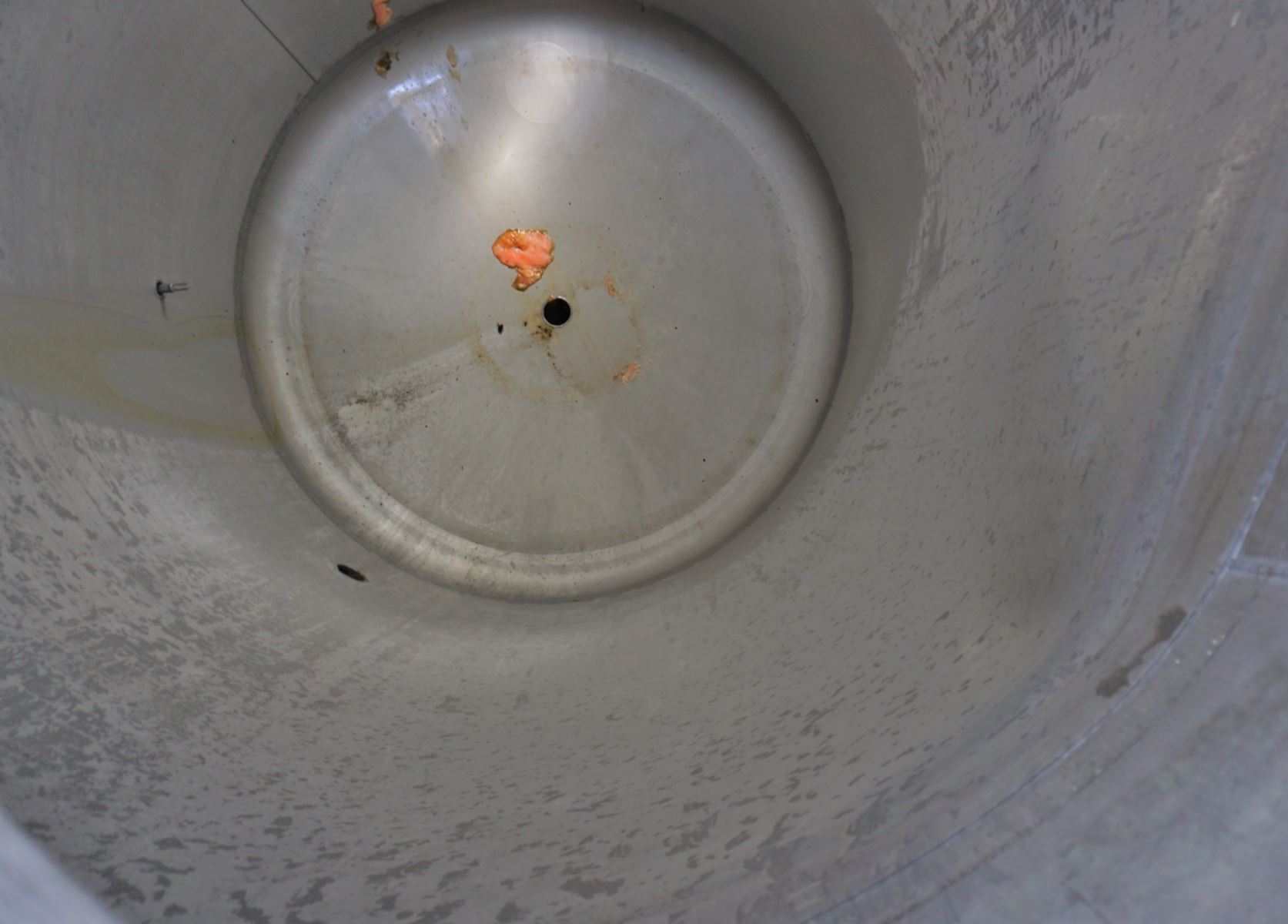

- Interior surface
- Smoothed
- Exterior surface
- Smoothed
- Floor type
- Torispherical bottom
- Head design
- Torispherical bottom
Supports

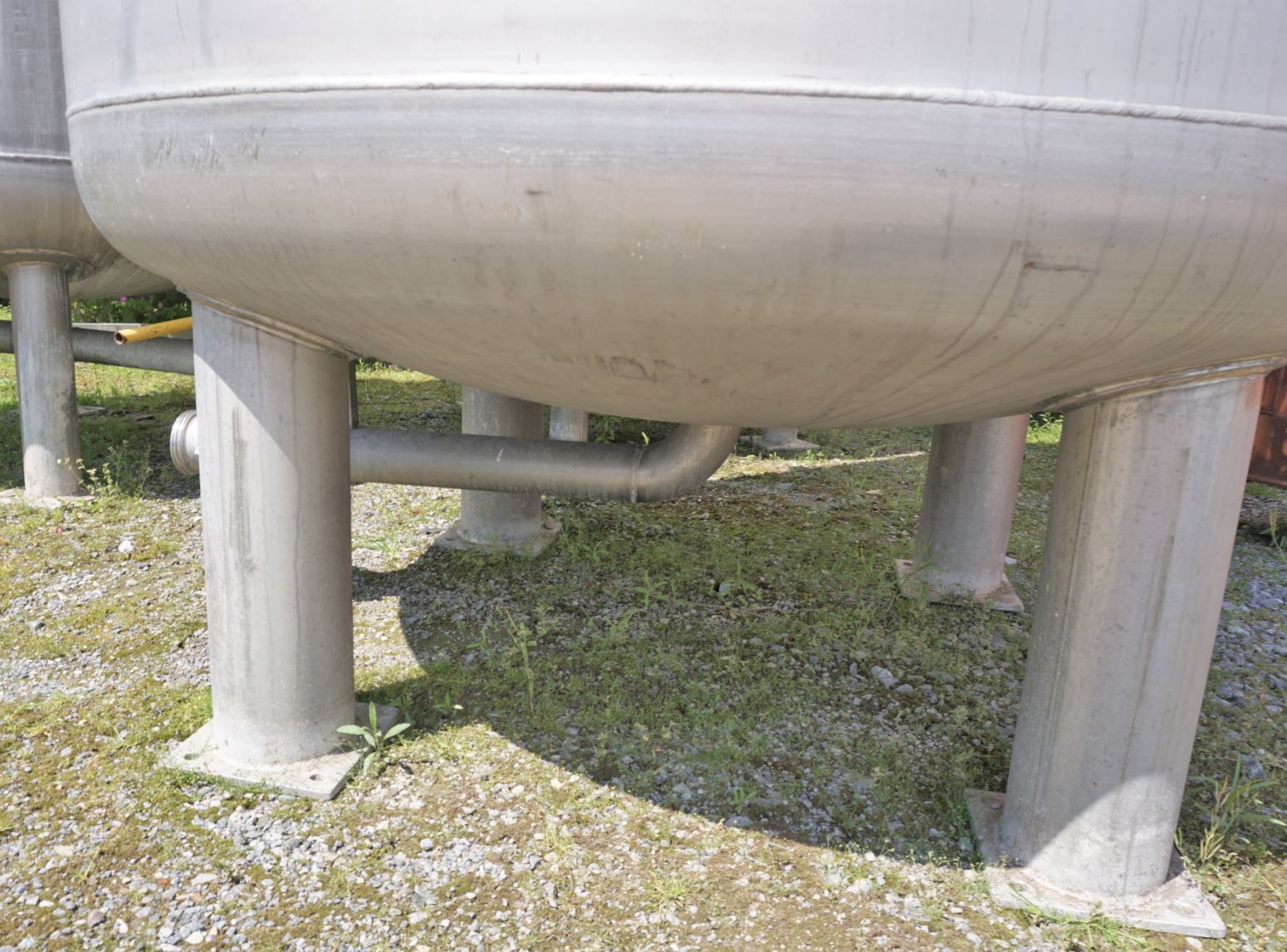

- Supports
- Stainless steel feet
- Number of feet
- 4 (piece)
Fixtures and fittings

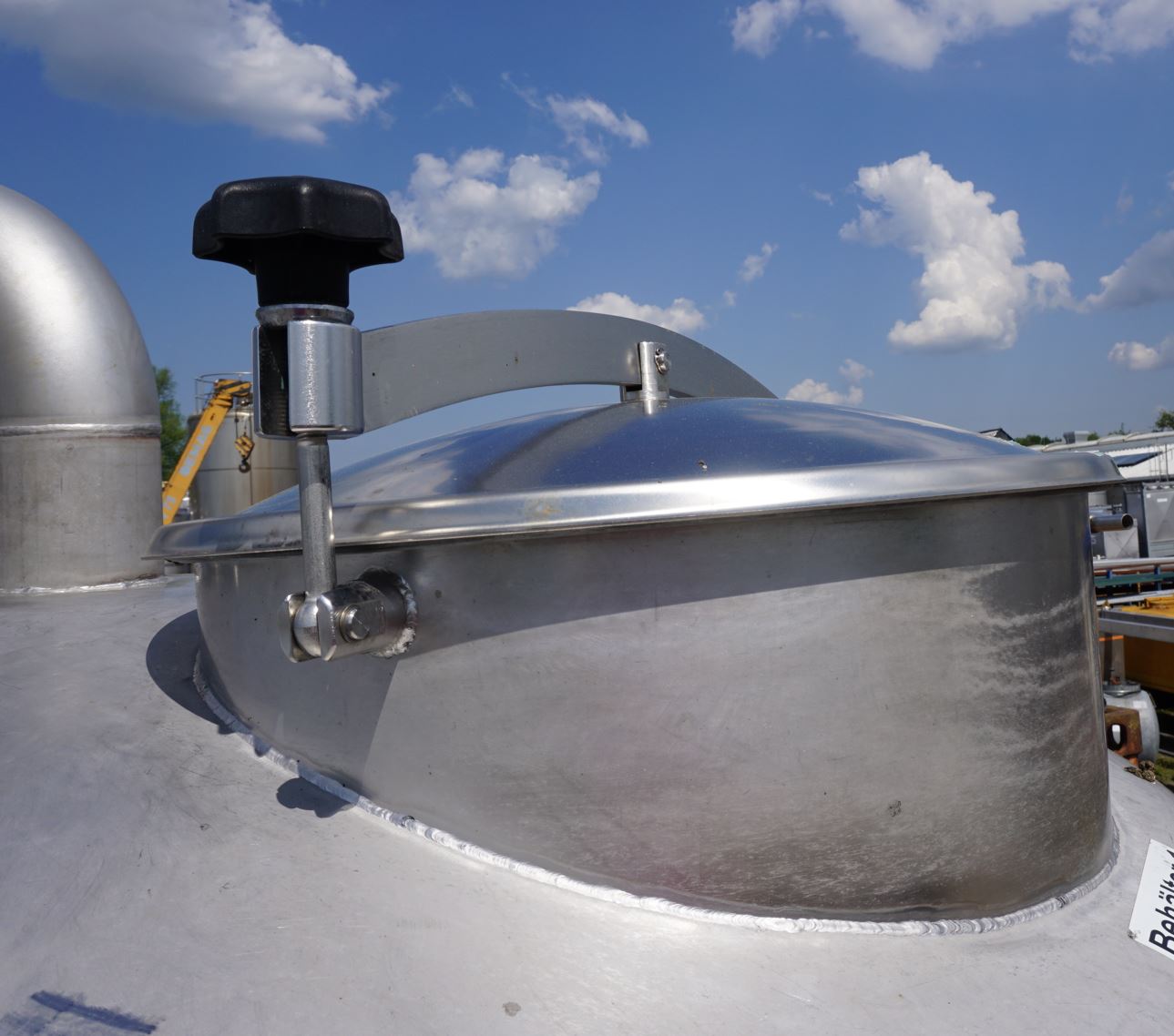

- Manway 1 size
- 430 DN mm
- Manway position
- In head

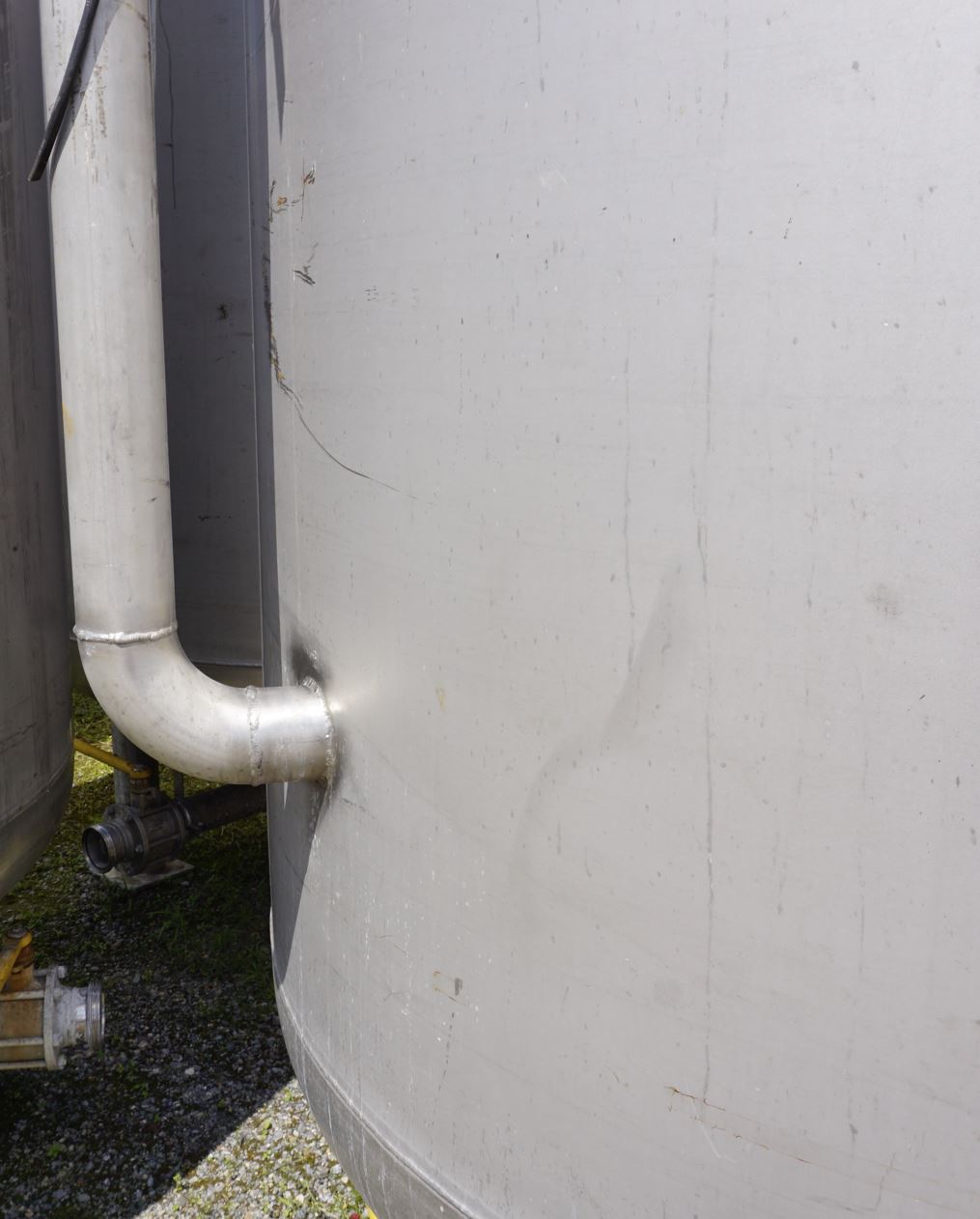

- Nozzles/connectors in shell
- 1xDN65 (piece)
- Nozzles/connectors in head
- 1xDN80 (piece)

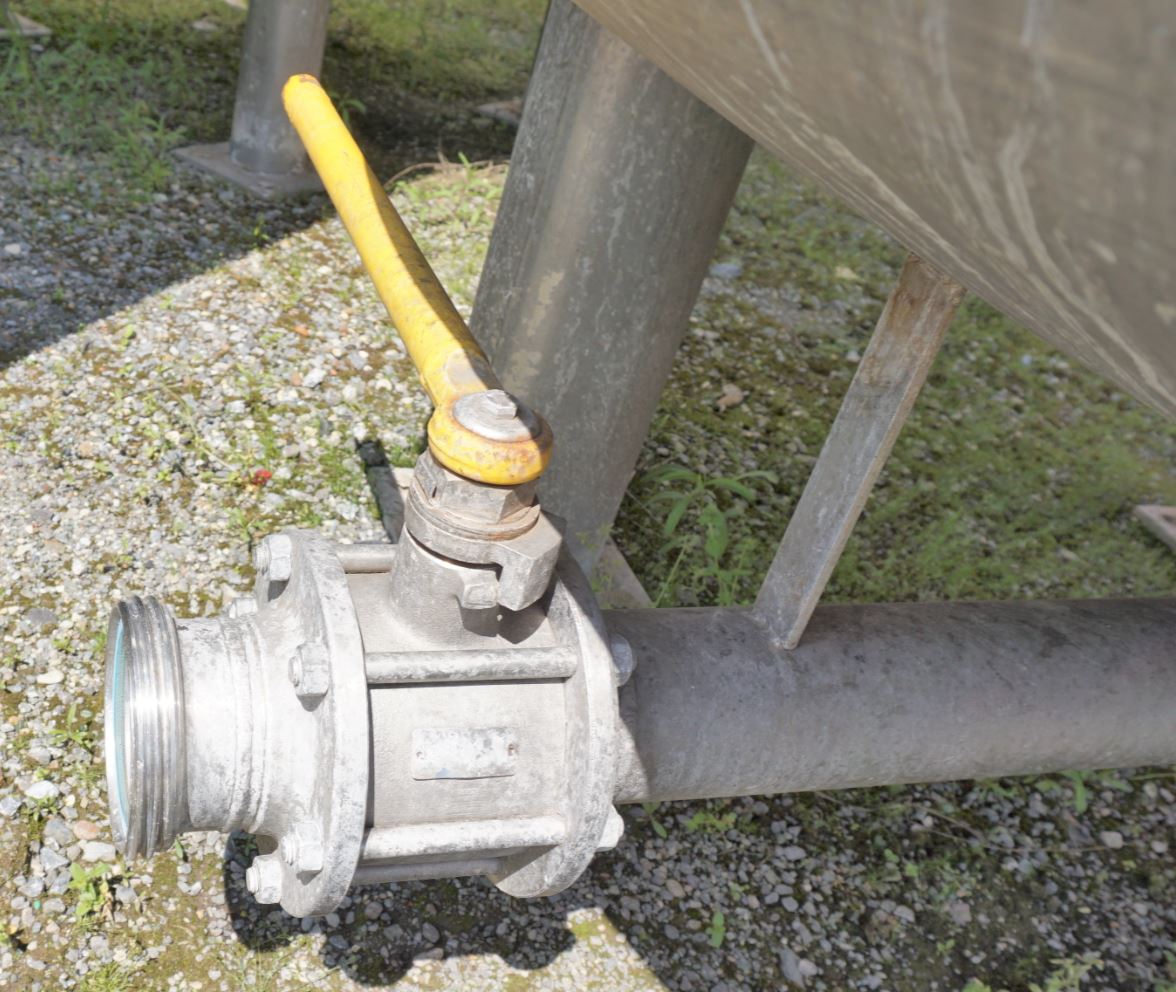

- Outlet nozzle
- 80
- Additional fixtures and fittings

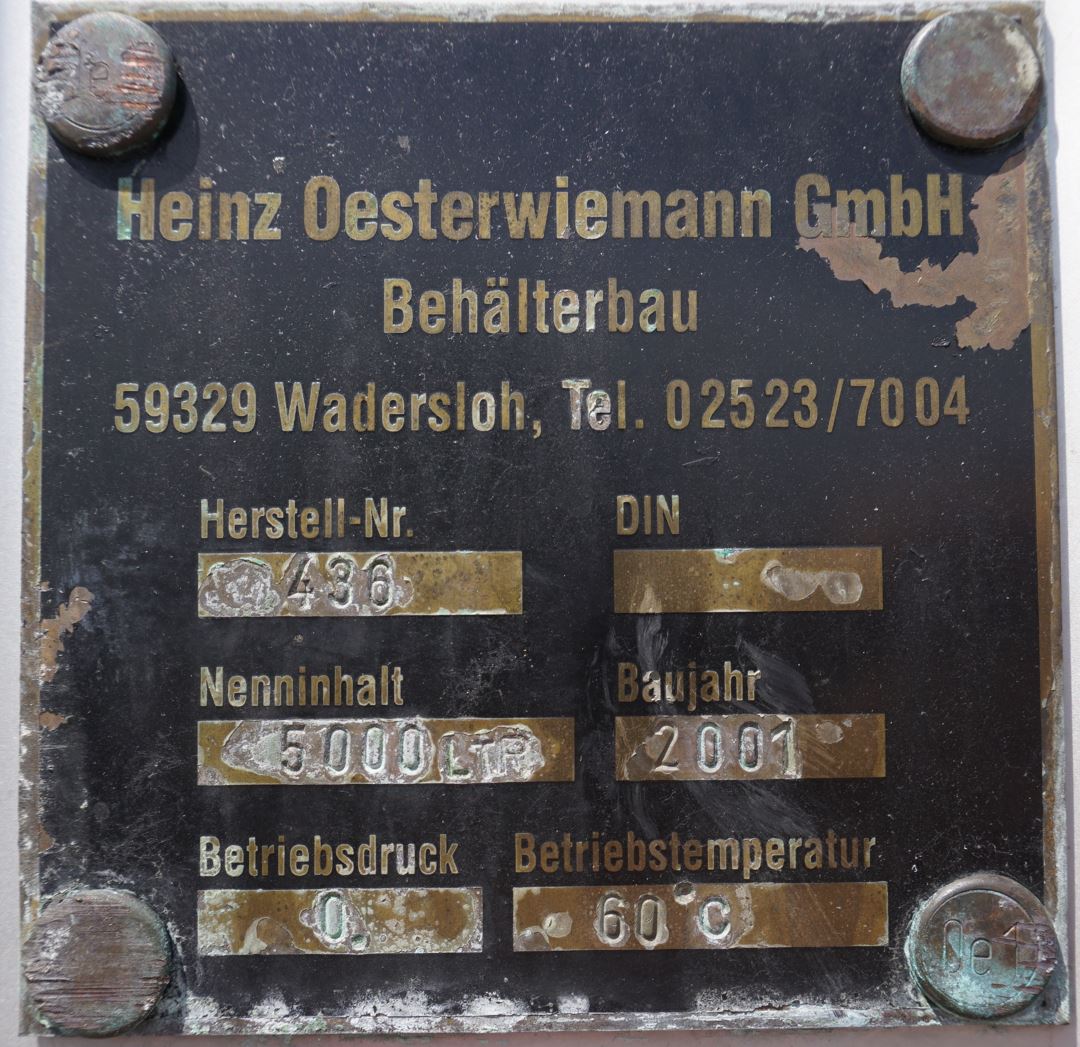

- Nameplate
Technical documentation
- Technical documentation
- None
Other
- Note
- Beulen im Mantelbereich
- Last usage
- Cosmetics
This product is suitable for use as:
Foodstuffs:
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank,
