Product no. M-3086

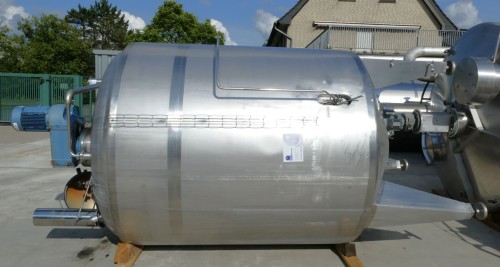

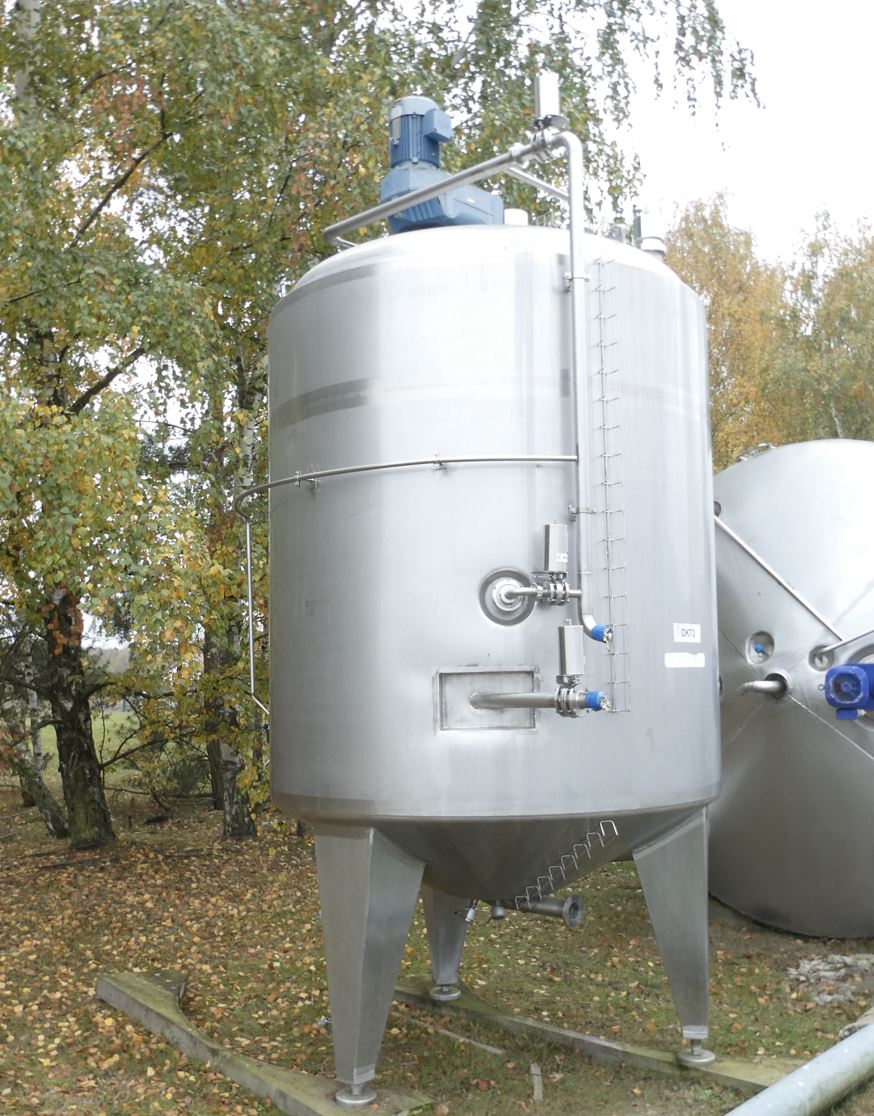

Container 5.500 liters made of V2A isolated, used, standing

EUR 8.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 5,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 5.500 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,500.00 litres.  Container 5.500 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 5.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1998

  • Manufacturer

  • Aurich

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.000 mm

  • Total height

  • 4.000 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

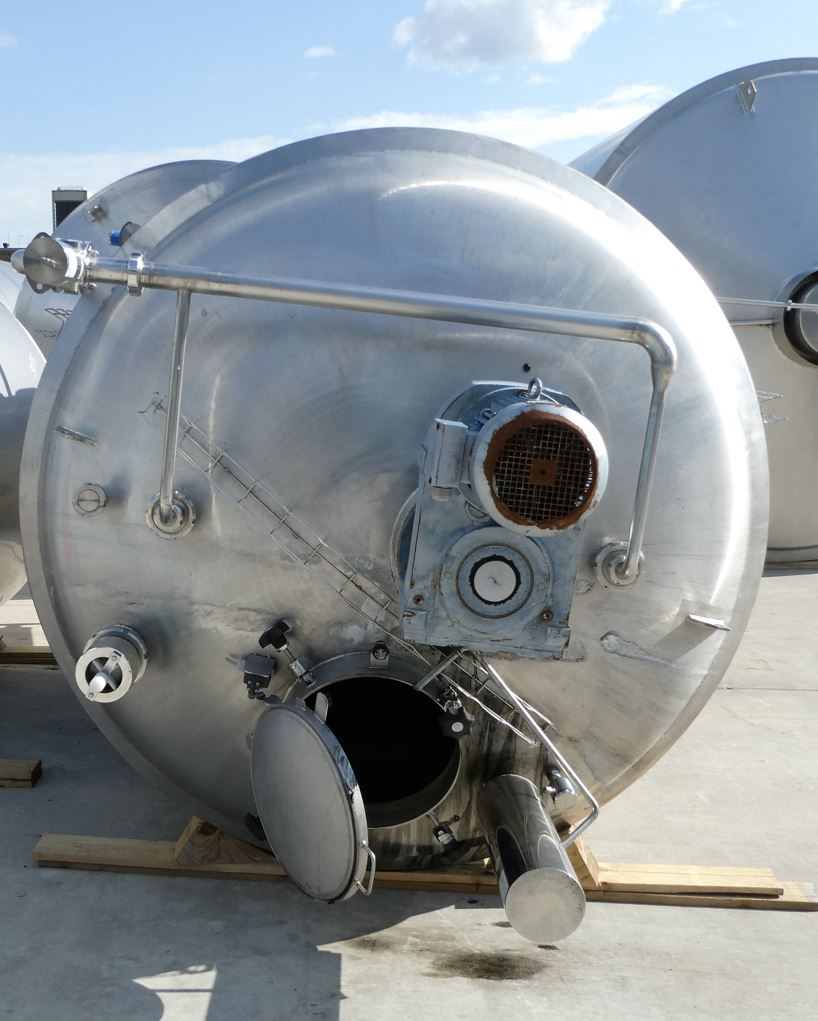

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

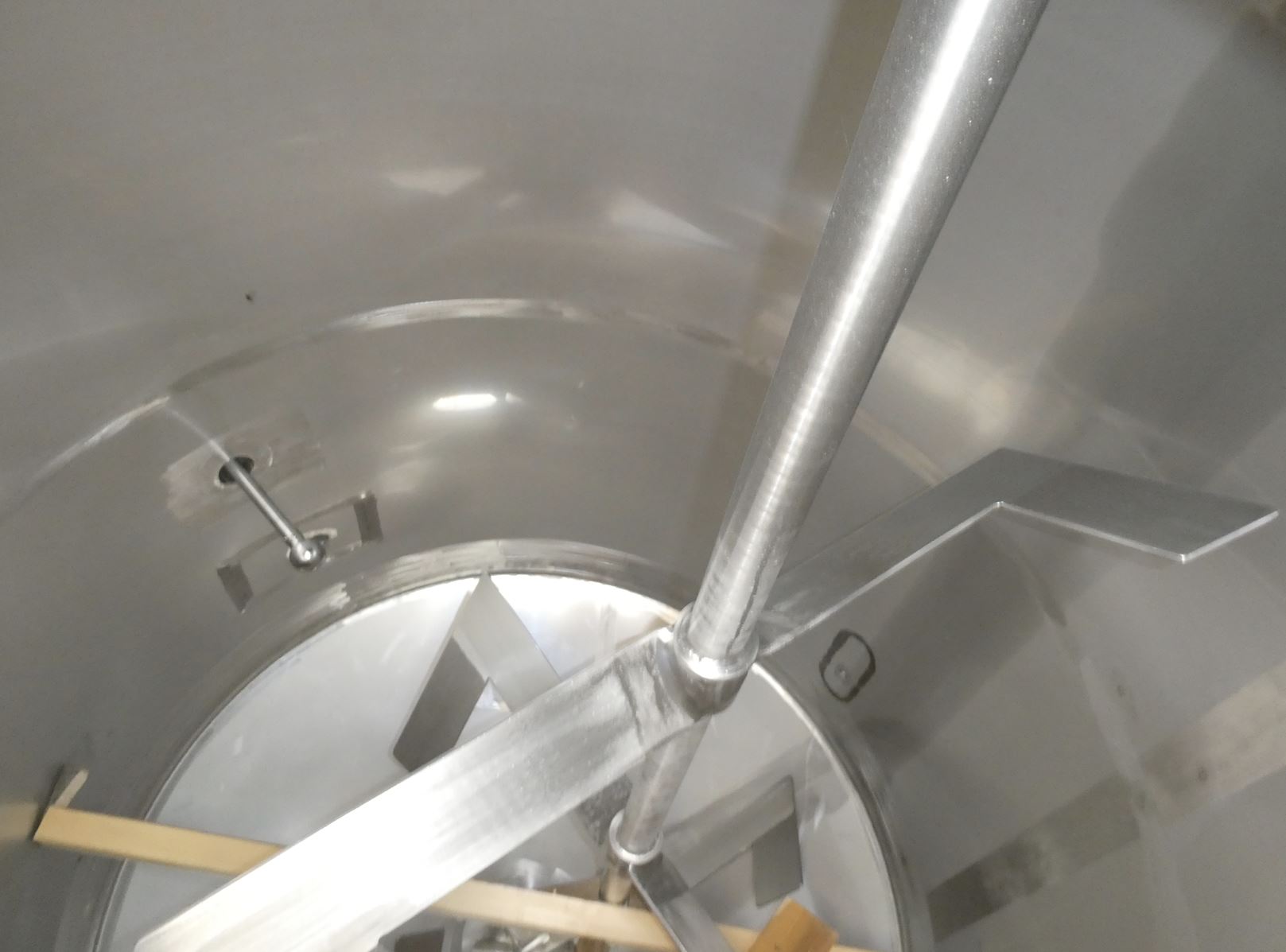

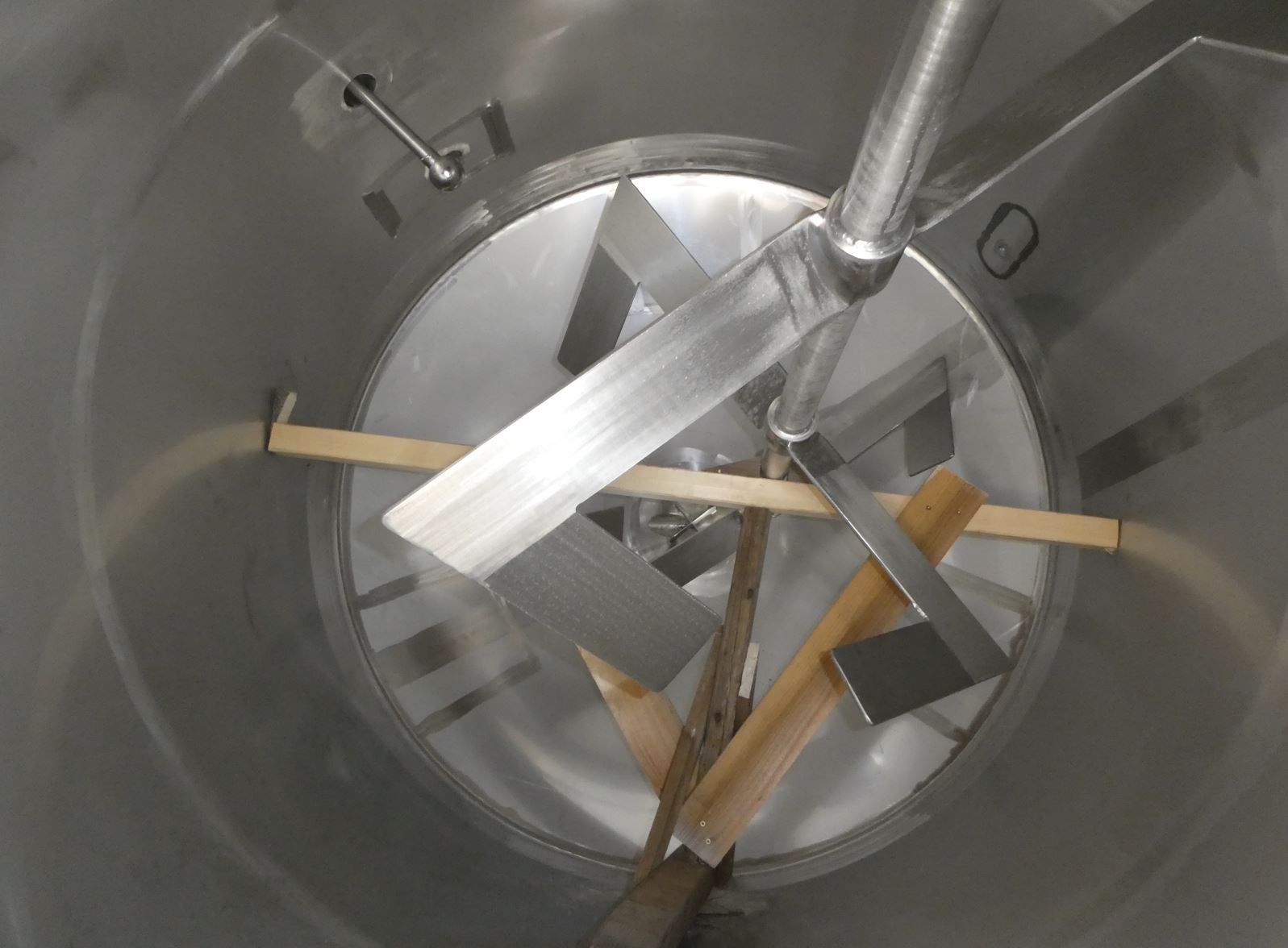

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head central

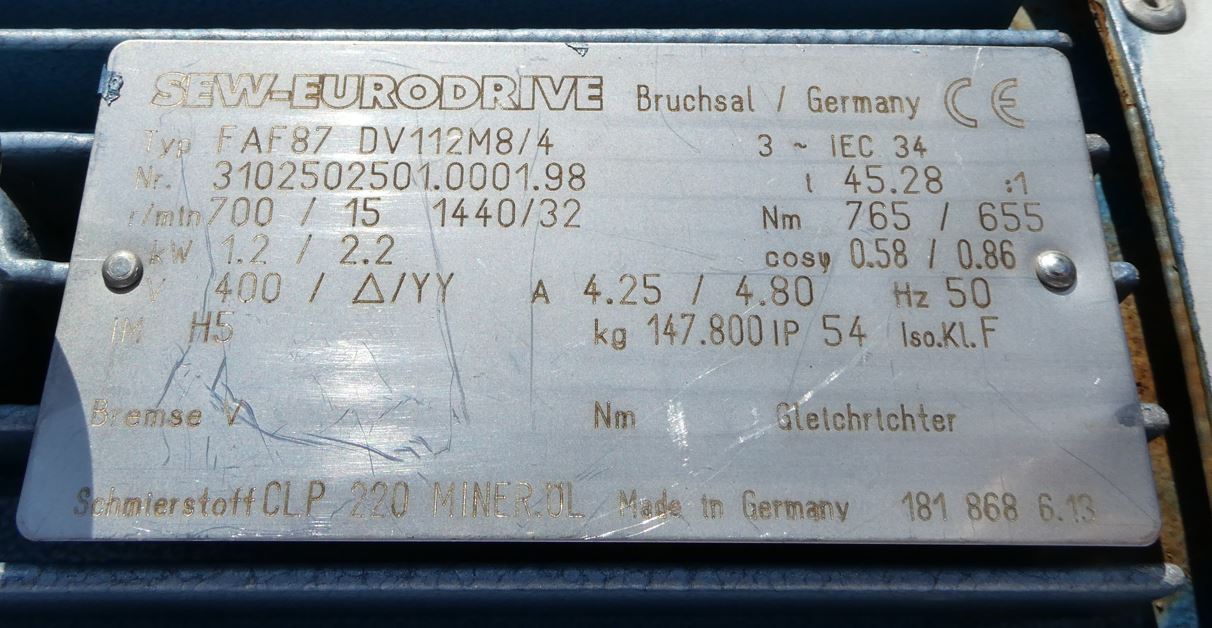

  • Agitator 1 - Output

  • 1,2 / 2,2 kW

  • Agitator 1 - RPM

  • 15 UpM

  • Agitator 1 - Voltage

  • 400 V

Supports

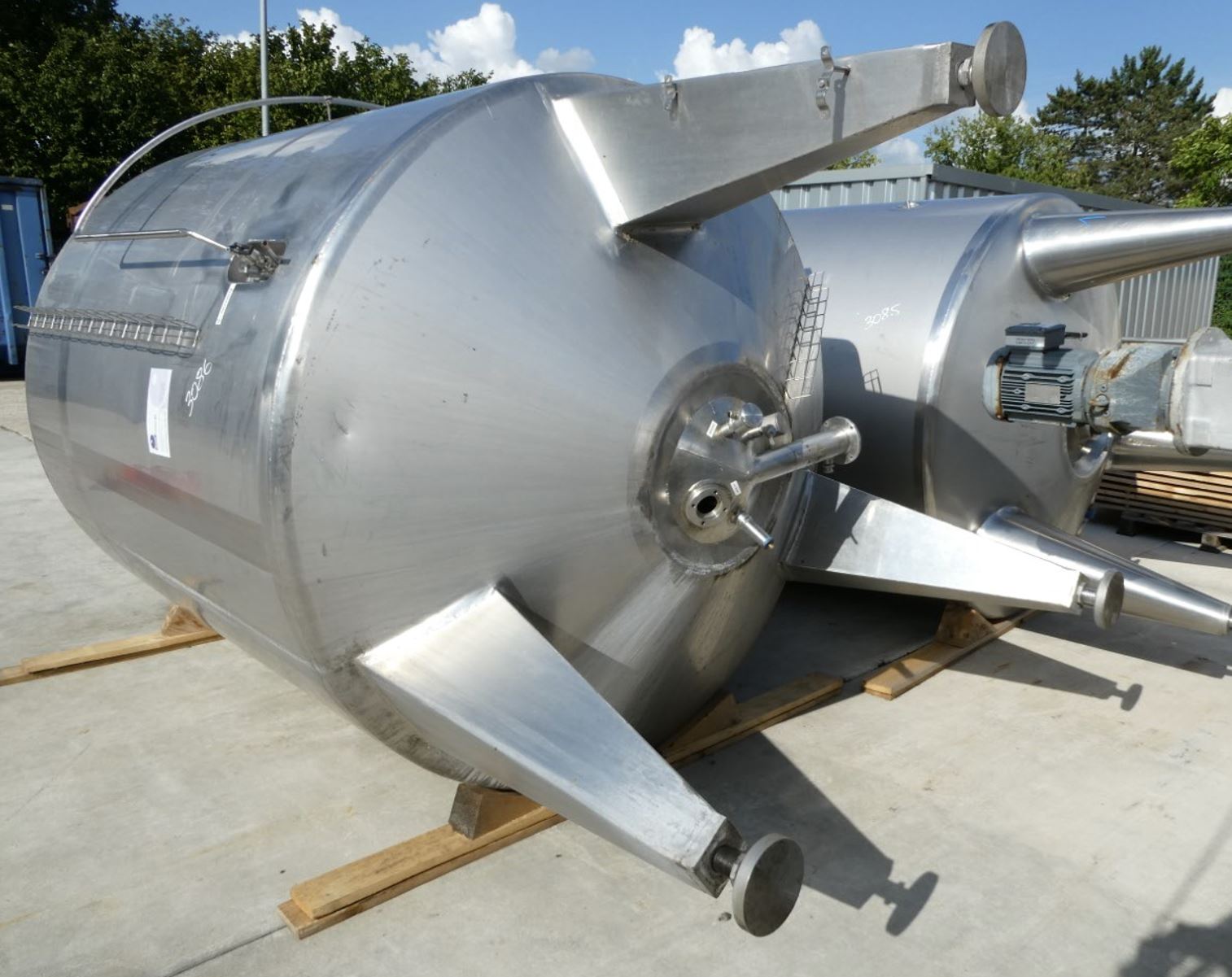

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • hoehenstellbar

Fixtures and fittings

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

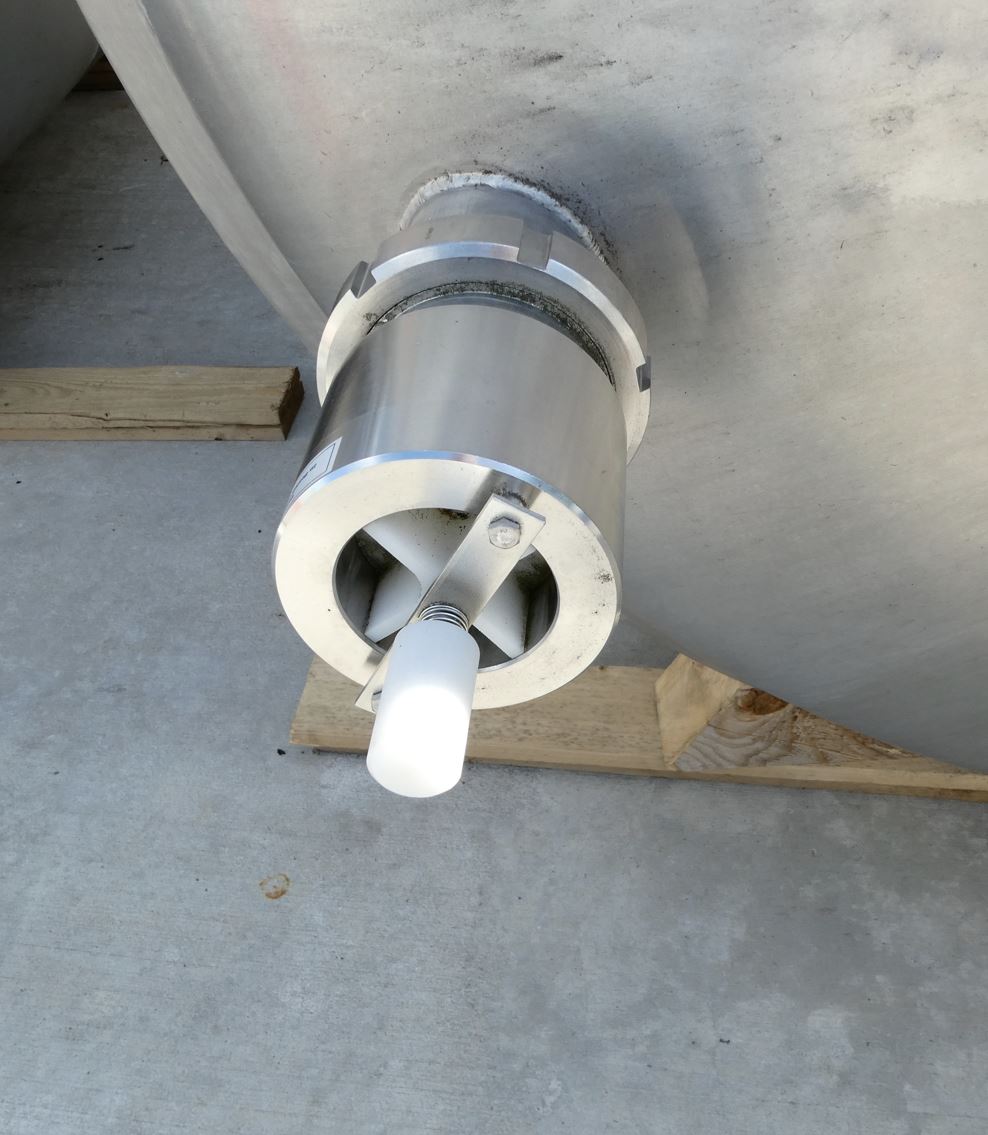

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

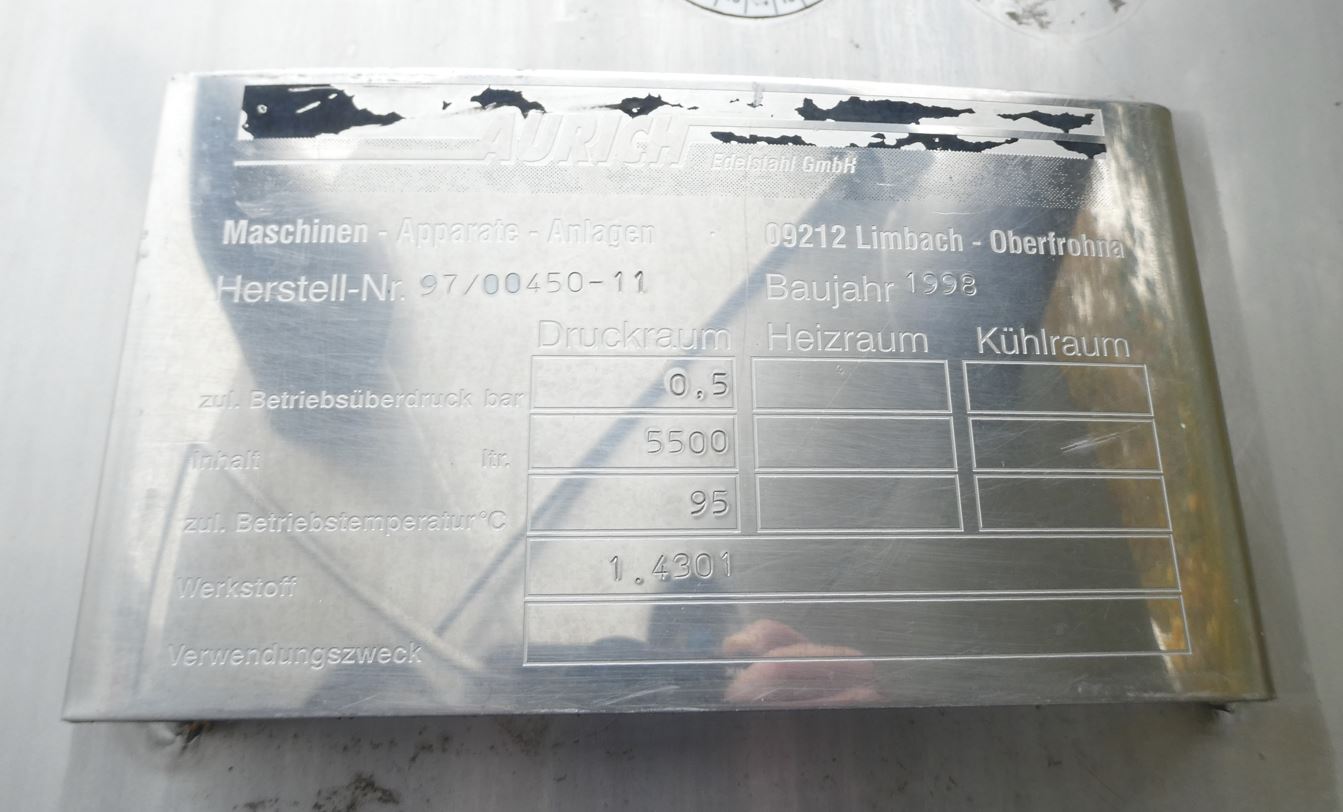

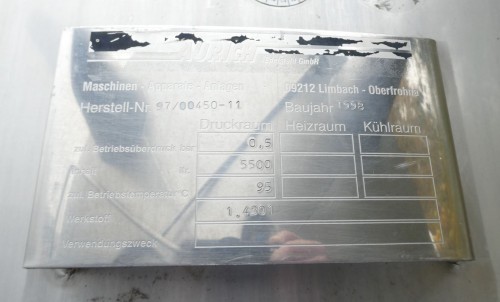

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
