Product no. M-3135

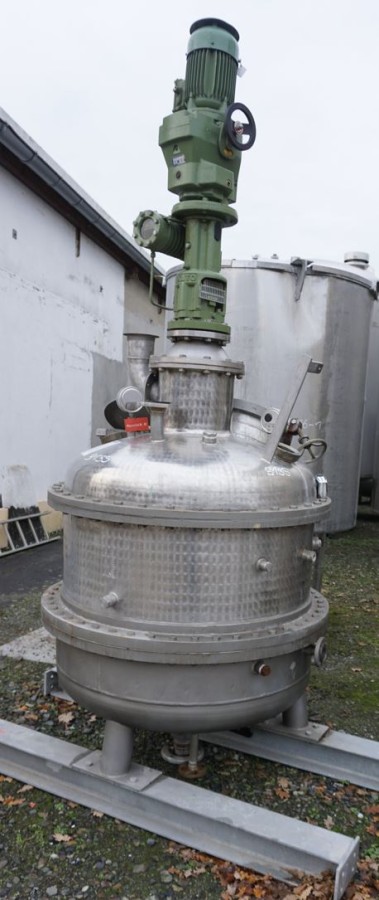

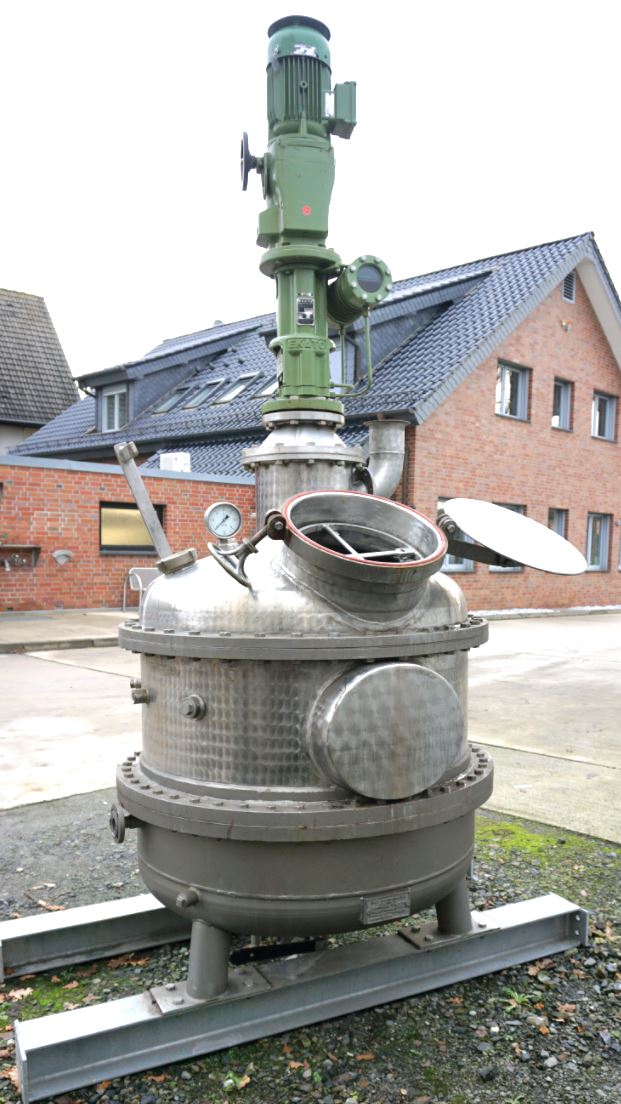

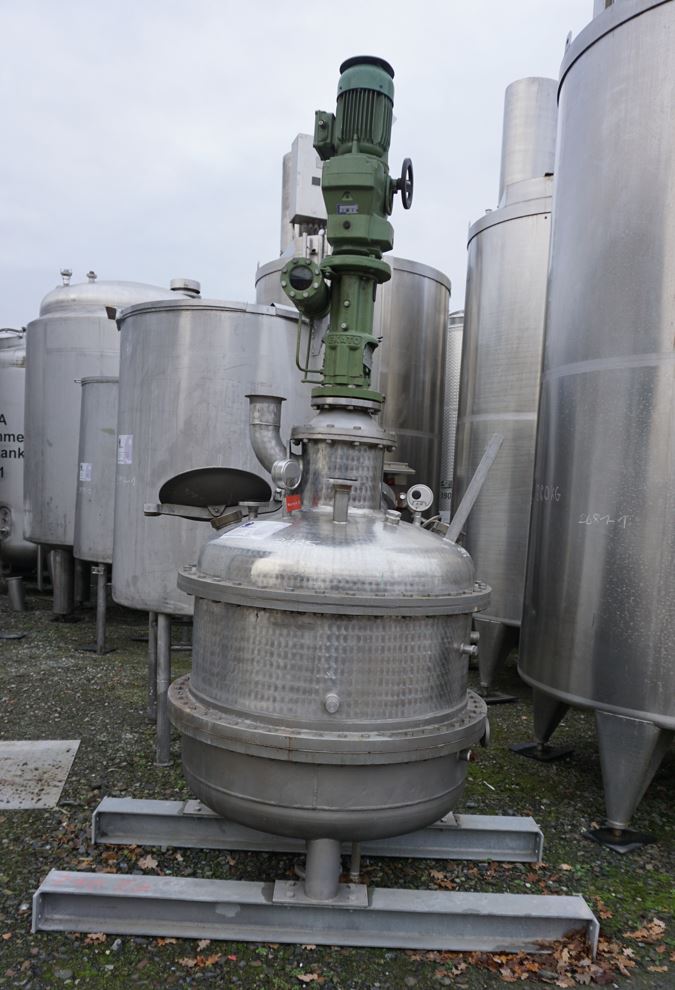

Container 500 liters made of V2A temperature-controllable, used, standing

EUR 2.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 500 liters made of V2A temperature-controllable, used consists of the material 1.4541(AISI321). The volume is approx. 500.00 litres. The diameter inside includes 1,000 mm.  Container 500 liters made of V2A temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cooling, Tempering, Mixing, Under/over-pressure,

General

  • Volume approx.

  • 500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1967

  • Manufacturer

  • Hugo Rossmann

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.000 mm

  • Cyl. height

  • 670 mm

  • Total height

  • 2.900 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,50 bar

  • Product chamber operating under-pressure

  • VAK bar

  • Product chamber operating temperature

  • 150,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating pressure

  • 0,50 bar

  • Operating temperature

  • 150 °C

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 150 °C

  • Temperature control system/pipe chamber capacity

  • 60 litres

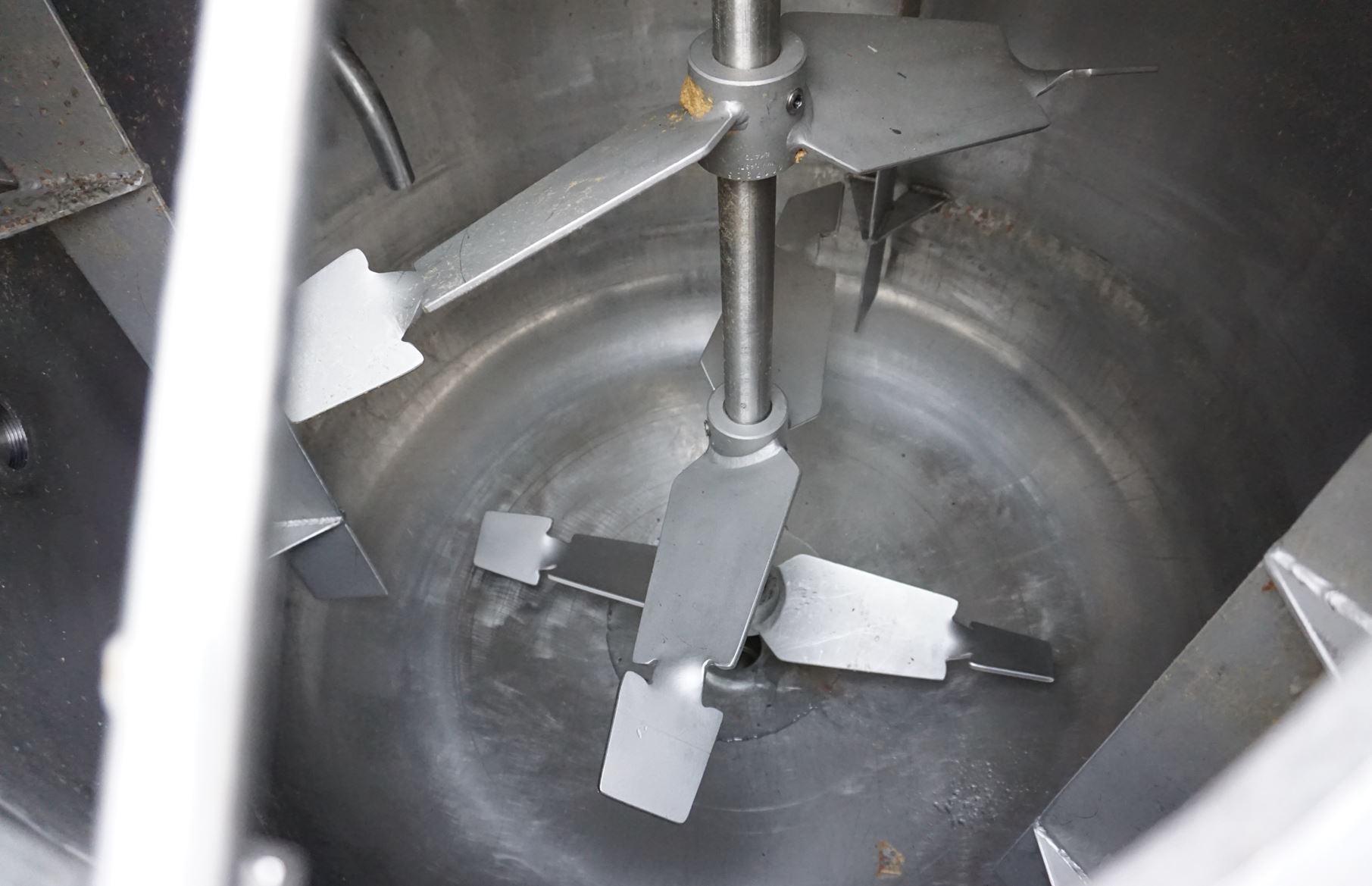

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Trapezoidal agitator

  • Agitator position

  • Head central

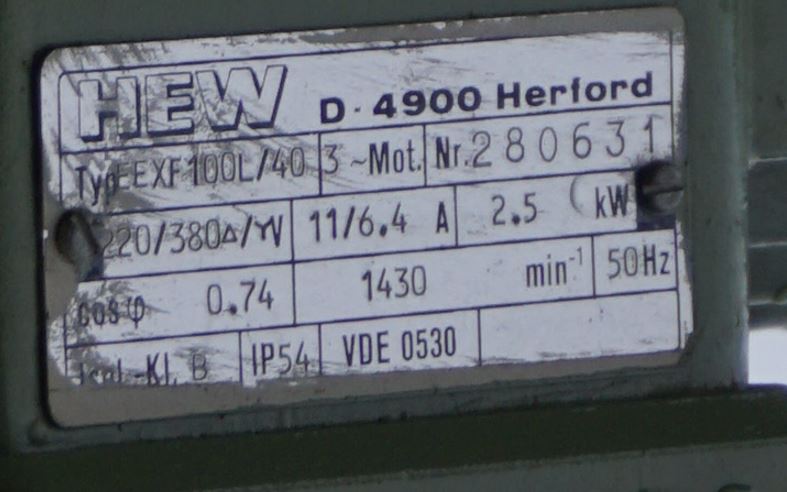

  • Agitator 1 - Output

  • 2,5 kW

  • Agitator 1 - Voltage

  • 380 V

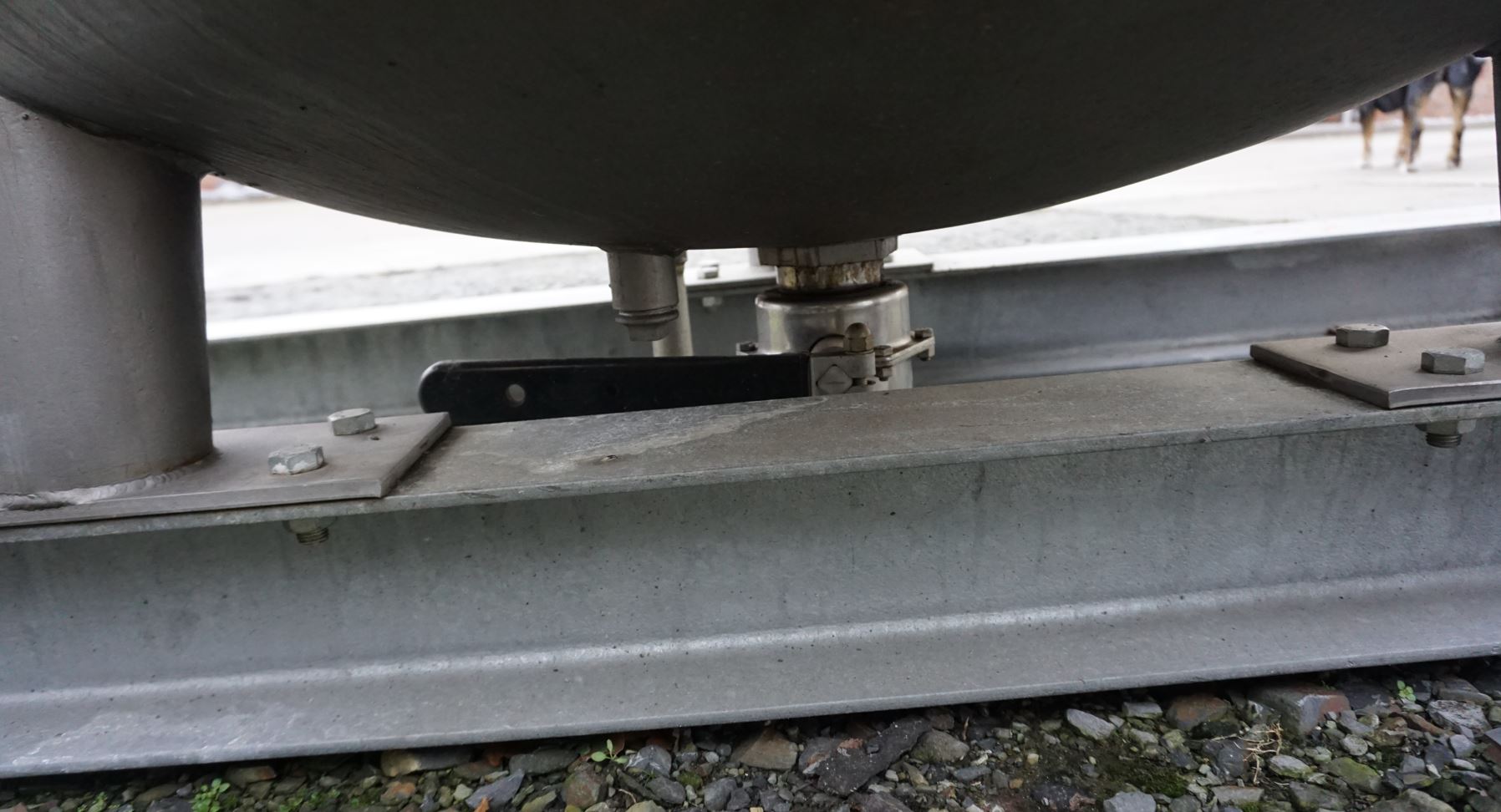

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • auf 2 Doppel-T-Träger schraubt

Fixtures and fittings

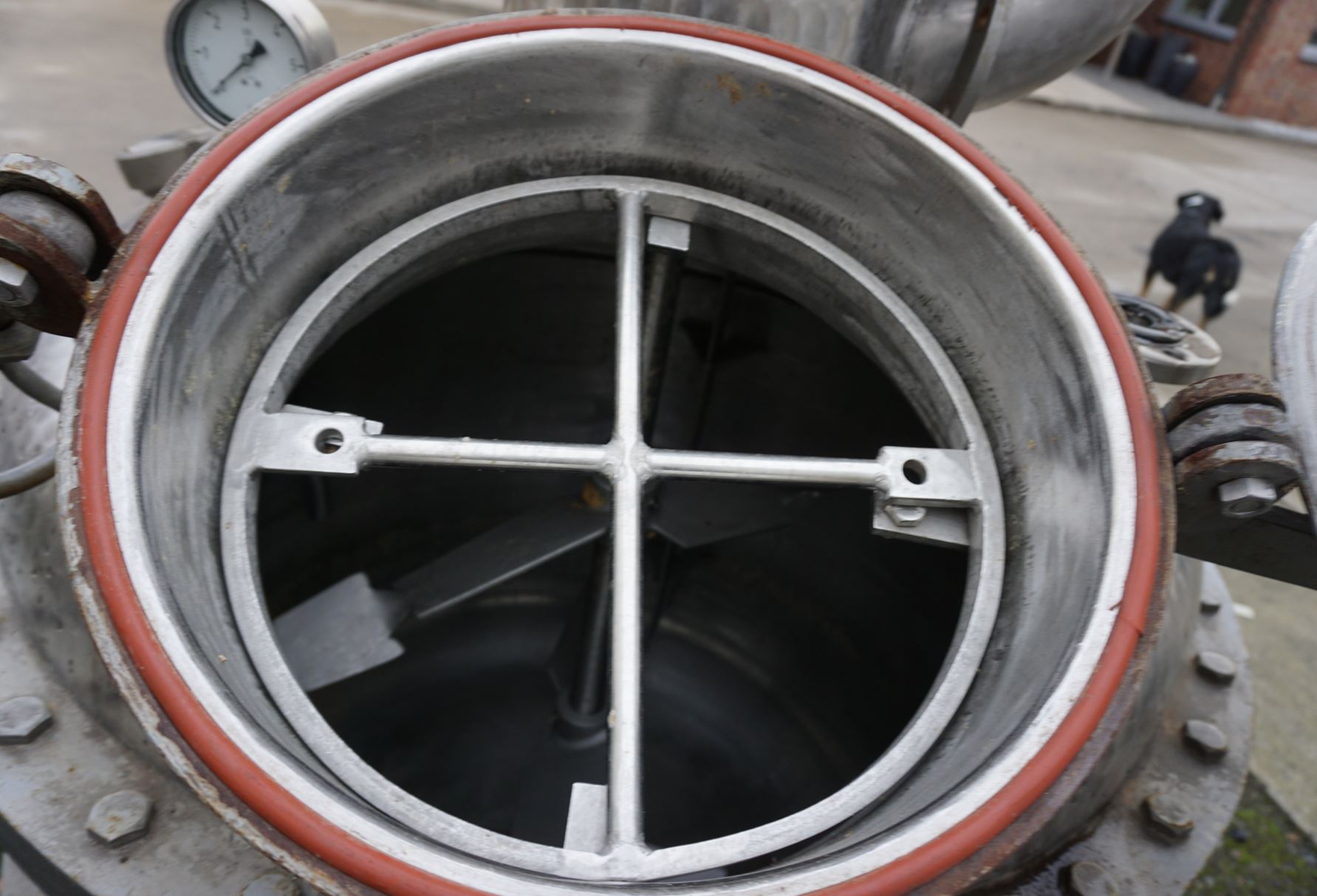

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 2xDN50, 1xDN25 (piece)

  • Outlet nozzle

  • 65

  • Additional fixtures and fittings

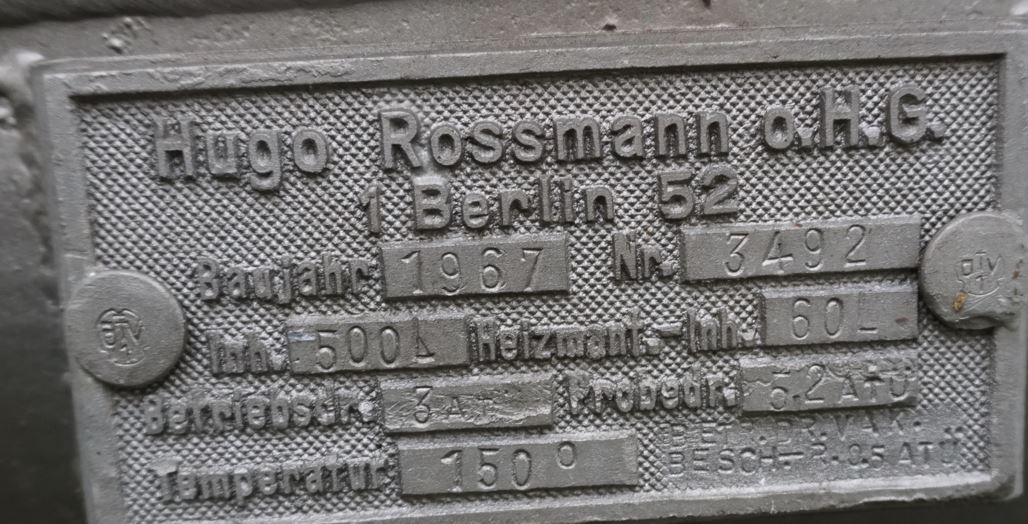

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Motor ex-geschützt; die Übereinstimmung mit den aktuell geltenden ATEX-Richtlinien ist zu überprüfen

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Pressure tank, Process tank, CIP tank,
