Product no. M-3090

Container 58.000 liters made of V2A isolated, used, standing

EUR 21.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 58,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

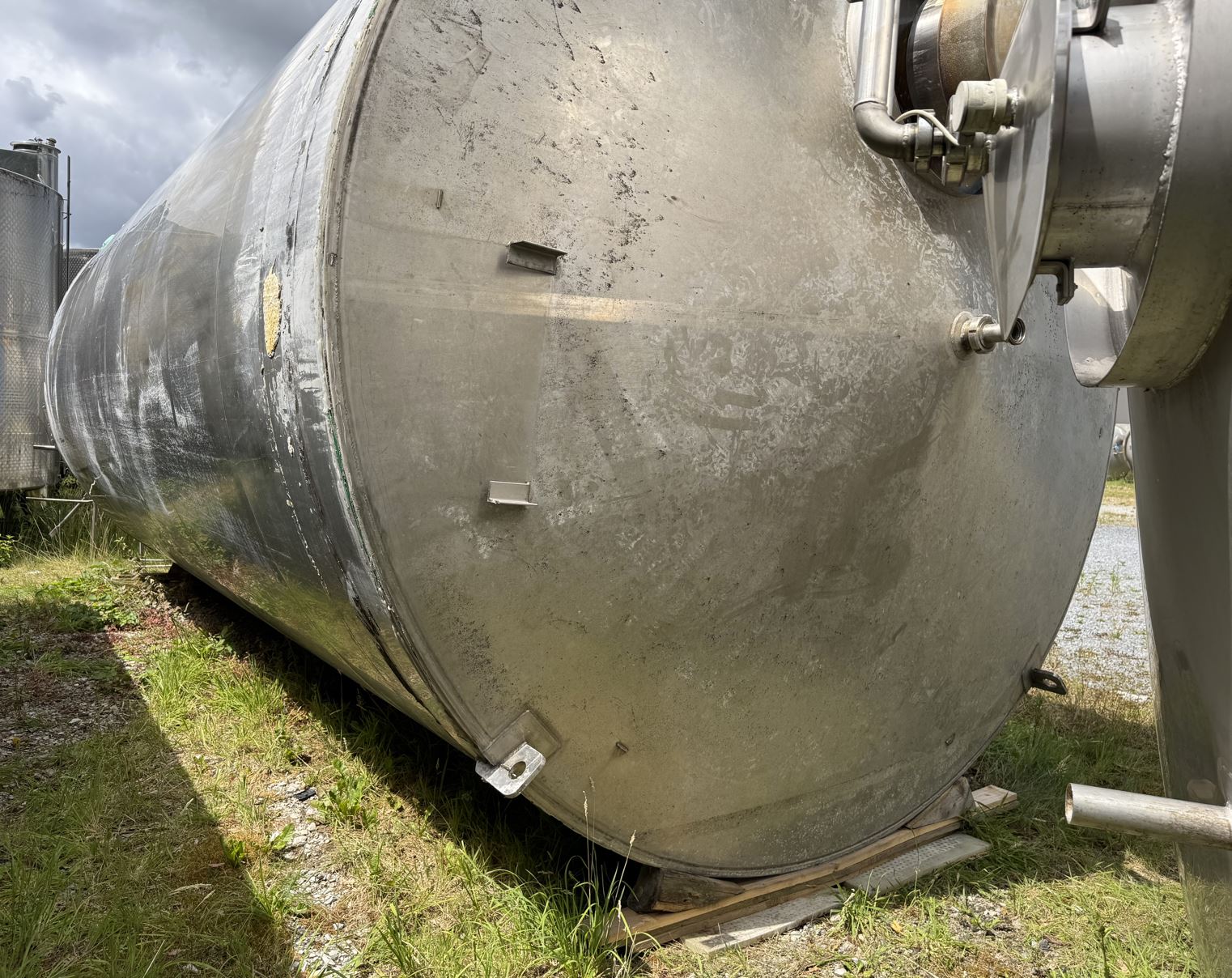

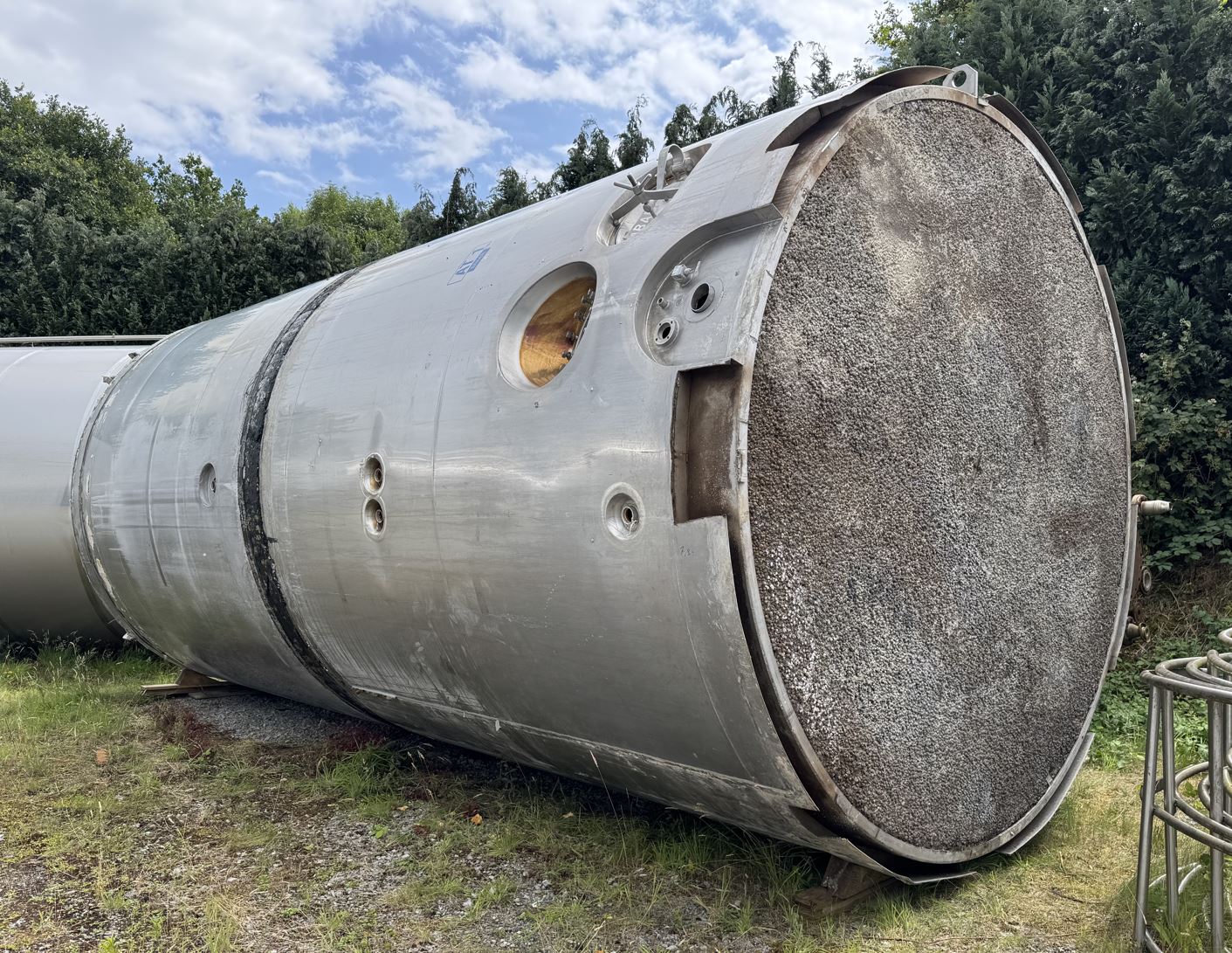

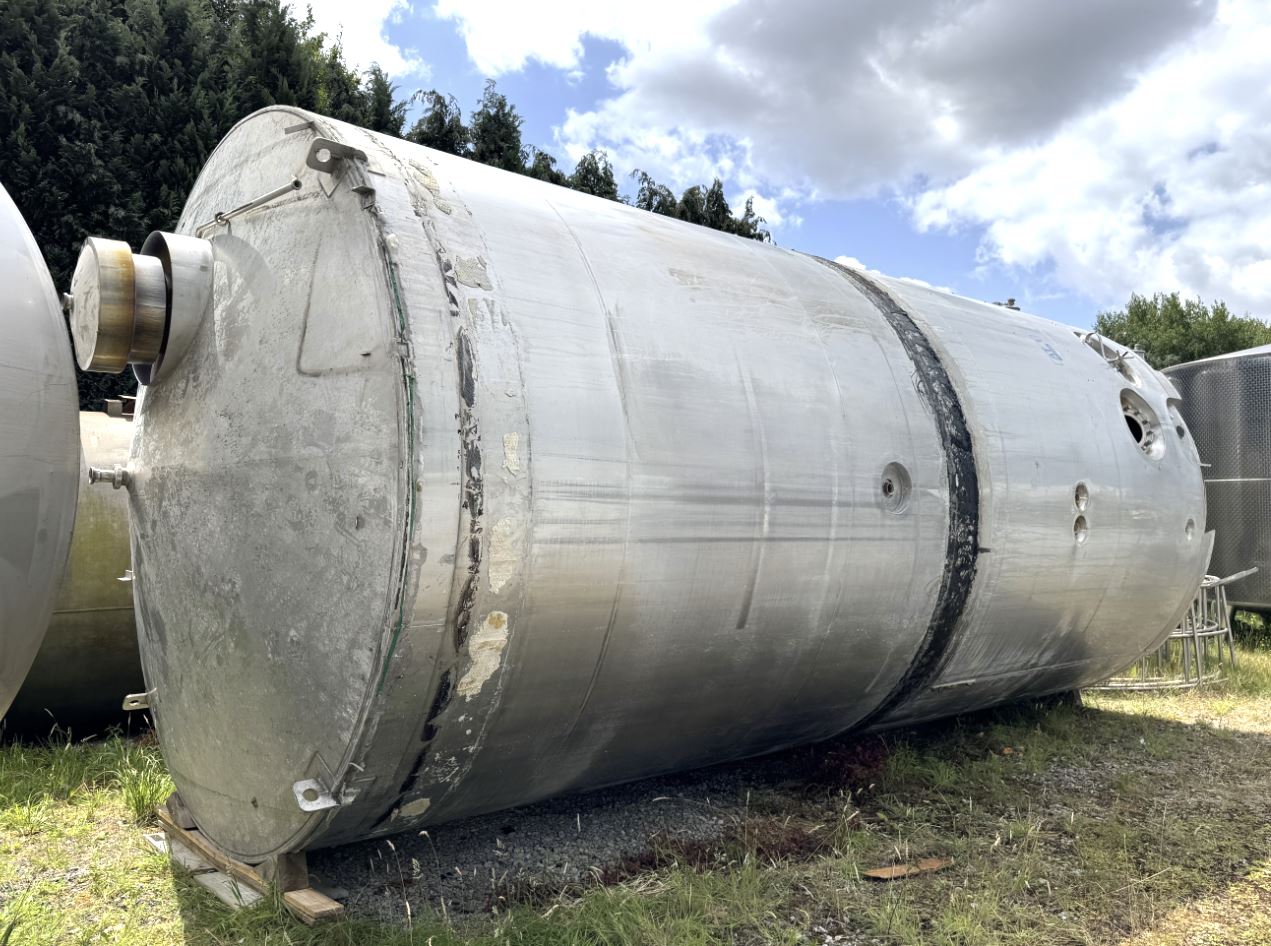

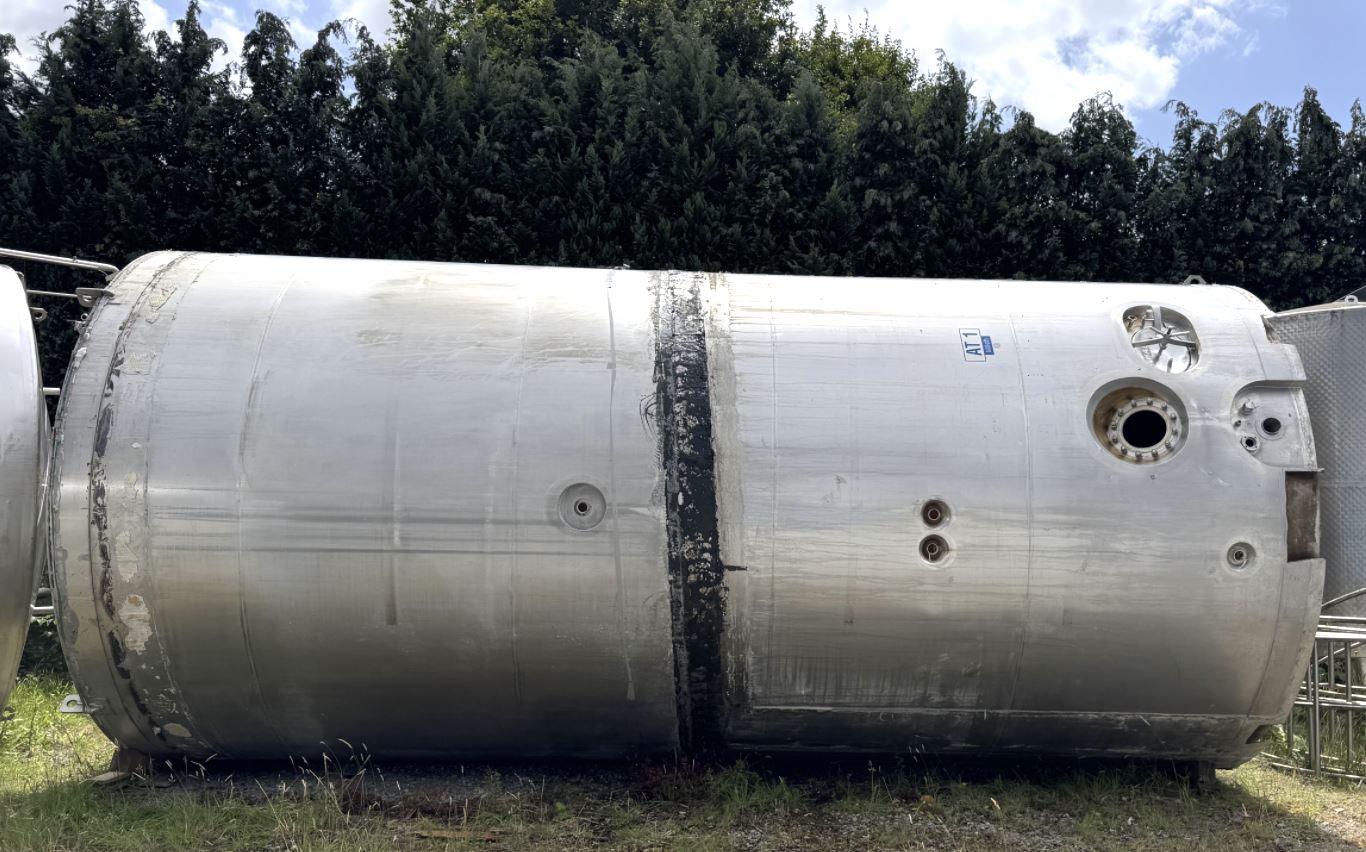

Container 58.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 58,000.00 litres. The diameter inside includes 3,300 mm.  Container 58.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 58.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1986

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.300 mm

  • External diameter

  • 3.450 mm

  • Cyl. height

  • 7.250 mm

  • Total height

  • 8.300 mm

Design

  • Weight approx.

  • 10.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

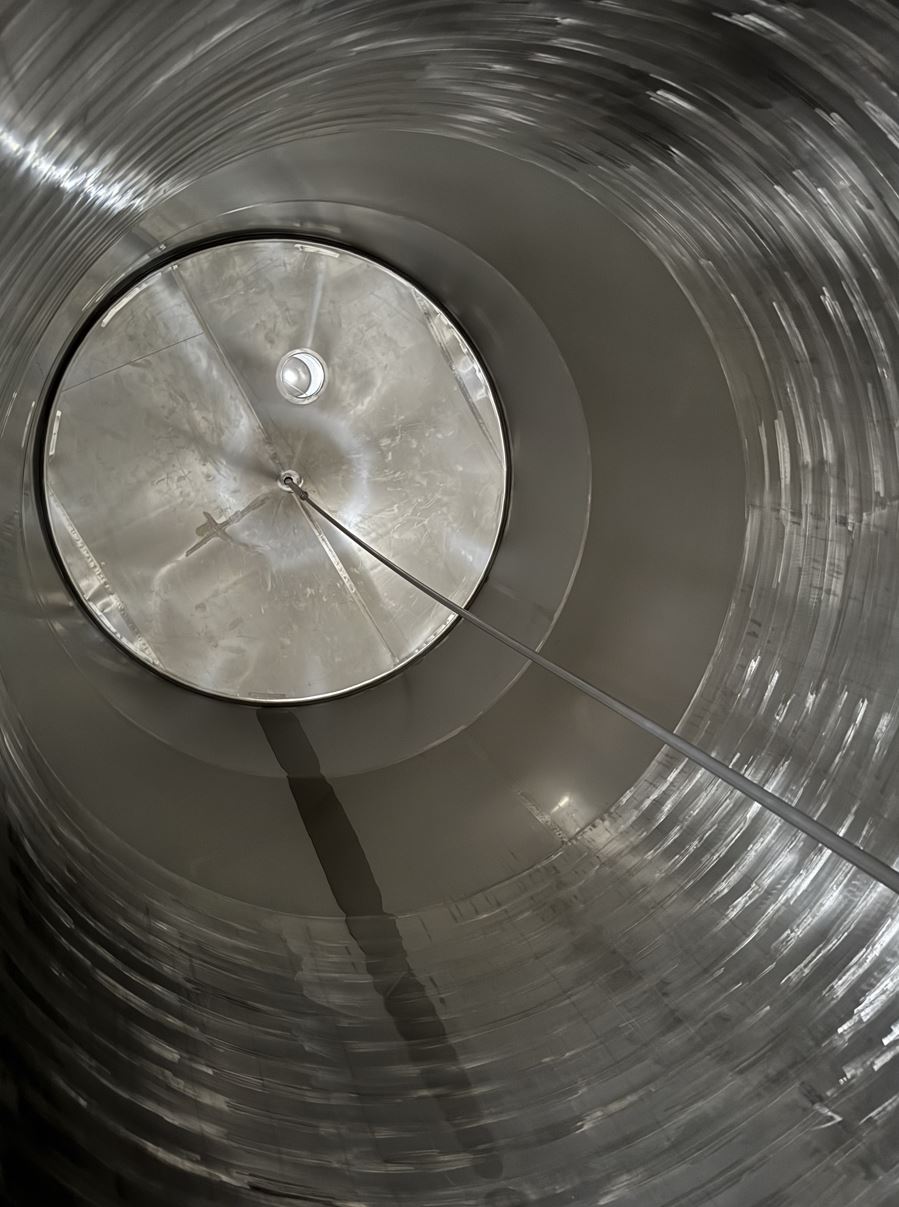

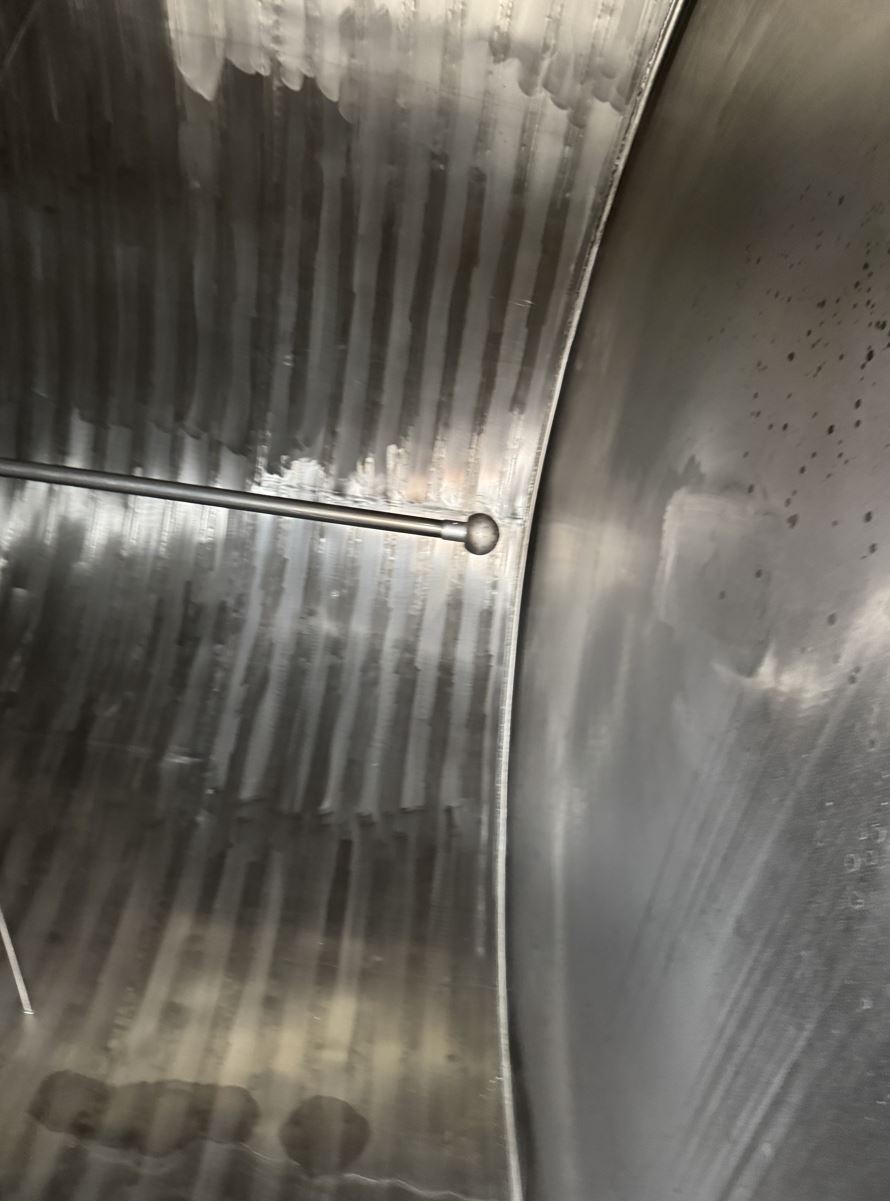

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

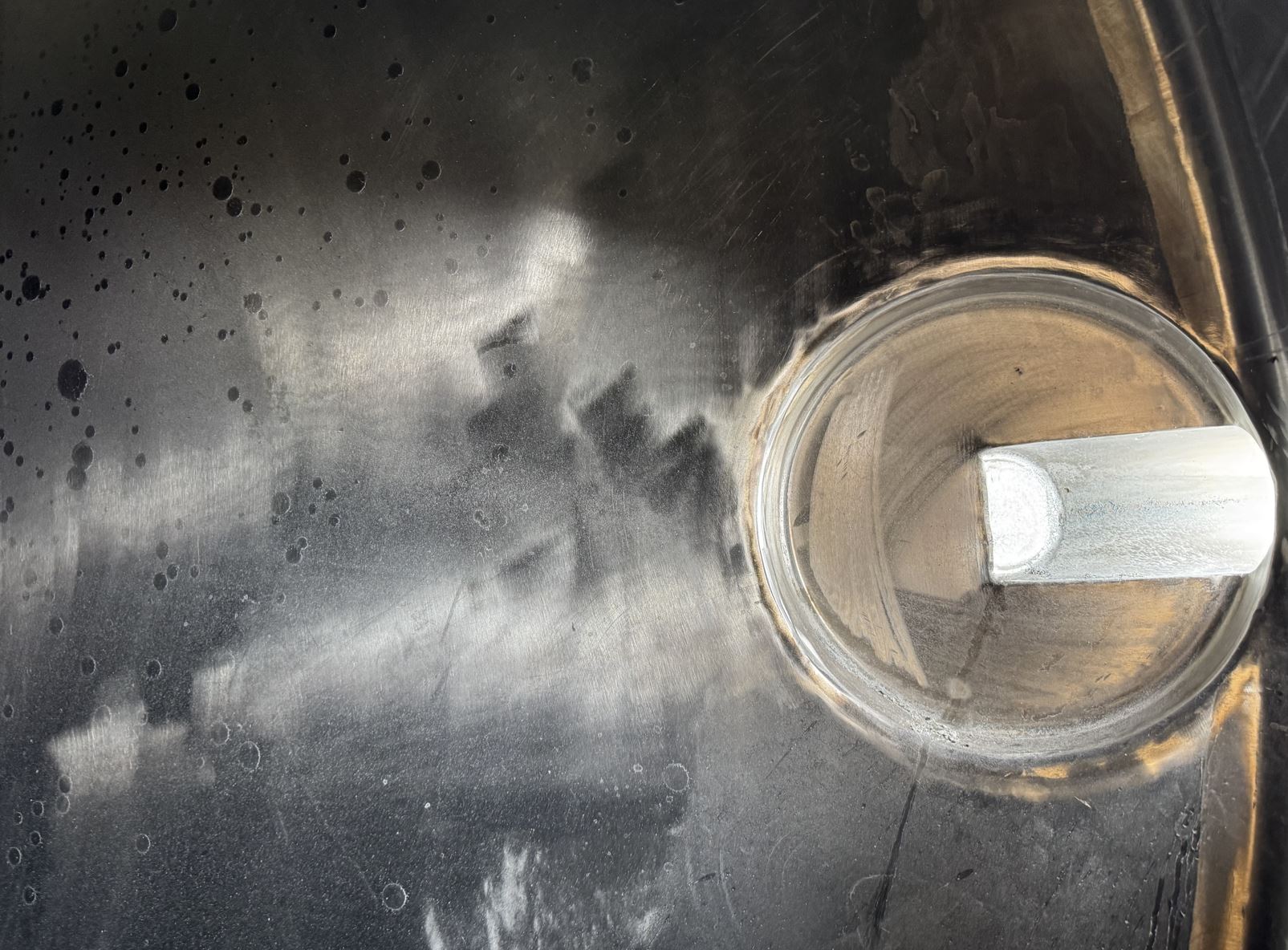

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Concrete support skirt

Fixtures and fittings

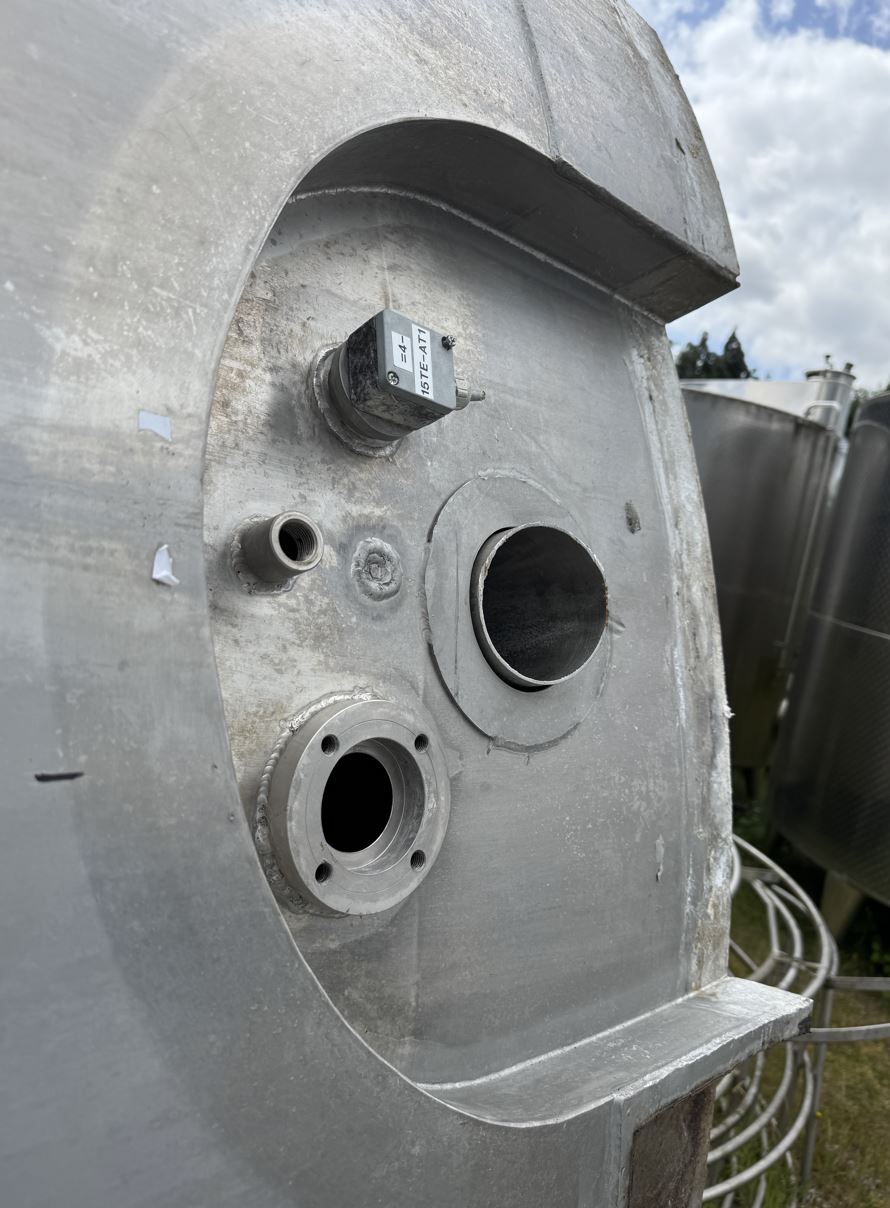

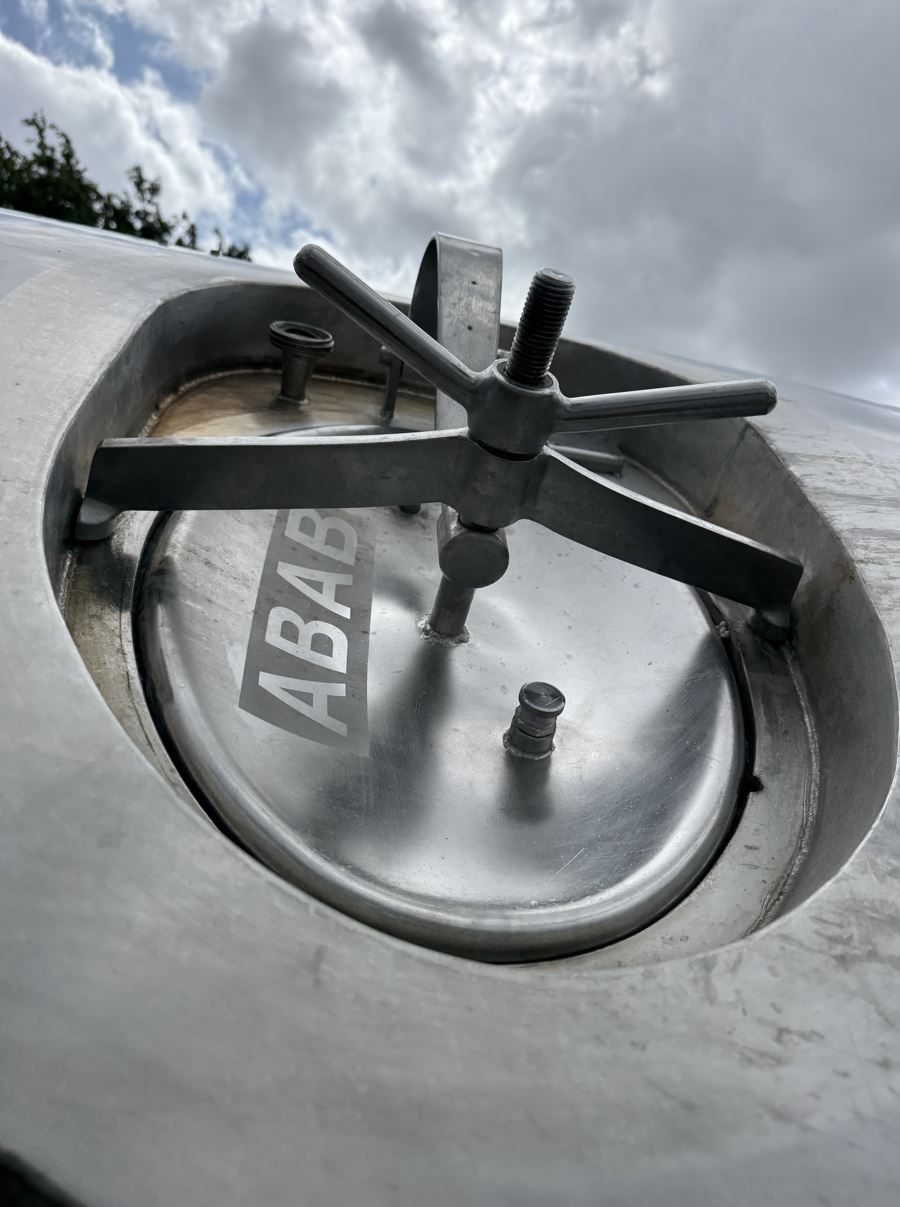

  • Manway position

  • In shell

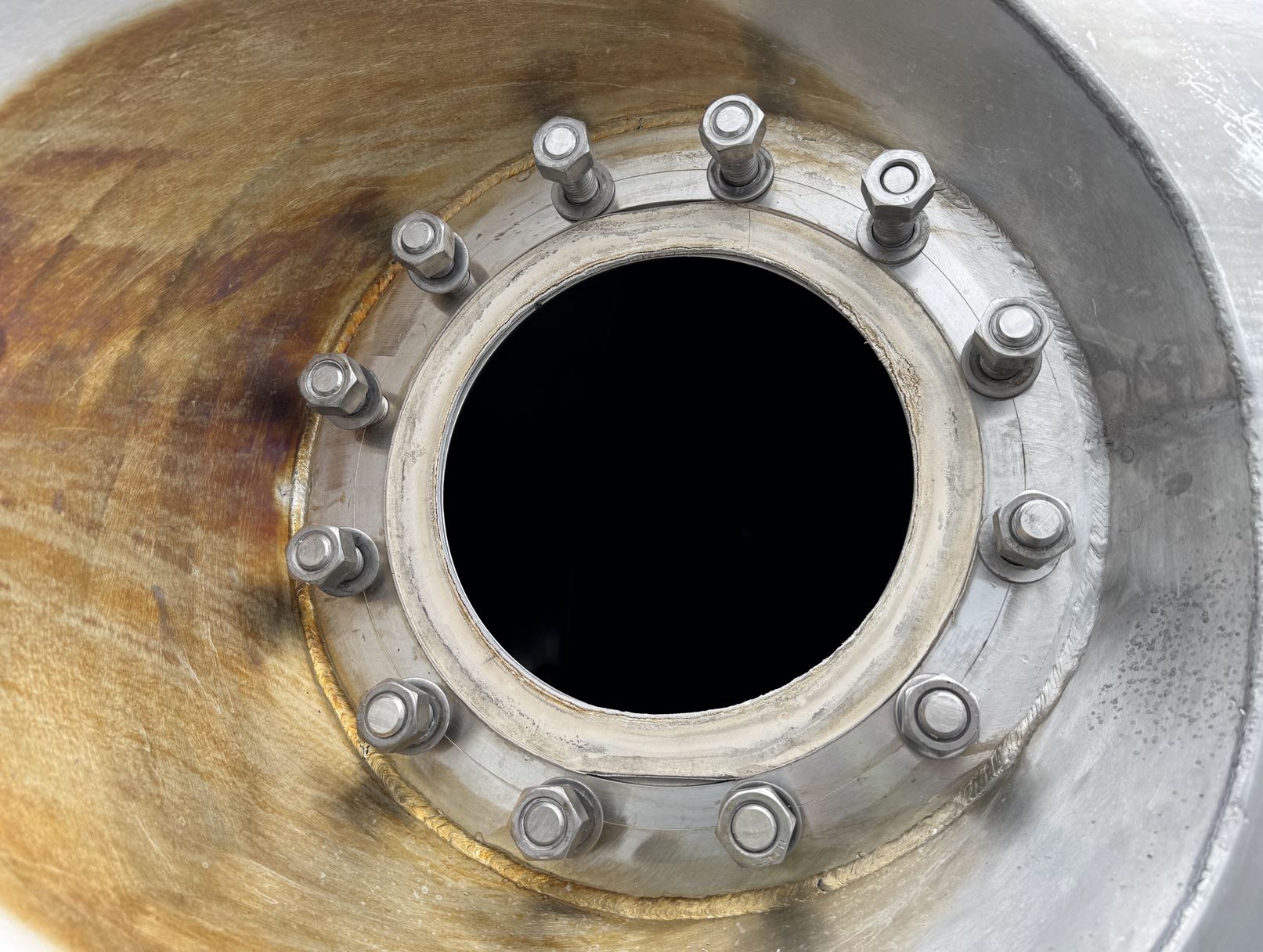

  • Outlet nozzle

  • 100

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • Innen kleine Reparaturstellen. Temperiermantel vorhanden vermutlich undicht.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
