Product no. M-3083
Container 6.220 liters made of V2A, single-walled, used (ehem. Drucktank), standing
EUR 5.900,00
add. 19 % VAT excl. shipping costs
Volume approx. 6,220.00 litres
Product description

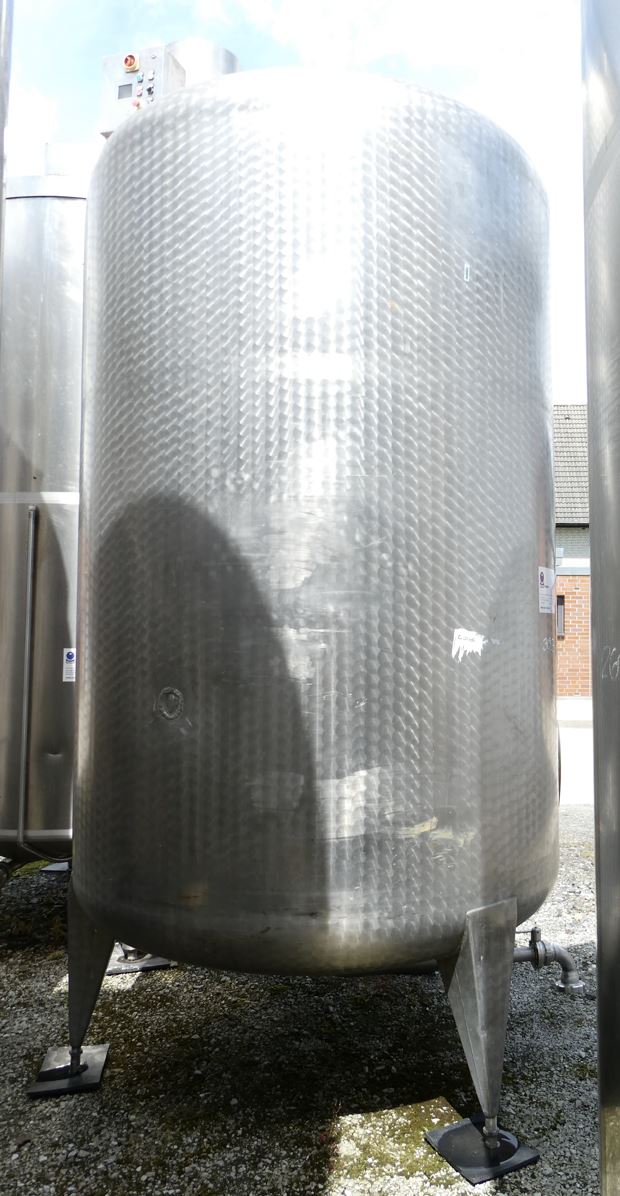

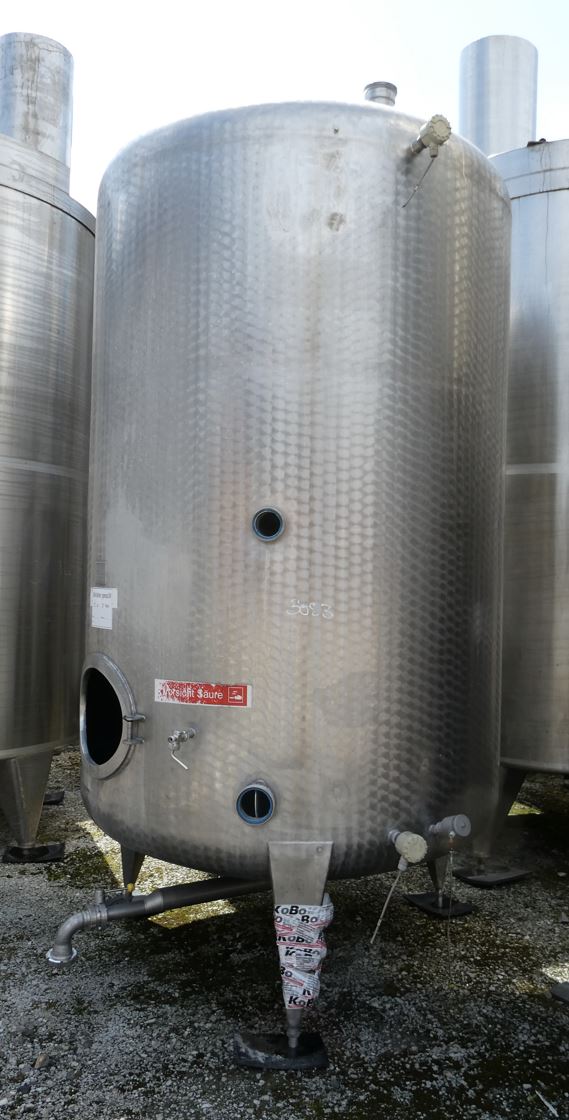

Container 6.220 liters made of V2A, single-walled, used (ehem. Drucktank) consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,220.00 litres. Container 6.220 liters made of V2A, single-walled, used (ehem. Drucktank) was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Under/over-pressure,General
- Volume approx.
- 6.220,00 litres
- Structure
- Standing

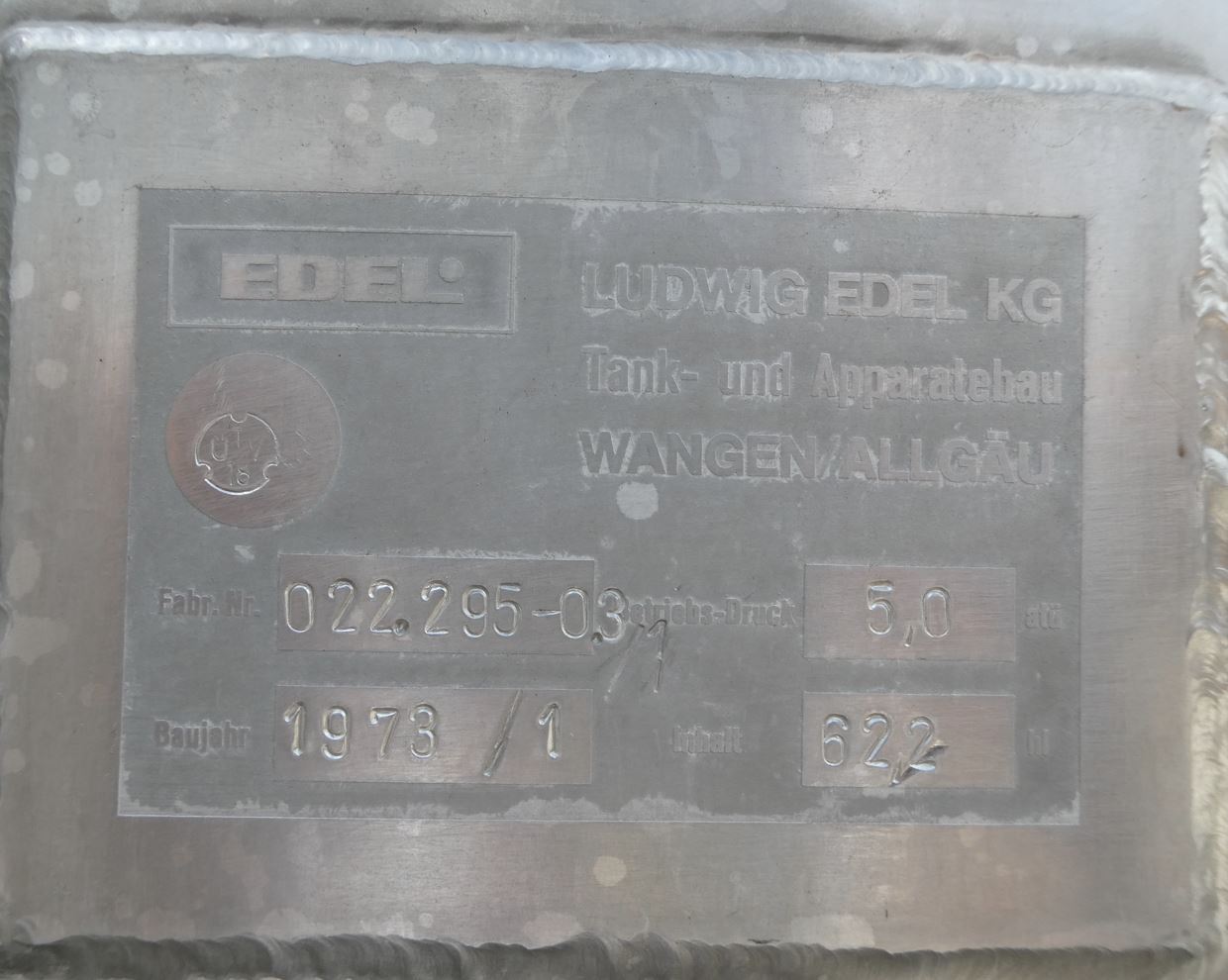

- Year of manufacture
- 1973
- Manufacturer
- Edel
- Condition
- Used
Dimensions approx.
- External diameter
- 1.700 mm
- Cyl. height
- 2.250 mm
- Foot height
- 700 mm
- Total height
- 3.450 mm
Design
- Weight approx.
- 800,00 kg
- Weight per unit volume approx.
- 1.000,00 kg/m³
- Insulation
- no

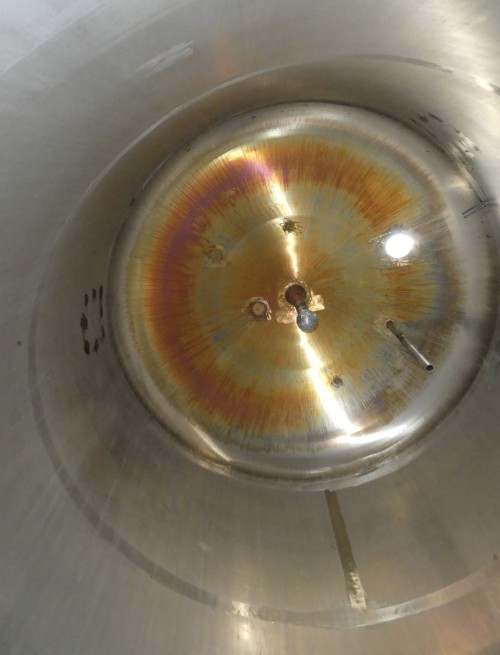

- Interior surface
- Smoothed
- Exterior surface
- Marbled
- Floor type
- Torispherical bottom
- Head design
- Torispherical bottom
Supports
- Supports
- Stainless steel feet
- Number of feet
- 3 (piece)
- Note on supports
- höhenverstellbar
Fixtures and fittings

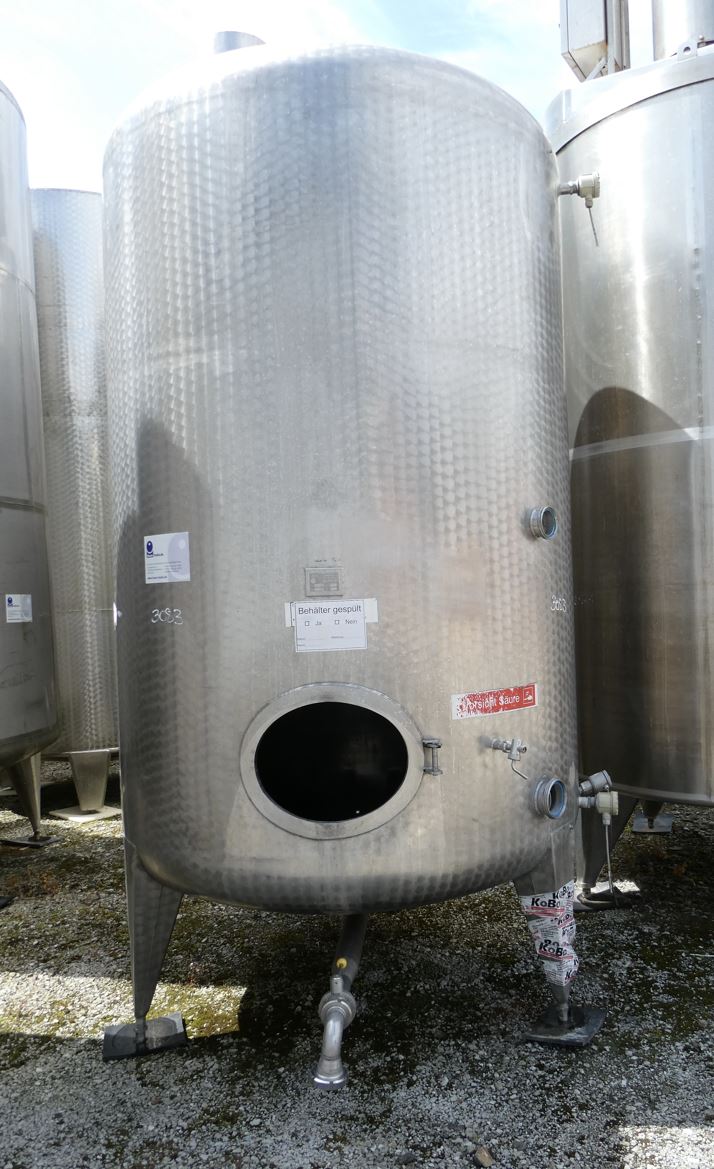

- Manway position
- In shell
- Nozzles/connectors in shell
- 1xDN80 1xDN100 (piece)

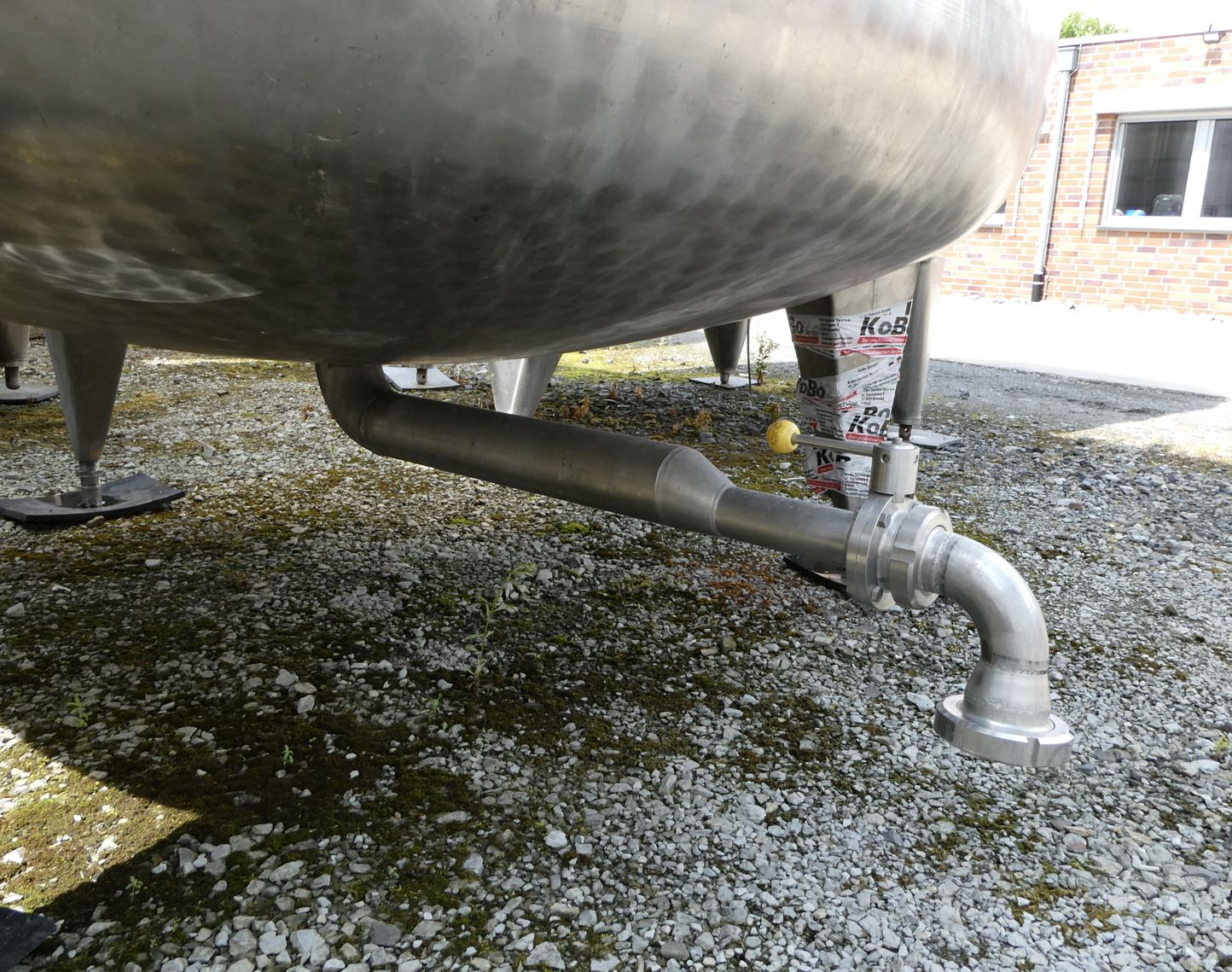

- Outlet nozzle
- 80/50
- Cleaning/CIP nozzle
- in head
Technical documentation
- Technical documentation
- None
Other
- Note
- zuletzt nicht als Drucktank verwendet
- Last usage
- Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Cold water tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Cold water tank,
