Product no. M-3142

Container 6.500 liters made of V2A single-walled, used, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 6,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

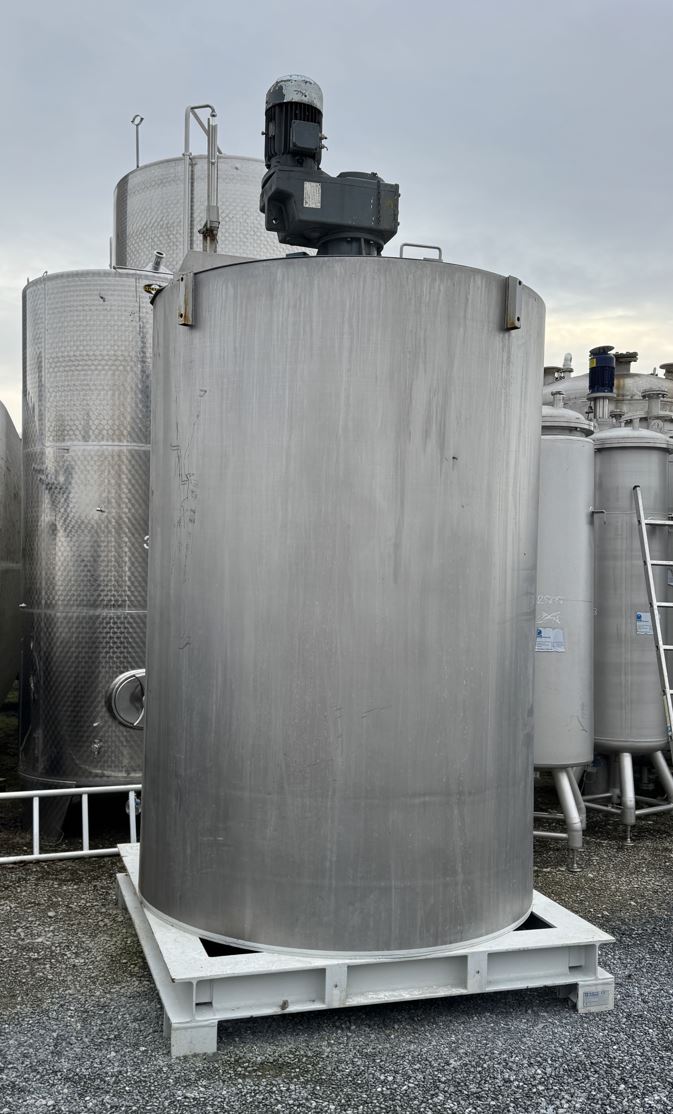

Container 6.500 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 6,500.00 litres. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 6.500,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.750 mm

  • Cyl. height

  • 2.580 mm

  • Frame height

  • 270 mm

  • Total height

  • 3.900 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

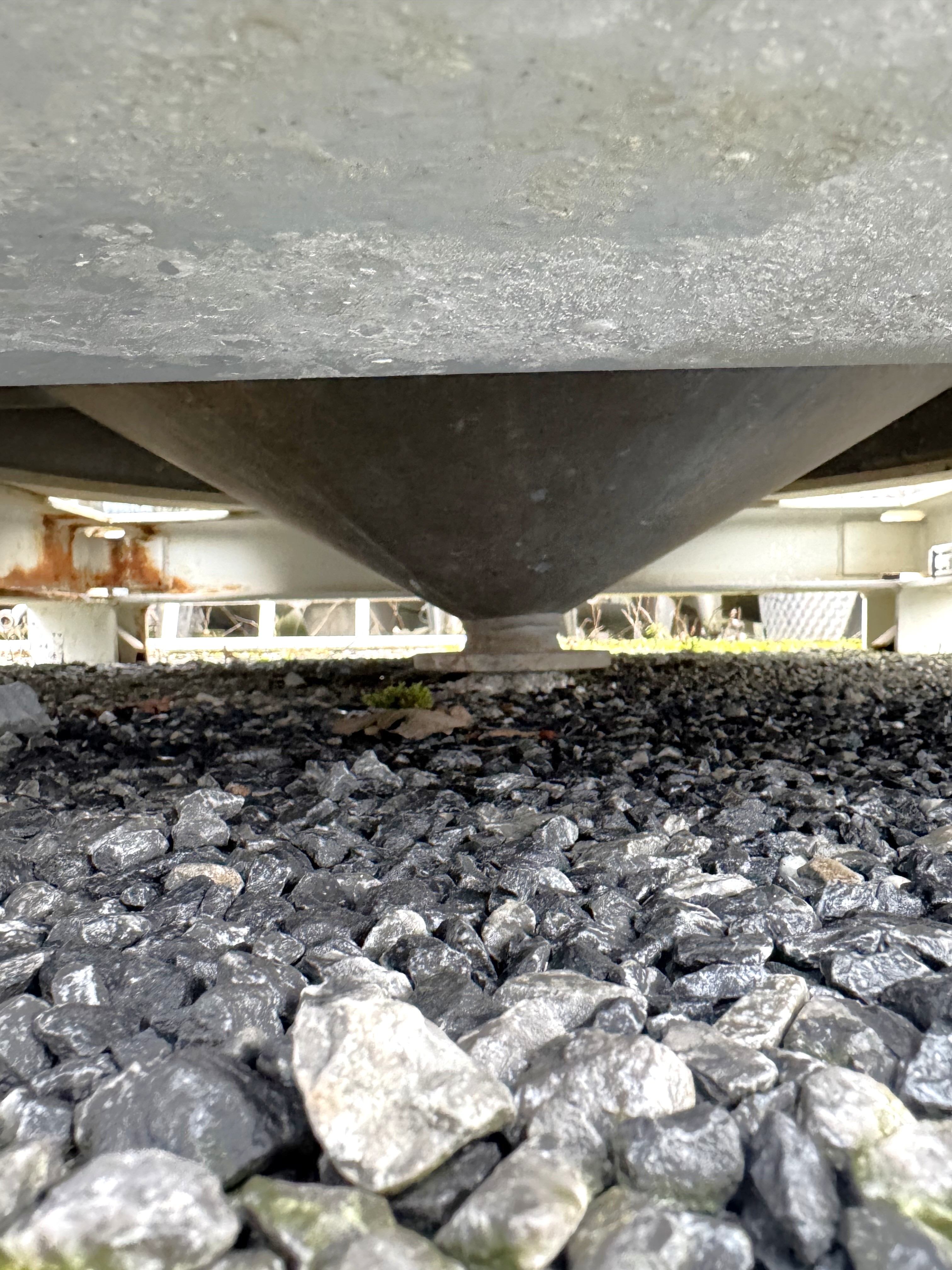

  • Conical bottom

  • Head design

  • Flat bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

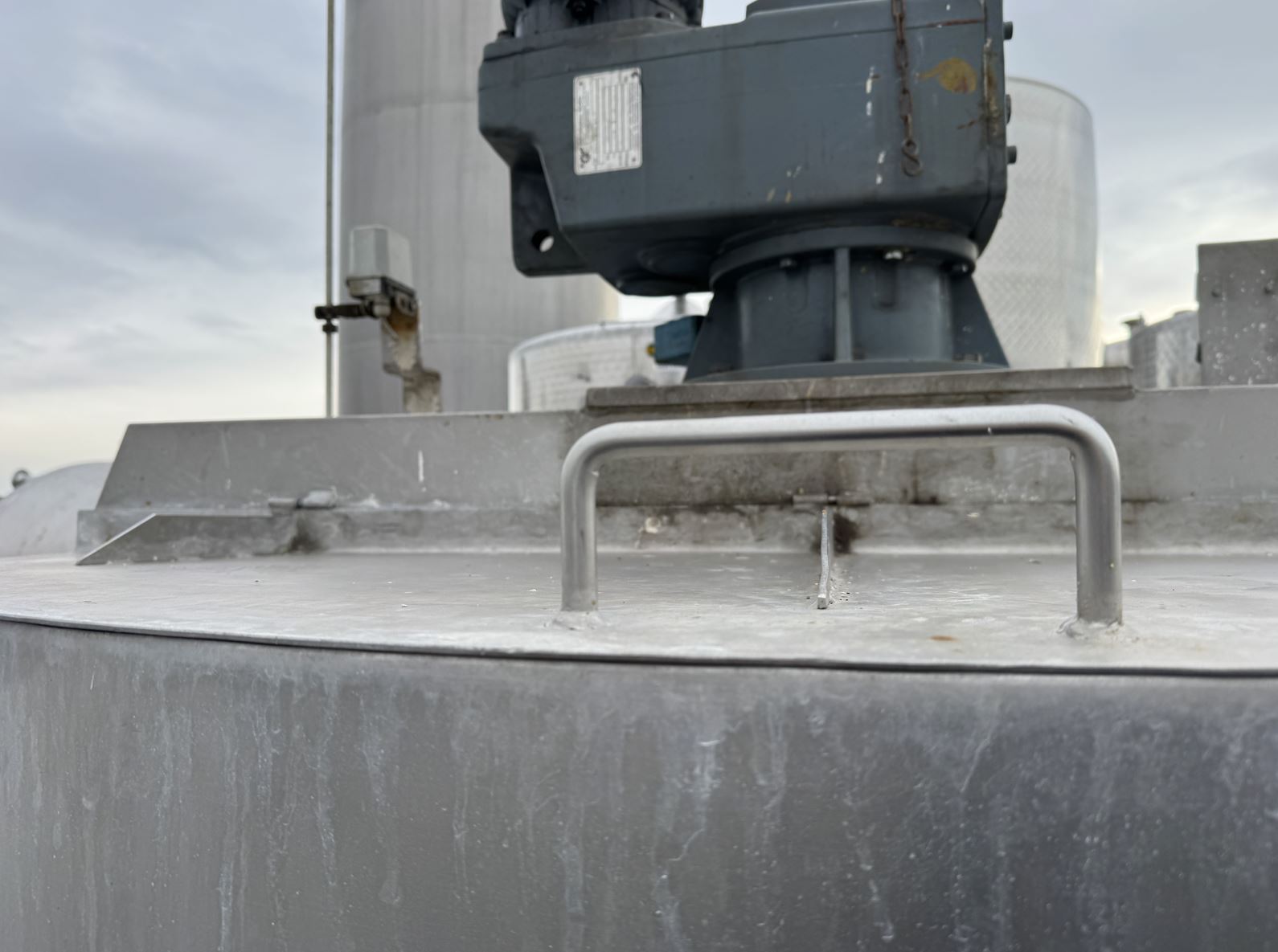

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

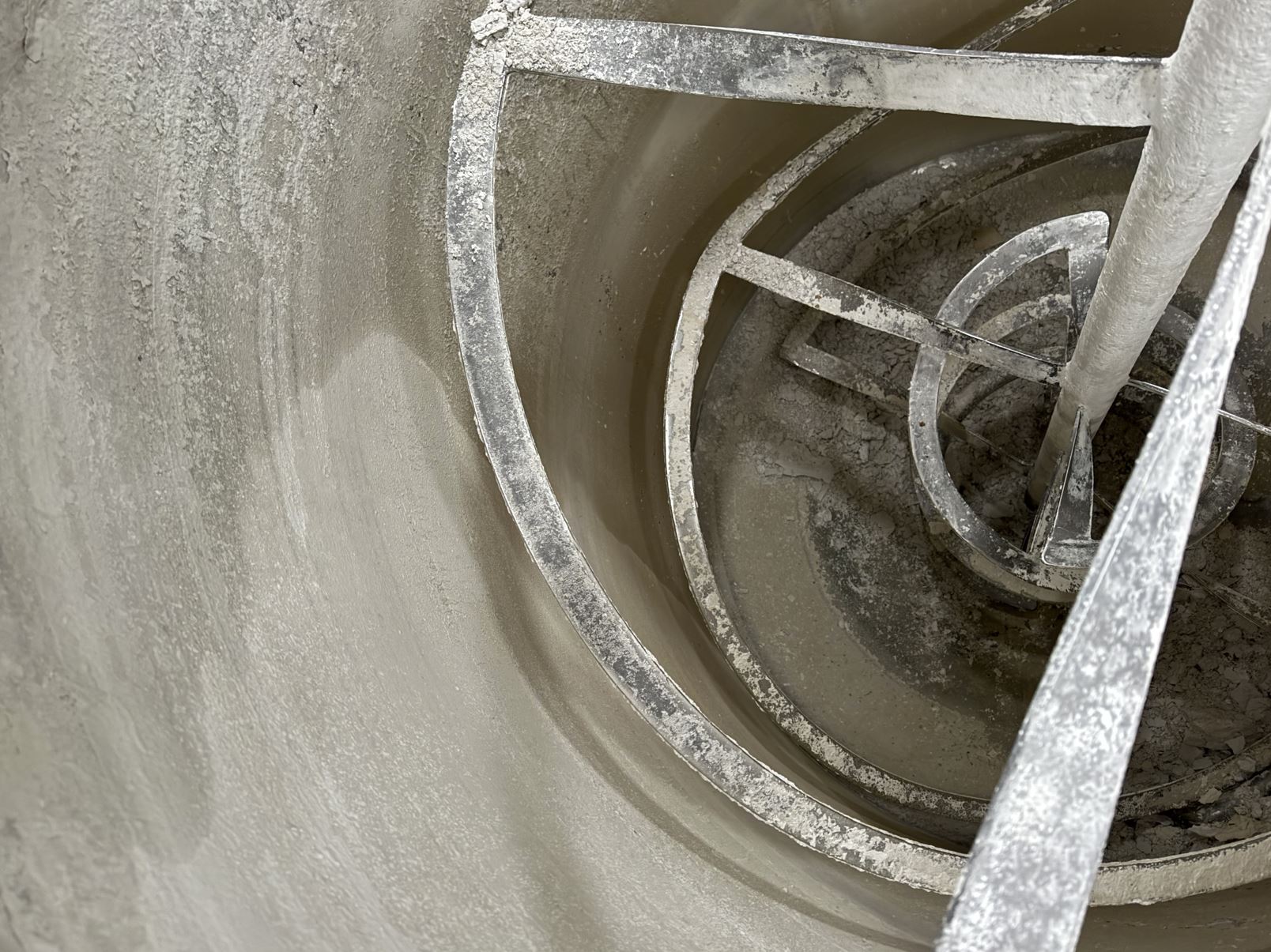

  • Spiral agitator

  • Agitator position

  • Head central

  • Agitator 1 - Output

  • 5,5 kW

  • Agitator 1 - RPM

  • 20 UpM

  • Agitator 1 - Voltage

  • 400 V

Supports

  • Supports

  • Steel frame

Fixtures and fittings

  • Manway position

  • In head

  • Outlet nozzle

  • 100

This product is suitable for use as:

Foodstuffs:

Agriculture: Silo, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
