Product no. M-2932

Container 65.000 liters made of V2A isolated, used, standing

EUR 24.600,00

add. 19 % VAT excl. shipping costs


Volume approx. 65,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

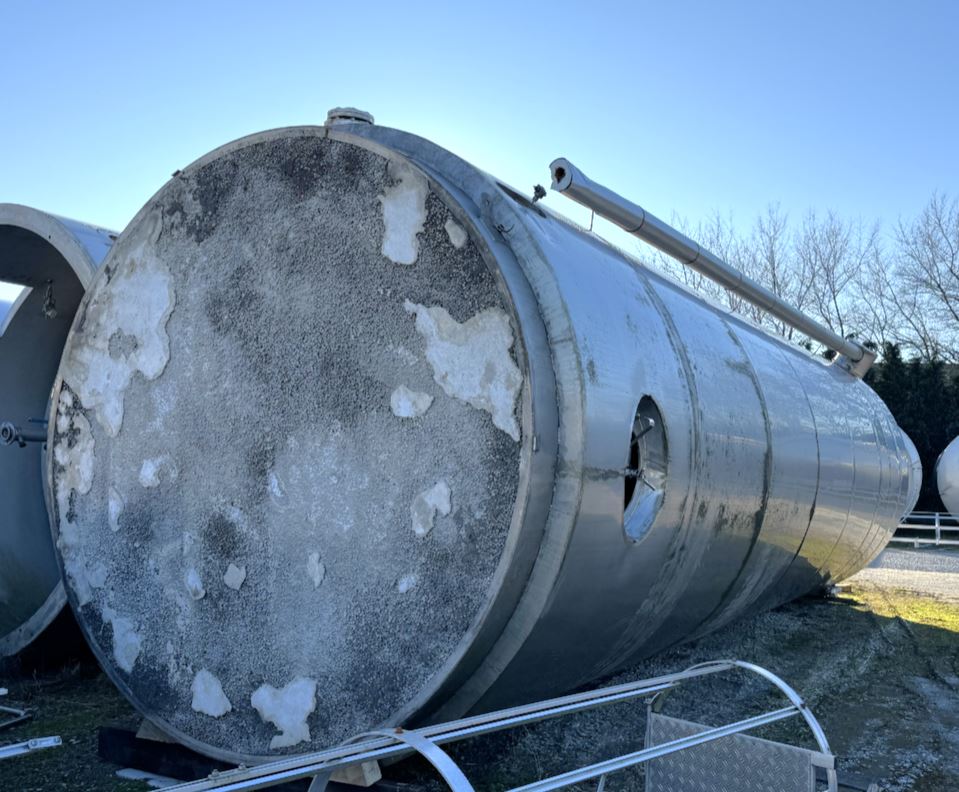

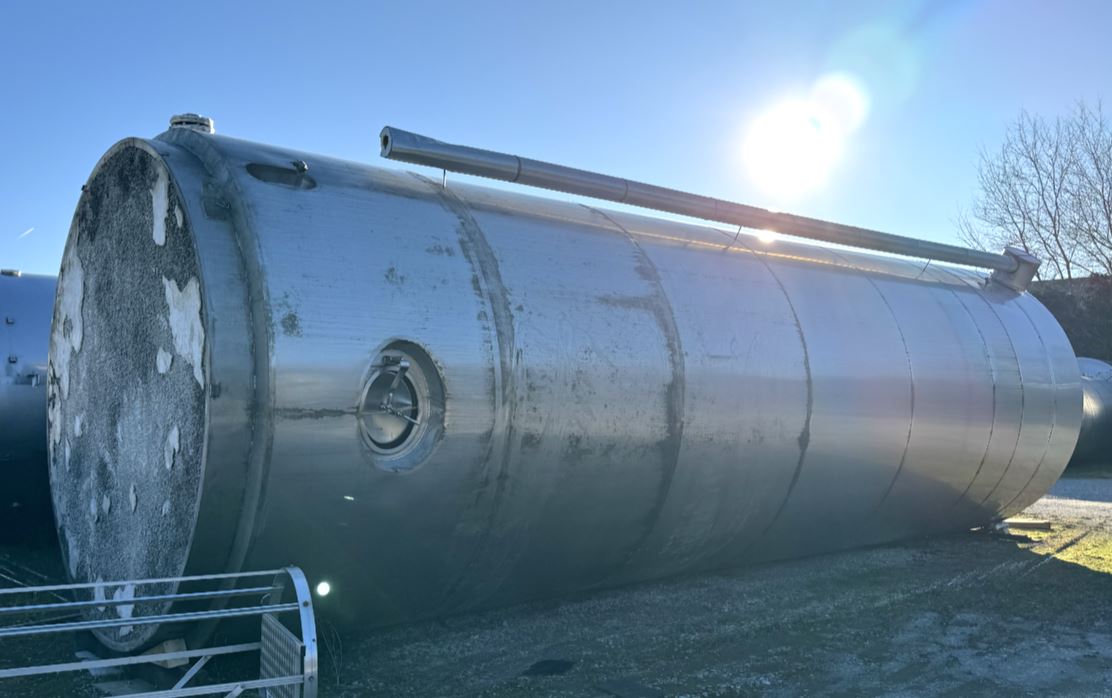

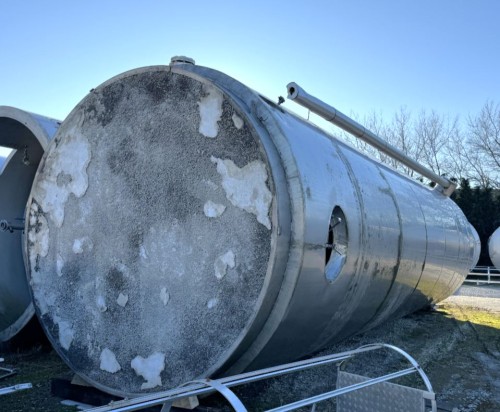

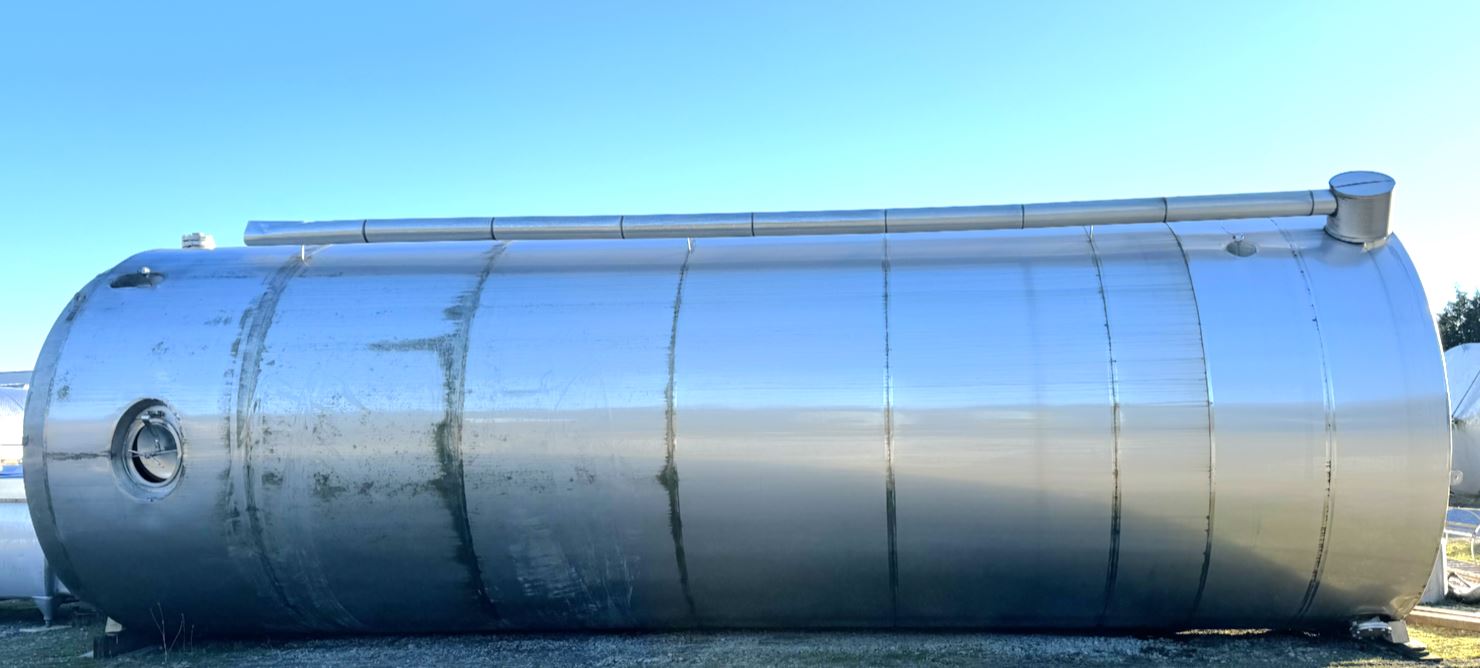

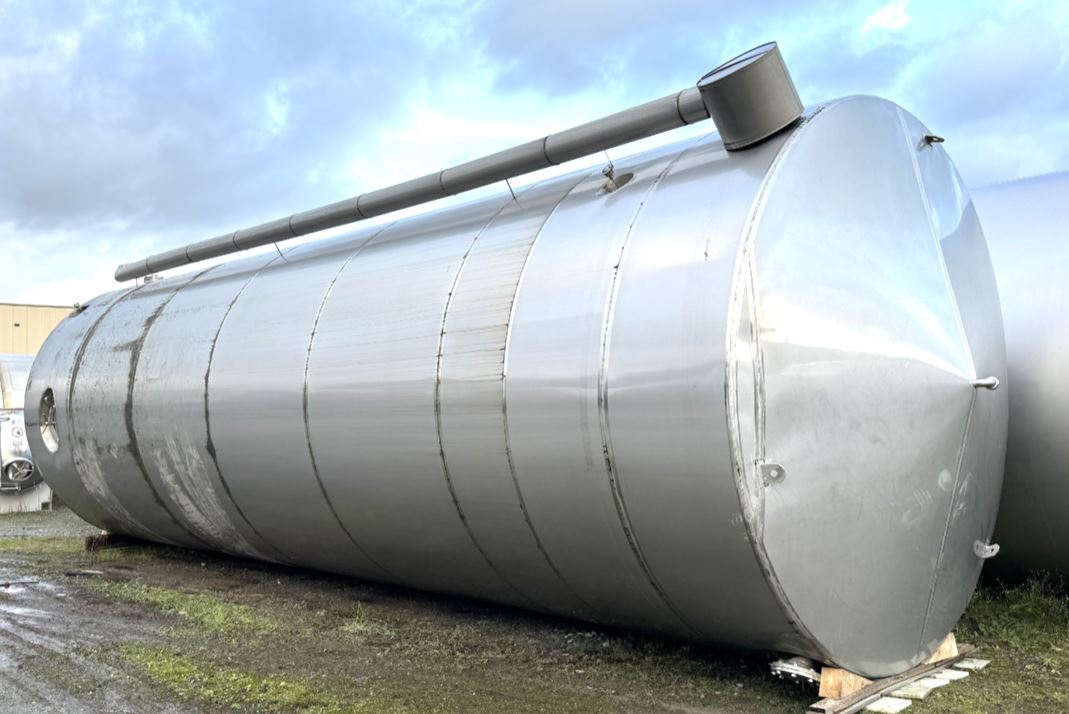

Container 65.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 65,000.00 litres. The diameter inside includes 3,000 mm.  Container 65.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 65.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.000 mm

  • External diameter

  • 3.240 mm

  • Cyl. height

  • 9.400 mm

  • Frame height

  • 230 mm

  • Total height

  • 11.000 mm

Design

  • Weight approx.

  • 6.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

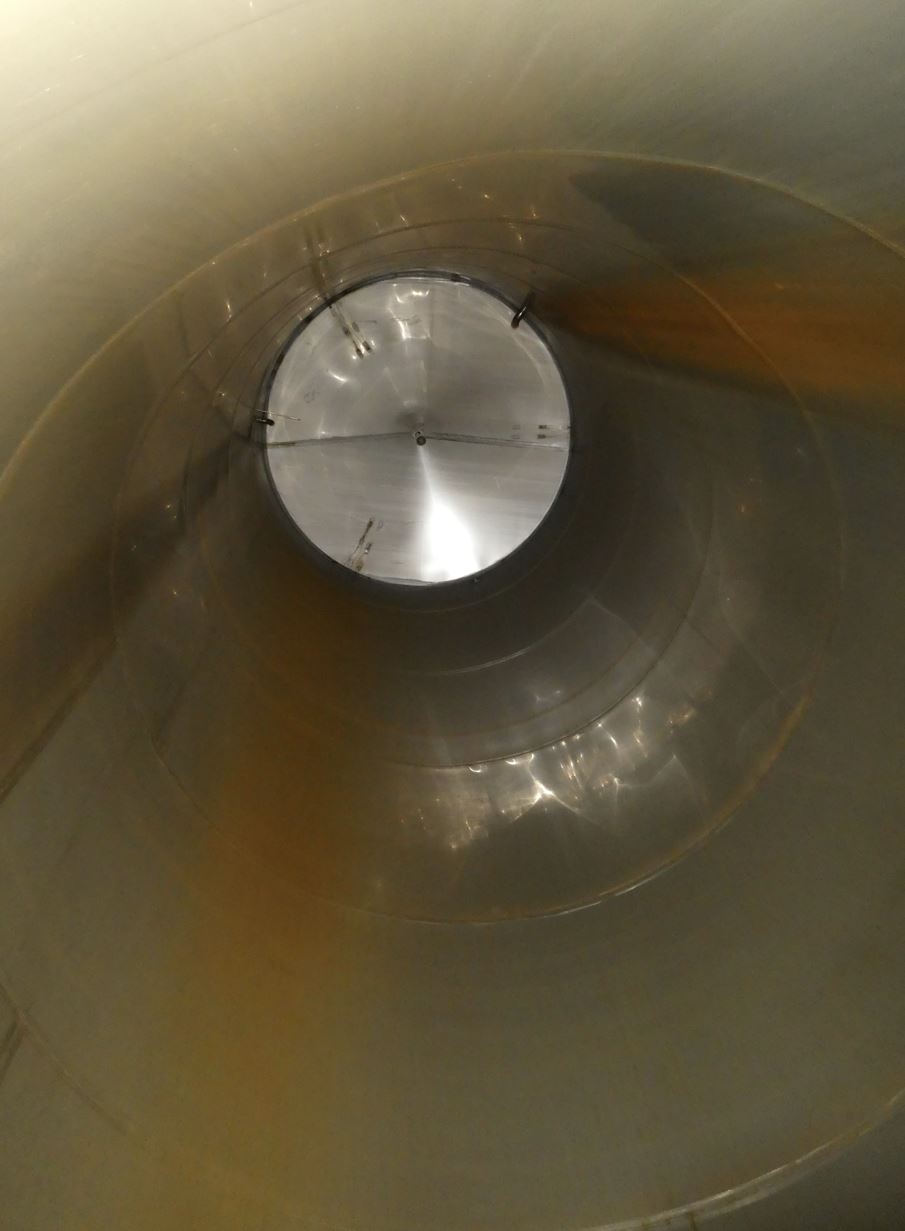

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

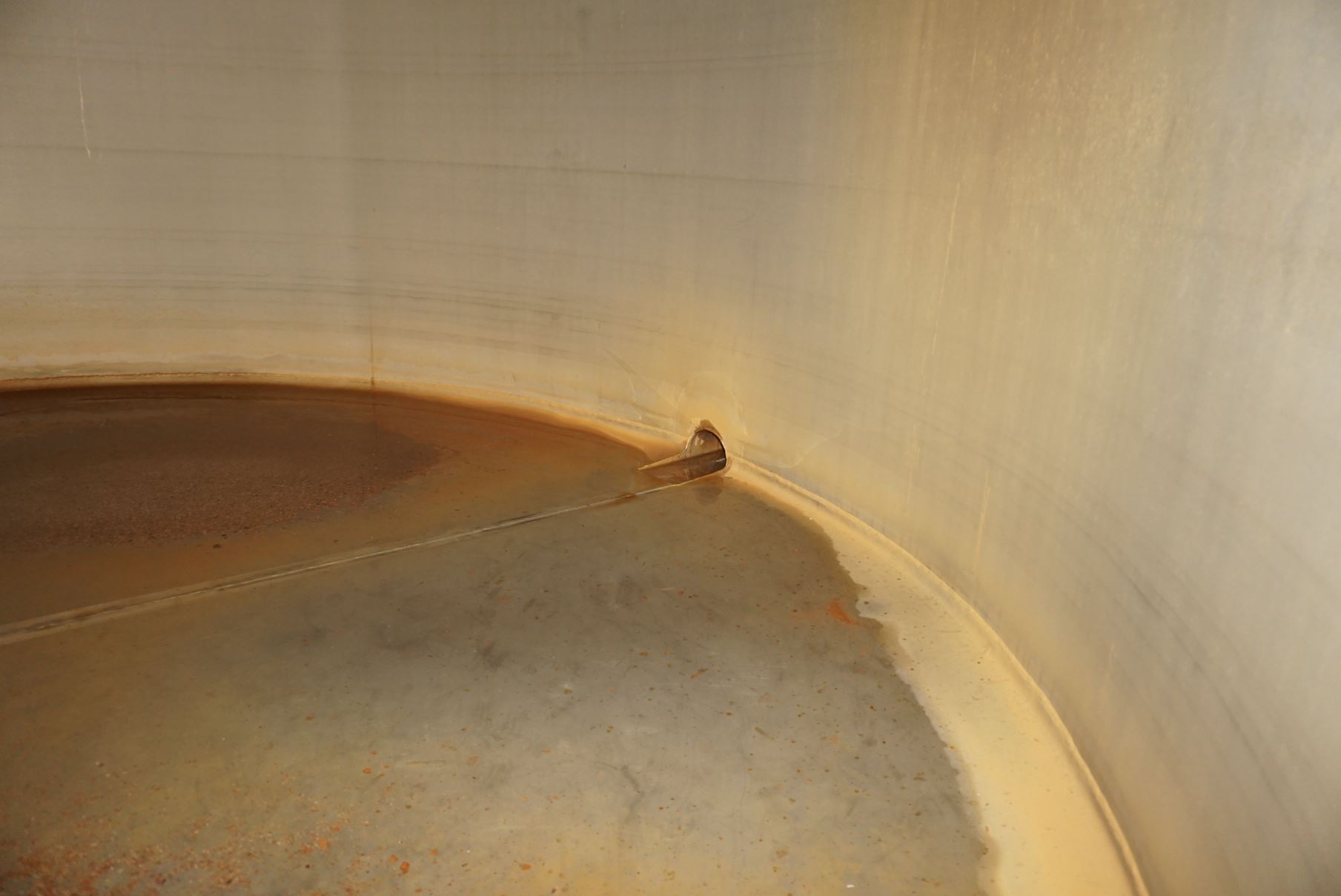

  • Floor type

  • Inverted bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Concrete support skirt

  • Number of feet

  • 1 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Note

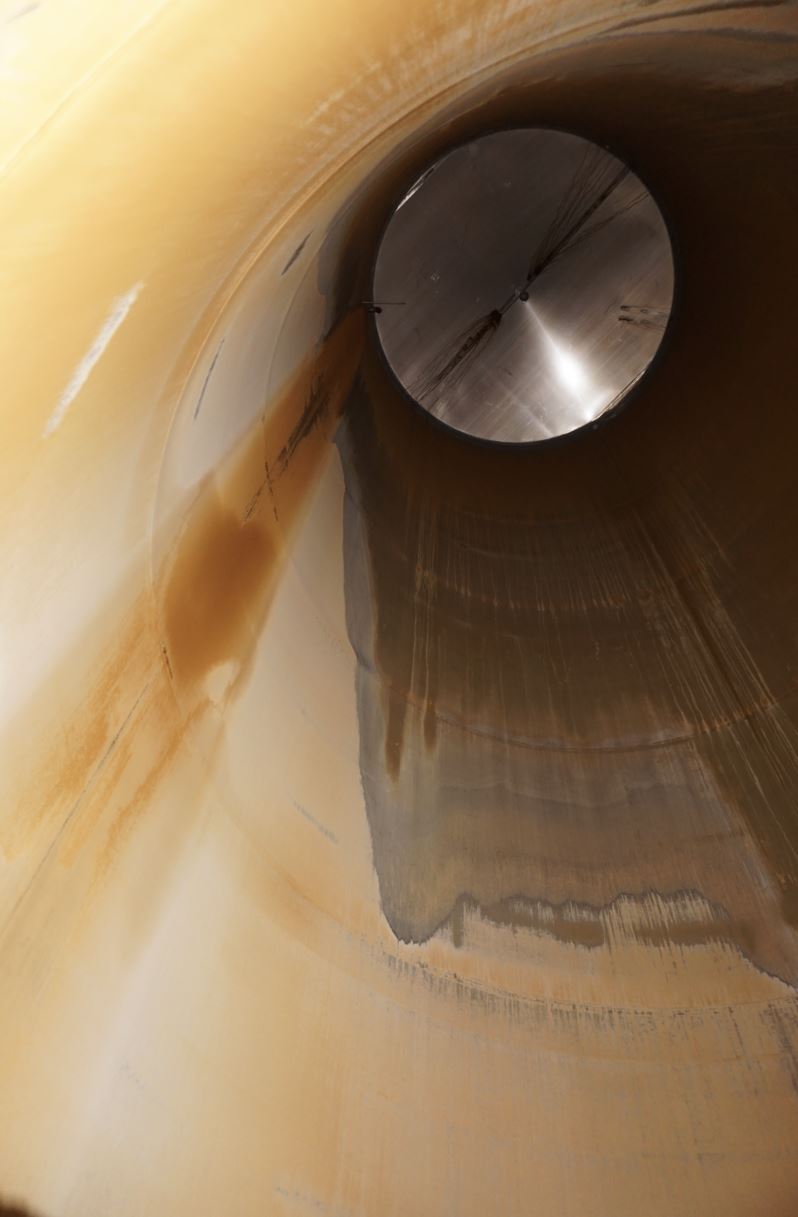

  • Innen leicht braune Verfärbung durch eisenhaltiges Wasser

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Hot water tank, Cold water tank,
