Product no. M-3129

Container 700 liters made of V2A isolated, used, standing

EUR 3.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 700.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

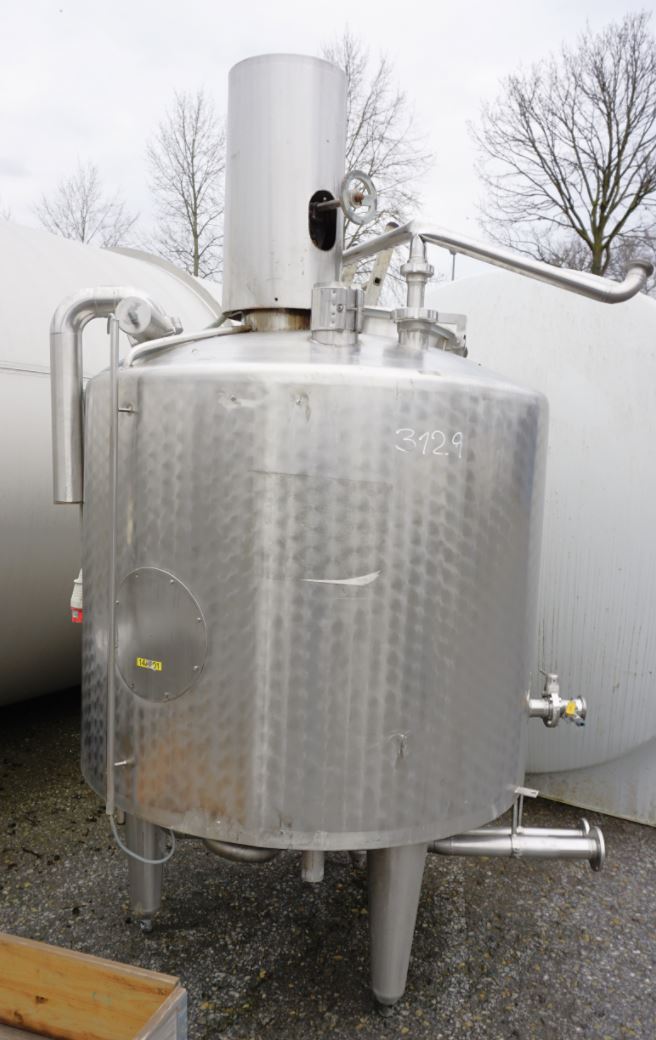

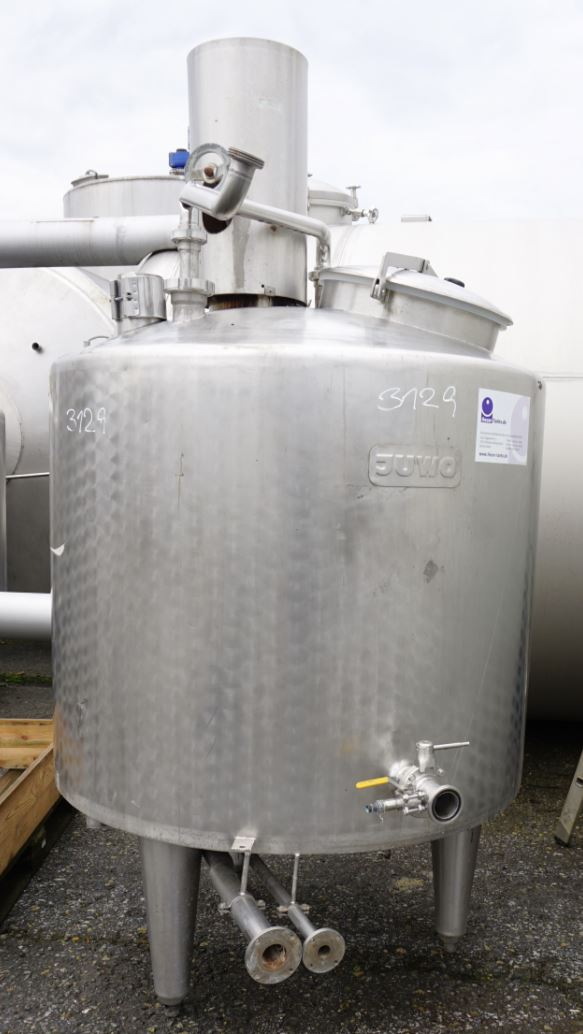

Container 700 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 700.00 litres. The diameter inside includes 1,000 mm.  Container 700 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 700,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.000 mm

  • External diameter

  • 1.200 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 500 mm

  • Total height

  • 2.300 mm

Design

  • Weight approx.

  • 600,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Dished

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

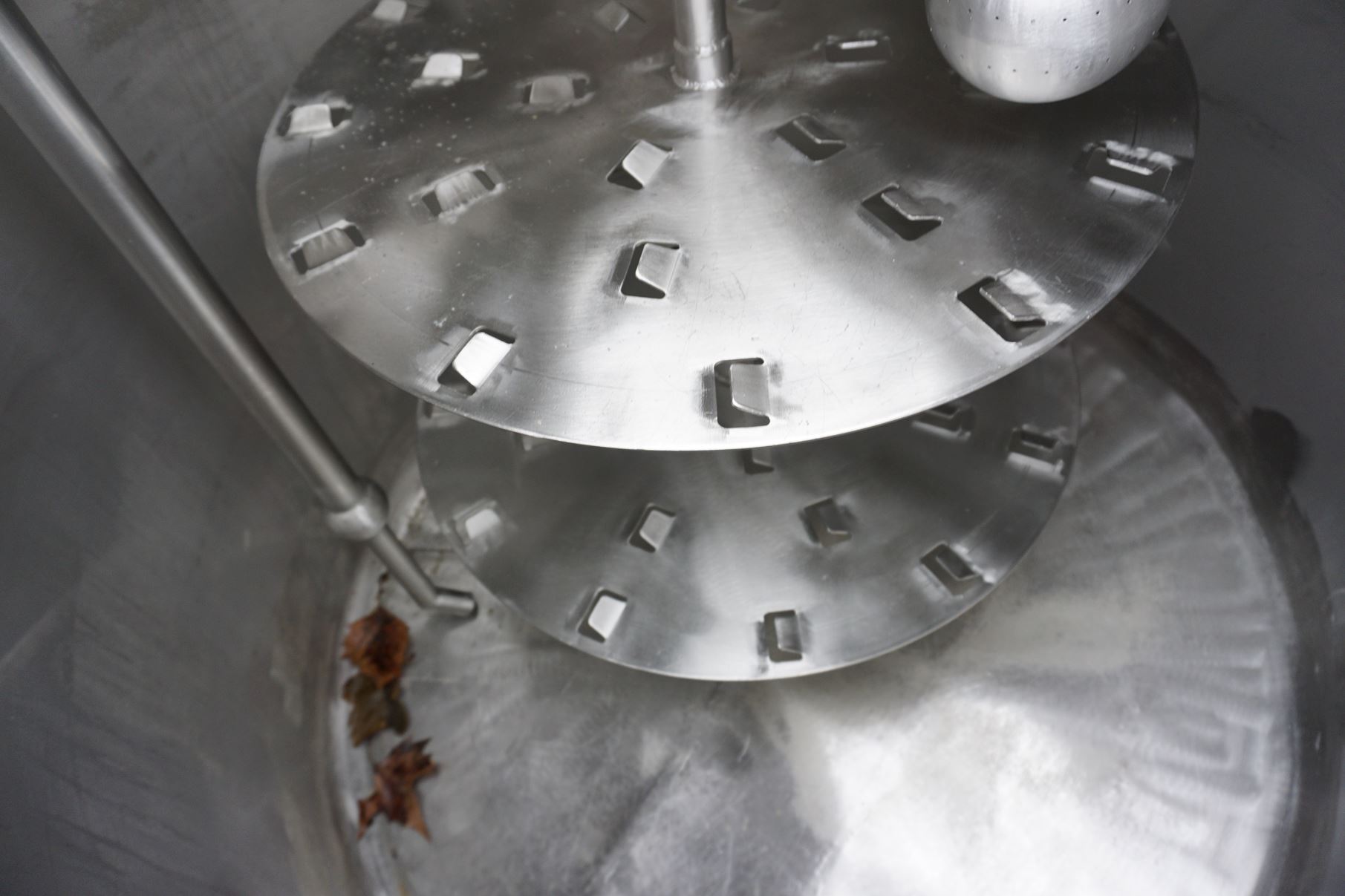

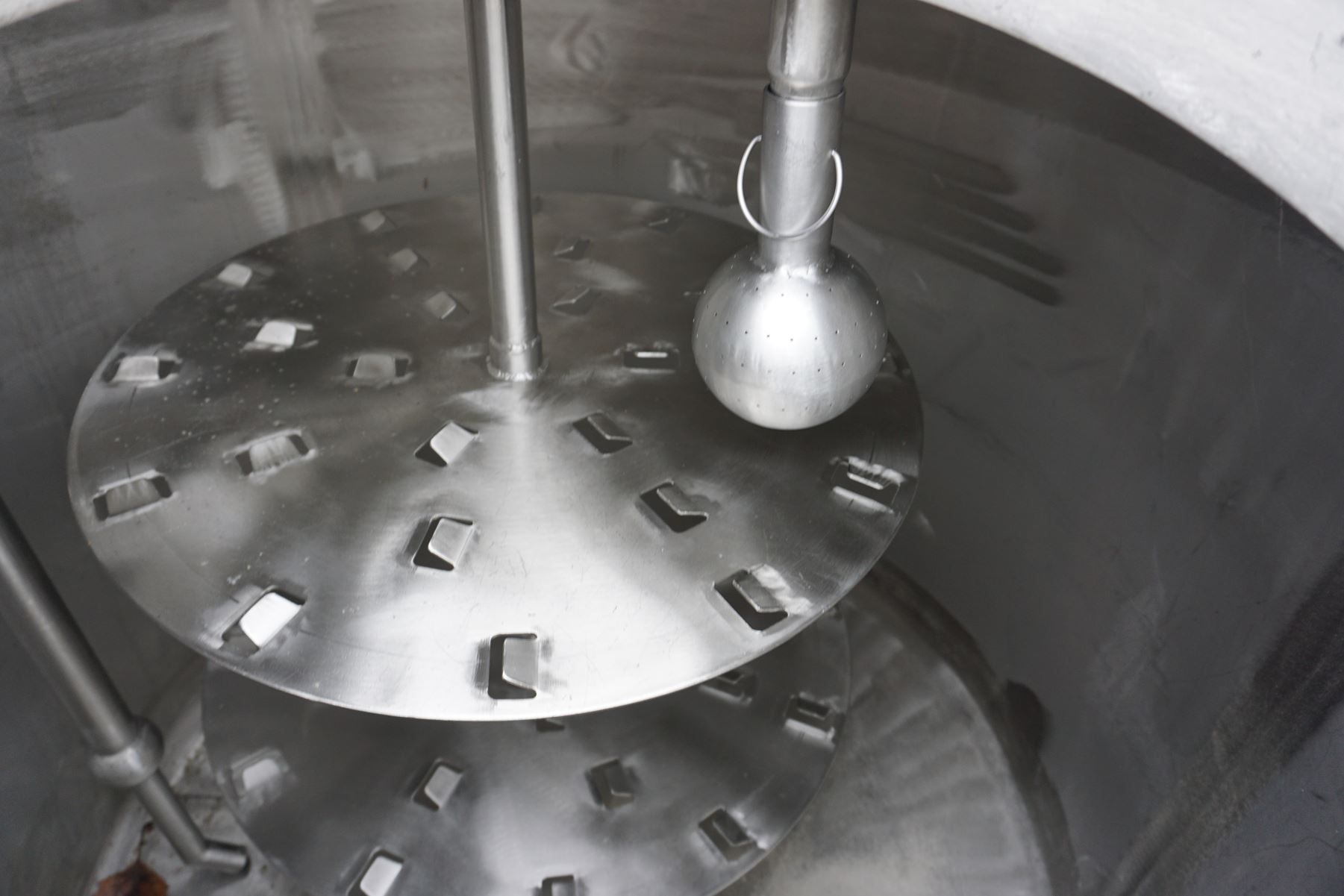

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Disc agitator

  • Note on agitator

  • RW-Antrieb sollte ggf. bauseits überprüft/überholt werden.

  • Agitator position

  • Head central

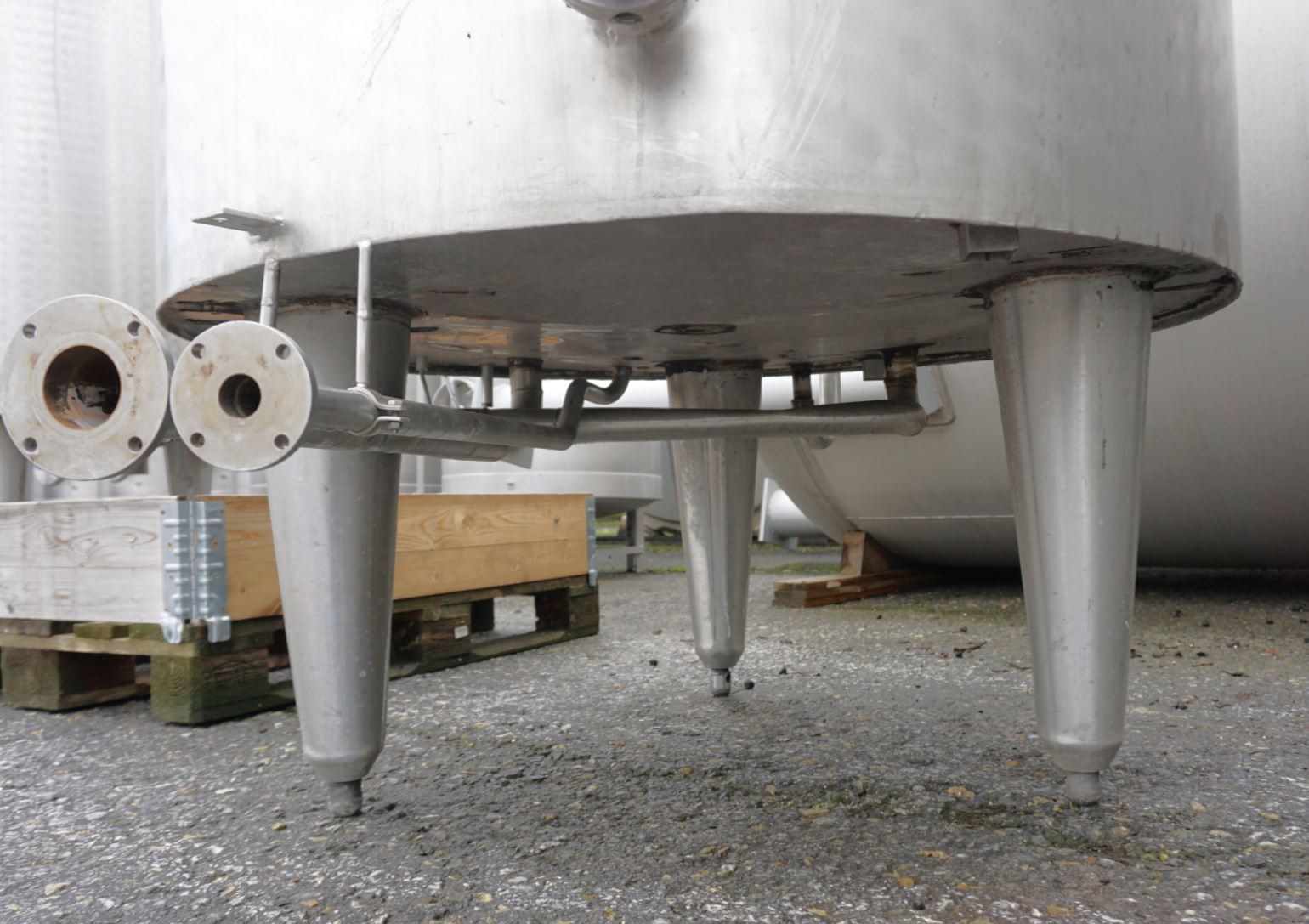

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

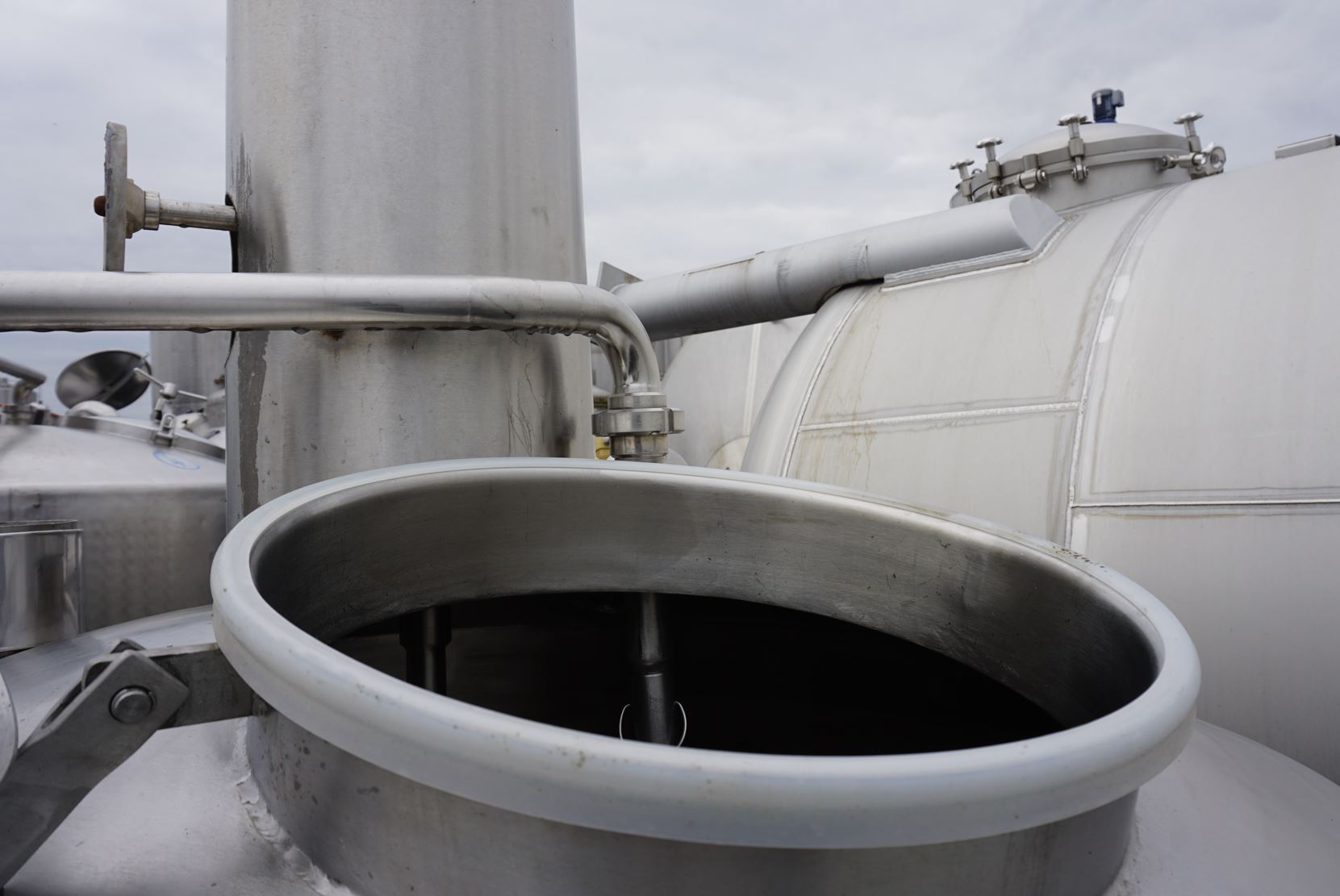

  • Manway position

  • In head

  • Cleaning/CIP nozzle

  • in head

Other

  • Note

  • Vorhandene Temperiermantel nicht geprüft und in Preisbewertung nicht berücksichtigt.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Milk tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
