Product no. M-2736

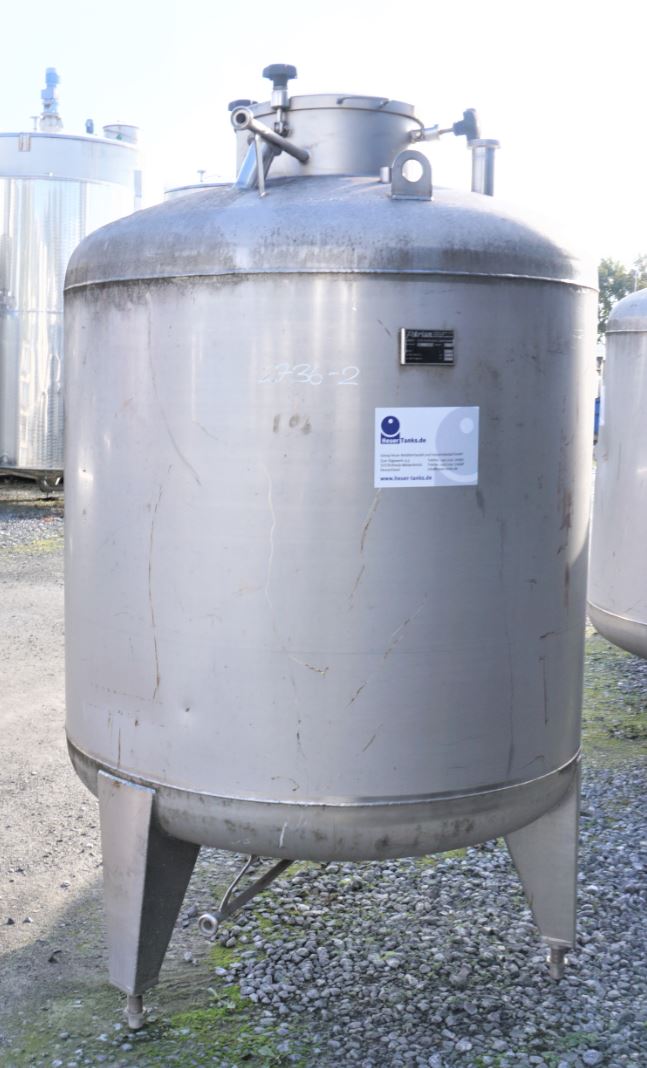

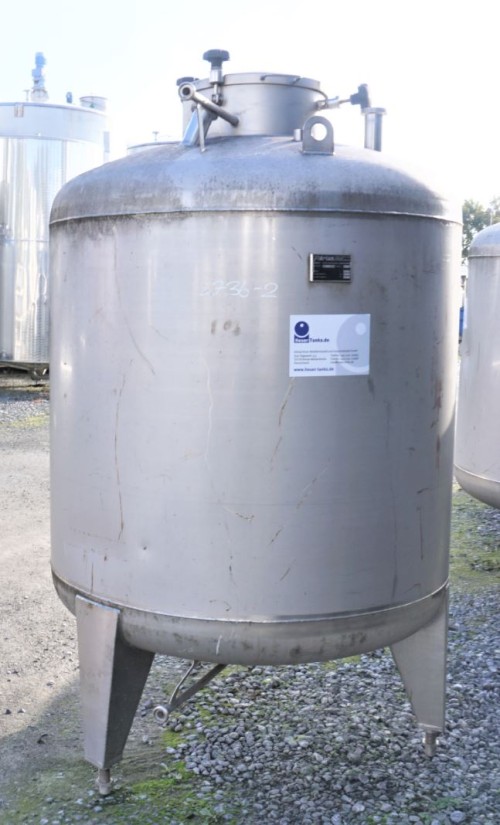

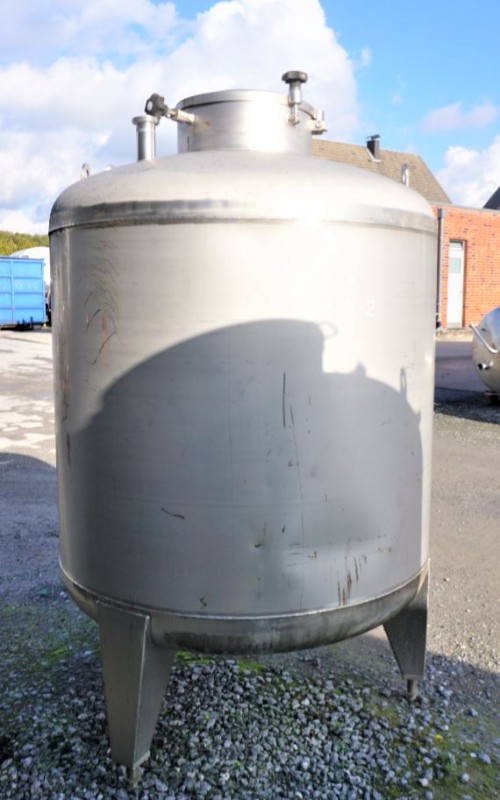

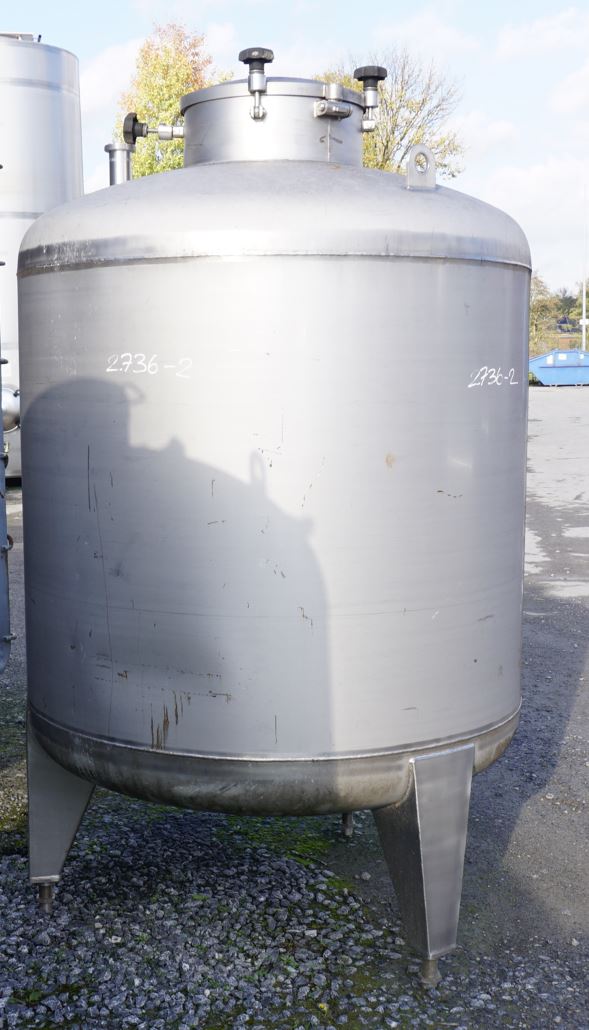

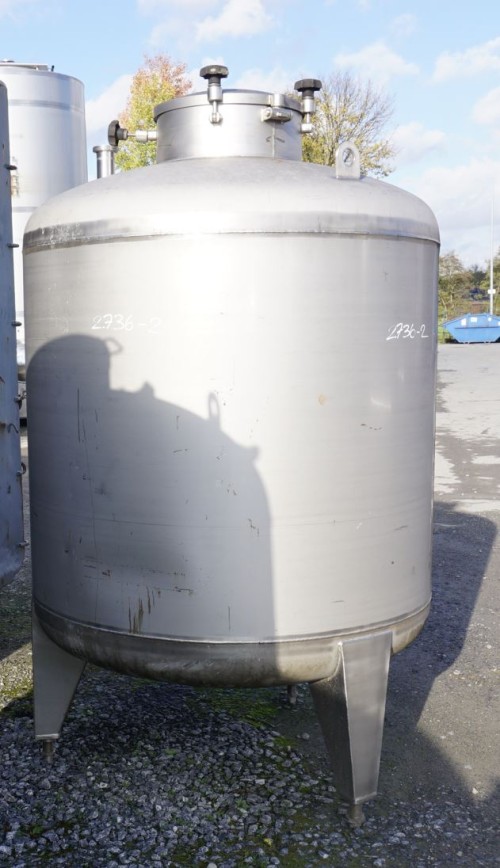

Pressure tank 1.520 liters made of V2A, single-walled, used, standing

EUR 3.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,520.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 1.520 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,520.00 litres.  Pressure tank 1.520 liters made of V2A, single-walled, used was last used in the following area: Unknown. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Note on material

  • Oberboden 1.4571 V4A

  • Volume approx.

  • 1.520,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1998

  • Manufacturer

  • Adrian

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.200 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 600 mm

  • Total height

  • 2.150 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

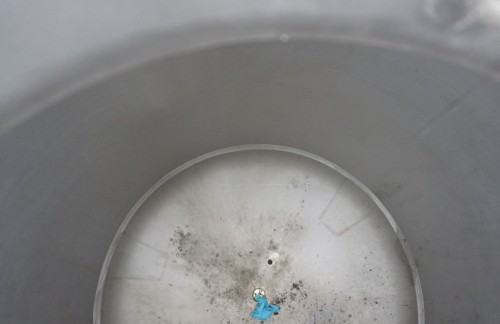

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,90 bar

  • Product chamber operating under-pressure

  • -1 bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höheverstellbar

Fixtures and fittings

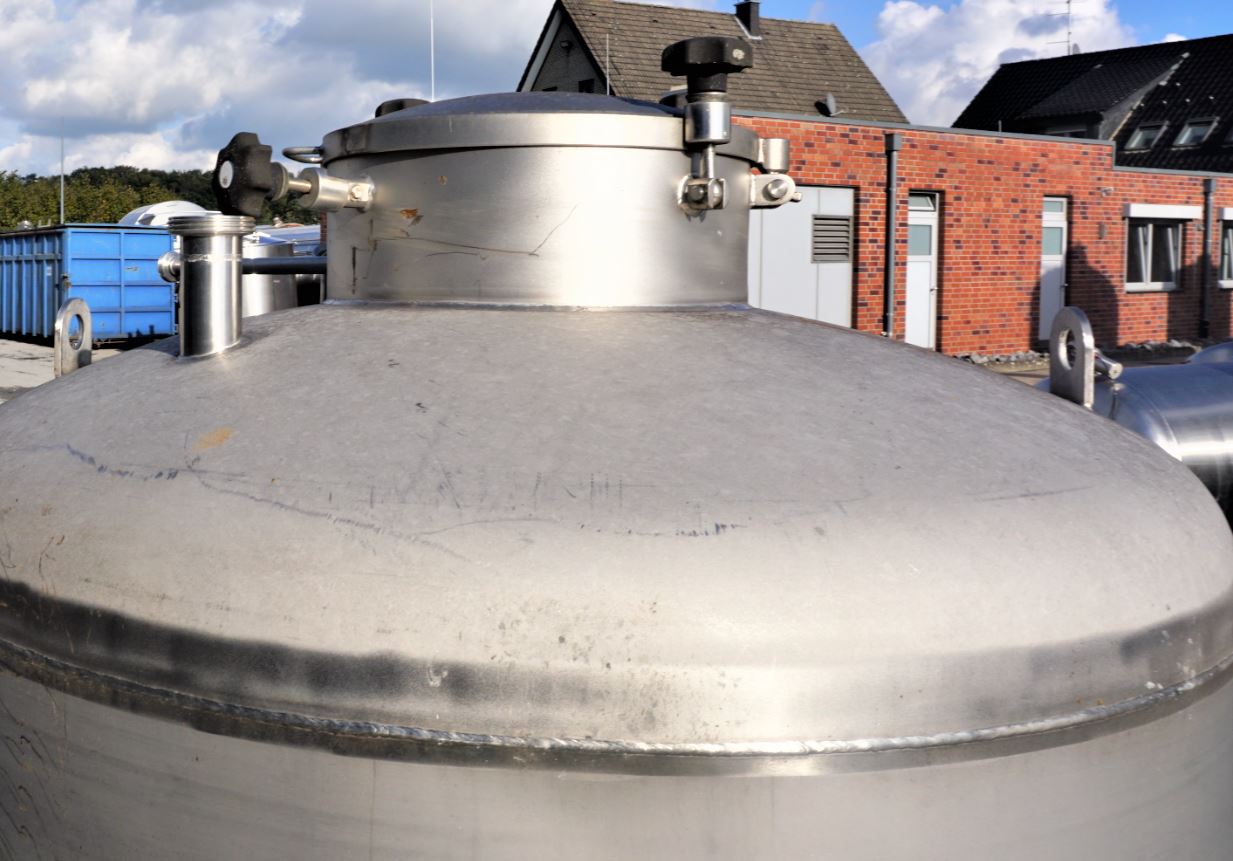

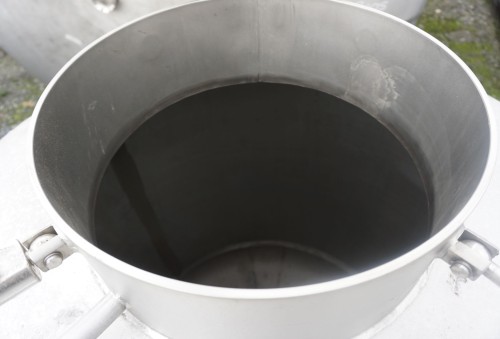

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 2xDN50 (piece)

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Unknown

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank, Cold water tank,
